Description
Overview

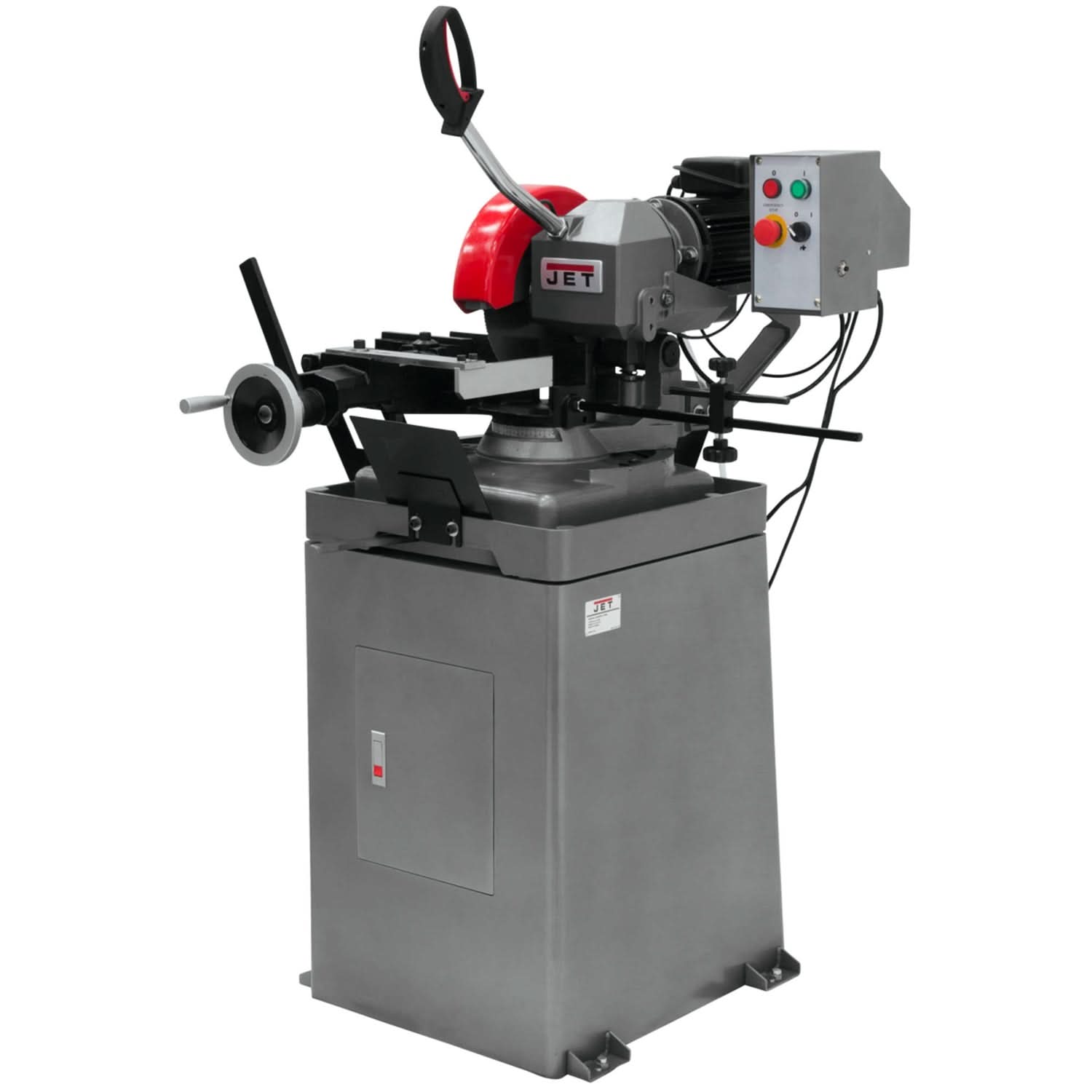

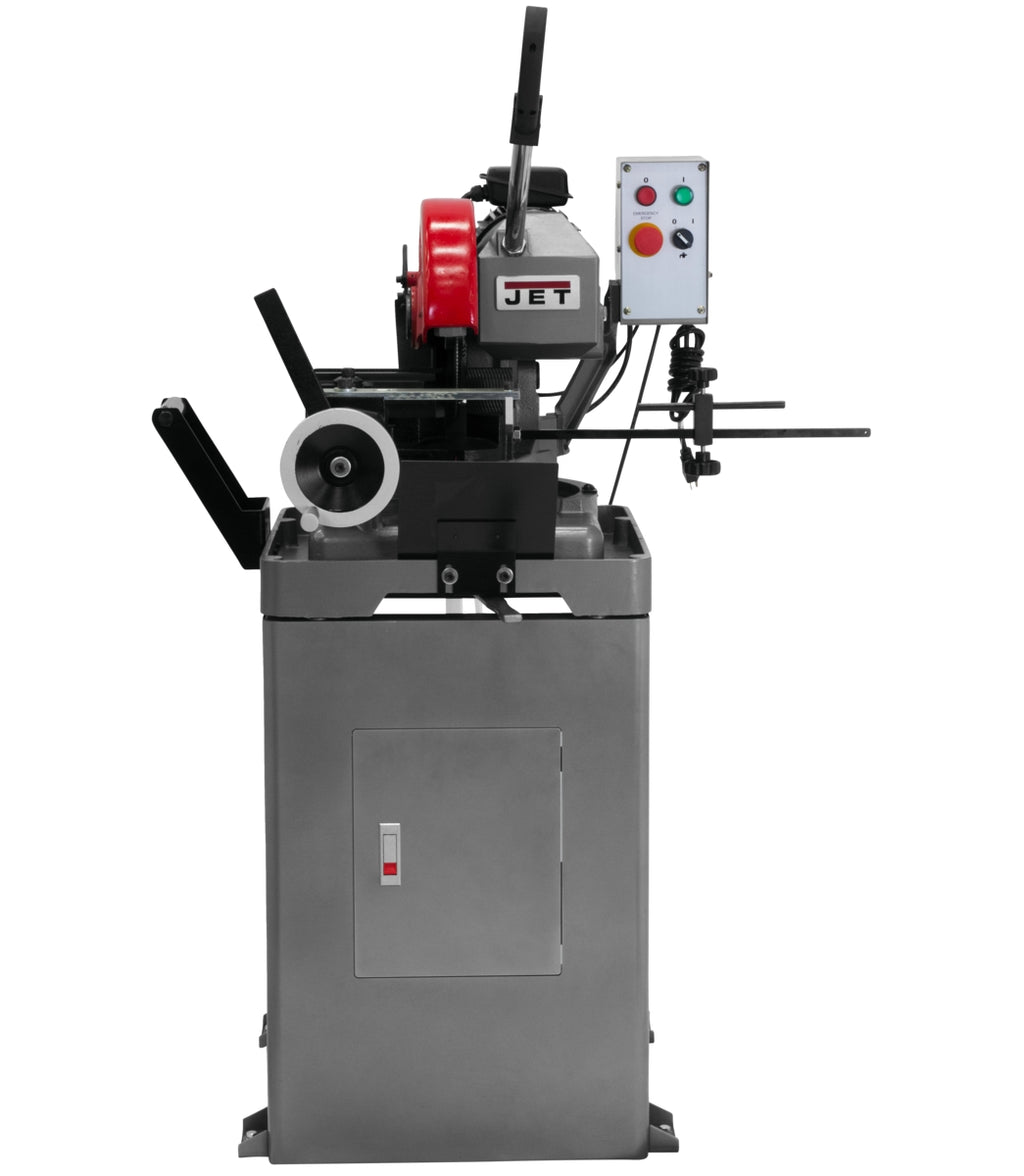

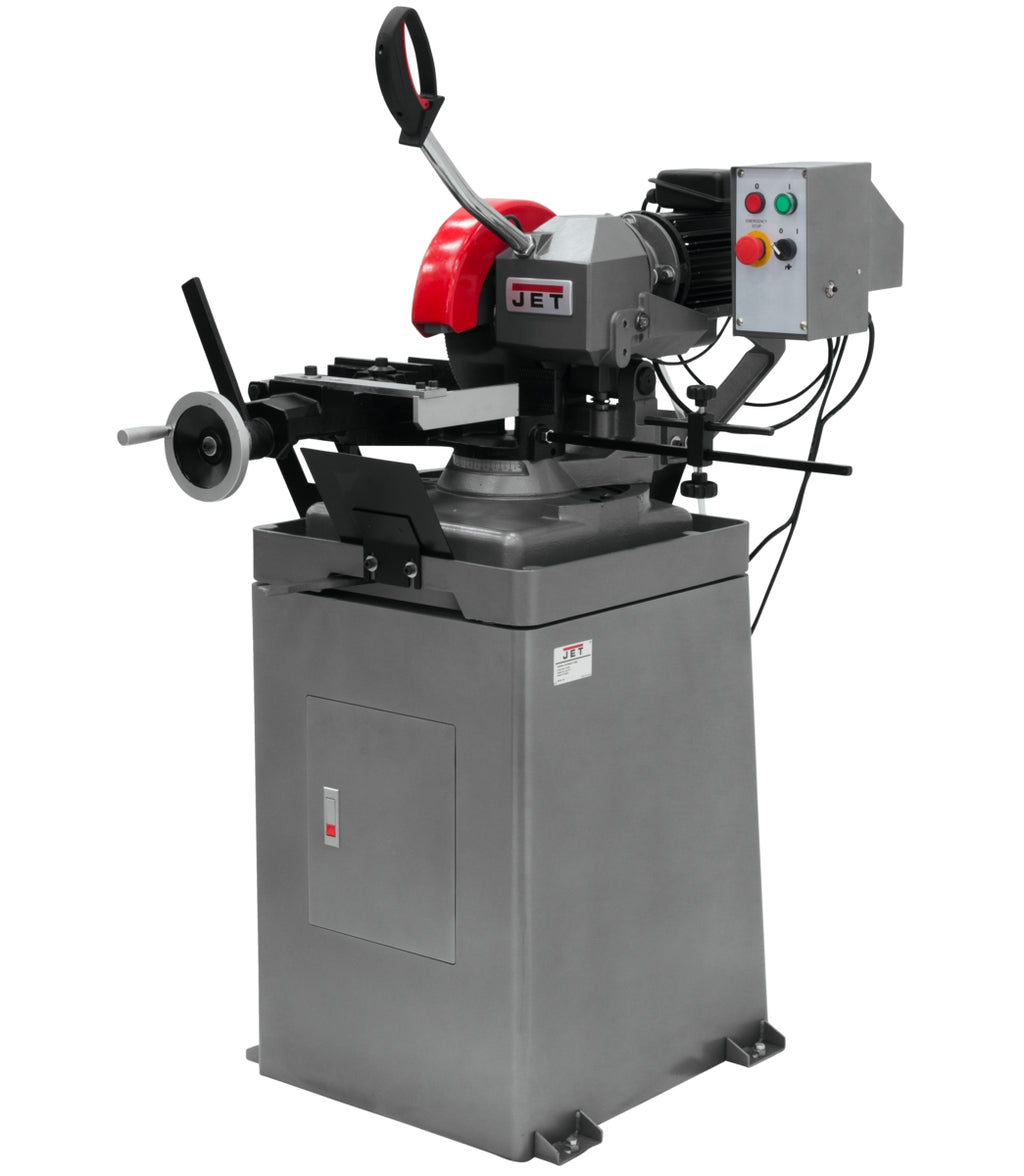

The JET CS-275 is a 275mm manual cold saw built for ferrous work, sized for smaller machine shops and fabrication crews cutting steel, stainless, and tough alloys. It runs a 1-1/2 HP single-phase motor, prewired for 115V and switchable to 230V, on a cast iron frame.
Cold sawing gives a clean, burr-free cut with no heat discoloration, so stock comes off the saw ready for welding or machining. A blade drive reduction gearbox runs in an oil bath for durability, and a flood coolant system with a 1-1/3 gallon reservoir and flow control feeds the blade to extend its life.
Key Features
- 275mm ferrous capacity - a 10 inch blade for steel, stainless, and tough-to-cut alloys.
- Single-phase 115V power - prewired for 115V and switchable to 230V, so it runs on common shop service.
- Oil-bath reduction gearbox - the blade drive runs in an oil bath, with a hardened worm shaft and bronze worm wheel transmitting torque to the blade.
- Flood coolant system - a 1-1/3 gallon reservoir and pump with flow control feeds coolant at the cut to extend blade life.
- Cam-action vise - quick clamping with an adjustable gib and material support bar for burr-free cuts.
- Mitering to 45 degrees - quick tension and release stops at 45 right and 45 left.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Manual Cold Saw |
| Style | Ferrous |
| Blade Diameter | 275 mm |
| Solid Round at 90 Degrees | 3-19/64 in |
| Solid Round at 45 Degrees | 3-19/64 in |
| Solid Square at 90 Degrees | 2-1/2 x 2-1/2 in |
| Solid Rectangle at 90 Degrees | 3-3/32 x 2 in |
| Maximum Vise Opening | 4 in |
| Motor | 1-1/2 HP |
| Power | 115/230V / Single Phase (prewired 115V) |
| Weight | 390 lb (gross) |
| Dimensions | 36 x 38 x 25 in |
| Warranty | 2 Year |
How It Compares
| Model | Blade | Style | Solid Round at 90 | Power |
|---|---|---|---|---|
| CS-275 | 275 mm | Ferrous | 3-19/64 in | 115V 1Ph |
| CS-315 | 315 mm | Ferrous | 3-1/2 in | 230V 3Ph |
| J-FK350-2K | 350 mm | Ferrous | 3 in | 230V 3Ph |
Key Facts
- Cuts solid round up to 3-19/64 in at both 90 and 45 degrees.
- Single-phase motor prewired for 115V, switchable to 230V.
- Flood coolant runs from a 1-1/3 gallon reservoir with flow control.
- Backed by a 2 Year JET warranty.
Who It's For
This saw fits smaller shops and crews that need a ferrous cold saw on single-phase power. The 115V prewiring lets it run on common shop service, and it can be switched to 230V where that service is available.
What's Included
- The CS-275 cold saw with cast iron frame
- Cam-action vise with material support bar
- Flood coolant system with 1-1/3 gallon reservoir and pump
- Adjustable material depth stop
- Owner and maintenance documentation
Shipping and Freight
This saw ships LTL freight at roughly 390 lb gross on a pallet. Plan for liftgate or forklift offload and confirm the path into the shop before delivery. Reach out for a freight quote if the destination is residential or has limited dock access.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery sold to professional shops and serious builders. The cold saw line carries JET's full-service two year warranty.
Frequently Asked Questions
What materials is the CS-275 built to cut?
It is a ferrous cold saw set up for steel, stainless, and tough-to-cut alloys. Run the correct ferrous blade for the material.
What is the maximum cutting capacity?
It cuts solid round up to 3-19/64 in at 90 and 45 degrees, and solid square up to 2-1/2 x 2-1/2 in at 90 degrees. The vise opens to 4 in.
What power does it require?
The motor is 1-1/2 HP single phase. It is prewired for 115V and can be switched to 230V. Confirm your service before installation.
Does it have a coolant system?
Yes. It uses a flood coolant system with a 1-1/3 gallon reservoir, pump, and flow control to extend blade life.
How is it shipped?
It ships LTL freight on a pallet at about 390 lb gross. Plan for forklift or liftgate offload at delivery.
Talk to a specialist about power, shop fit, and freight before you order. Browse more fabrication and metalworking equipment and the full range of JET Tools.
