Description
Overview

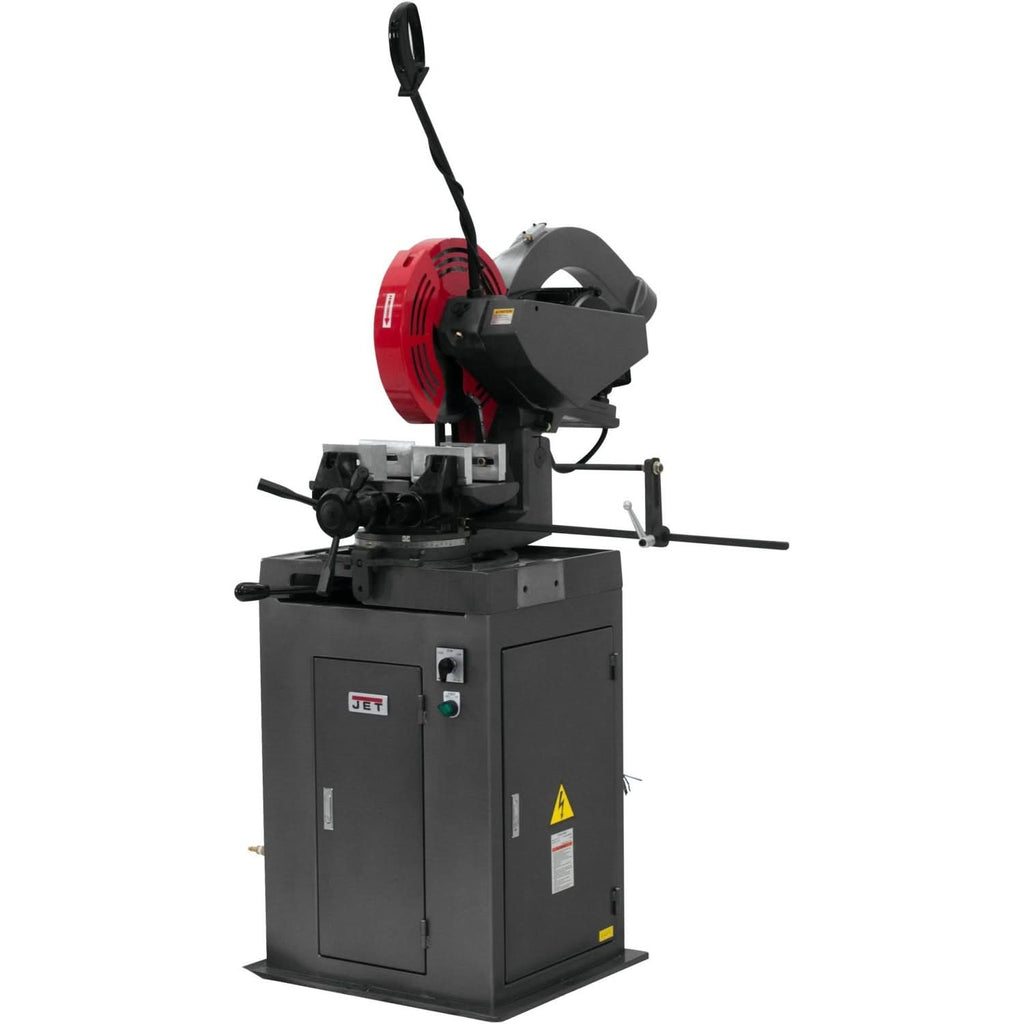

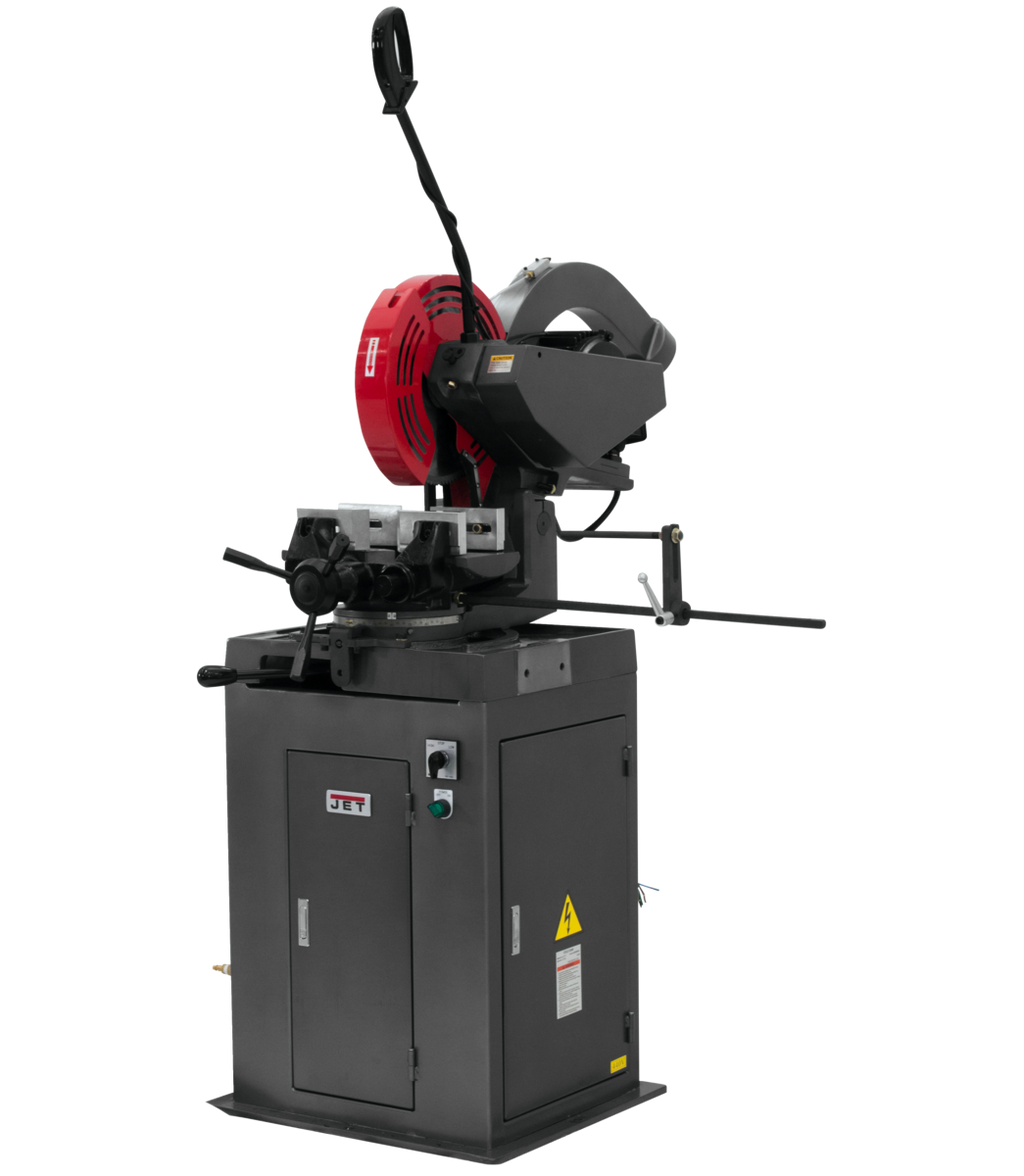

The JET J-CK350-2K is a 350mm manual cold saw built for non-ferrous work, sized for machine shops and fabrication crews cutting aluminum, brass, copper, and similar alloys. It runs a 2 HP, 230V three-phase motor and ships with a high-speed NF-350mm blade.
Cold sawing keeps the cut cool and the edge clean, so parts come off the saw burr-free and ready for the next operation. A double self-centering vise grips the stock from both sides, and a pneumatic mist coolant system feeds the blade for longer tool life on production runs.
Key Features
- 350mm high-speed non-ferrous blade - included from the factory and matched to the saw for clean cuts in aluminum and soft alloys.
- Double self-centering vise - adjustable gibs clamp the material from both sides to hold position for burr-free cuts.
- Pneumatic mist coolant system - delivers coolant at the cut to extend blade life and keep chips clear.
- 30 inch adjustable material stop - sets repeatable lengths for batch cutting.
- Two-piece blade guard - allows quick blade changes without removing the guards.
- Whole-hand trigger - a spring-loaded trigger starts and stops the cut for smoother control and added operator safety.
Specifications
| Brand | JET Tools |
|---|---|
| Type | Manual Cold Saw |
| Style | Non-Ferrous |
| Blade Diameter | 350 mm |
| Solid Round at 90 Degrees | 2 in |
| Solid Round at 45 Degrees | 1-11/16 in |
| Solid Square at 90 Degrees | 2 x 2 in |
| Tubing Round at 90 Degrees | 4-1/2 in |
| Tubing Round at 45 Degrees | 3-1/2 in |
| Maximum Vise Opening | 6 in |
| Motor | 2 HP |
| Power | 230V / 3 Phase |
| Weight | 725 lb (gross) |
| Dimensions | 40 x 48 x 40 in |
| Warranty | 2 Year |
How It Compares
| Model | Blade | Style | Solid Round at 90 | Power |
|---|---|---|---|---|
| J-CK350-2K | 350 mm | Non-Ferrous | 2 in | 230V 3Ph |
| J-FK350-2K | 350 mm | Ferrous | 3 in | 230V 3Ph |
| CS-315 | 315 mm | Ferrous | 3-1/2 in | 230V 3Ph |
Key Facts
- Cuts solid round up to 2 in at 90 degrees and tubing up to 4-1/2 in round.
- Runs a 2 HP, 230V three-phase motor.
- Ships with a high-speed 350mm non-ferrous blade and a 6 in maximum vise opening.
- Backed by a 2 Year JET warranty.
Who It's For
This saw fits shops cutting non-ferrous stock, aluminum extrusion, brass, and copper, where a clean cold cut matters more than a faster abrasive process. It needs a 230V three-phase service and shop air for the mist coolant system, so confirm both before installation.
What's Included
- The J-CK350-2K cold saw with cast iron frame
- High-speed NF-350mm blade
- Double self-centering vise and 30 inch material stop
- Pneumatic mist coolant system
- Owner and maintenance documentation
Shipping and Freight
This saw ships LTL freight at roughly 725 lb gross on a pallet. Plan for liftgate or forklift offload and confirm the path into the shop before delivery. Reach out for a freight quote if the destination is residential or has limited dock access.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery sold to professional shops and serious builders. The cold saw line carries JET's full-service two year warranty.
Frequently Asked Questions
What materials is the J-CK350-2K built to cut?
It is a non-ferrous cold saw set up for aluminum, brass, copper, and similar soft alloys. It ships with a high-speed 350mm non-ferrous blade matched to that work.
What is the maximum cutting capacity?
It cuts solid round up to 2 in and solid square up to 2 x 2 in at 90 degrees, and round tubing up to 4-1/2 in. The vise opens to 6 in.
What power does it require?
The motor is rated 2 HP on 230V three-phase power. Confirm your service before installation.
Does it use coolant?
Yes. It uses a pneumatic mist coolant system, which feeds a fine coolant mist at the blade and suits non-ferrous cutting. The saw needs shop air to run it.
How is it shipped?
It ships LTL freight on a pallet at about 725 lb gross. Plan for forklift or liftgate offload at delivery.
