Description
Overview

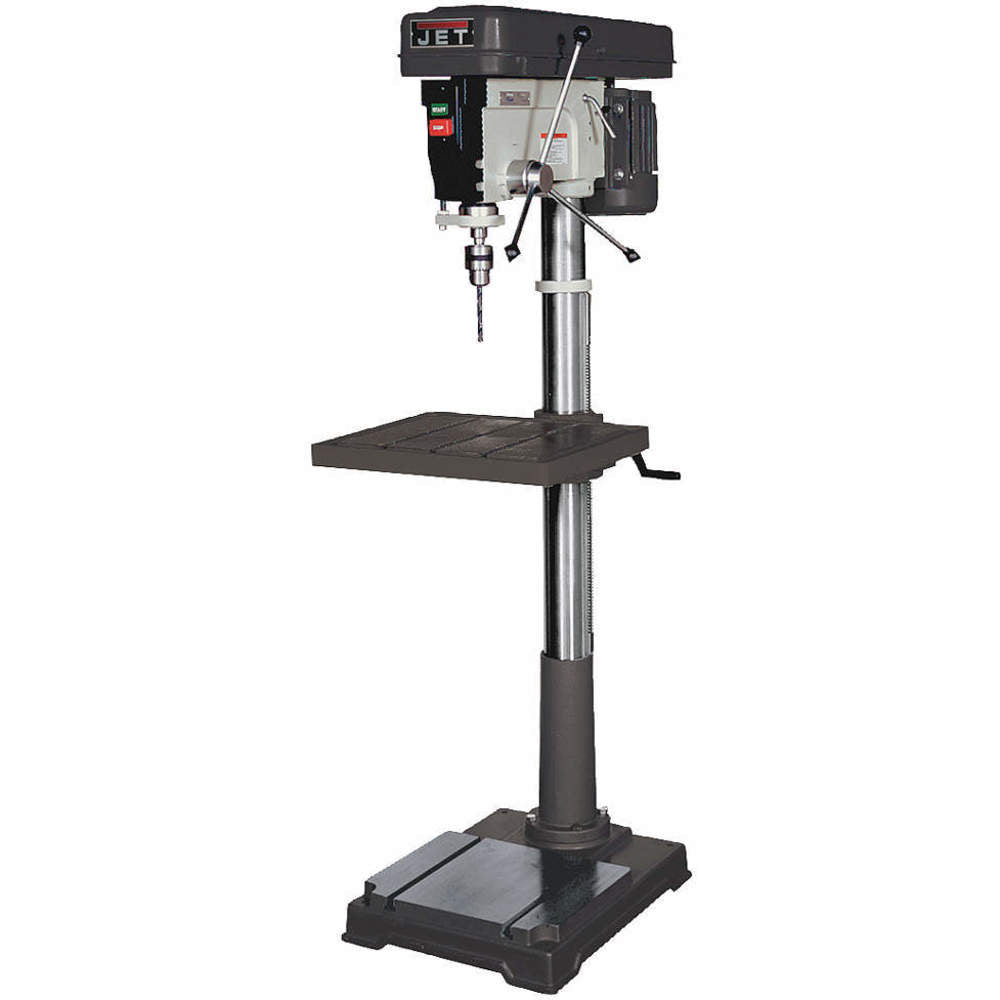

The JET J-2550 is a 20 inch floor-model drill press with a 1 HP motor on 115/230V single-phase power and 12 spindle speeds from 150 to 4,200 RPM. It is built for shops that want a stable, accurate drill press for general hole work.
The 20 inch swing reaches the center of a 20 inch circle, and the MT-3 spindle carries a 4-3/4 inch stroke for deep-hole drilling. The enclosed spindle assembly rides on four permanently lubricated ball bearings for precision, the cast iron head and large ground steel column hold everything square, and the large production table tilts 45 degrees for angled work.
Key Features
- 20 inch swing - drills to the center of a 20 inch circle.
- 1 HP, 115/230V single-phase motor - runs on standard shop service.
- 12 spindle speeds, 150 to 4,200 RPM - wide belt-drive range for varied material and bit size.
- 4-3/4 inch quill stroke - supports deep-hole drilling on the MT-3 spindle.
- Four ball-bearing spindle - enclosed assembly on four permanently lubricated ball bearings for accuracy.
- Cast iron head and 45 degree tilting table - large ground steel column and production table for stable, angled setups.
Specifications
| Brand | JET |
|---|---|
| Type | Floor Model Drill Press |
| Swing | 20 in (drills to center of 20 in circle) |
| Spindle Taper | MT-3 |
| Spindle Travel | 4-3/4 in |
| Number of Speeds | 12 |
| Spindle Speed Range | 150 to 4,200 RPM |
| Drilling Capacity | 3/4 in cast iron, 5/8 in mild steel |
| Table Size | 18-11/16 x 16-3/4 in |
| Motor | 1 HP |
| Power | 115/230V / Single Phase |
| Weight | 304 lb (gross) |
| Dimensions | 26 x 56.5 x 13 in (W x D x H) |
| Warranty | 2 Year |
How It Compares
| Attribute | J-2550 | Drilling Mode | Speed Selection |
|---|---|---|---|
| Swing | 20 in | 3/4 in cast iron | 12 speeds |
| Spindle | MT-3 | 5/8 in mild steel | 150 to 4,200 RPM |
| Travel | 4-3/4 in | floor model | belt drive |
Key Facts
- 20 inch swing reaches the center of a 20 inch circle.
- Twelve spindle speeds span 150 to 4,200 RPM on a belt drive.
- Enclosed spindle runs on four permanently lubricated ball bearings.
- Rated to drill 3/4 inch in cast iron and 5/8 inch in mild steel, backed by a two year warranty.
Who It's For
This drill press fits a home shop, a school shop, or a maintenance bench that needs a dependable floor-model unit for general drilling. As a floor model it requires open floor space, and it runs on common single-phase service.
What's Included
- J-2550 drill press head, column, and base
- Large production worktable
- Telescoping safety spindle guard
- Owner and maintenance documentation
Shipping and Freight
This drill press ships LTL freight at a gross weight of 304 lb. Plan for liftgate or forklift offload and confirm bay access before the pallet arrives. Reach out for a freight quote if you need a delivery appointment or residential service.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery sold to professional and home shops. The J-2550 is part of its metalworking drilling range and carries the JET two year warranty.
Frequently Asked Questions
What is the spindle speed range?
The J-2550 offers 12 spindle speeds ranging from 150 to 4,200 RPM, set by moving the belt.
How large a hole can it drill?
It is rated to drill up to 3/4 inch in cast iron and 5/8 inch in mild steel.
What spindle taper does it use?
It uses an MT-3 Morse taper spindle. The enclosed spindle assembly runs on four permanently lubricated ball bearings.
What power does it require?
The 1 HP motor runs on 115/230V single-phase power. Confirm your shop service and wiring before installation.
Does the table tilt?
Yes. The large production table tilts 45 degrees for angled drilling.
