Description
Overview

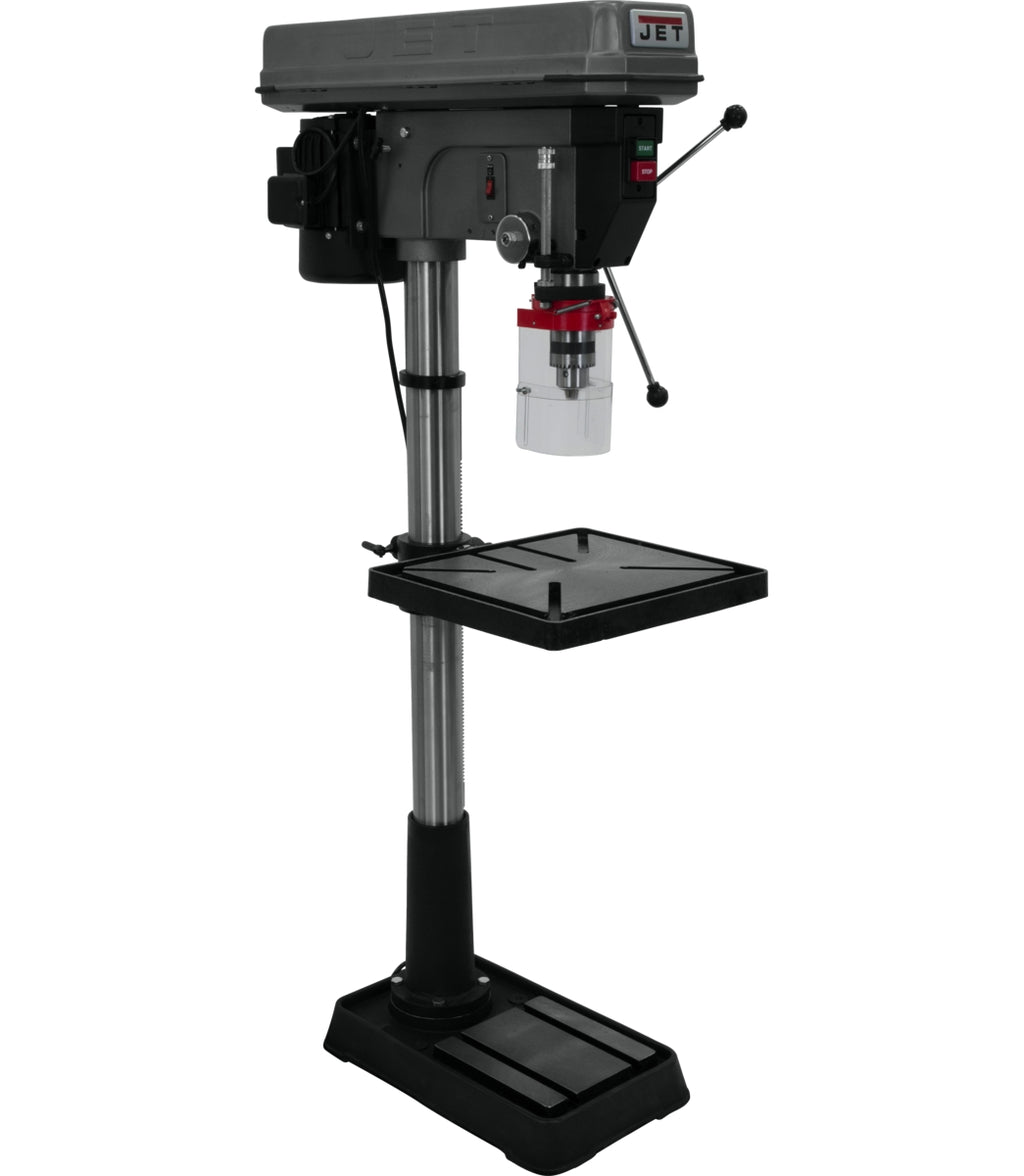

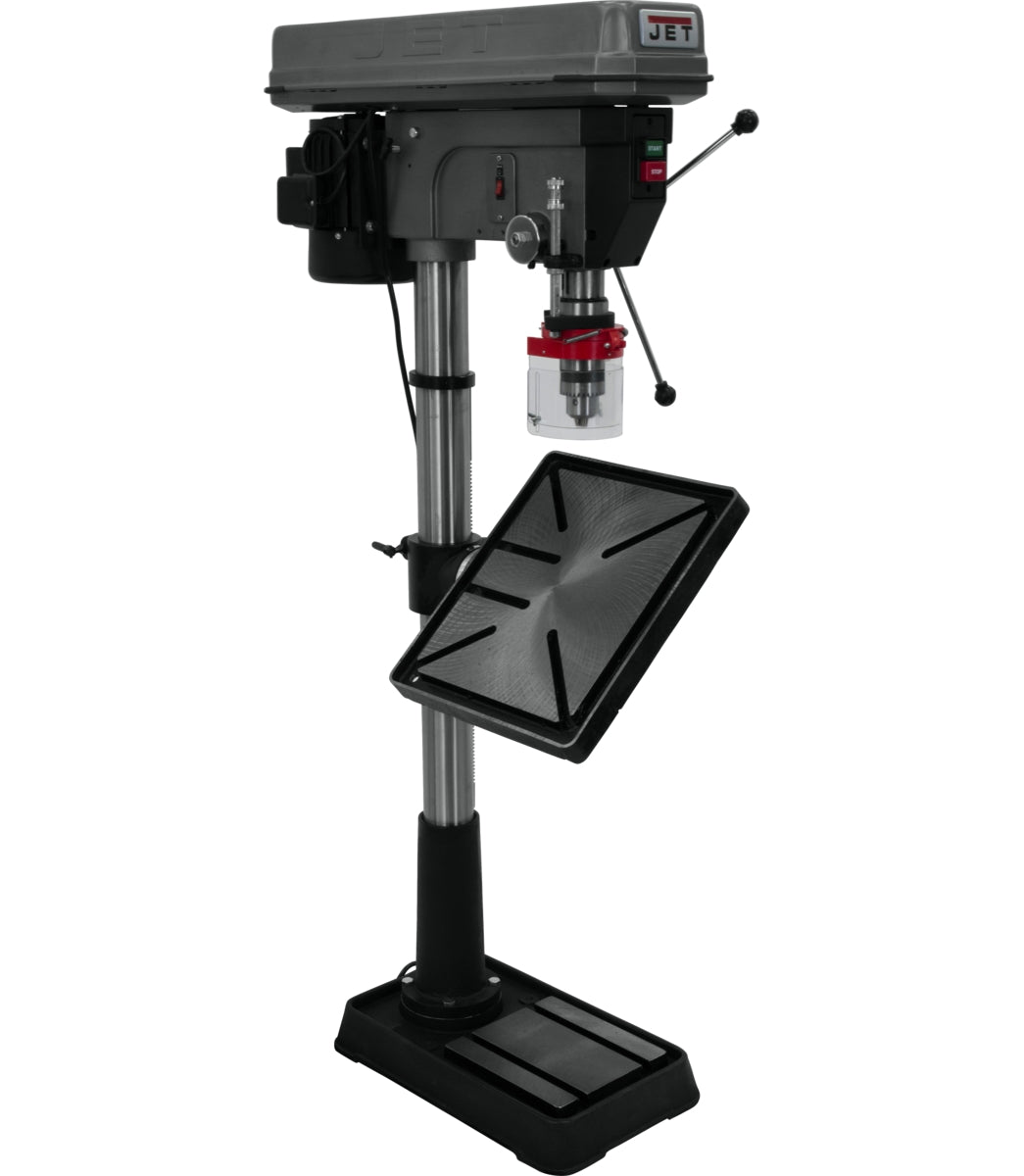

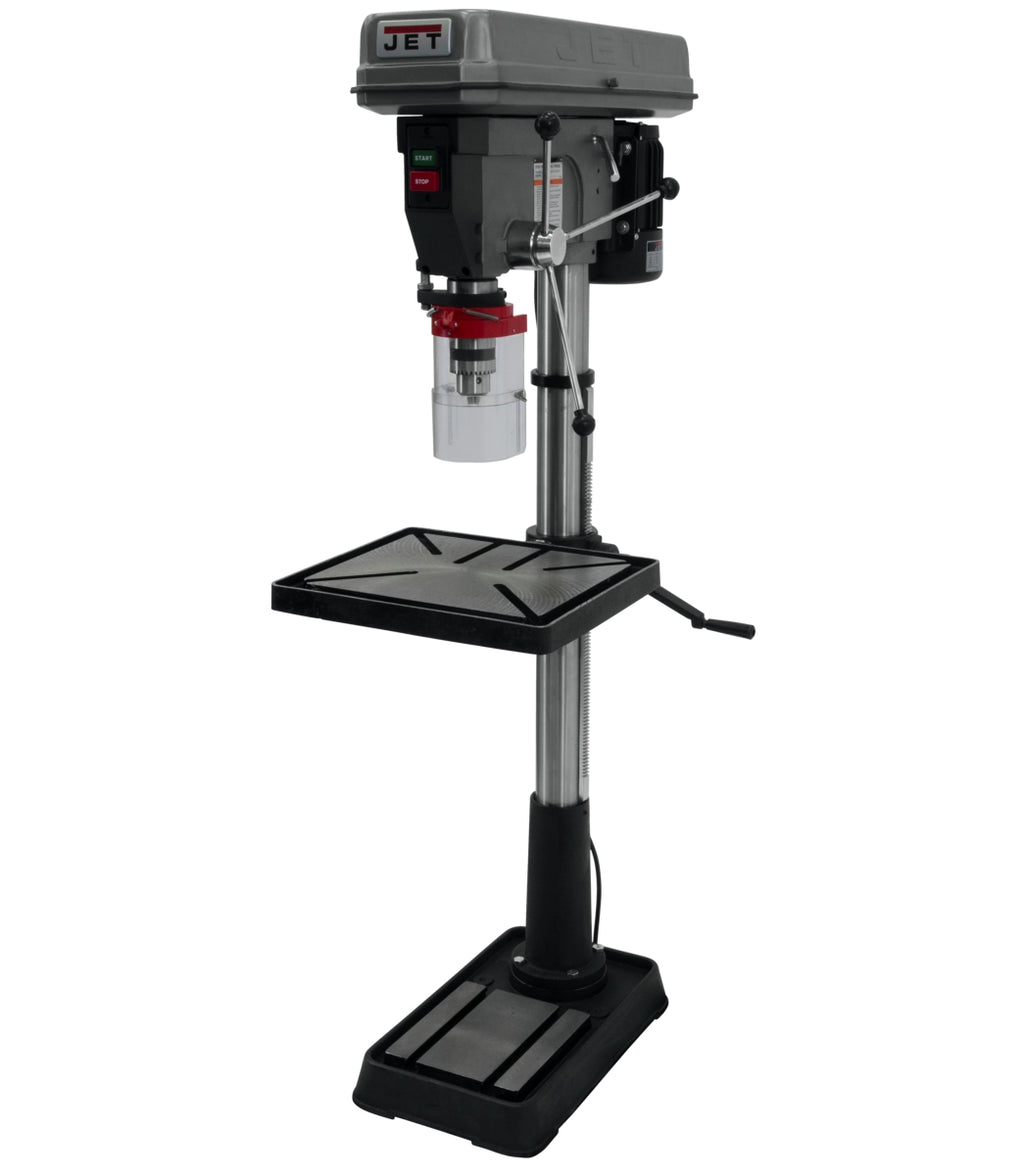

The JET JDP-20MF is a 20 inch floor-model drill press with a 1-1/2 HP motor on 115/230V single-phase power and a variable speed range of 150 to 4,200 RPM. It is built for shops that need accurate, repeatable hole work across a range of materials.
The 20 inch swing reaches the center of a 20 inch circle, and the MT-3 spindle carries 4-5/8 inches of quill travel for deeper drilling. Twelve spindle speeds and a quick-adjustment motor mount let you change feeds without fighting the belts, while the cast iron table and column hold the work steady for clean results.
Key Features
- 1-1/2 HP, 115/230V single-phase motor - drives a 20 inch drill press on standard shop service.
- 12 spindle speeds, 150 to 4,200 RPM - a wider speed range than many machines in its class for varied material.
- MT-3 spindle with 4-5/8 inch travel - Morse taper 3 spindle and quill stroke for deeper holes.
- 1 inch cast iron drilling capacity - rated to 1 inch in cast iron and 3/4 inch in mild steel.
- Quick adjustment motor mount - speeds up belt changes for spindle speed selection.
- Telescoping safety spindle guard - shields the rotating spindle during operation.
Specifications
| Brand | JET |
|---|---|
| Type | Floor Model Drill Press |
| Swing | 20 in (drills to center of 20 in circle) |
| Spindle Taper | MT-3 |
| Spindle Travel | 4-5/8 in |
| Number of Speeds | 12 |
| Spindle Speed Range | 150 to 4,200 RPM |
| Drilling Capacity | 1 in cast iron, 3/4 in mild steel |
| Table Size | 18-1/2 x 16 in |
| Motor | 1-1/2 HP |
| Power | 115/230V / Single Phase |
| Weight | 325 lb (gross) |
| Dimensions | 26 x 58 x 19 in (W x D x H) |
| Warranty | 2 Year |
How It Compares
| Attribute | JDP-20MF | Drilling Mode | Speed Selection |
|---|---|---|---|
| Swing | 20 in | 1 in cast iron | 12 speeds |
| Spindle | MT-3 | 3/4 in mild steel | 150 to 4,200 RPM |
| Travel | 4-5/8 in | floor model | belt drive |
Key Facts
- 20 inch swing reaches the center of a 20 inch circle.
- Twelve spindle speeds span 150 to 4,200 RPM, a wide range for this class.
- Rated to drill 1 inch in cast iron and 3/4 inch in mild steel.
- MT-3 spindle with 4-5/8 inch quill travel, backed by a two year warranty.
Who It's For
This drill press fits a fabrication shop, a maintenance department, or a serious home shop that needs accurate hole work in steel and cast iron. As a floor model it requires open floor space rather than a bench, and it runs on common single-phase service.
What's Included
- JDP-20MF drill press head, column, and base
- Drill chuck and key
- Cast iron worktable
- Owner and maintenance documentation
Shipping and Freight
This drill press ships LTL freight at a gross weight of 325 lb. Plan for liftgate or forklift offload and confirm bay access before the pallet arrives. Reach out for a freight quote if you need a delivery appointment or residential service.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery sold to professional and home shops. The JDP drill press line is part of its metalworking drilling range and carries the JET two year warranty.
Frequently Asked Questions
What is the spindle speed range?
The JDP-20MF offers 12 spindle speeds from 150 to 4,200 RPM, set by moving the belt on the quick-adjustment motor mount.
How large a hole can it drill?
It is rated to drill up to 1 inch in cast iron and 3/4 inch in mild steel.
What spindle taper does it use?
It uses an MT-3 Morse taper spindle, which accepts MT-3 tooling and arbors.
What power does it require?
The 1-1/2 HP motor runs on 115/230V single-phase power. Confirm your shop service and wiring before installation.
Is a drill chuck included?
Yes. The drill chuck and key are included with the machine.
