Description
Overview

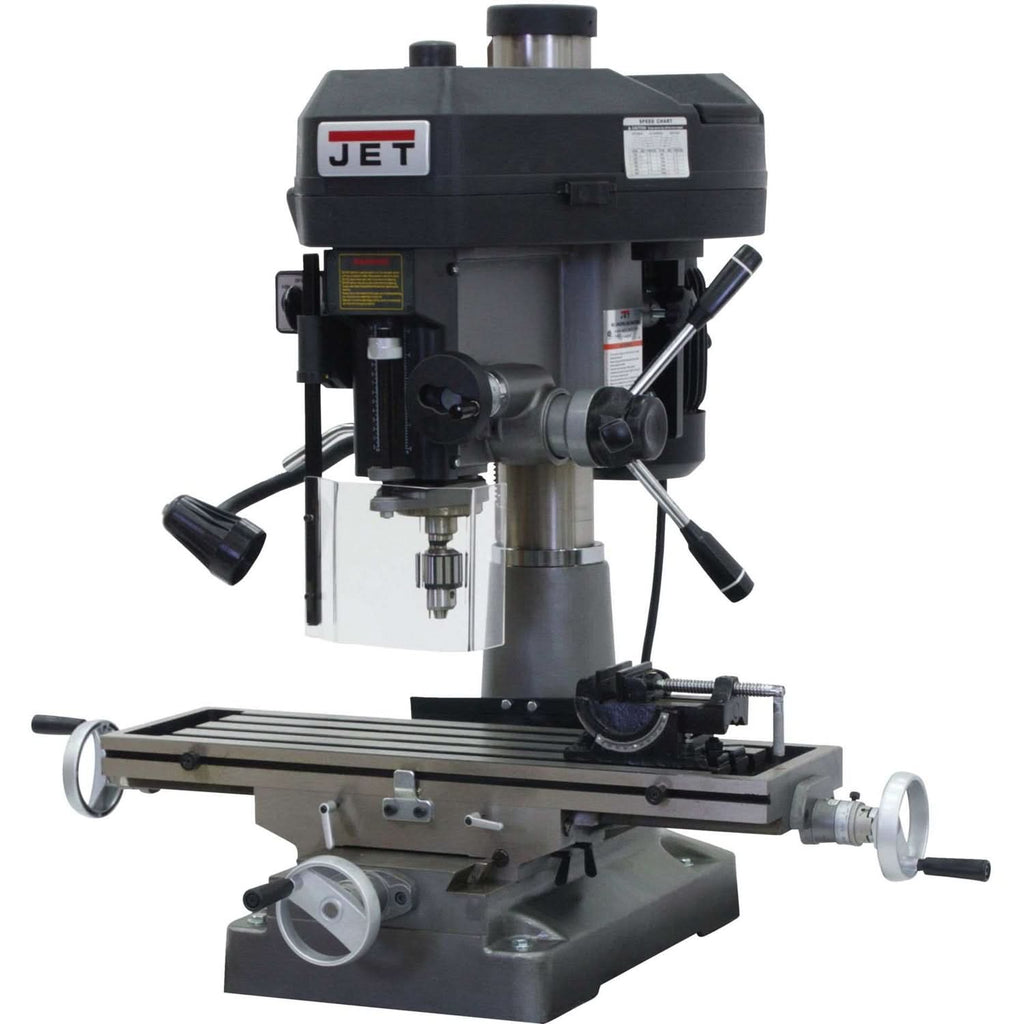

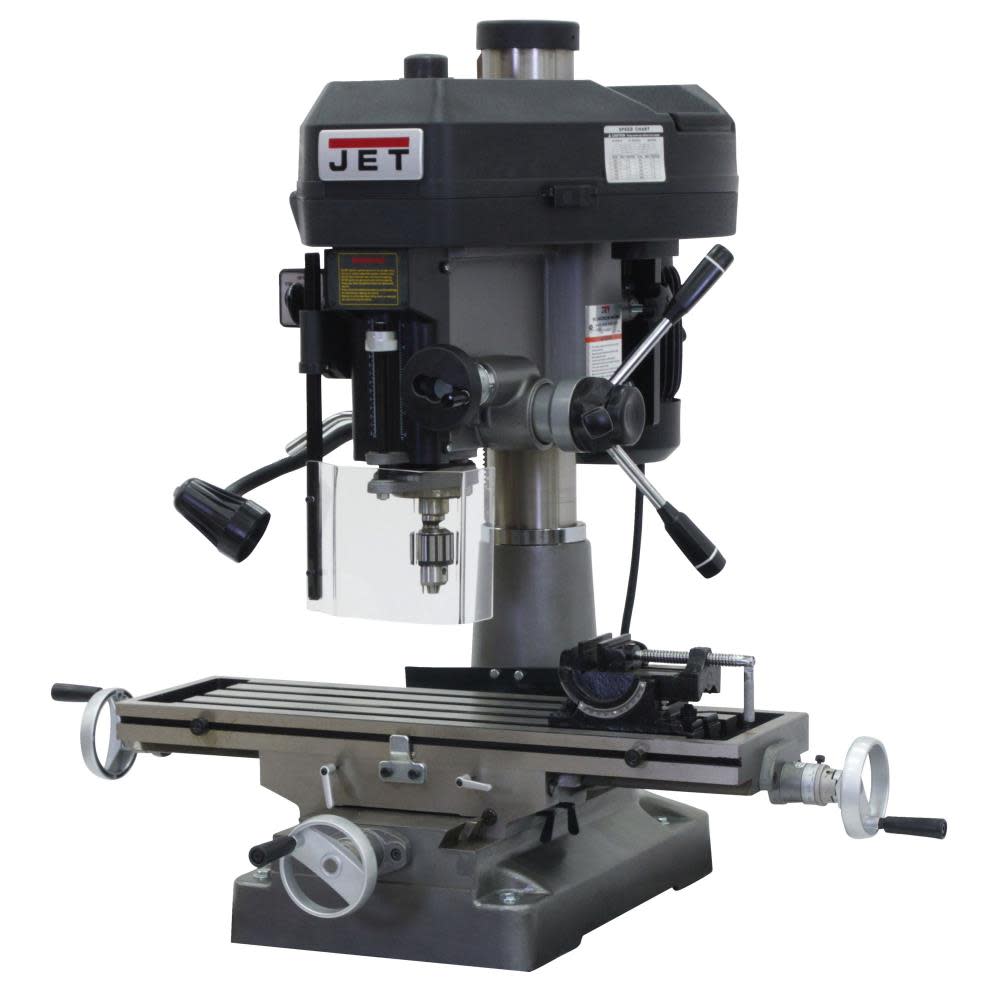

The JET JMD-18 is a bench mill/drill with an R-8 spindle taper, a 2 HP motor on 115/230V single-phase power, and a milling table that travels on two axes. It bridges the gap between a drill press and a full milling machine for small shops and home fabricators.
A one-piece cast iron column carries the head, and the head swivels a full 360 degrees so you can reach work off the table center. Twelve spindle speeds from 150 to 3,000 RPM let you match feeds to drilling, boring, and light milling, while 5 inches of spindle travel and a 15-7/8 inch swing give working room for a unit this size.
Key Features
- R-8 spindle taper - accepts common R-8 collets and tooling for milling and drilling without an adapter.
- 2 HP, 115/230V single-phase motor - runs on standard shop service with a forward and reverse switch.
- 12 spindle speeds, 150 to 3,000 RPM - belt-driven range to match the cutter and material.
- 360 degree head swivel - repositions the head to reach work beyond the table center.
- One-piece cast iron column - adds rigidity and dampens vibration during cuts.
- 5 inch spindle travel - quill stroke with a positive quick-stop knob and an internal depth gauge.
Specifications
| Brand | JET |
|---|---|
| Type | Mill/Drill Machine |
| Swing | 15-7/8 in |
| Spindle Taper | R-8 |
| Spindle Travel | 5 in |
| Number of Speeds | 12 |
| Spindle Speed Range | 150 to 3,000 RPM |
| Table Size | 9-1/2 x 32-1/4 in |
| Face Mill Capacity | 3 in |
| Motor | 2 HP |
| Power | 115/230V / Single Phase |
| Weight | 682 lb (gross) |
| Dimensions | 38 x 48 x 30 in (W x D x H) |
| Warranty | 2 Year |
How It Compares
| Attribute | JMD-18 (115V) | JMD-18 Drilling | JMD-18 Milling |
|---|---|---|---|
| Spindle Taper | R-8 | R-8 | R-8 |
| Capacity | 15-7/8 in swing | 1/2 in drill chuck | 3 in face mill |
| Speeds | 12 | 150 to 3,000 RPM | 150 to 3,000 RPM |
Key Facts
- Runs a 2 HP motor on 115/230V single-phase power with forward and reverse.
- Twelve spindle speeds span 150 to 3,000 RPM for drilling and light milling.
- Carries an R-8 spindle taper and a 3 inch face mill capacity.
- Backed by the JET two year warranty.
Who It's For
This mill/drill suits a home shop, a maintenance department, or a small fabrication bench that needs occasional milling and drilling without the floor space or cost of a full knee mill. The optional CS18 cabinet floor stand raises it to working height.
What's Included
- JMD-18 mill/drill head, column, and table
- 1/2 inch drill chuck and chuck arbor
- Adjustable carbide face mill
- Drawbar
- Owner and maintenance documentation
The Mill Drill Stand, part number 350045, shown in some images, is sold separately.
Shipping and Freight
This machine ships LTL freight at a gross weight of 682 lb. Plan for liftgate or forklift offload and confirm bay access before the pallet arrives. Reach out for a freight quote if you need a delivery appointment or residential service.
About JET
JET is a JPW Industries brand of metalworking and woodworking machinery sold to professional and home shops. The JMD mill/drill line is part of its metalworking milling and drilling range.
Frequently Asked Questions
What spindle taper does the JMD-18 use?
It uses an R-8 spindle taper, which accepts standard R-8 collets and tooling for both milling and drilling.
What power does it require?
The 2 HP motor runs on 115/230V single-phase power. Confirm your shop service and wiring before installation.
How many spindle speeds does it have?
It offers 12 belt-driven spindle speeds ranging from 150 to 3,000 RPM, so you can match speed to material and cutter.
Does it come with a stand?
No. The Mill Drill Stand, part number 350045, is optional and sold separately. The machine is configured as a benchtop unit.
What warranty does JET provide?
The JMD-18 carries a two year JET warranty. See the manufacturer warranty terms for coverage details.
