Description
Overview

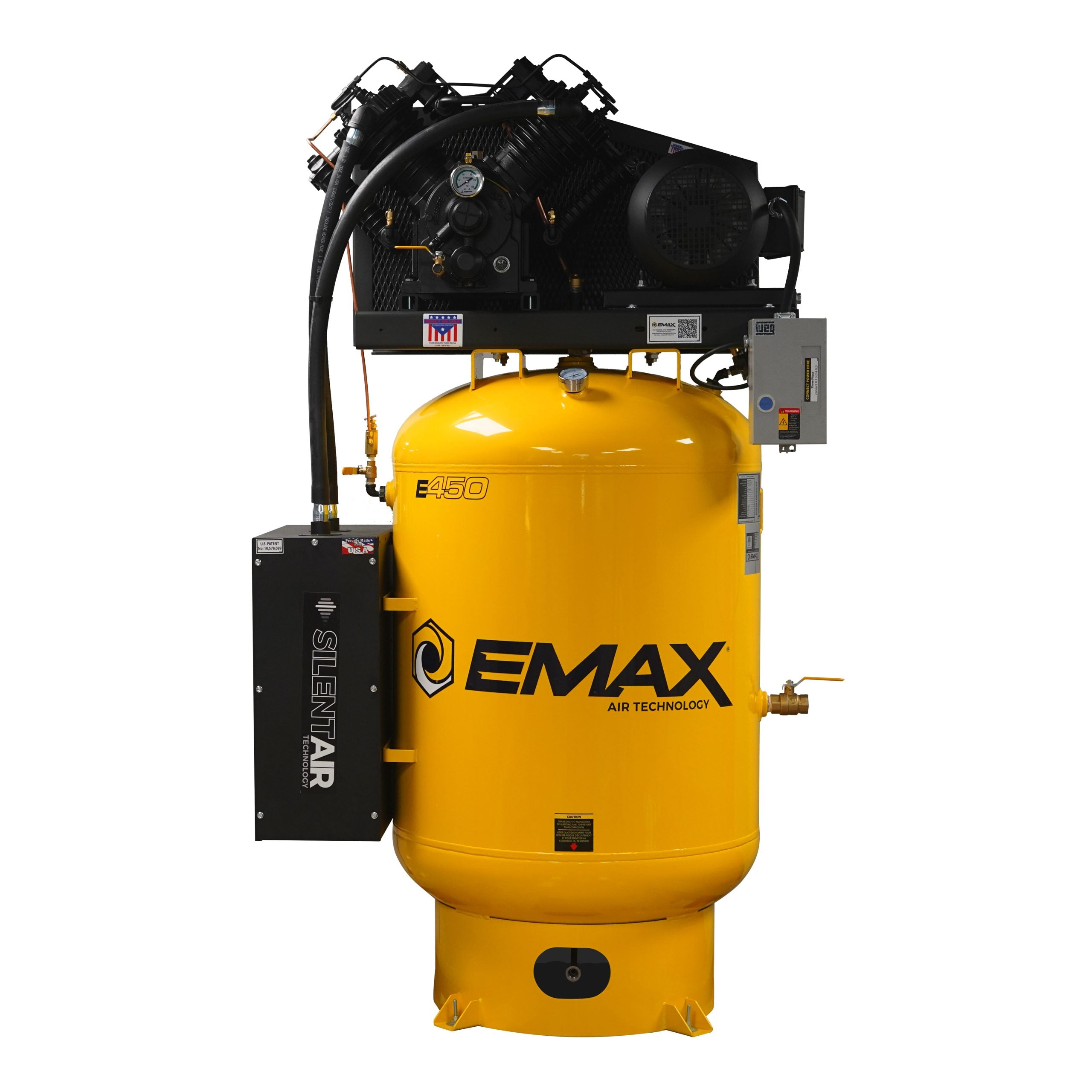

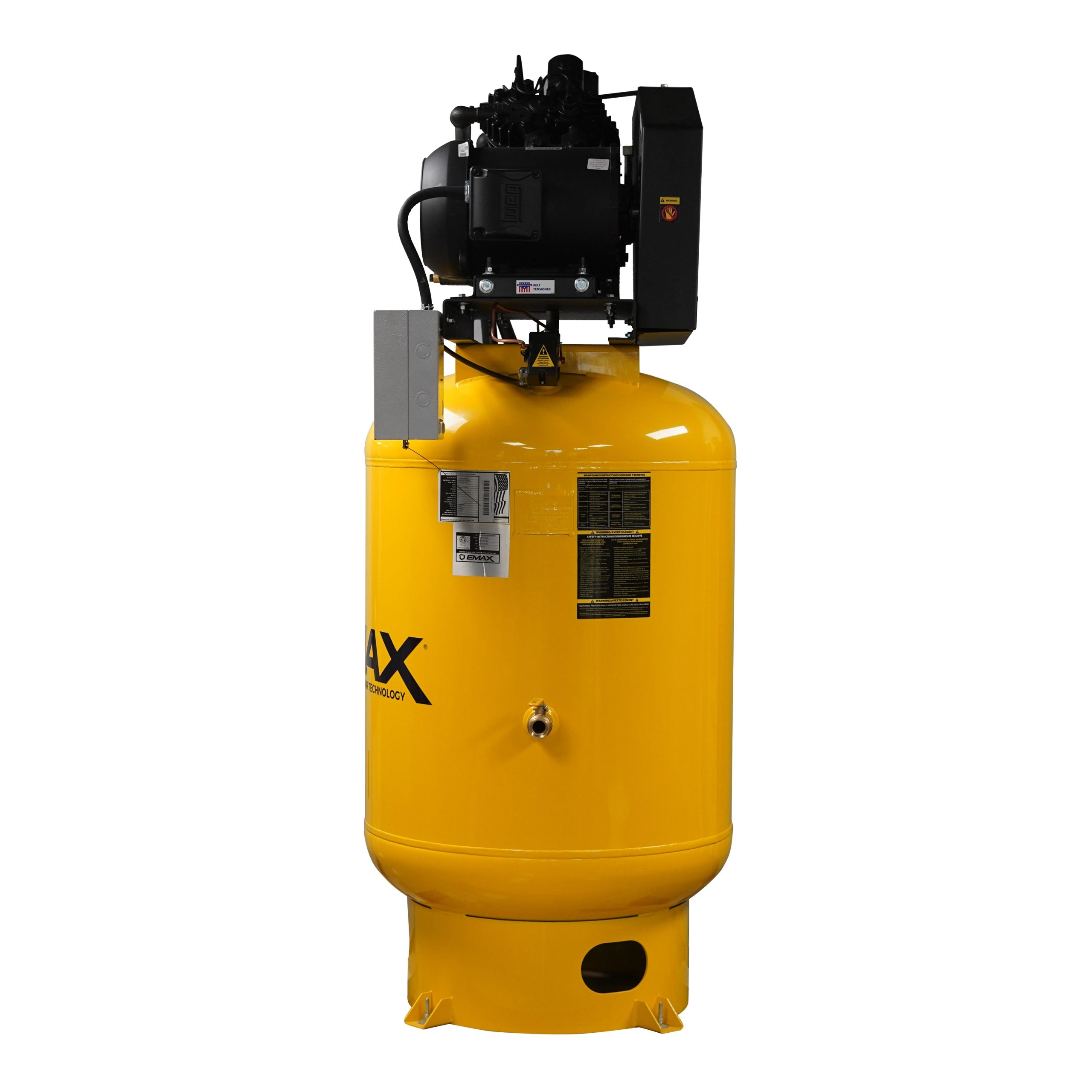

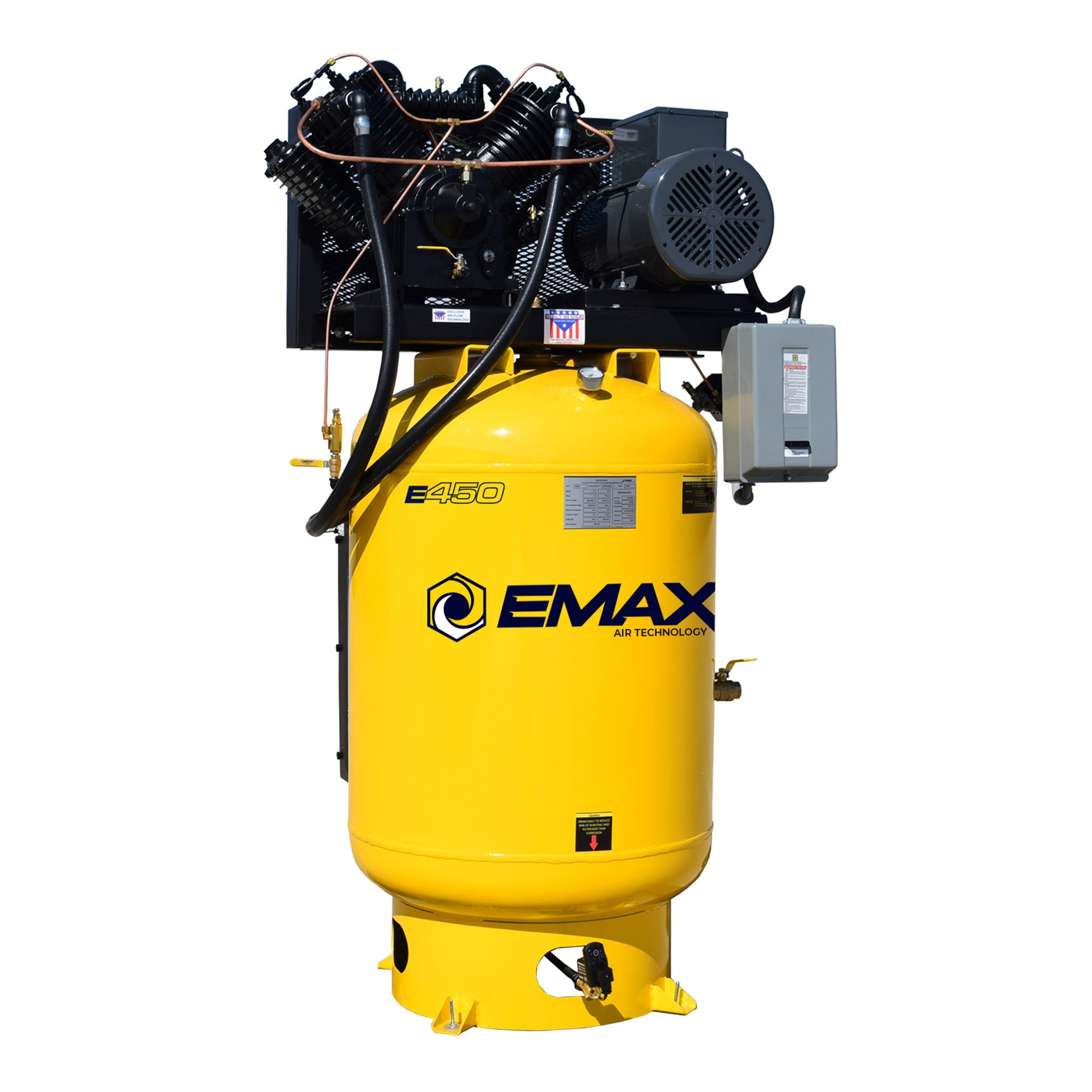

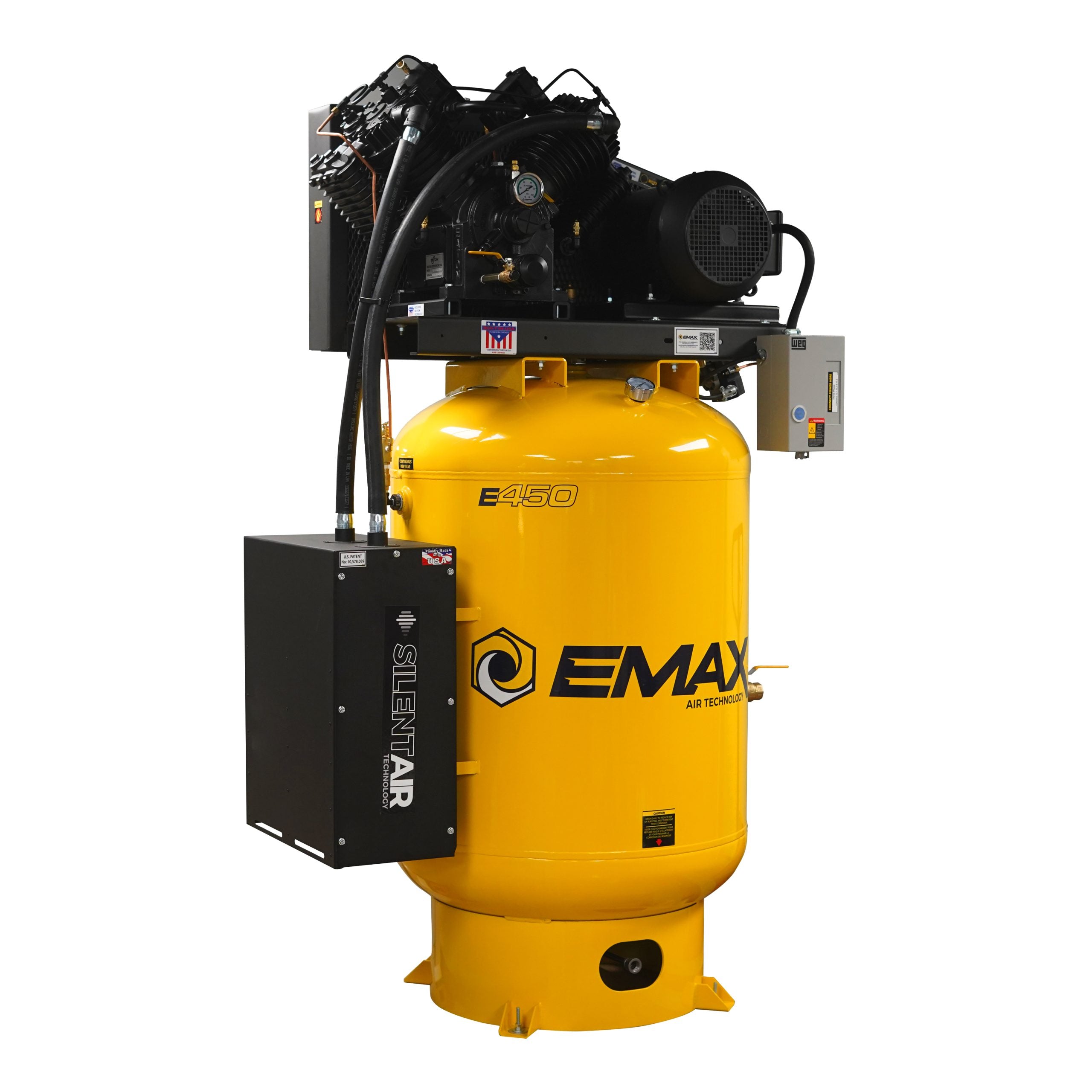

The EMAX ESP10V120V1 is a Silent Air Industrial Plus 10 HP, 120-gallon two-stage reciprocating air compressor on 230V single-phase power. It delivers 38 CFM at 100 PSI from a four-cylinder cast iron pump.

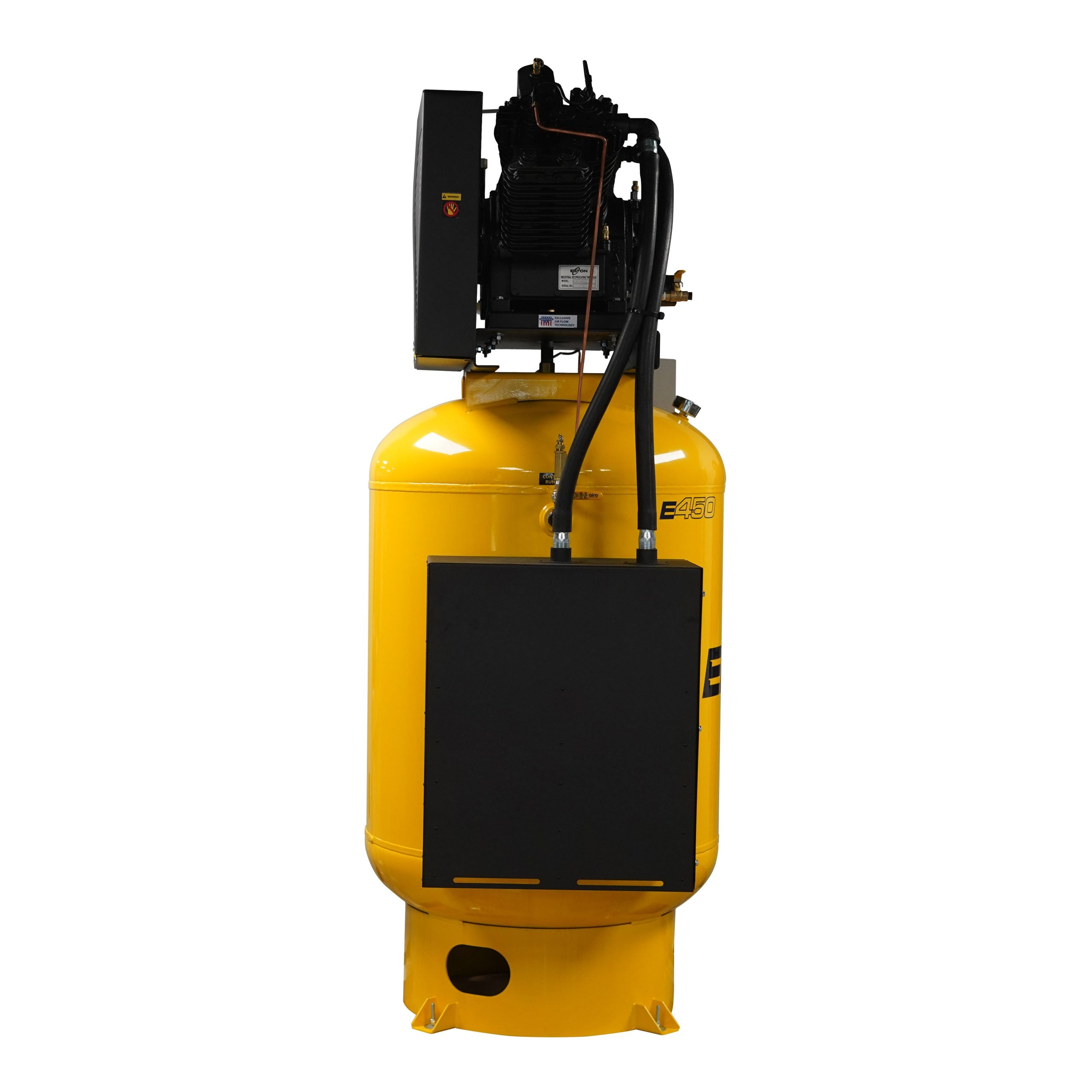

This unit pairs the largest single-phase output in the line with a 120-gallon tank, automatic drain, belt tensioner, and continuous-run capability, so a single-phase shop gets strong air and longer run cycles. The pump builds to 175 PSI and the big tank cuts cycling. The Silent Air design runs noticeably quieter than a standard open compressor, which matters when the unit sits in an occupied shop bay.
Key Features
- 38 CFM at 100 PSI - 10 HP four-cylinder two-stage pump output for steady air delivery.
- Two-stage pressure to 175 PSI - on an 120-gallon vertical tank that holds reserve for demand spikes.
- Pressure-lubricated pump - a gear-driven oil pump feeds each bearing for continuous-duty cooling and long pump life.
- Cast iron pump - crankcase, cylinders, and heads in cast iron for heat tolerance under load.
- 230V single-phase power - ODP motor on a 60 amp recommended breaker.
- Belt tensioner and isolator pads - simplify belt service and cut transmitted vibration.
Specifications
| Brand | EMAX Compressor |
|---|---|
| Type | Reciprocating Piston Air Compressor |
| Key Capacity | 38 CFM @ 100 PSI |
| Motor | 10 HP |
| Power | 230V / Single Phase |
| Tank | 120 Gallon (Vertical) |
| Stage | Two-stage |
| Lubrication | Pressure |
| Max Pressure | 175 PSI |
| Drain | Automatic |
| Weight | 1116 lb |
| Pump Life (est.) | 70,000 hours |
| Certifications | ETL, ASME, CRN |
How It Compares
| Model | Motor | Air Delivery | Tank |
|---|---|---|---|
| ESP07V120V3-208 | 7.5 HP | 31 CFM | 120 gal |
| ESP10V120V1 | 10 HP | 38 CFM | 120 gal |
| ESP10V120V3-208 | 10 HP | 38 CFM | 120 gal |
Key Facts
- Delivers 38 CFM at 100 PSI from a 10 HP four-cylinder two-stage pump.
- Builds to 175 PSI on an 120-gallon vertical tank.
- Cast iron pump rated for an estimated 70,000 hours with proper maintenance.
Who It's For
This compressor suits a single-phase production shop that wants maximum air and a large reserve tank, and that has the floor space and door height for a 120-gallon vertical unit.
What's Included
- The compressor pump, motor, and ASME-coded air tank assembled as one unit
- Isolator pads
- Belt tensioner
- Owner and maintenance documentation
Shipping and Freight
This compressor ships as an oversize freight item at roughly 1,116 lb crated. Forklift offload is required and a freight quote is recommended. Use the Request a Freight Quote path for delivery details.
About EMAX Compressor
EMAX builds compressed air equipment for automotive, industrial, and commercial shops. The reciprocating line uses all cast iron pumps with rebuildable connecting rods and disc valves chosen for long service life under demanding duty.
Frequently Asked Questions
How much air does the ESP10V120V1 deliver?
It is rated at 38 CFM at 100 PSI from a 10 HP pump, with a maximum pressure of 175 PSI. Size your tools to stay within that delivery at working pressure.
What power does it require?
It runs on 230V single-phase power with a recommended 60 amp breaker. Confirm your service before installation.
Is the pump pressure or splash lubricated?
This pump is pressure lubricated. A gear-driven oil pump delivers oil to the bearings and connecting rods, which suits higher duty cycles.
What maintenance does it need?
Routine care is oil changes, belt checks, and tank draining. EMAX rates the pump for an estimated 70,000 hours of service life with proper maintenance, and service kits are available.
Why is this listed as oversize freight?
Crated weight is over 1,000 lb, which puts it in the oversize freight class. Plan for forklift offload and request a freight quote before ordering.
Talk to a shop infrastructure specialist about power, footprint, and freight before you order. Browse the full EMAX Compressor range to match air treatment and tools.
