Description
Overview

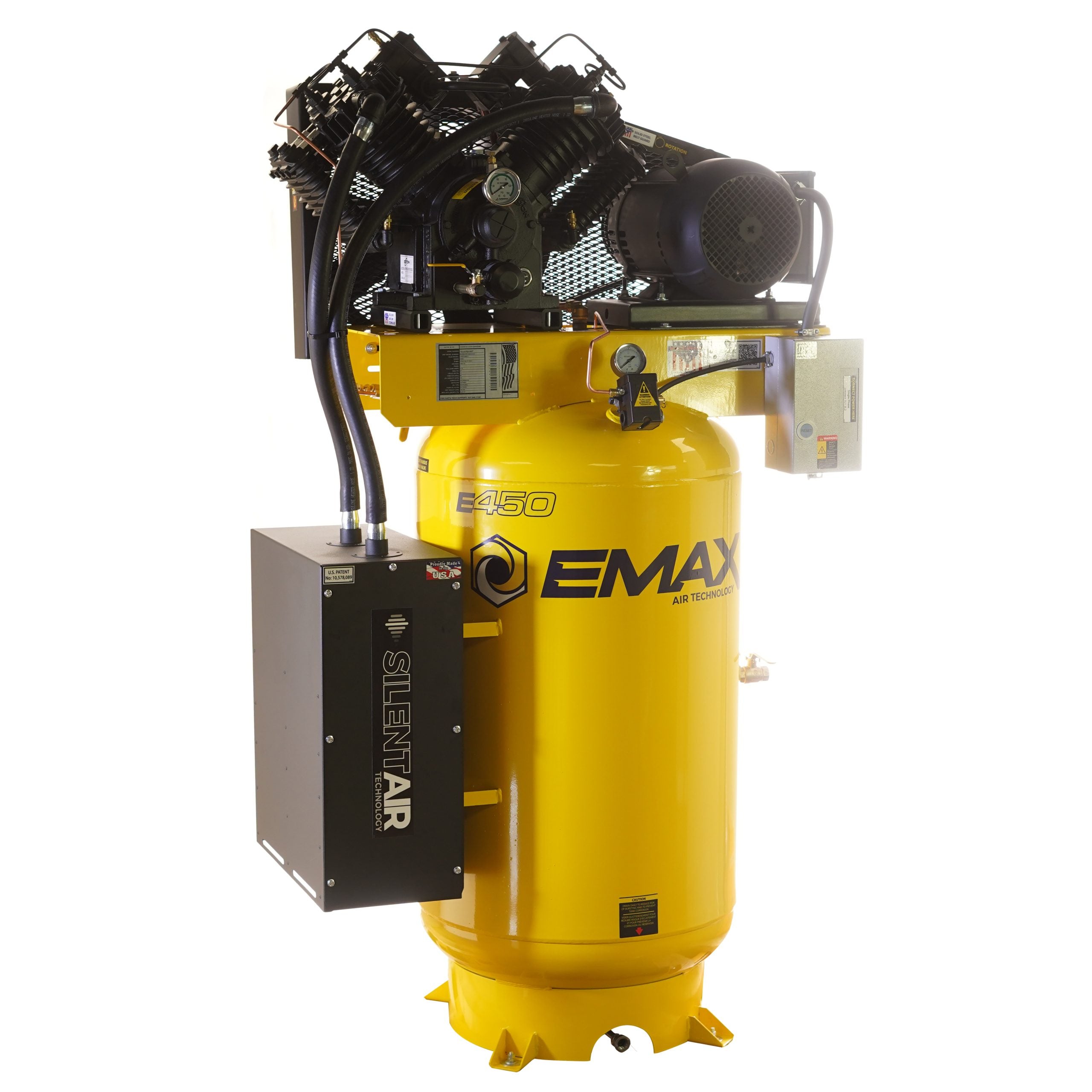

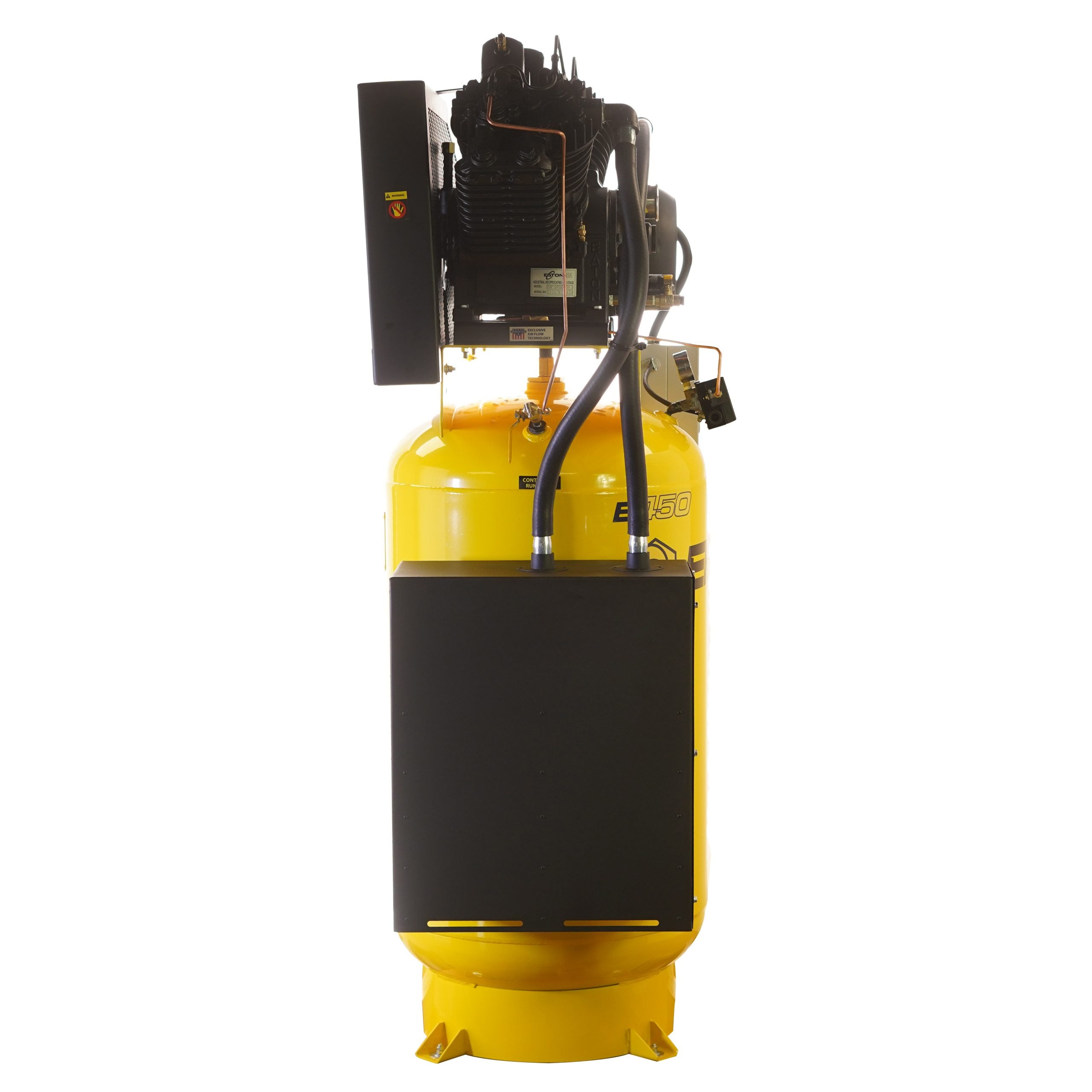

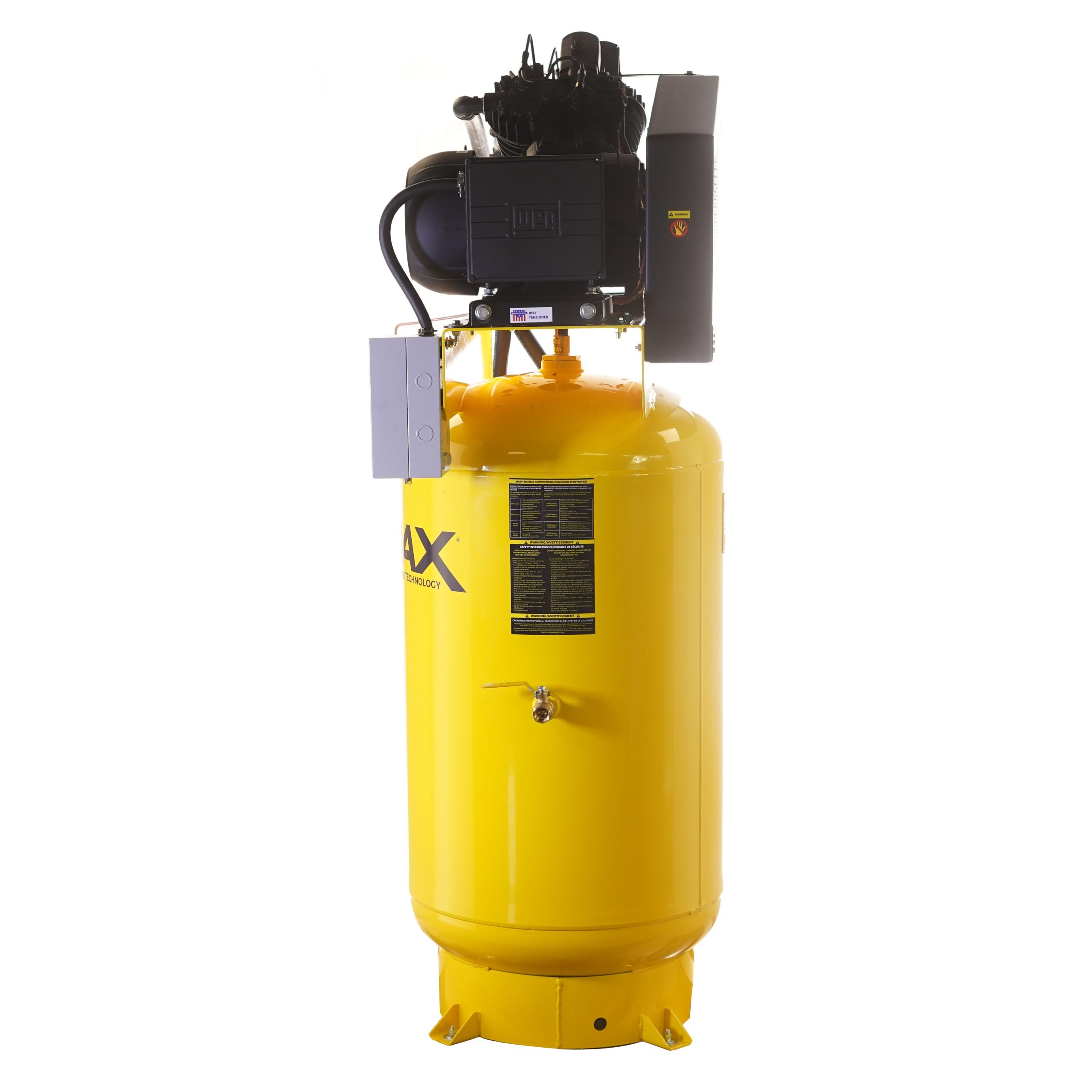

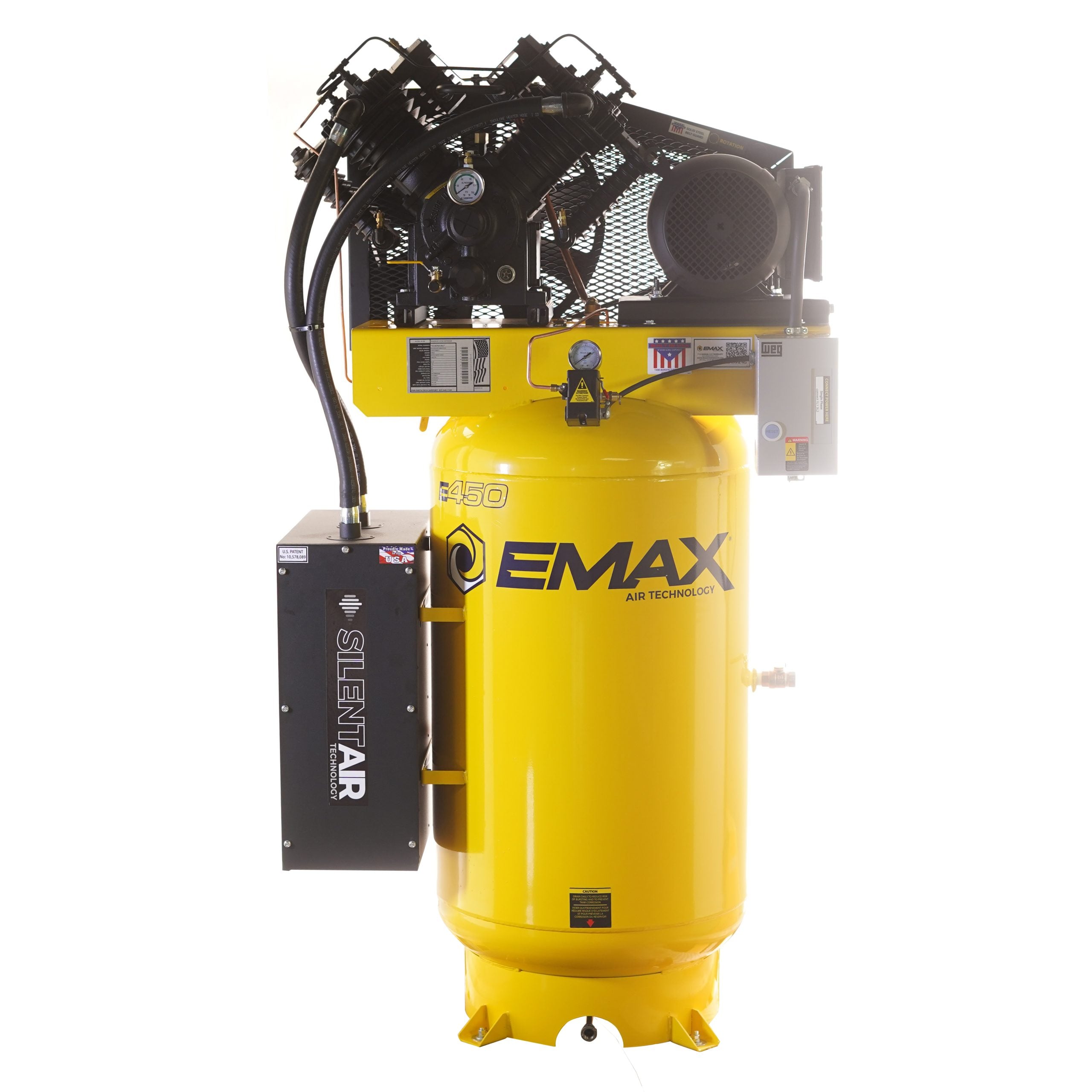

The EMAX ESP10V080V1PK is a packaged Silent Air 10 HP, 80-gallon two-stage compressor bundled with a 58 CFM refrigerated air dryer and a radiator aftercooler. The compressor delivers 38 CFM at 100 PSI on 230V single-phase power.
Buying the compressor and dryer as one package removes the guesswork of matching air treatment to output. The radiator aftercooler drops air temperature before the dryer, and the 58 CFM dryer condenses out moisture, so the air reaching your lines is cool and dry. The pressure-lubricated pump builds to 175 PSI. The Silent Air design runs noticeably quieter than a standard open compressor, which matters when the unit sits in an occupied shop bay. This is a packaged system: the compressor ships bundled with a 58 CFM refrigerated air dryer and a radiator aftercooler, so the air leaves the unit cooled and dried.
Key Features
- 38 CFM at 100 PSI - 10 HP four-cylinder two-stage pump output for steady air delivery.
- Two-stage pressure to 175 PSI - on an 80-gallon vertical tank that holds reserve for demand spikes.
- Pressure-lubricated pump - a gear-driven oil pump feeds each bearing for continuous-duty cooling and long pump life.
- Cast iron pump - crankcase, cylinders, and heads in cast iron for heat tolerance under load.
- 230V single-phase power - ODP motor on a 60 amp recommended breaker.
- Belt tensioner and isolator pads - simplify belt service and cut transmitted vibration.
Specifications
| Brand | EMAX Compressor |
|---|---|
| Type | Reciprocating Piston Air Compressor |
| Key Capacity | 38 CFM @ 100 PSI |
| Motor | 10 HP |
| Power | 230V / Single Phase |
| Tank | 80 Gallon (Vertical) |
| Stage | Two-stage |
| Lubrication | Pressure |
| Aftercooler | Radiator aftercooler |
| Max Pressure | 175 PSI |
| Drain | Automatic |
| Weight | 912 lb |
| Pump Life (est.) | 70,000 hours |
| Certifications | ETL, ASME, CRN |
How It Compares
| Model | Motor | Air Delivery | Tank |
|---|---|---|---|
| ES10V080V1 | 10 HP | 38 CFM | 80 gal |
| ESP10V080V1PK | 10 HP | 38 CFM | 80 gal |
| ESP10V120V1 | 10 HP | 38 CFM | 120 gal |
Key Facts
- Delivers 38 CFM at 100 PSI from a 10 HP four-cylinder two-stage pump.
- Builds to 175 PSI on an 80-gallon vertical tank.
- Cast iron pump rated for an estimated 70,000 hours with proper maintenance.
Who It's For
This package fits a shop that wants clean, dry single-phase air out of the box for spray finishing, plasma cutting, or sensitive pneumatic tools, without sourcing a separate dryer.
What's Included
- The compressor pump, motor, and ASME-coded air tank assembled as one unit
- Isolator pads
- Belt tensioner
- Bundled refrigerated air dryer (per model)
- Owner and maintenance documentation
Shipping and Freight
This packaged system ships LTL freight at roughly 912 lb. Plan for liftgate or forklift offload of the palletized unit and confirm clearances for both the compressor and the dryer.
About EMAX Compressor
EMAX builds compressed air equipment for automotive, industrial, and commercial shops. The reciprocating line uses all cast iron pumps with rebuildable connecting rods and disc valves chosen for long service life under demanding duty.
Frequently Asked Questions
How much air does the ESP10V080V1PK deliver?
It is rated at 38 CFM at 100 PSI from a 10 HP pump, with a maximum pressure of 175 PSI. Size your tools to stay within that delivery at working pressure.
What power does it require?
It runs on 230V single-phase power with a recommended 60 amp breaker. Confirm your service before installation.
Is the pump pressure or splash lubricated?
This pump is pressure lubricated. A gear-driven oil pump delivers oil to the bearings and connecting rods, which suits higher duty cycles.
What maintenance does it need?
Routine care is oil changes, belt checks, and tank draining. EMAX rates the pump for an estimated 70,000 hours of service life with proper maintenance, and service kits are available.
What is included in the PK package?

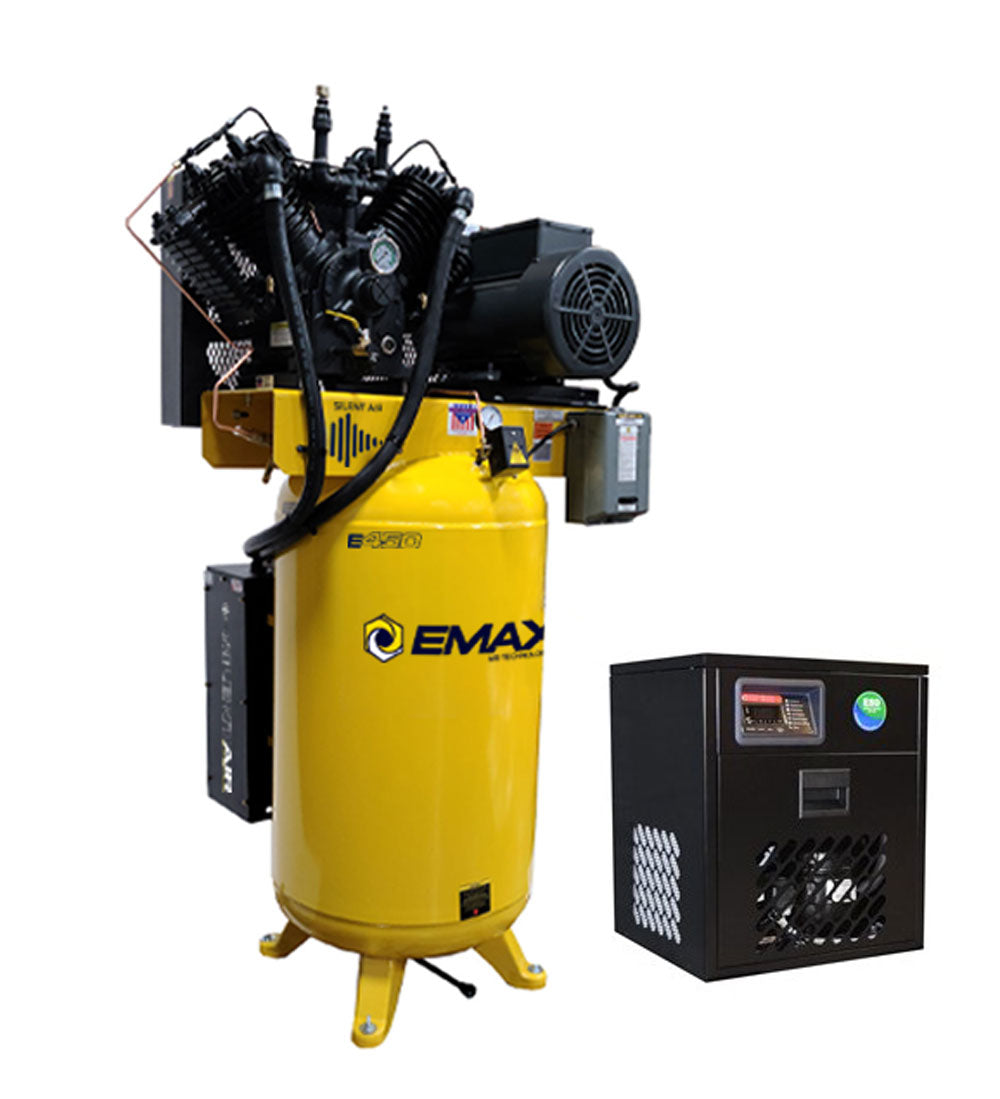

The package pairs the 10 HP Silent Air compressor with a radiator aftercooler and a 58 CFM refrigerated air dryer, so the air is cooled and dried before it leaves the unit.
