Description
Overview

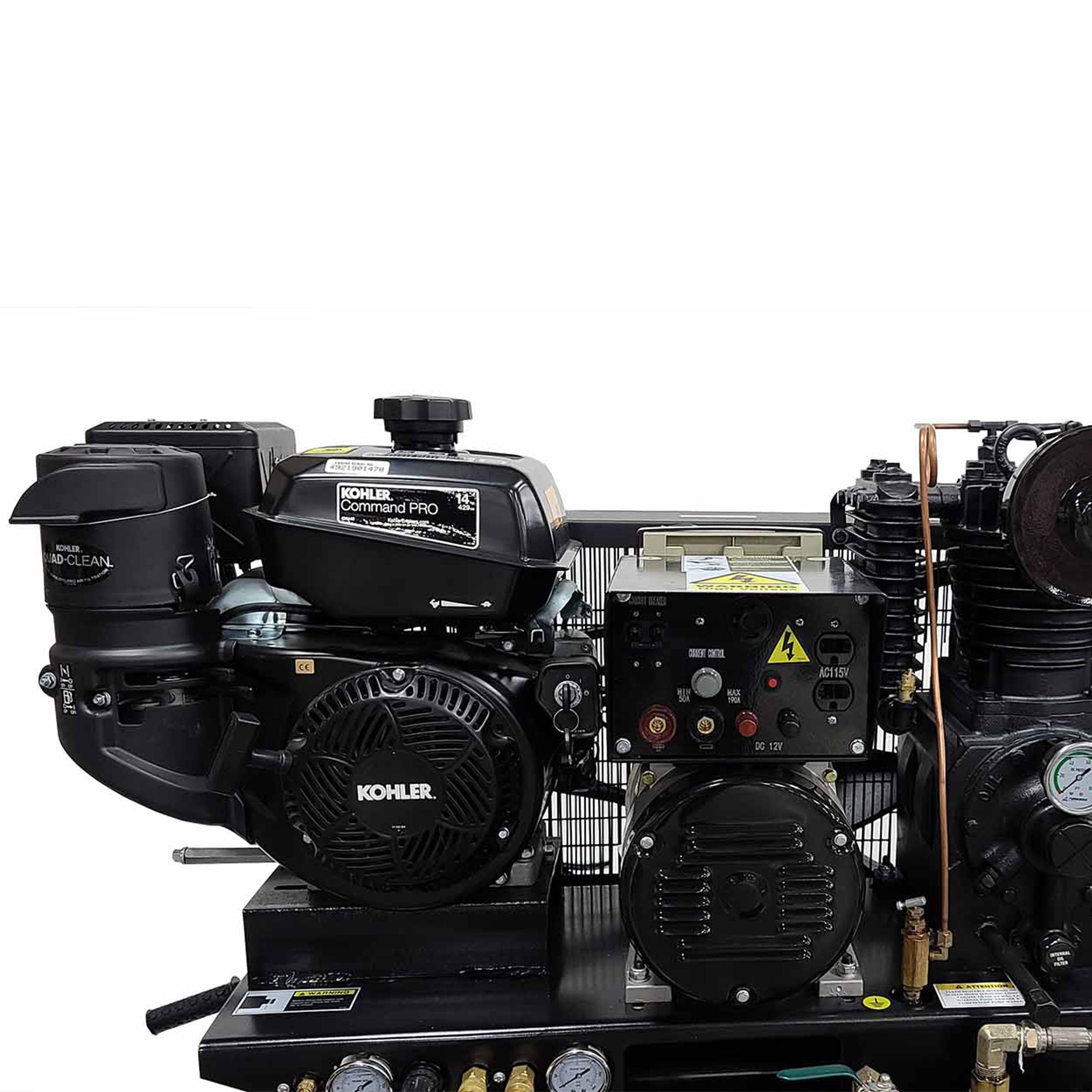

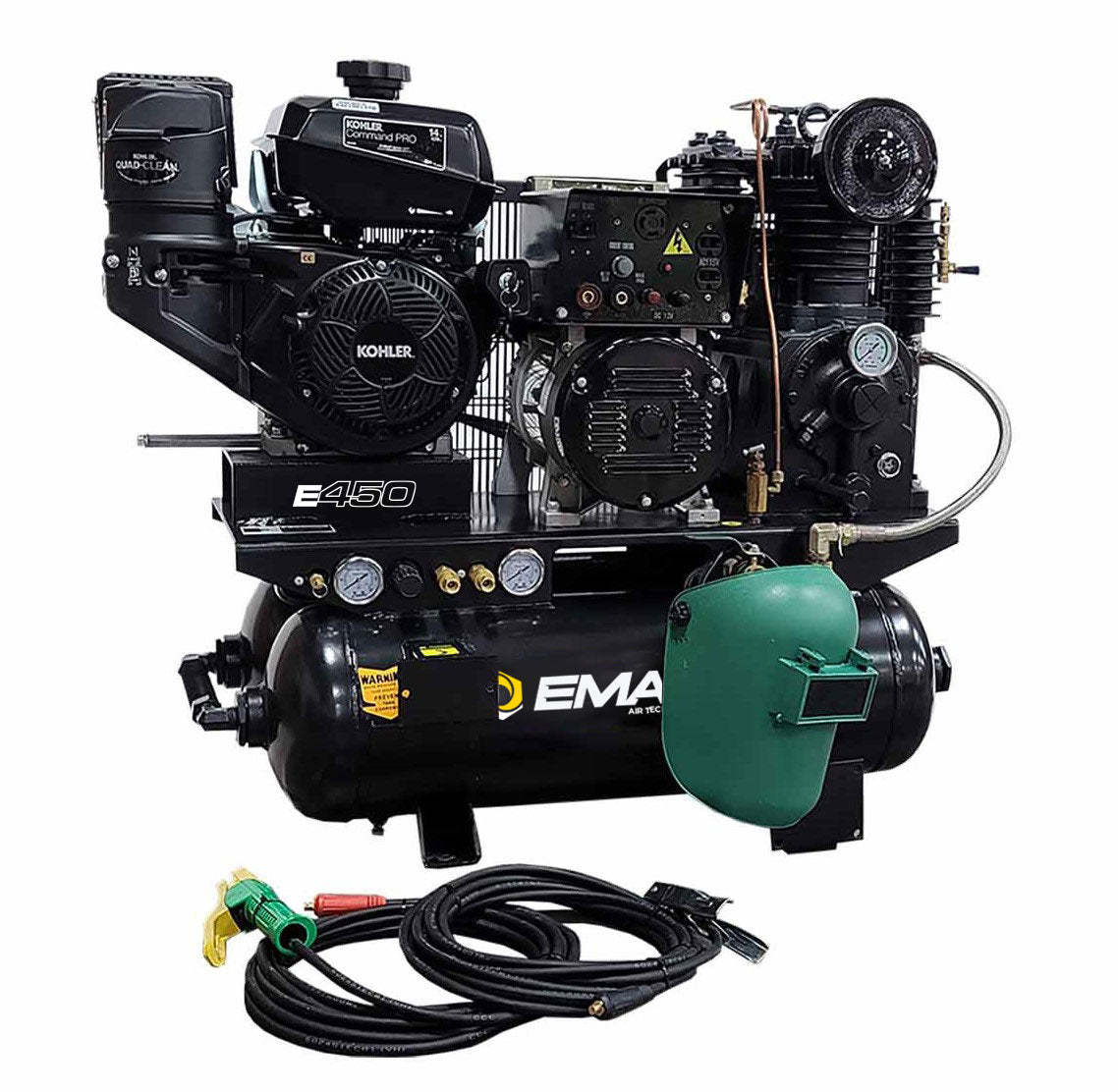

The EMAX EGES14020T is a truck-mounted, gas-driven 3-in-1 unit that combines a 14 HP Kohler Command Pro engine, a pressure-lubricated air compressor, a 190 amp DC stick welder, and a 5000 watt generator on a single 20-gallon horizontal tank. It is built for service trucks and remote job sites that need air, welding, and power without three machines.
Carrying one engine to drive three functions saves deck space and weight on a work truck. The compressor delivers 19 CFM from a cast iron pressure-lubricated pump rated to 175 PSI, the welder runs 190 amp DC stick output, and the generator supplies 5000 watts for tools and lighting. The engine ties it together with electric start.
Key Features
- 14 HP Kohler Command Pro engine - gas-driven with electric start for reliable field power.
- 19 CFM air compressor - cast iron pressure-lubricated two-stage pump rated to 175 PSI.

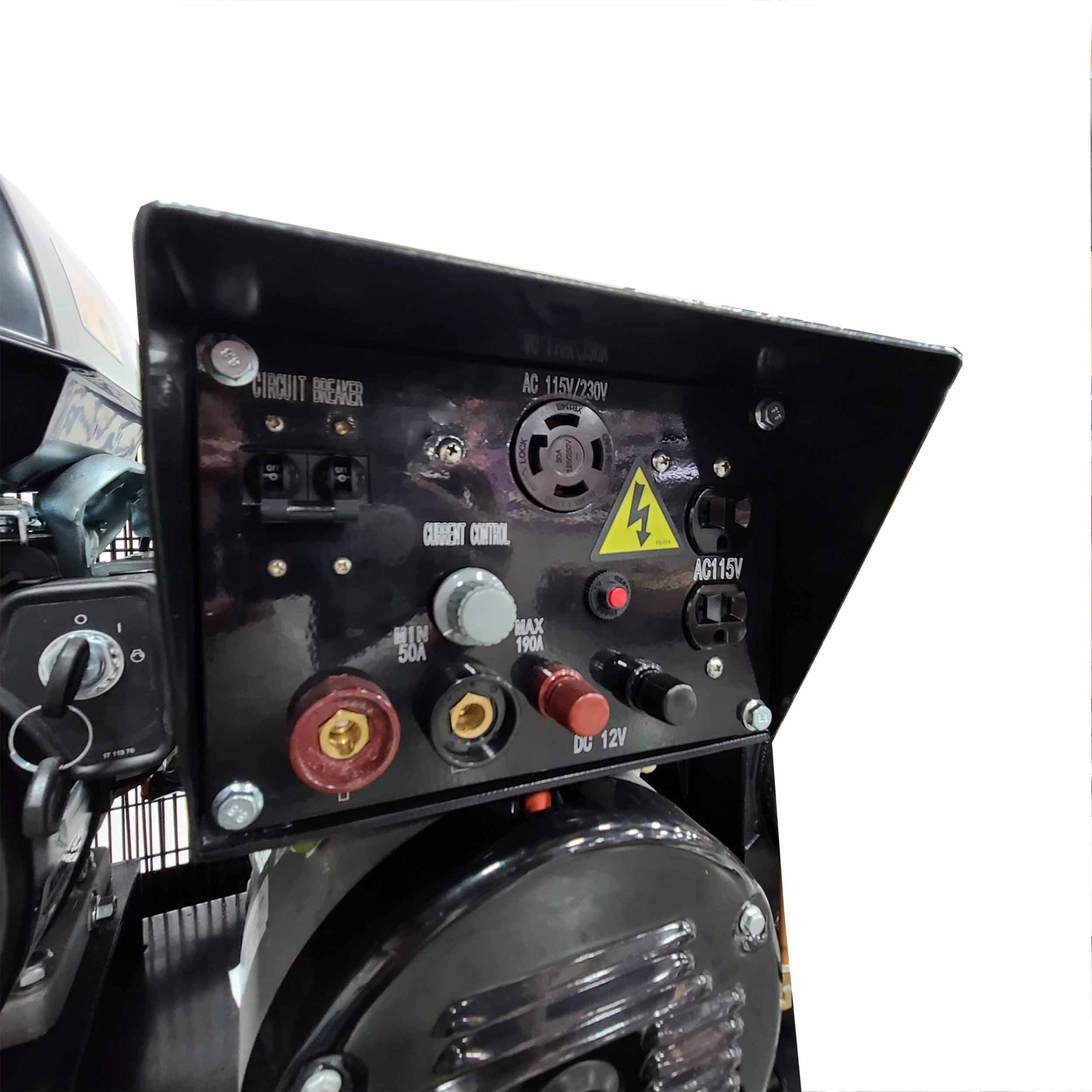

- 190 amp DC stick welder - on-board welding output for field repairs.
- 5000 watt generator - powers tools, lights, and accessories at the job site.

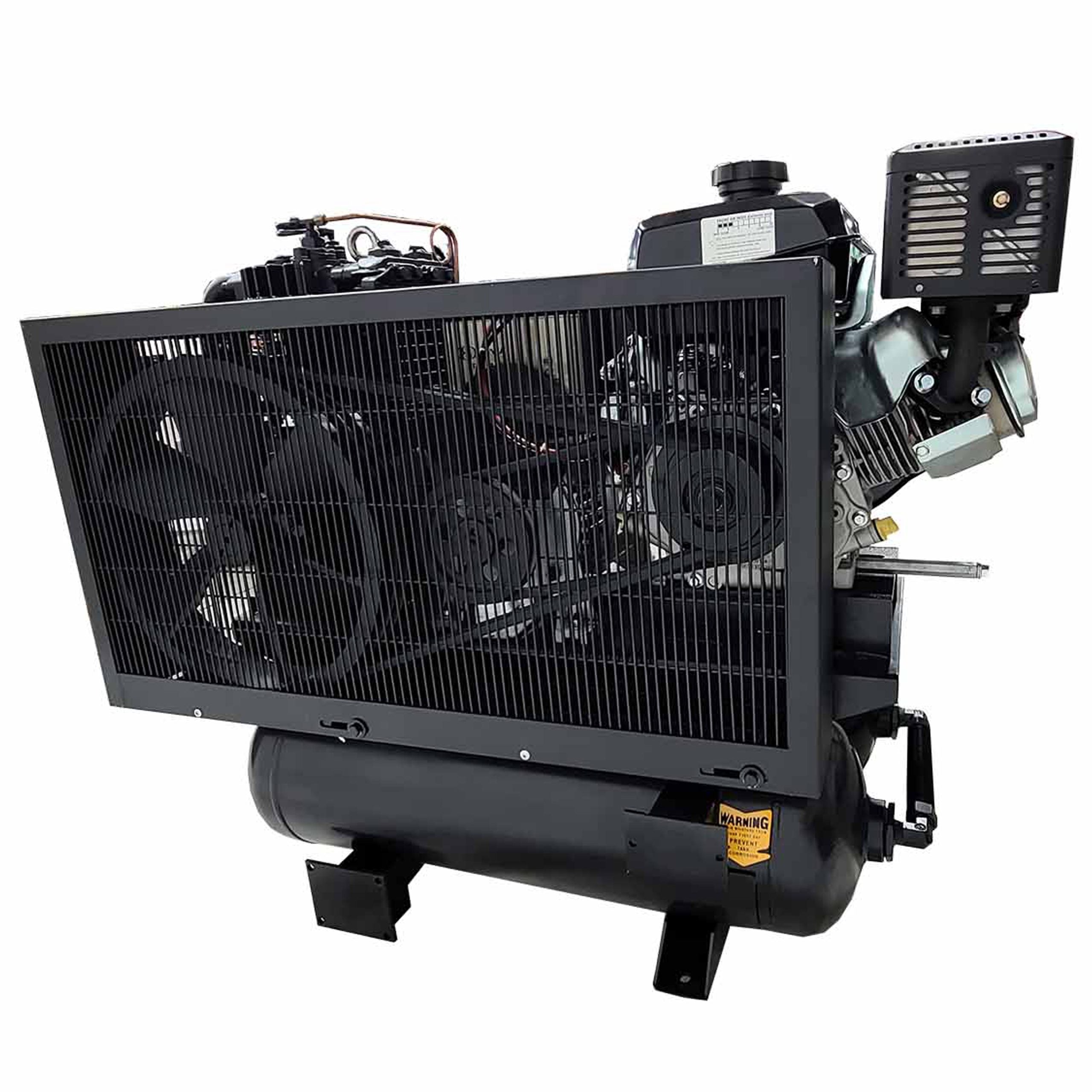

- 20-gallon horizontal tank - low profile for truck-deck mounting.
- ASME, CRN, and EPA - certified tank and engine package.
Specifications
| Brand | EMAX Compressor |
|---|---|
| Type | Gas-Driven Truck-Mount Air Compressor / Welder / Generator |
| Engine | 14 HP Kohler Command Pro, gas, electric start |
| Air Delivery | 19 CFM |
| Max Pressure | 175 PSI |
| Welder | 190 A DC stick |
| Generator | 5000 W |
| Tank | 20 Gallon (Horizontal) |

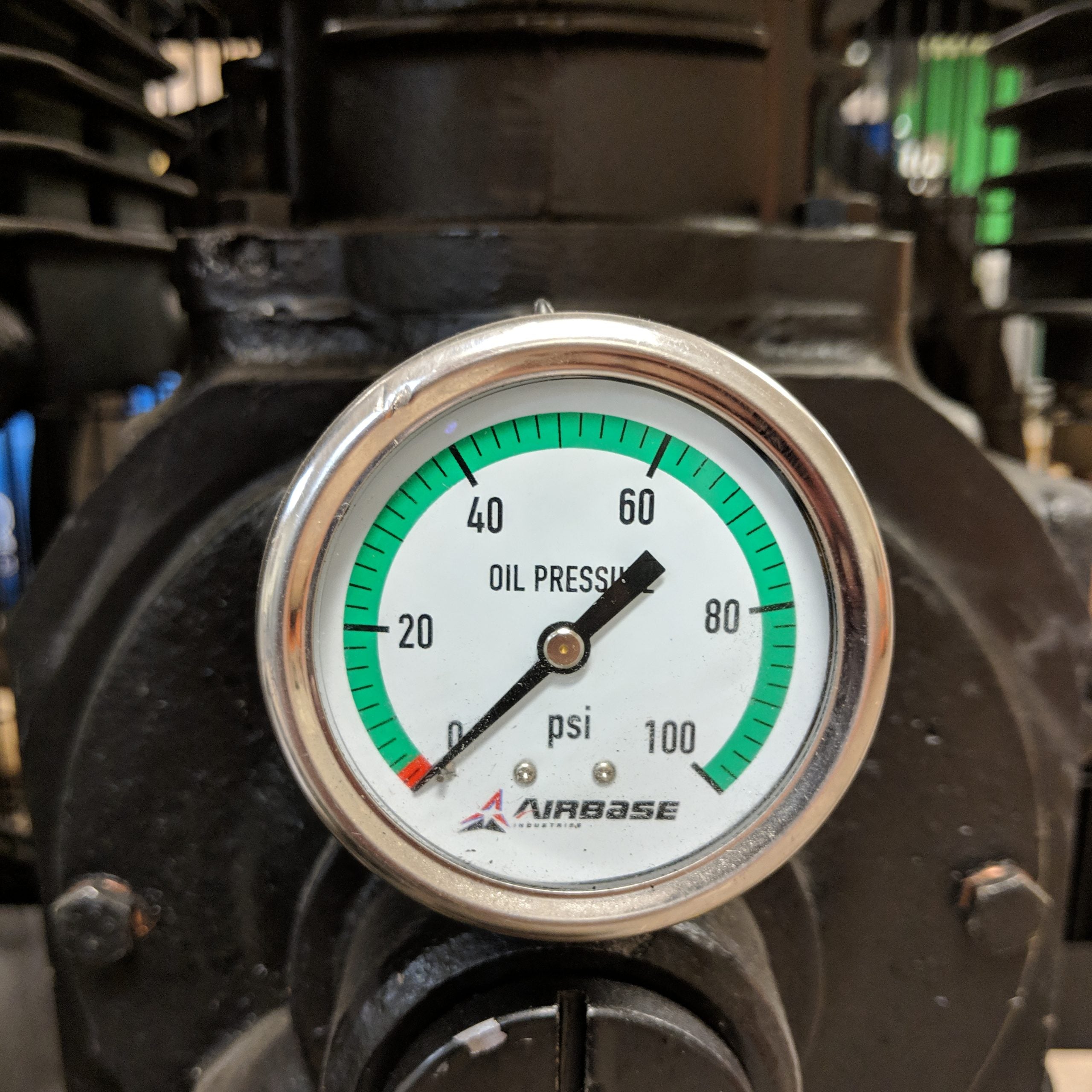

| Pump | Two-stage, pressure lubricated, cast iron |
| Weight | 682 lb |
| Pump Life (est.) | 70,000 hours |
| Certifications | ASME, CRN, EPA |
How It Compares
| Capability | This Unit | Stand-Alone Equivalent |
|---|---|---|
| Air | 19 CFM, 175 PSI | Gas truck-mount compressor |
| Welding | 190 A DC stick | Engine-drive welder |
| Power | 5000 W generator | Portable generator |
Key Facts
- One 14 HP Kohler Command Pro engine drives air, welding, and generator output.
- Compressor delivers 19 CFM and builds to 175 PSI from a cast iron pump.
- Welder output is 190 amp DC stick; generator output is 5000 watts.
Who It's For
This unit is built for mobile mechanics, fleet and equipment service techs, fence and rail crews, and any contractor who needs air, stick welding, and AC power from one engine on a service truck. It mounts horizontally to fit a truck deck or trailer.
What's Included
- EMAX EGES14020T 3-in-1 truck-mount unit on a 20-gallon horizontal tank
- 14 HP Kohler Command Pro engine with electric start
- Integrated 190 amp DC stick welder and 5000 watt generator
- Owner and maintenance documentation
A starter battery is not included with this unit. Welding leads and accessories are not included unless noted at checkout.
Shipping and Freight
This unit ships LTL freight at roughly 682 lb. It arrives palletized, so plan for liftgate or forklift offload. Inspect the engine and tank for transit damage before signing.
About EMAX Compressor
EMAX builds compressed air and gas-driven power equipment for automotive, industrial, and mobile service work, with cast iron pumps and engine packages from name-brand suppliers such as Kohler and Honda.
Frequently Asked Questions
What three functions does the EGES14020T combine?
It is a 3-in-1 unit: a 19 CFM air compressor, a 190 amp DC stick welder, and a 5000 watt generator, all driven by one 14 HP Kohler Command Pro gas engine.
How much air does it deliver?
The compressor delivers 19 CFM and builds to a maximum of 175 PSI from a two-stage cast iron pressure-lubricated pump.
Is a battery included?
No. The engine uses electric start but the starting battery is not included. Plan to supply a compatible battery at installation.
Will it fit on a service truck?
It uses a low-profile 20-gallon horizontal tank designed for truck-deck or trailer mounting. Confirm your deck space and tie-down points against the unit footprint.
Talk to a shop infrastructure specialist about mounting, fuel, and freight before you order. See the full EMAX Compressor gas-driven range for other configurations.
