Description
Overview

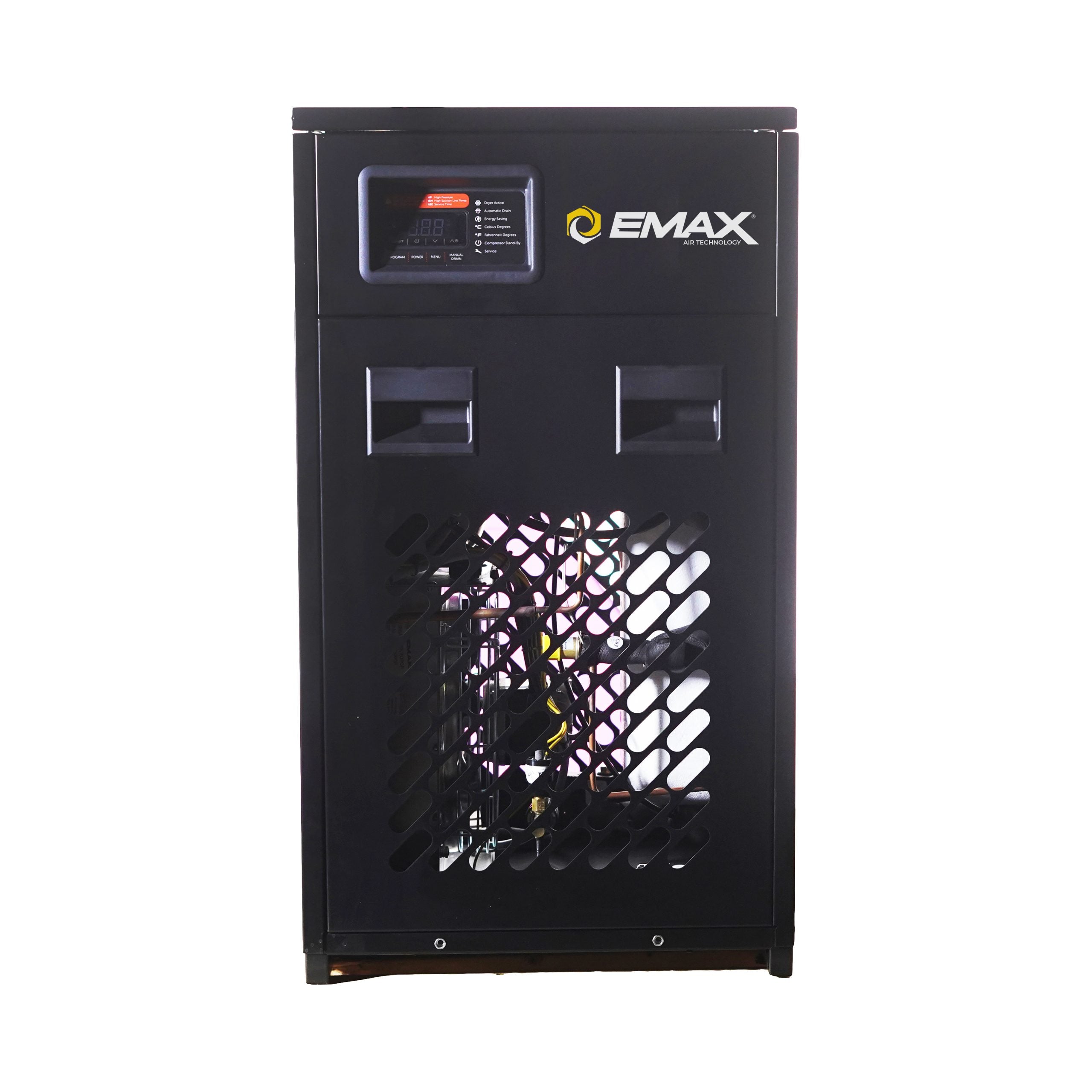

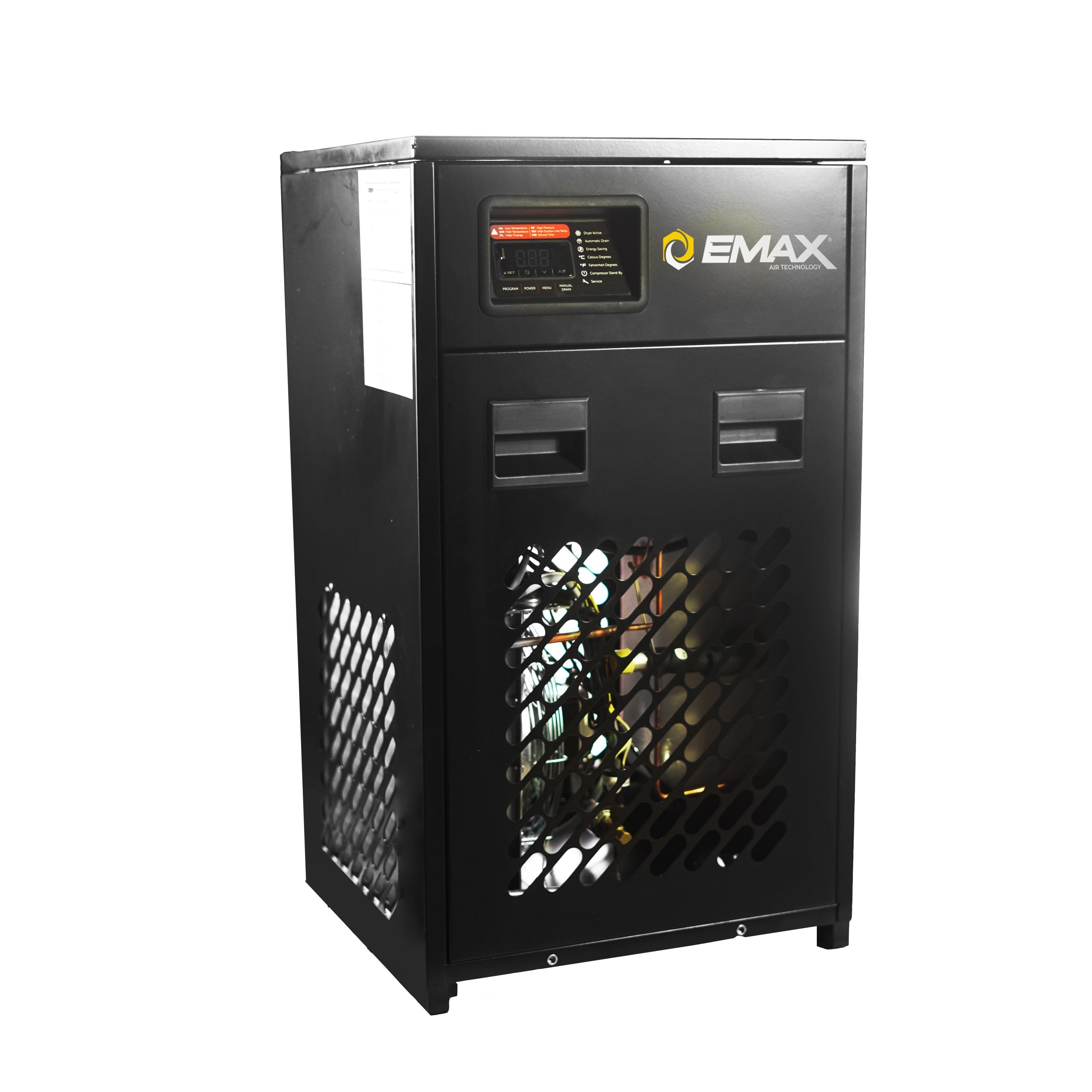

The EMAX EDRCF1150058 is a 58 CFM refrigerated air dryer with a built-in coalescing filter and automatic drain. It is sized for shops running larger reciprocating compressors that push more air than a 30 CFM dryer can keep up with, and it runs on standard 115V single-phase power.

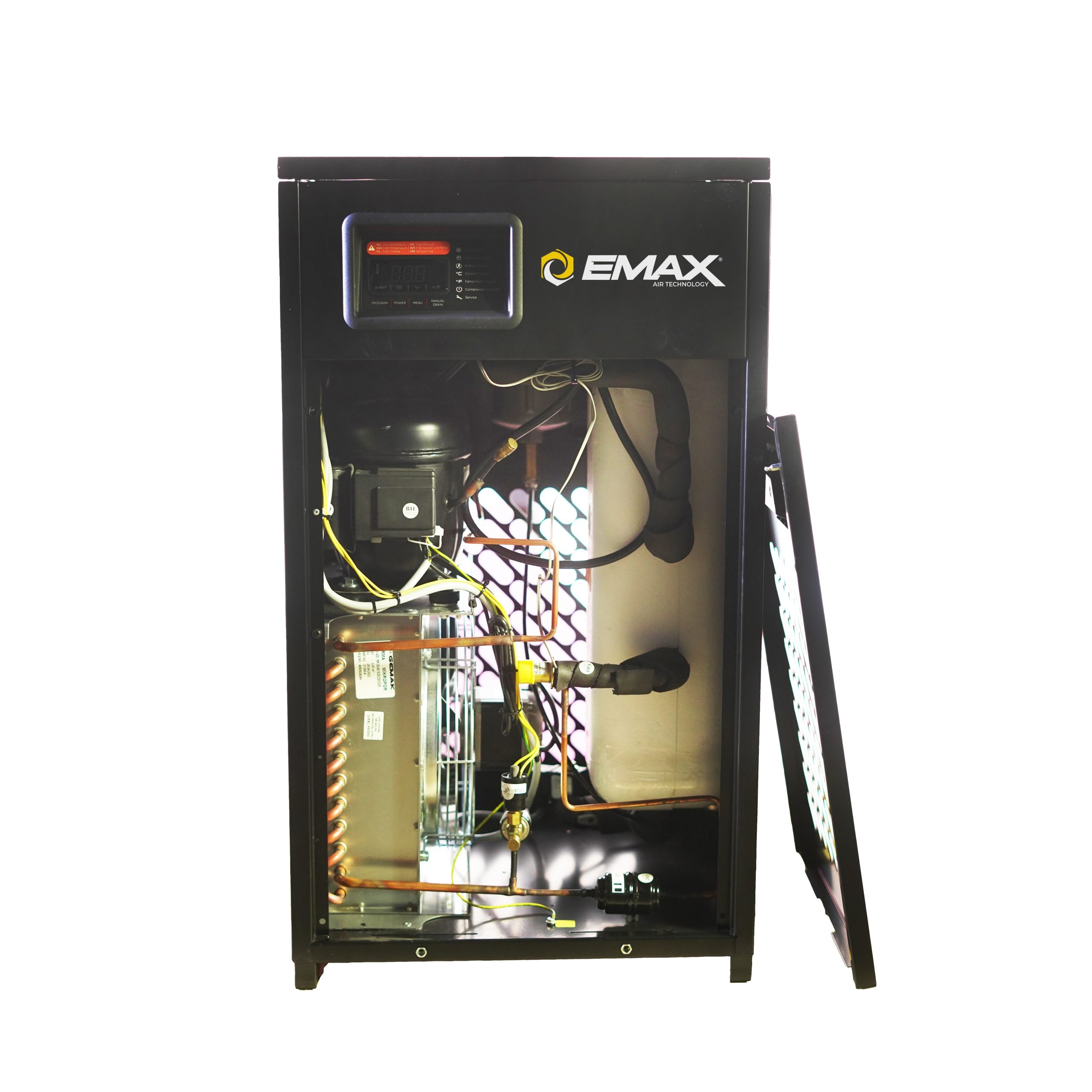

Compressed air carries moisture and oil that corrode lines, foul tools, and wreck paint and coating work. This dryer condenses out the water by chilling the air, then the coalescing filter pulls oil and particulate before the air leaves the unit. Cleaner air means fewer rejects, less downtime, and longer service life on everything downstream.
Key Features
- 58 CFM capacity - keeps up with higher-output two-stage piston compressors.
- Built-in coalescing filter - strips oil and solids in the same housing.
- Automatic drain - clears condensate without a manual valve.
- 115V single-phase power - 10 amp recommended breaker, no three-phase service needed.
- Rated to 230 PSI - R134A refrigerant, UL/CSE listed.
Specifications
| Brand | EMAX Compressor |
|---|---|
| Type | Refrigerated Air Dryer |
| Capacity | 58 CFM |
| Power | 115V / Single Phase |
| Max Pressure | 230 PSI |
| Refrigerant | R134A |
| Recommended Breaker | 10 A |
| Max Inlet Temp | 140 F |
| Max Ambient Temp | 122 F |
| Weight | 175 lb |
| Certifications | UL/CSE |
How It Compares
| Model | Capacity | Power | Max PSI |
|---|---|---|---|
| EDRCF1150030 | 30 CFM | 115V 1Ph | 230 PSI |
| EDRCF1150058 | 58 CFM | 115V 1Ph | 230 PSI |
| EDRCF1150115 | 115 CFM | 115V 1Ph | 230 PSI |
Key Facts
- Rated for 58 CFM to support larger two-stage piston compressors.
- Coalescing filter and automatic drain are integrated into the unit.
- Runs on 115V single-phase power with a 10 amp recommended breaker.
Who It's For
This dryer suits the busy independent or production shop running a 10 HP class two-stage compressor that needs consistently dry air for spray finishing, blasting, or air-hungry tooling. Place it downstream of the tank in a heated, ventilated space.
What's Included
- EMAX EDRCF1150058 refrigerated air dryer
- Integrated coalescing filter
- Automatic condensate drain
- Owner documentation
Shipping and Freight
This dryer ships LTL freight at roughly 175 lb crated. Expect curbside delivery on a pallet. Inspect for damage before signing and before installation.
About EMAX Compressor
EMAX builds compressed air equipment for automotive, industrial, and commercial shops, with air treatment gear that scales from small 30 CFM dryers to large three-phase systems. The line is built to be serviced, with available filter service kits.
Frequently Asked Questions
What compressor size does the EDRCF1150058 handle?
It is rated for 58 CFM, which suits larger two-stage piston compressors in the 10 HP class. Always match dryer CFM to your compressor output at working pressure.
Does it run on standard shop power?
Yes. It uses 115V single-phase power with a recommended 10 amp breaker, so no three-phase service is required.
How does it remove oil from the air?
A coalescing filter is built into the dryer. It captures oil and solid particles and routes them to a drain trap that empties automatically.
What is the maximum operating pressure?
The unit is rated to 230 PSI and uses R134A refrigerant.
Talk to a shop infrastructure specialist about matching this dryer to your compressor and freight before ordering. Browse the full EMAX Compressor lineup for compatible equipment.
