Description
Overview

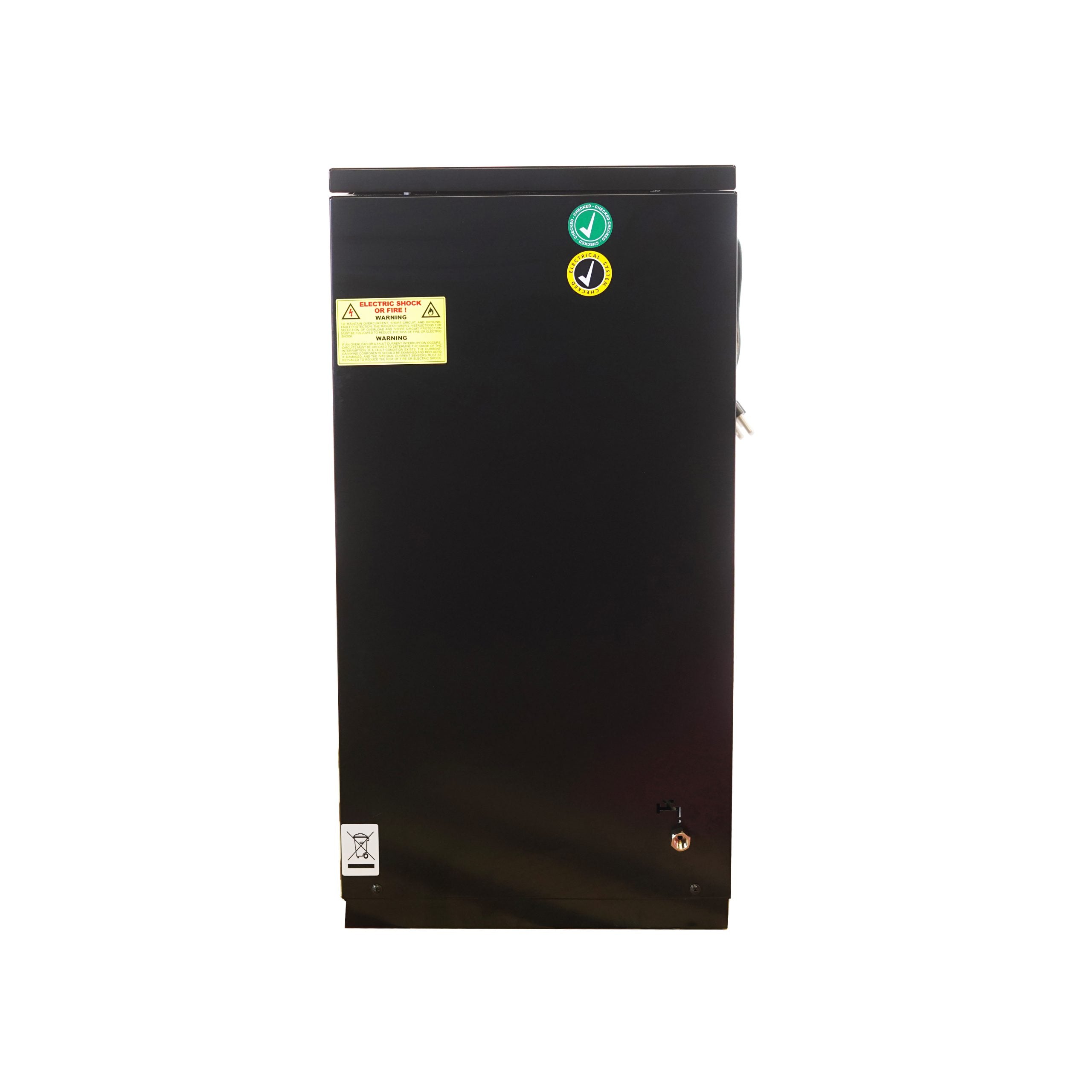

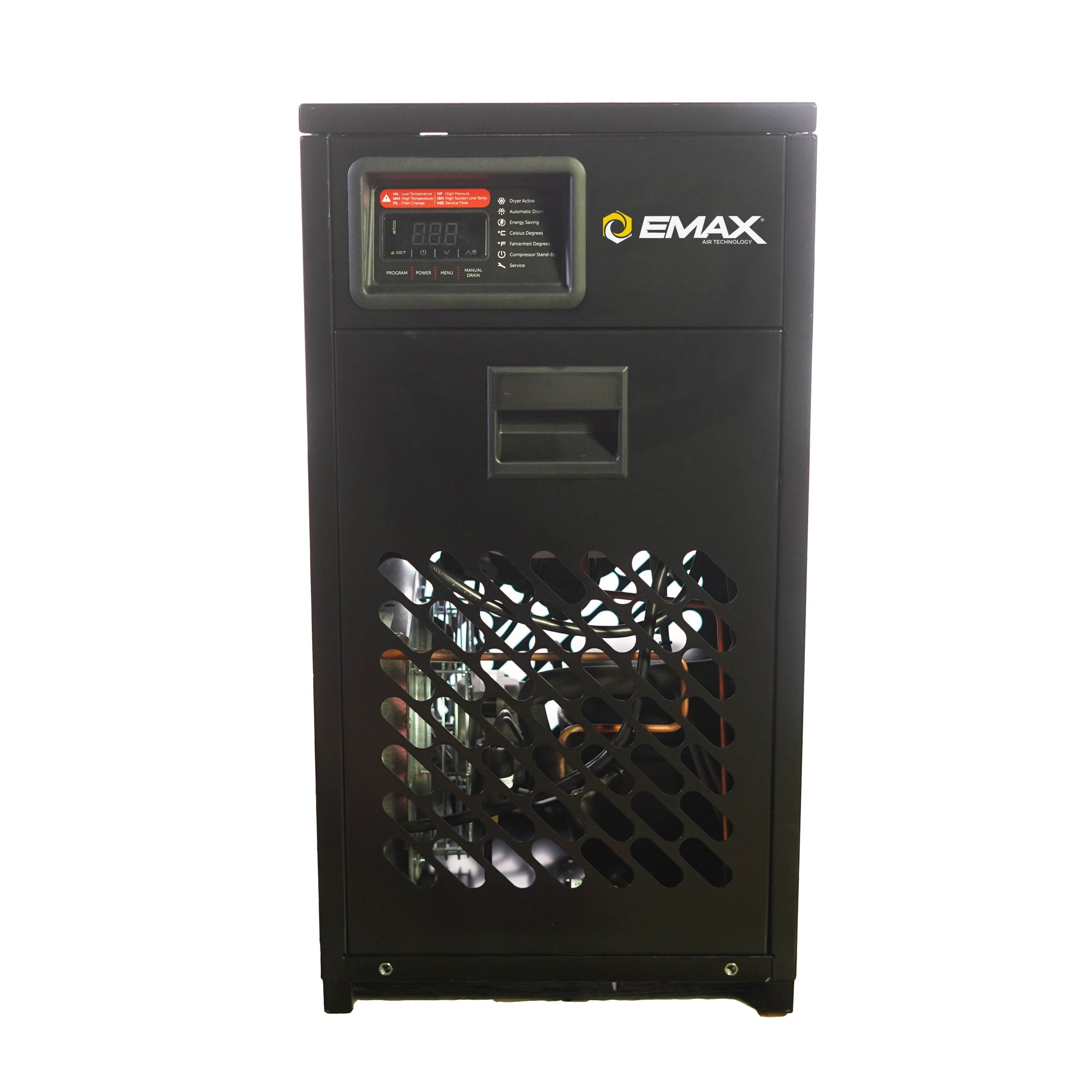

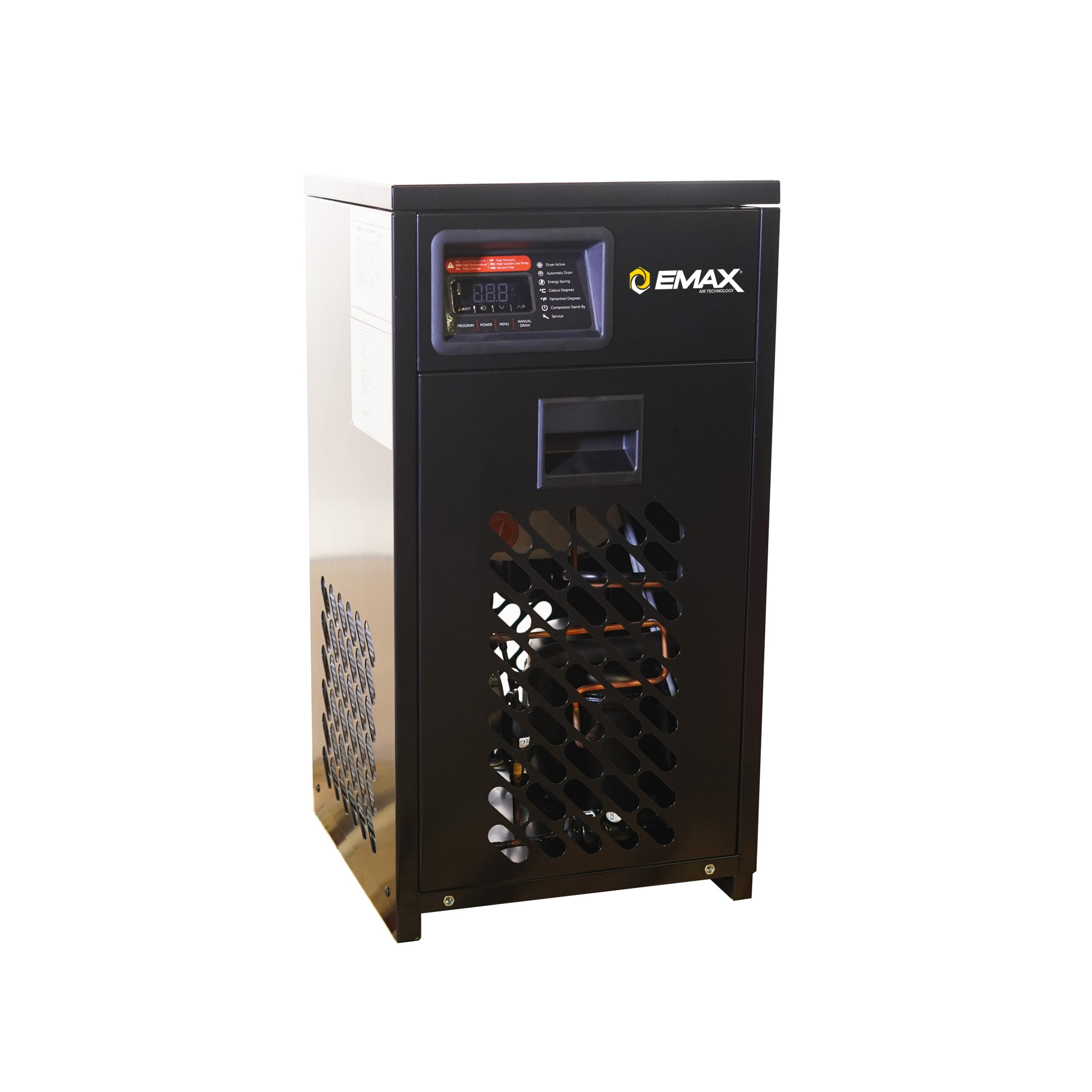

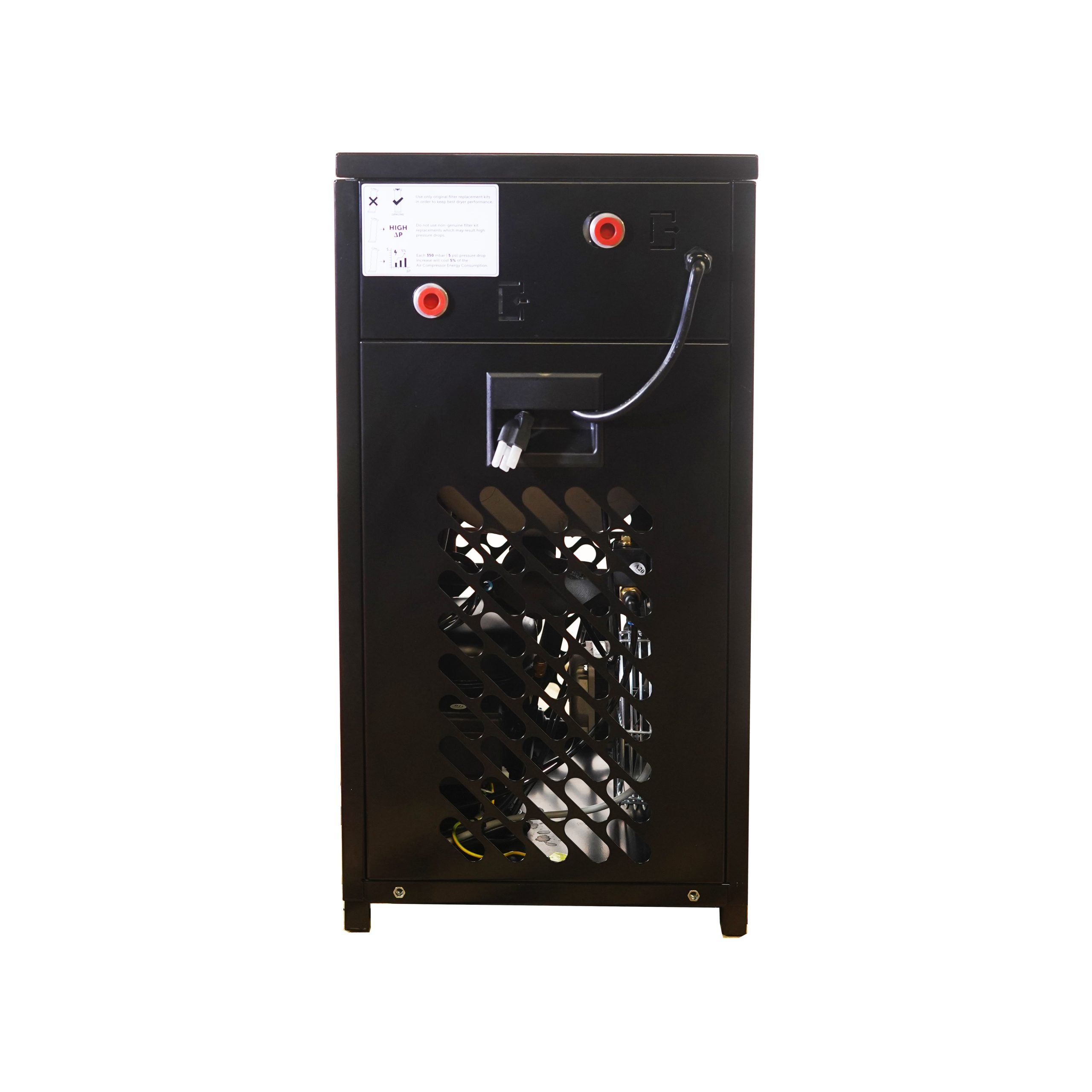

The EMAX EDRCF1150030 is a 30 CFM refrigerated air dryer with a built-in coalescing filter and automatic drain, sized to clean and dry the air from a 3, 5, or 7.5 HP shop compressor. It runs on standard 115V single-phase power, so it drops into most existing setups without a new circuit.
Wet, oily air ruins tools, finishes, and pneumatic controls. This dryer chills the compressed air to condense out moisture, then the integrated coalescing filter strips oil and solid particles before the air reaches your lines. The result is cleaner air, longer tool life, and fewer water problems at the point of use.
Key Features
- 30 CFM capacity - matches the output of a typical 3 HP to 7.5 HP reciprocating compressor.
- Built-in coalescing filter - removes oil and solids from the air stream in one unit.
- Automatic drain - discharges collected condensate without manual intervention.
- 115V single-phase power - drawn through a 6 amp recommended breaker, no special service required.
- Rated to 230 PSI - with R134A refrigerant and UL/CSE listing.
Specifications
| Brand | EMAX Compressor |
|---|---|
| Type | Refrigerated Air Dryer |
| Capacity | 30 CFM |
| Power | 115V / Single Phase |
| Max Pressure | 230 PSI |
| Refrigerant | R134A |
| Recommended Breaker | 6 A |
| Max Inlet Temp | 140 F |
| Max Ambient Temp | 122 F |
| Weight | 130 lb |
| Certifications | UL/CSE |
How It Compares
| Model | Capacity | Power | Max PSI |
|---|---|---|---|
| EDRCF1150030 | 30 CFM | 115V 1Ph | 230 PSI |
| EDRCF1150058 | 58 CFM | 115V 1Ph | 230 PSI |
| EDRCF1150115 | 115 CFM | 115V 1Ph | 230 PSI |
Key Facts
- Rated for 30 CFM, suited to 3 HP, 5 HP, and 7.5 HP compressors.
- Coalescing filter and auto drain are built in, not add-on accessories.
- Operates on 115V single-phase with a 6 amp recommended breaker.
Who It's For
This dryer fits the small to mid-size shop running a single-stage or two-stage piston compressor that needs clean, dry air for paint work, plasma cutting, or air tools. It is wall-adjacent floor equipment that should sit downstream of the tank in a heated space.
What's Included
- EMAX EDRCF1150030 refrigerated air dryer
- Integrated coalescing filter
- Automatic condensate drain
- Owner documentation
Shipping and Freight
This dryer ships as a parcel item at 130 lb. Most orders leave the warehouse within standard handling time. Inspect the unit on arrival and report any damage before installation.
About EMAX Compressor
EMAX builds compressed air equipment for automotive, industrial, and commercial shops, with a focus on cast iron pumps and serviceable air treatment gear. Their air dryer line spans 30 CFM up to large three-phase units.
Frequently Asked Questions
What size compressor does the EDRCF1150030 support?
It is rated for 30 CFM, which covers the output of most 3 HP, 5 HP, and 7.5 HP reciprocating compressors. Match the dryer rating to your compressor CFM at working pressure.
Does it need a special electrical circuit?
No. It runs on 115V single-phase power with a recommended 6 amp breaker, so it works on a standard shop circuit.
Is a filter included or does it cost extra?
A coalescing filter is built into the unit. It removes oil and solids from the air stream and collects them in a drain trap that empties through the automatic drain.
What refrigerant does it use?
The dryer uses R134A refrigerant and is rated to a maximum working pressure of 230 PSI.
