Description
Overview

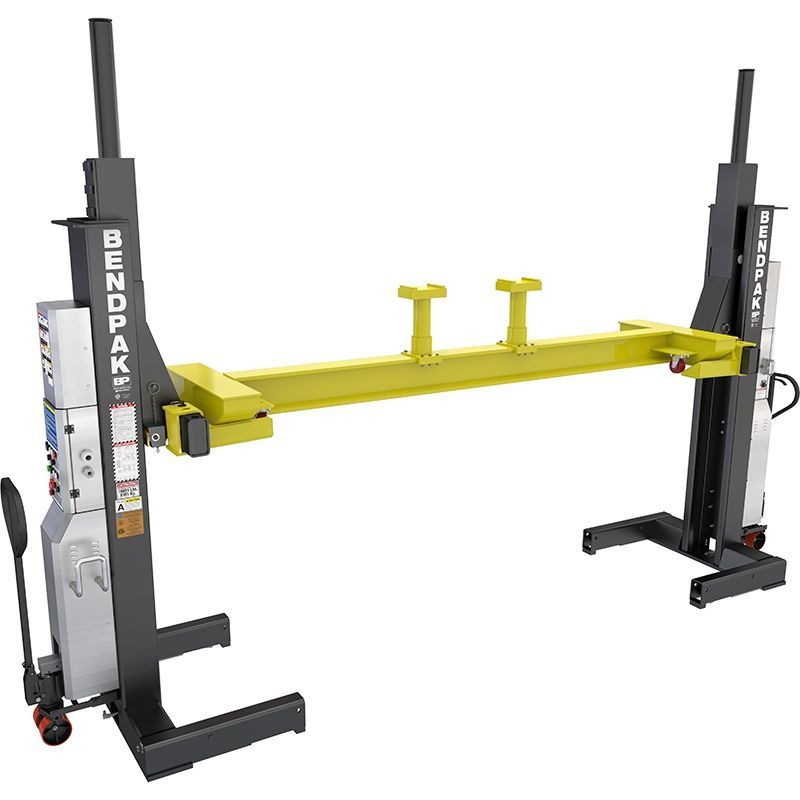

The BendPak PCL-18B Chassis Cross Beam is a support beam that bridges two PCL-18B mobile column lifts and rests under the vehicle frame. It lets operators lift a heavy commercial vehicle by its chassis so the wheels hang free for tire and suspension work.
Mobile column lifts normally support a vehicle by its wheels, which blocks wheel service. The cross beam solves that. Its extended frame cradle pads engage the manufacturer lift points, freeing the wheels while keeping the load on the chassis. The kit includes the stacking adapter set referenced in the supplier listing.
Key Features
- 18,000 lb capacity per beam - sized for heavy commercial vehicles up to the rated load.
- Spans two PCL-18B columns - connects a pair of mobile columns to lift from the chassis.
- Four frame cradle pads of varying heights - engage the manufacturer lift points for wheels-free access.
- Two sliding receivers - glide along the beam so you can adjust pad position to the lift points.
- Includes stacking adapter set - as listed by the supplier for this assembly.
Specifications
| Brand | BendPak |
|---|---|
| Type | Chassis Cross Beam for Mobile Column Lifts |
| Capacity | 18,000 lb per beam |
| Fits | PCL-18B Mobile Column Lifts |

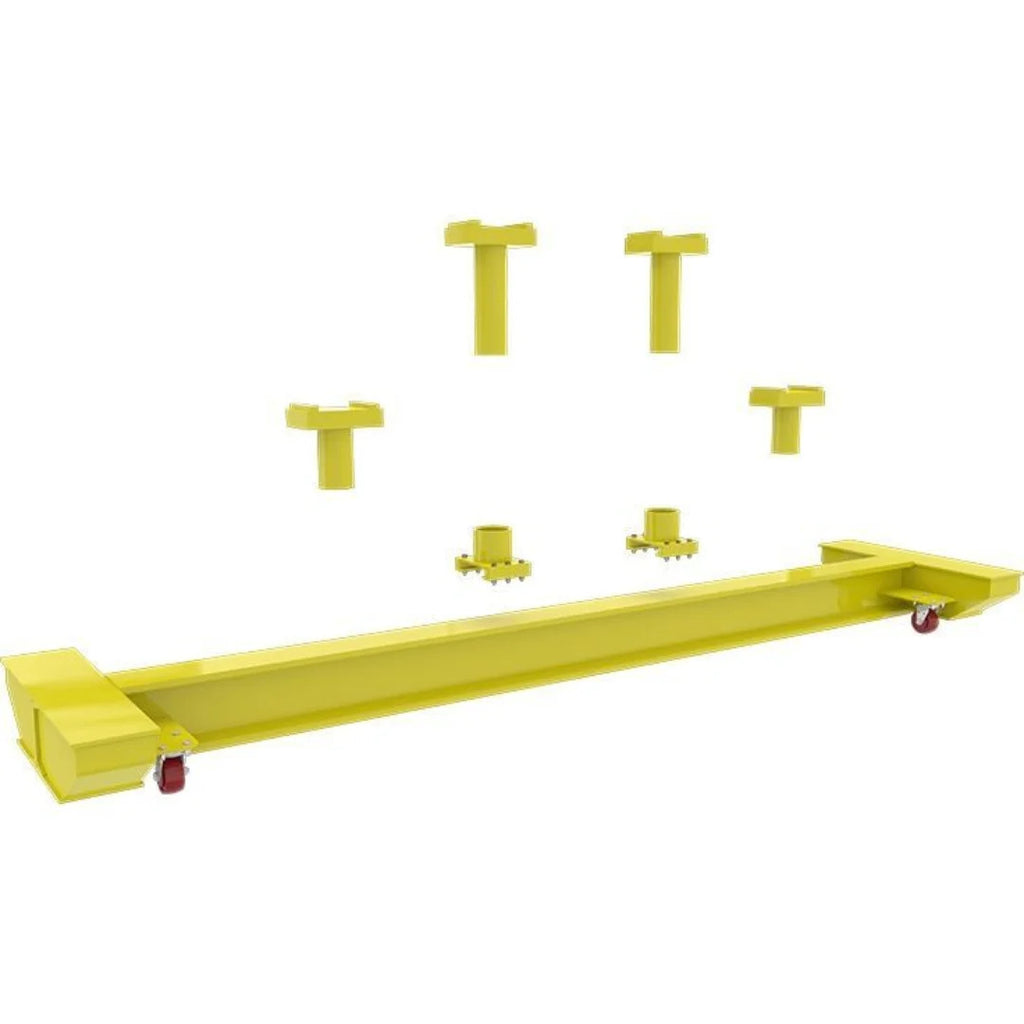

| Includes | Four frame cradle pads, two sliding receivers, stacking adapter set |
Who It's For
For fleet and commercial shops running BendPak PCL-18B mobile column lifts that need wheels-free access on buses, trucks, and other heavy vehicles. Each beam connects two columns, so plan around your column count and the vehicles you service.
Shipping and Freight
This assembly ships by freight on a pallet. Contact a specialist for current freight handling and a quote, and confirm delivery access before ordering.
About BendPak
BendPak has built automotive lifts and accessories since 1965 and supplies mobile column lifts and heavy-duty lifting equipment used in commercial fleet service.
Frequently Asked Questions
What does the cross beam do?
It bridges two PCL-18B mobile columns and lifts the vehicle by its chassis frame, freeing the wheels for tire and suspension service.
What is the capacity?
Each beam is rated at 18,000 lb.
What comes with it?
The assembly includes four frame cradle pads of varying heights, two sliding receivers, and the stacking adapter set.
Which lifts does it work with?
It is built for BendPak PCL-18B mobile column lifts.
How does it ship?
It ships by freight on a pallet. Contact a specialist for a quote and confirm delivery access.
Talk to a specialist about your column count and vehicle mix before ordering this cross beam.
