Description
Overview

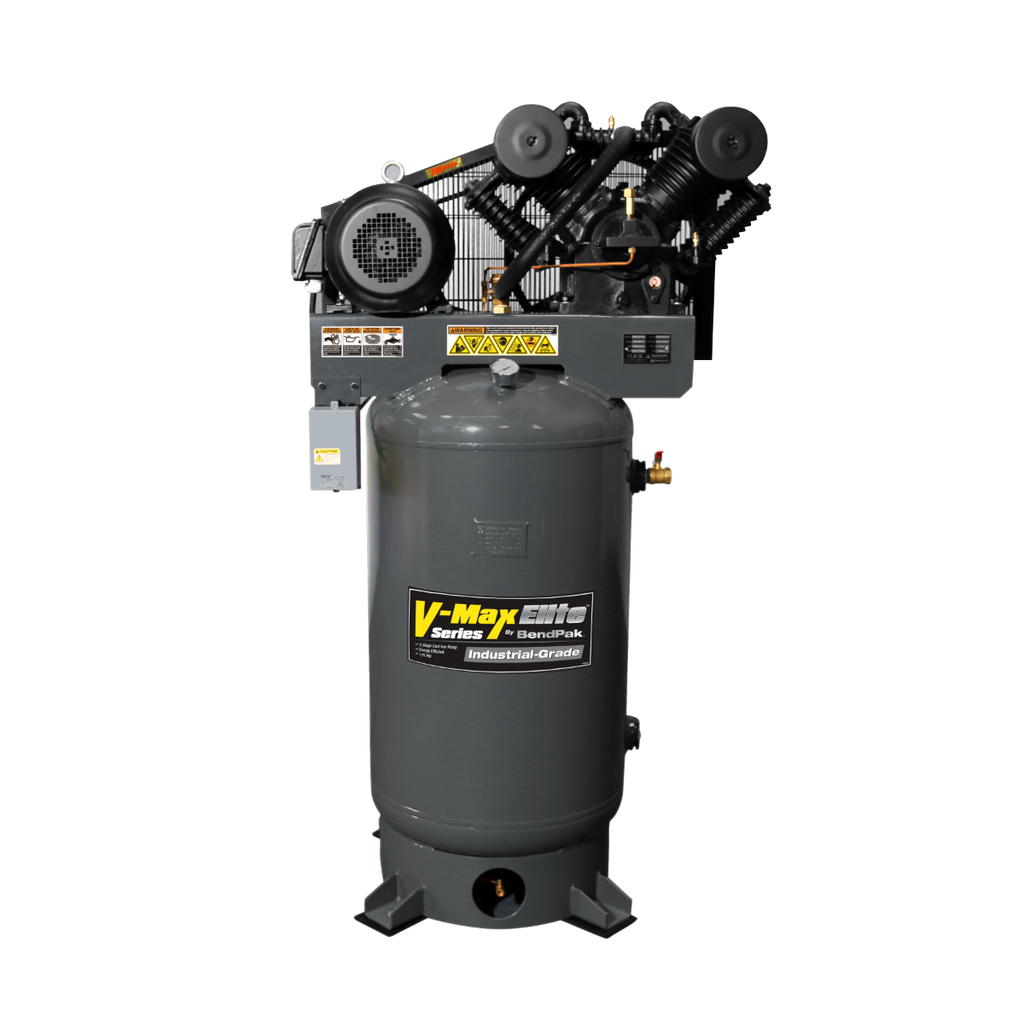

The BendPak VMP-10120V-603 is a 10 HP, two-stage V-Max Elite air compressor on a 120-gallon vertical ASME tank, wired for 208-230V three-phase power. It is the largest unit in the V-Max line, built for shops that demand big air under continuous load.

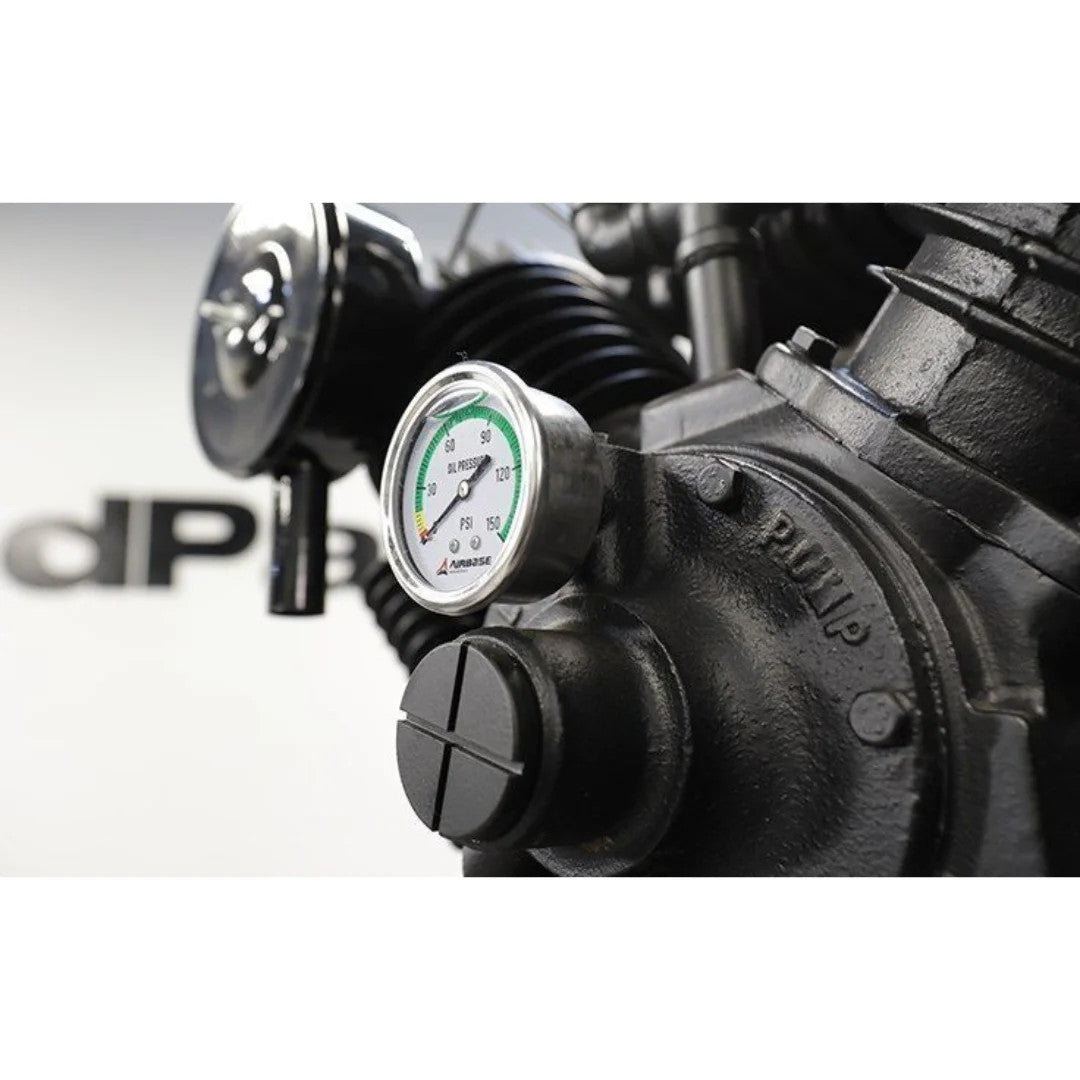

The four-cylinder cast-iron pump runs at a low 625 RPM with a built-in intercooler and air-cooled after-cooler, which holds operating temperatures down and keeps condensation in check. With the 120-gallon reserve, it is suited to running several air tools at once without rapid cycling.
Key Features
- 26 CFM at 175 PSI - high continuous delivery for multi-bay automotive, body, or industrial work.
- 10 HP motor, 208-230V three phase - draws 18 amps on a 50-amp breaker, with a magnetic starter for overload protection.
- V-Max four-cylinder cast-iron pump - two-stage design at 625 RPM with V-4 finned cylinders for 360-degree cooling.
- 120-gallon vertical ASME tank - large reserve to support heavy simultaneous tool use with less cycling.
- Continuous duty cycle - intercooler and after-cooler keep the air dry and the pump cool on long runs.
Specifications
| Brand | BendPak |
|---|---|
| Type | Two-Stage Reciprocating Air Compressor |
| Air Delivery | 26 CFM at 175 PSI |
| Max Pressure | 175 PSI |
| Motor | 10 HP |
| Power | 208-230V / 60 Hz / Three Phase |
| Amp Draw | 18 A (50 A breaker) |
| Tank | 120 Gallon, Vertical, ASME |
| Duty Cycle | Continuous |
| Noise | 78 dB |
| Shipping Weight | 880 lb |
| Shipping Dimensions | 45 x 40 x 78 in |
| Certification | UL, ASME |
Who It's For
Sized for a high-use multi-bay shop or light industrial line running three-phase power. Verify your panel can carry a 10 HP three-phase load and plan a level, anchored footing with room around the unit for cooling airflow.
Shipping and Freight
This compressor ships by LTL freight on a pallet. Expect a carrier appointment and curbside or dock delivery. Confirm liftgate and access before ordering and inspect the crate at delivery. Ask for a freight quote on residential or limited-access sites.
About BendPak
BendPak has manufactured lifts and shop equipment since 1965 and assembles its V-Max air compressors in the USA, known in the trade for heavy steel construction and long service life.
Frequently Asked Questions
What power does the VMP-10120V-603 need?
It is wired for 208-230V three-phase, 60 Hz power. It draws 18 amps and BendPak lists a 50-amp breaker.
How much air does it deliver?
It is rated at 26 CFM at 175 PSI, with a maximum pressure of 175 PSI.
How big is the tank?
It uses a 120-gallon vertical ASME tank, the largest in the V-Max line.
Is it continuous duty?
Yes. The two-stage cast-iron pump is rated for continuous duty, with an intercooler and after-cooler to manage heat and moisture.
How does it ship?
It ships by LTL freight on a pallet at about 880 lb. Confirm liftgate and delivery access before ordering.
Talk to a specialist about three-phase power, placement, and freight before ordering this compressor.
