Description
Overview

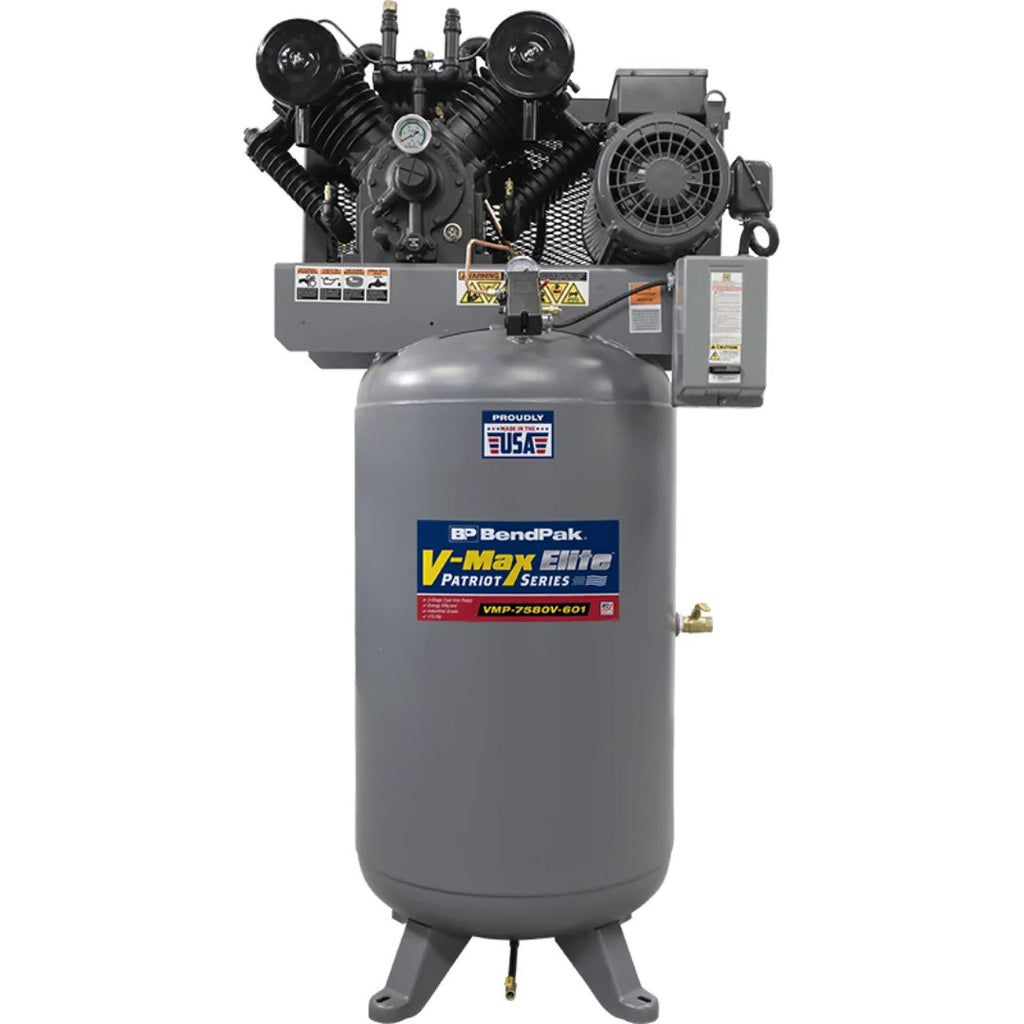

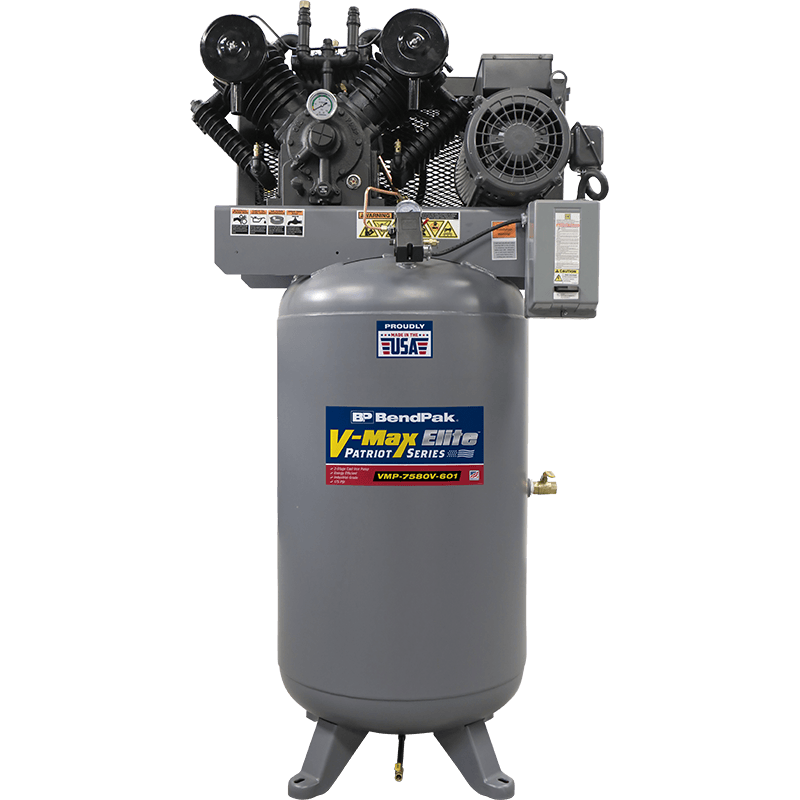

The BendPak VMP-7580V-601 is a 7.5 HP, two-stage V-Max Patriot air compressor on an 80-gallon vertical ASME tank, wired for 208-230V single-phase power. It uses the four-cylinder V-Max pump built from 100 percent cast iron for extreme-duty service.
This unit is aimed at shops that have outgrown a 5 HP compressor but still run single-phase power. The slow-turning cast-iron pump and forced-air after-cooler hold operating temperatures down, which keeps the air drier and the maintenance lighter across heavy daily use.
Key Features

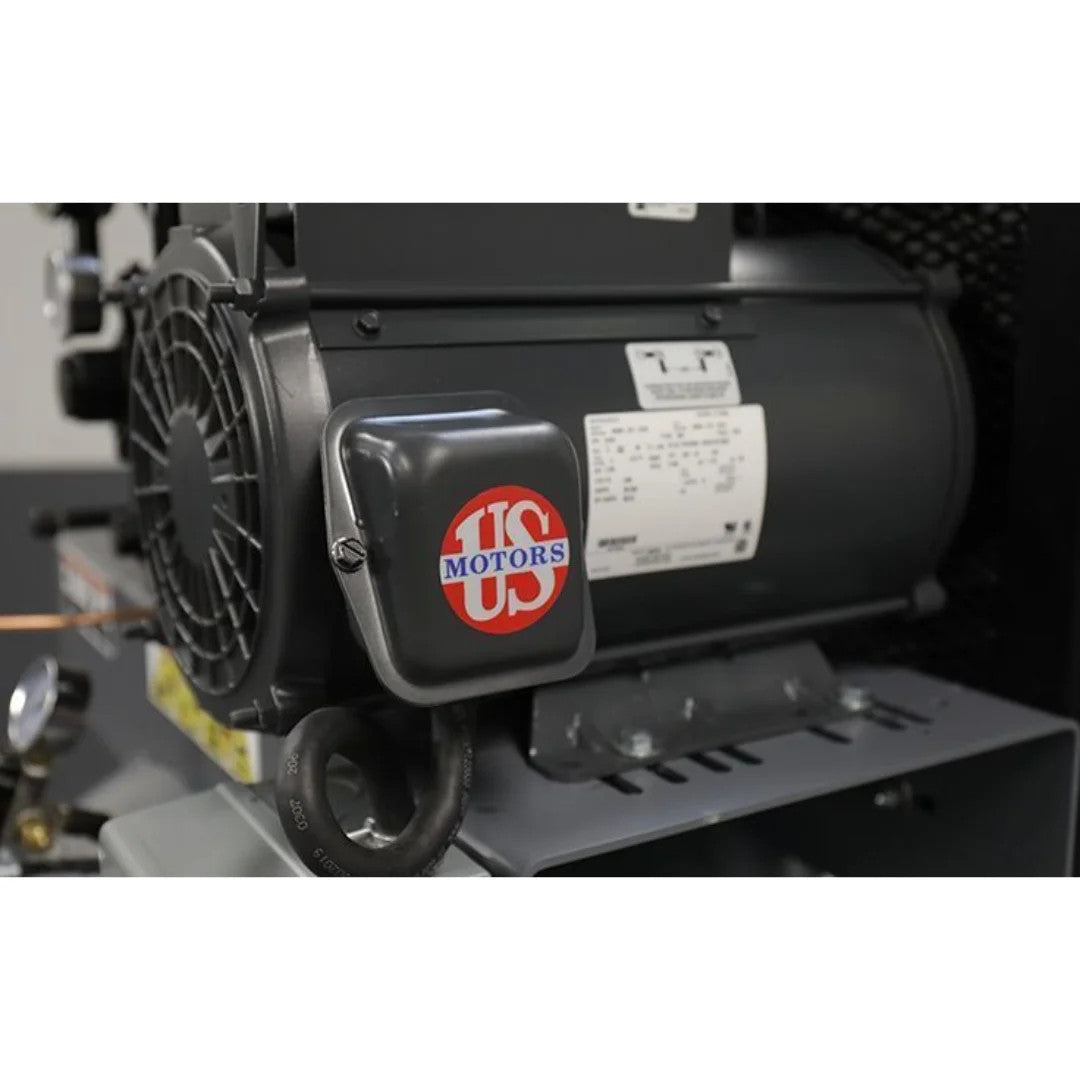

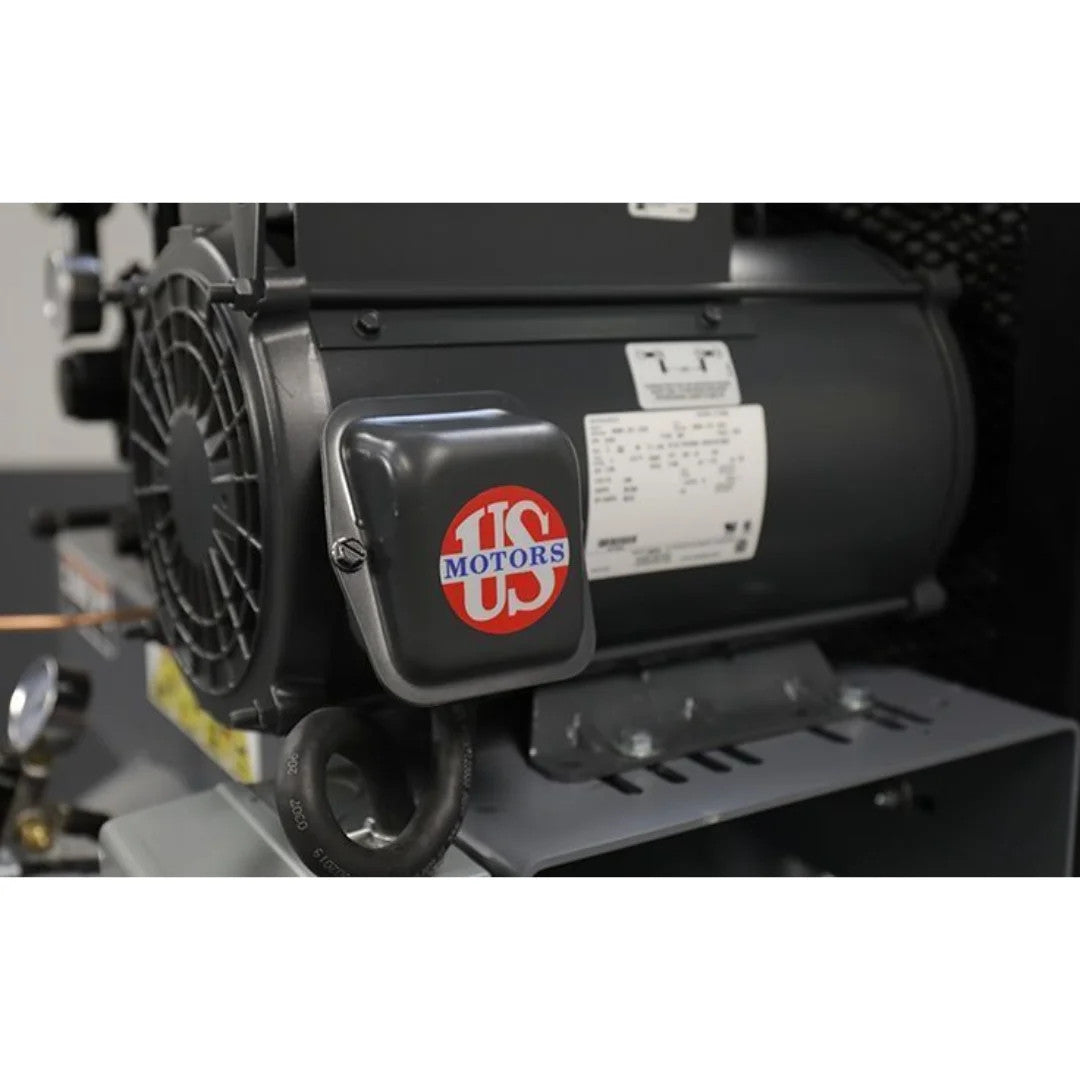

- 7.5 HP motor, 208-230V single phase - draws 32 amps on a 50-amp breaker, with a magnetic starter for thermal overload protection.

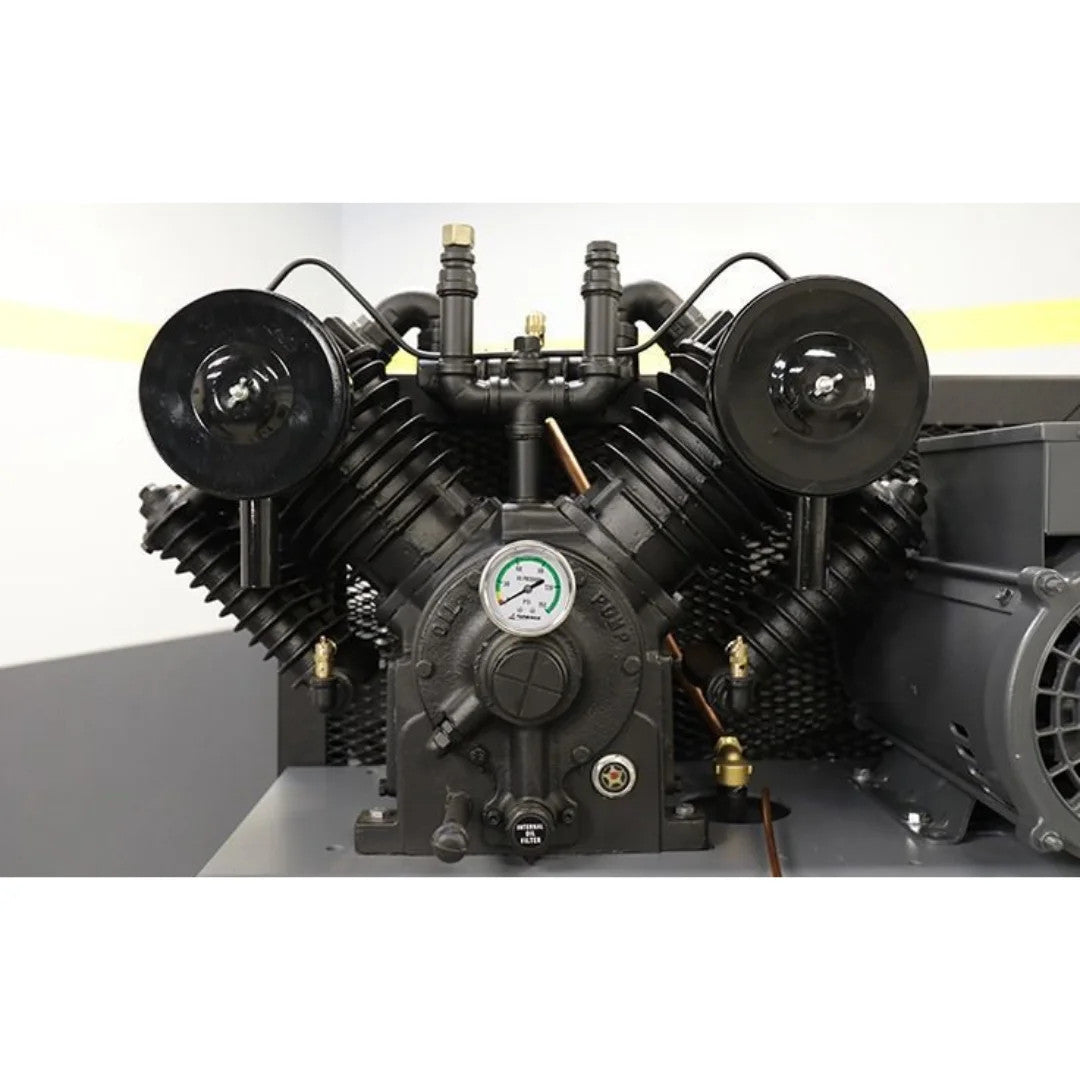

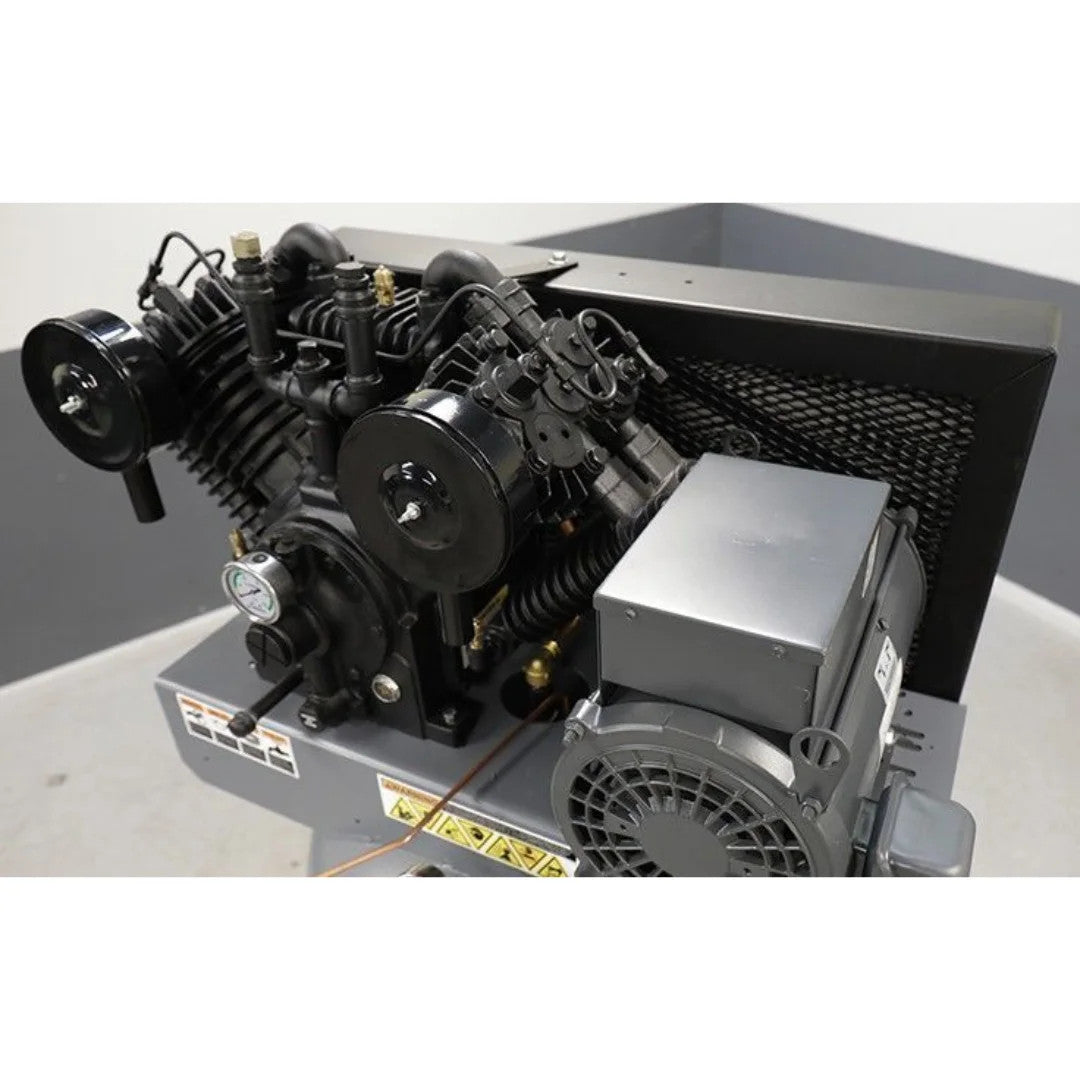

- V-Max four-cylinder cast-iron pump - two-stage design with a V-4 finned cylinder layout for 360-degree cooling and high air delivery.
- 80-gallon vertical ASME tank - large reserve with a compact footprint for a busy bay.
- Dual drive belts and fully enclosed belt guard - lower belt tension means longer belt and bearing life and reduced vibration.
- Assembled in the USA - UL and ASME certified, built for continuous shop duty.
Specifications
| Brand | BendPak |
|---|---|
| Type | Two-Stage Reciprocating Air Compressor |
| Motor | 7.5 HP |
| Power | 208-230V / 60 Hz / Single Phase |
| Amp Draw | 32 A (50 A breaker) |
| Tank | 80 Gallon, Vertical, ASME |
| Pump | V-Max Four-Cylinder Cast Iron, Two-Stage |
| Noise | 78 dB |
| Certification | ASME, UL |
Who It's For
Built for a busy two to three-bay automotive or body shop running multiple air tools at once on single-phase power. Plan for a 208-230V single-phase circuit on a 50-amp breaker and a level, anchored footing.
Shipping and Freight
This compressor ships by LTL freight on a pallet. Expect a carrier appointment and curbside or dock delivery. Confirm liftgate and access details before ordering, and inspect the crate on arrival. Ask for a freight quote on residential or limited-access locations.
About BendPak
BendPak has manufactured lifts and shop equipment since 1965 and assembles its V-Max Patriot air compressors in the USA. The brand is recognized in the trade for rugged, long-lived service equipment.
Frequently Asked Questions
Does this run on single-phase power?
Yes. The VMP-7580V-601 is the single-phase configuration, wired for 208-230V, 60 Hz. It draws 32 amps and BendPak lists a 50-amp breaker.
What is the difference between the 601 and 603 models?
The 601 is single phase and the 603 is three phase. Both share the 7.5 HP V-Max pump and 80-gallon tank.
What kind of pump does it use?
A V-Max four-cylinder, two-stage cast-iron pump with splash lubrication and a finned cylinder layout for cooling.
Is it certified?
Yes. It is ASME and UL certified and assembled in the USA.
How does it ship?
It ships by LTL freight on a pallet. Confirm liftgate and delivery access before ordering.
Reach out to a specialist about shop power, placement, and freight before ordering this compressor.
