Description
Overview

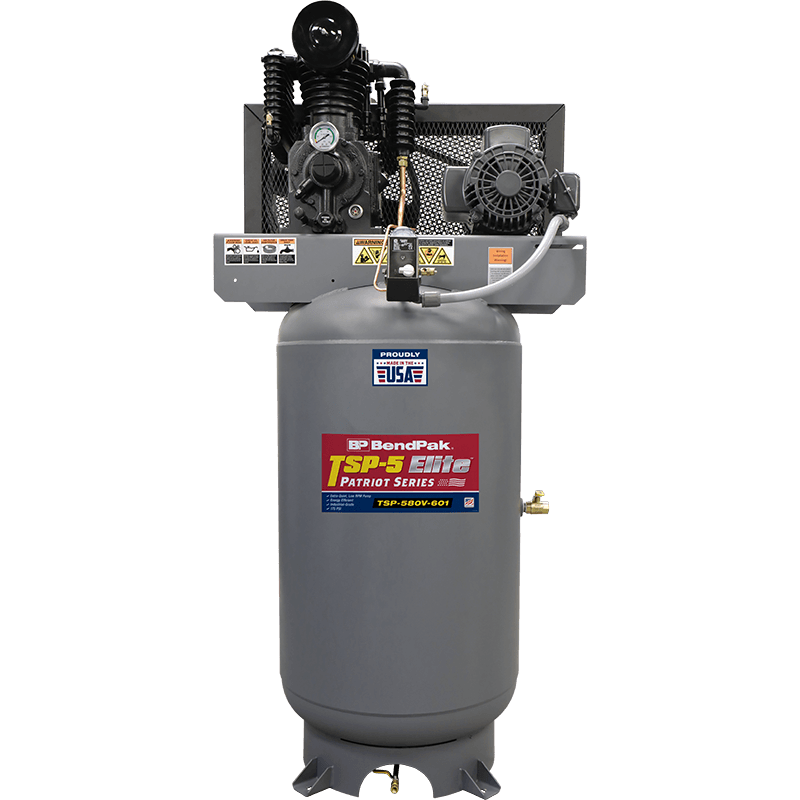

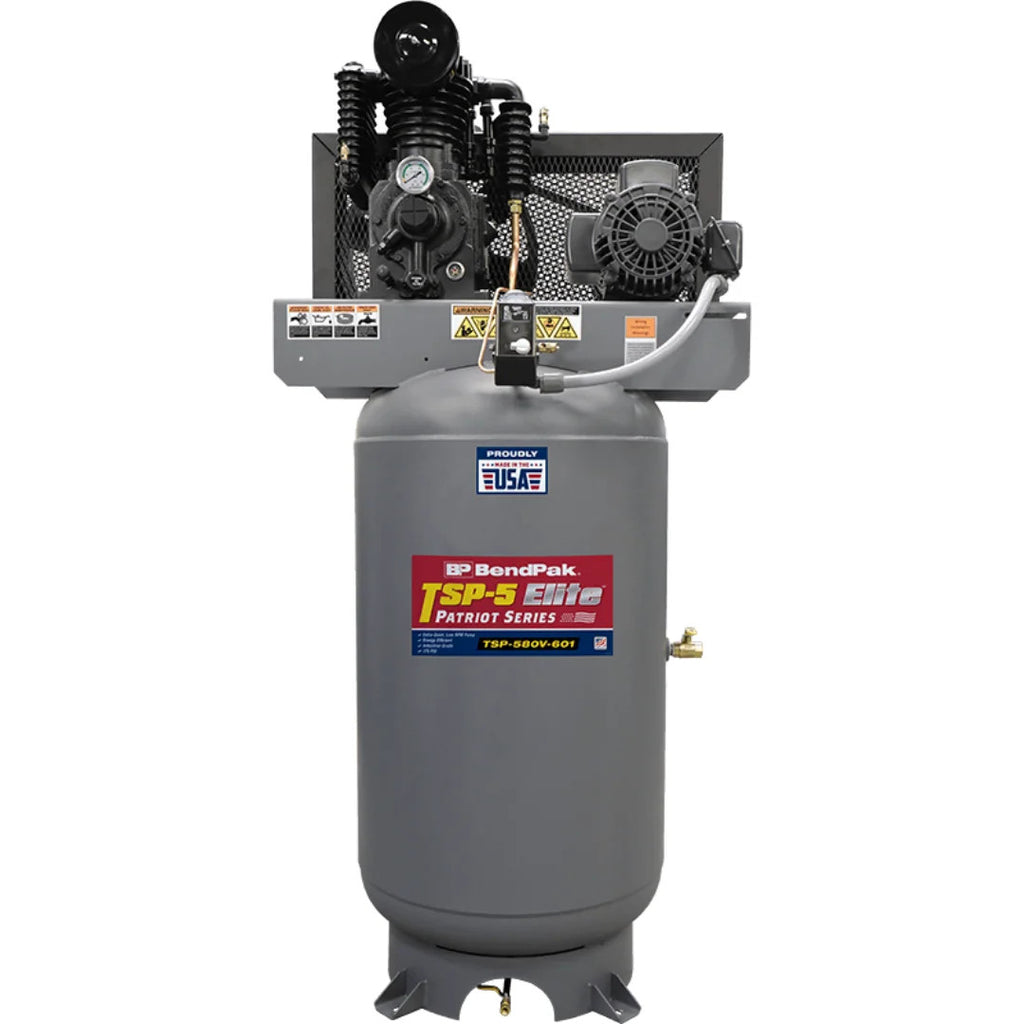

The BendPak TSP-580V-601 is a two-stage, 5 HP reciprocating air compressor built around an 80-gallon vertical ASME tank. It is part of the Patriot line, assembled in the USA for shops that run air all day and need the pump to stay alive for years, not seasons.
This is a slow-running compressor. The cast-iron pump turns at 625 RPM, which keeps the unit quieter and cooler than high-speed designs and stretches service intervals. For an automotive bay, a body shop, or a light industrial line, that translates to steady delivery and lower lifetime operating cost.
Key Features
- 17 CFM at 175 PSI - enough continuous air for impact tools, sanders, and spray work in a single or two-bay shop.

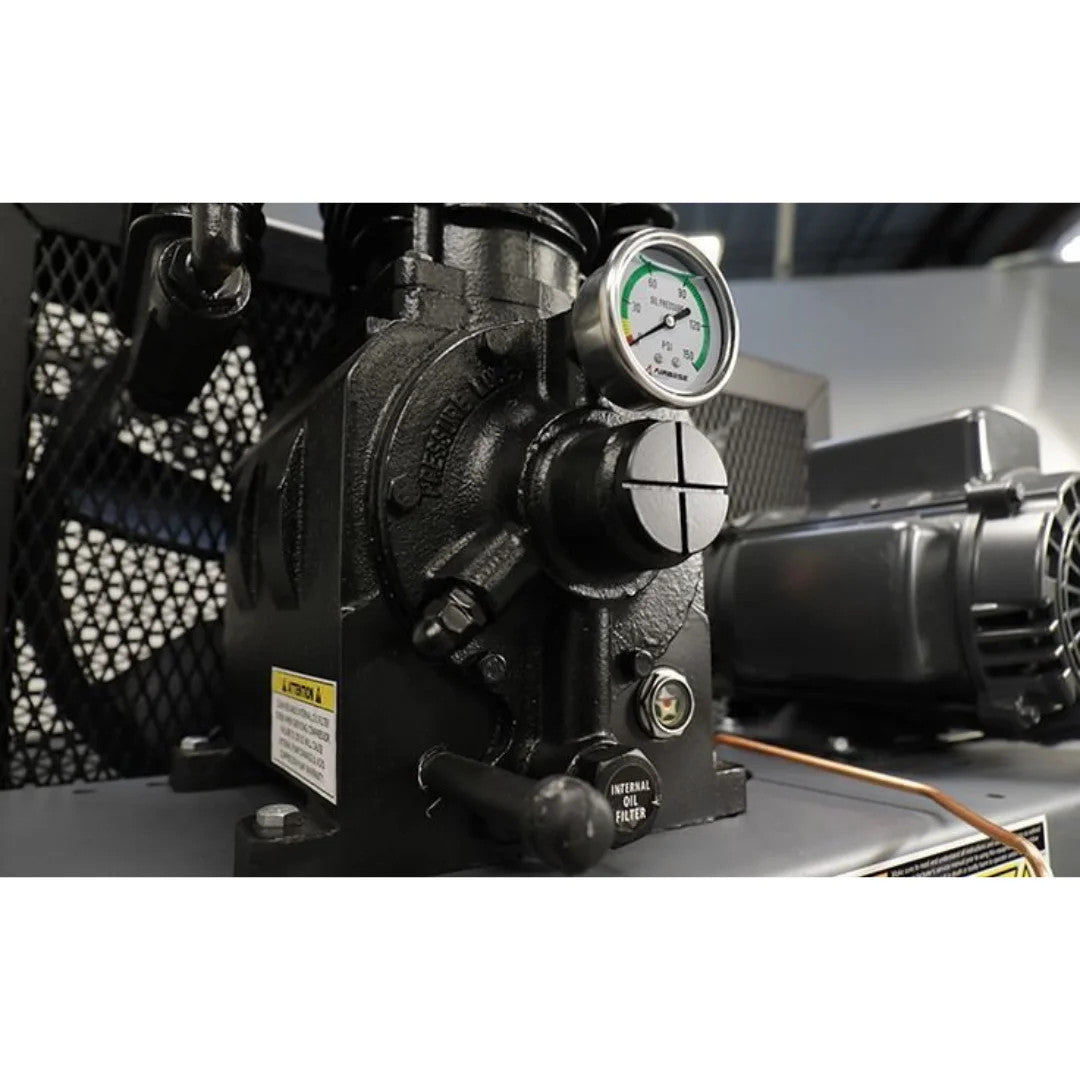

- Two-stage cast-iron pump - compresses in two cylinders for higher pressure, with splash lubrication and finned cylinders for 360-degree cooling.

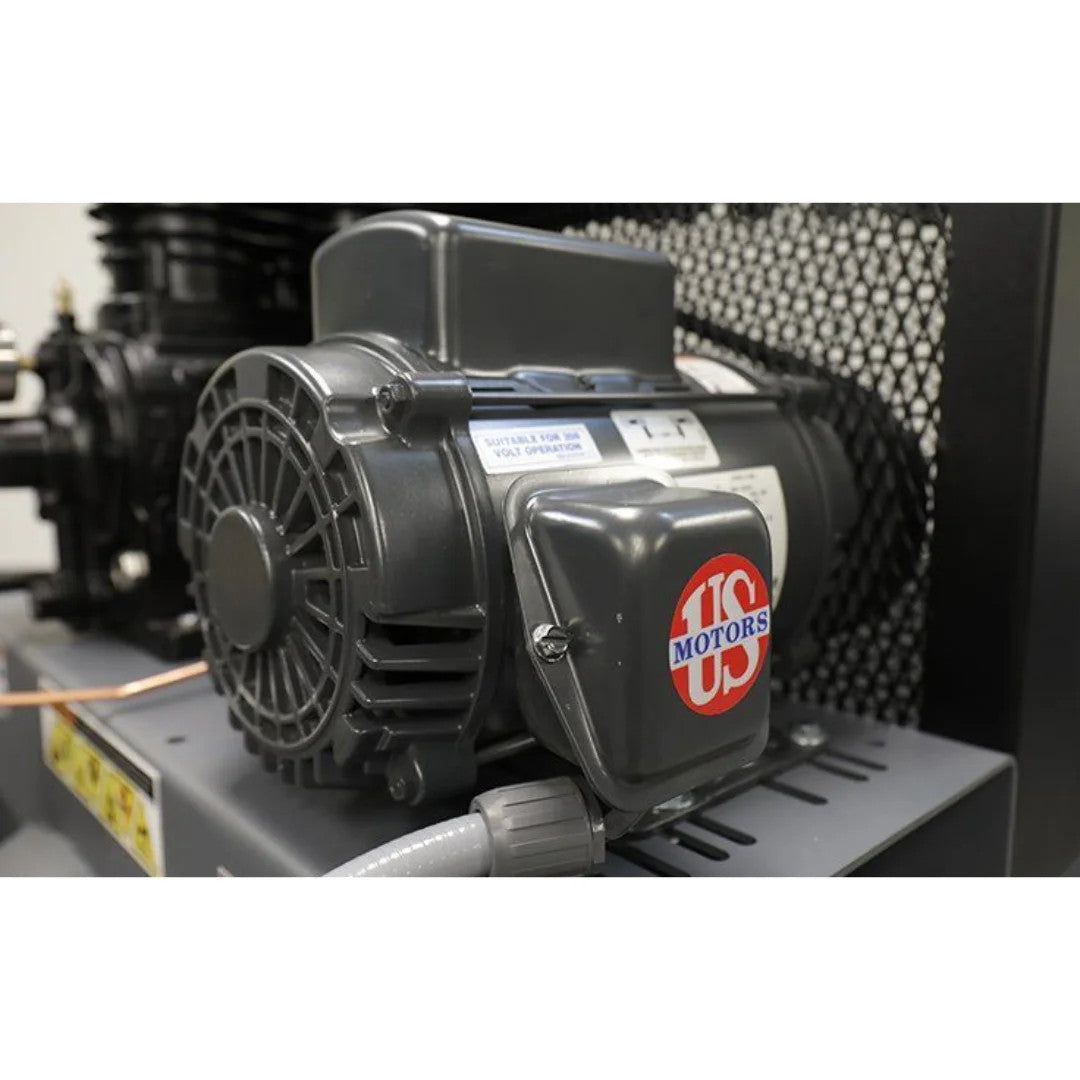

- 5 HP motor, 208-230V single phase - draws 24 amps and calls for a 40-amp breaker, so it runs on common single-phase shop power.
- 80-gallon vertical ASME tank - large reserve and a small floor footprint, with an electronic drain valve to clear condensate.
- Dual drive belts and magnetic starter - lower belt tension for longer belt and bearing life, plus thermal overload protection on start.
Specifications
| Brand | BendPak |
|---|---|
| Type | Two-Stage Reciprocating Air Compressor |
| Air Delivery | 17 CFM at 175 PSI |
| Max Pressure | 175 PSI |
| Motor | 5 HP |
| Power | 208-230V / 60 Hz / Single Phase |
| Amp Draw | 24 A (40 A breaker) |
| Tank | 80 Gallon, Vertical, ASME |
| Duty Cycle | Continuous |
| Noise | 72 dBA |
| Shipping Weight | 676 lb |
| Shipping Dimensions | 44 x 40 x 75 in |
| Certification | UL, ASME |
Who It's For
Sized for a one to two-bay automotive or body shop, or a light industrial bench that needs continuous-duty air. Plan for a 208-230V single-phase circuit on a 40-amp breaker and a level floor for anchoring.
Shipping and Freight
This compressor ships by LTL freight on a pallet. Expect a freight carrier appointment and curbside or dock delivery. Confirm liftgate and access details before ordering, and inspect the crate at delivery. Reach out for a freight quote on residential or limited-access sites.
About BendPak
BendPak has built automotive lifts and shop equipment since 1965 and assembles its Patriot air compressors in the USA. The brand is known in the trade for heavy steel construction and long-running service equipment.
Frequently Asked Questions
What power does the TSP-580V-601 need?
It runs on 208-230V single-phase, 60 Hz power and draws 24 amps. BendPak lists a 40-amp breaker for this unit.
How much air does it deliver?
It is rated at 17 CFM at 175 PSI, with a maximum pressure of 175 PSI.
Is the pump oil-lubricated?
Yes. It is a two-stage, splash-lubricated cast-iron pump with an oil sight glass for checking level.
How loud is it?
BendPak rates it at 72 dBA. The low pump speed keeps it quieter than high-RPM compressors of similar output.
How does it ship?
It ships by LTL freight on a pallet at about 676 lb. Confirm liftgate and delivery access before you order.
Talk to a specialist about shop power, placement, and freight before you order this compressor.
