Description
Overview

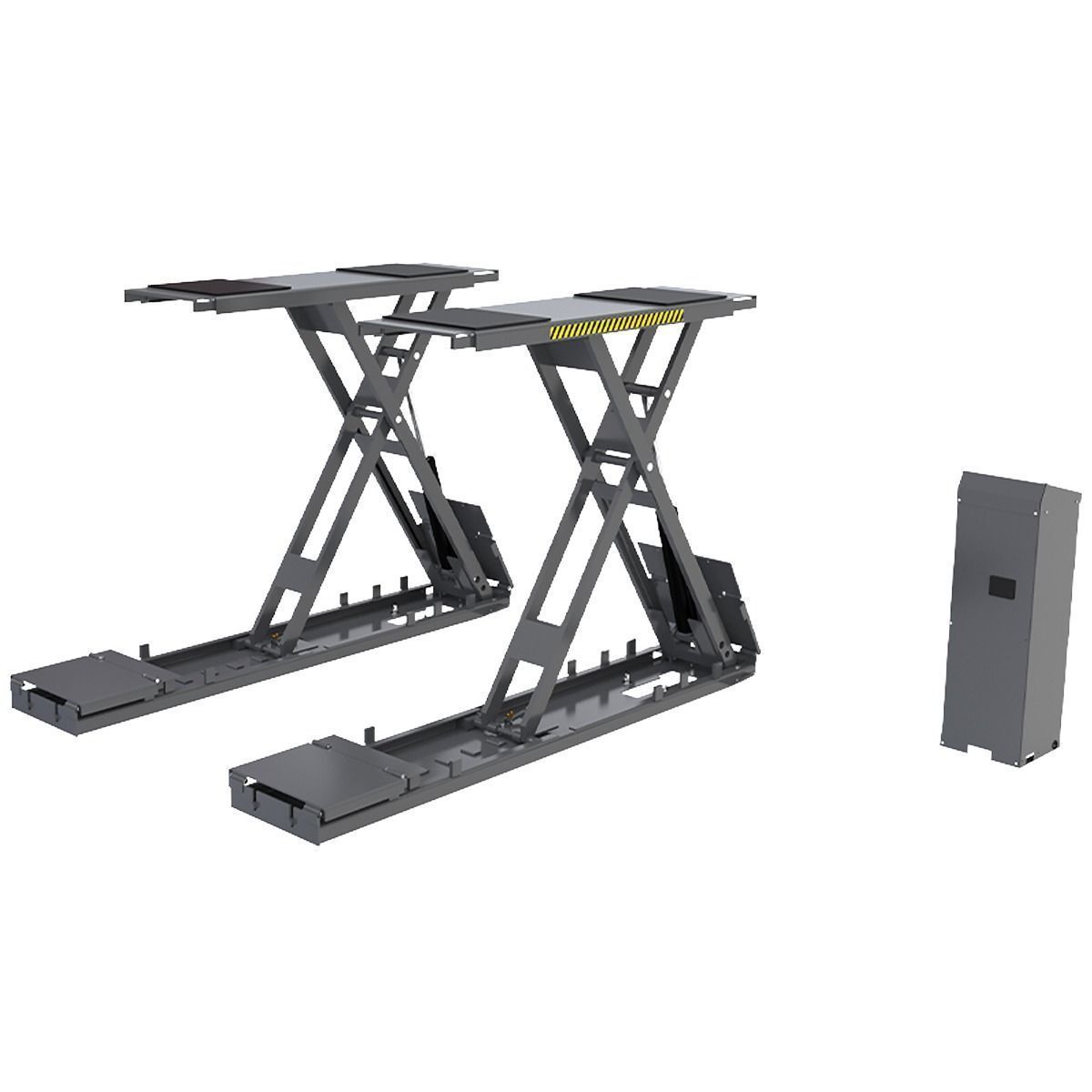

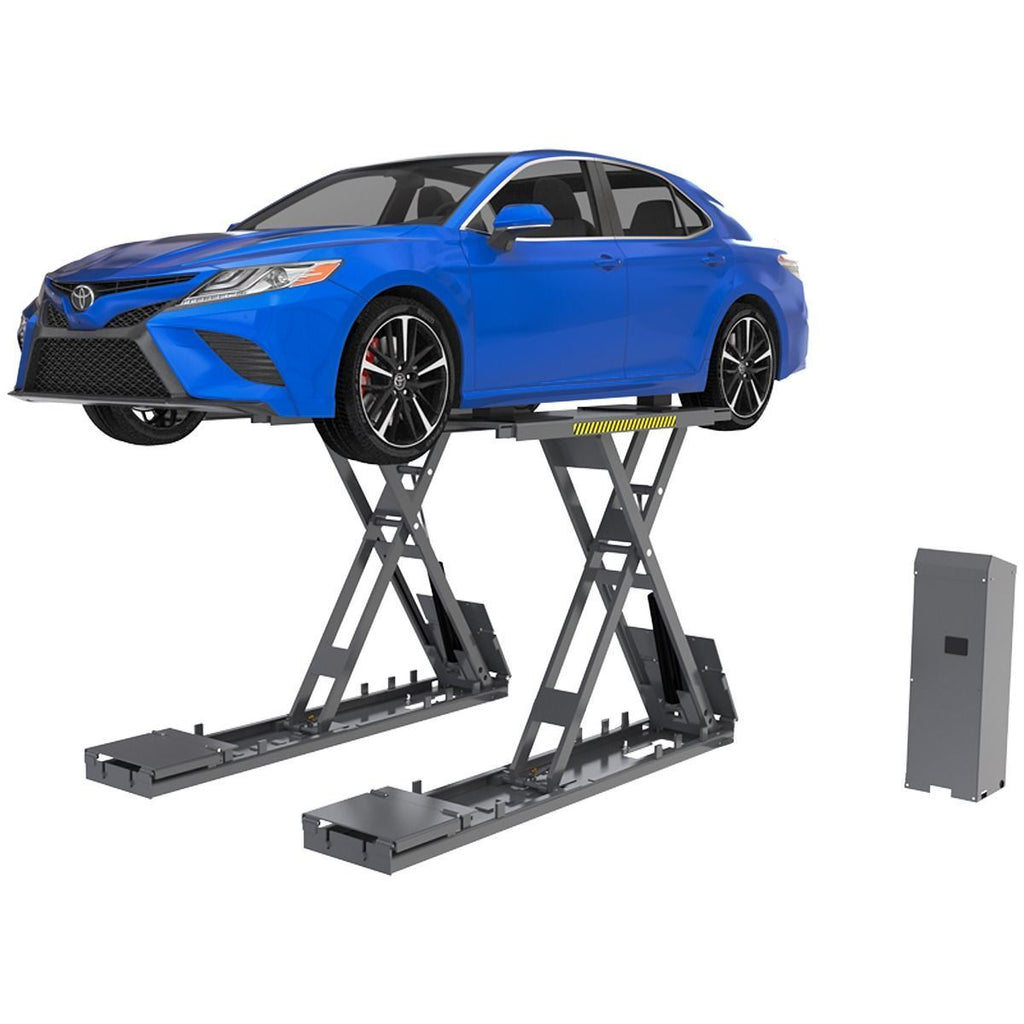

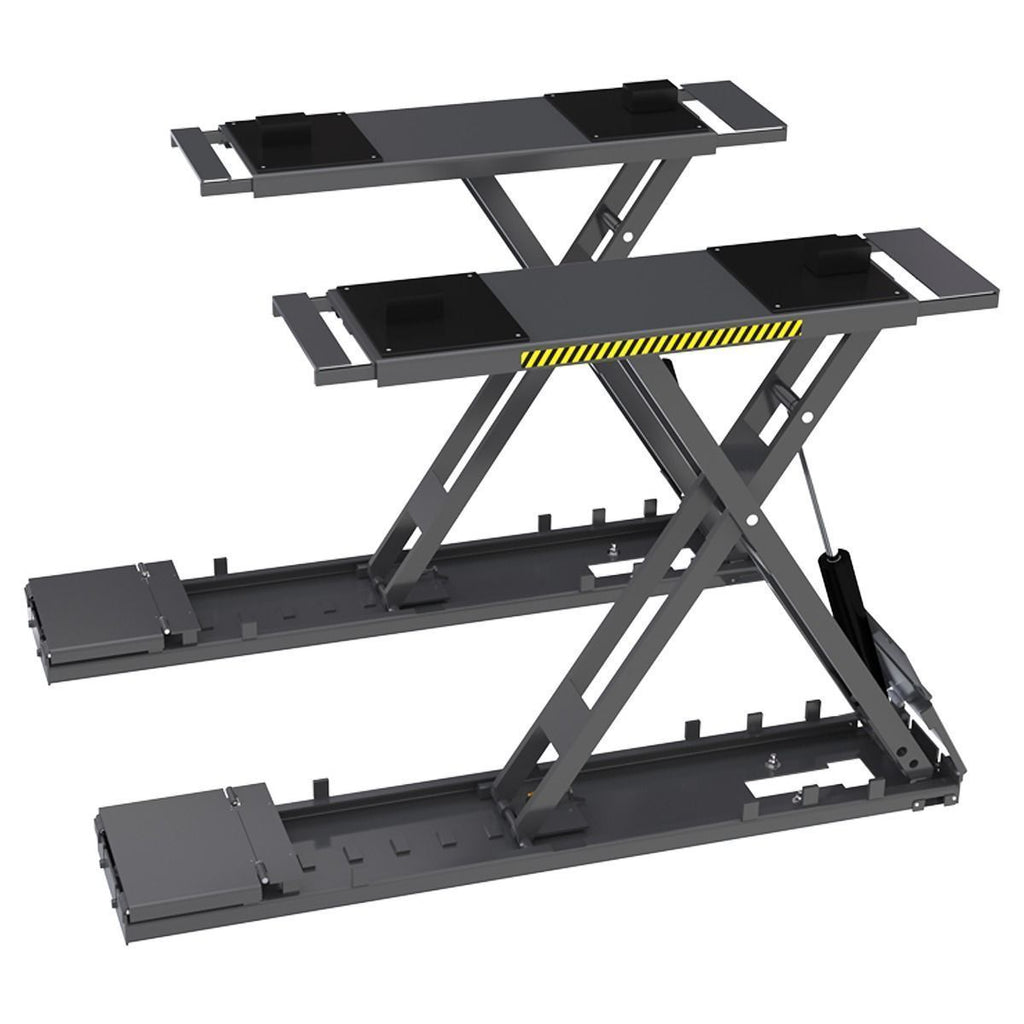

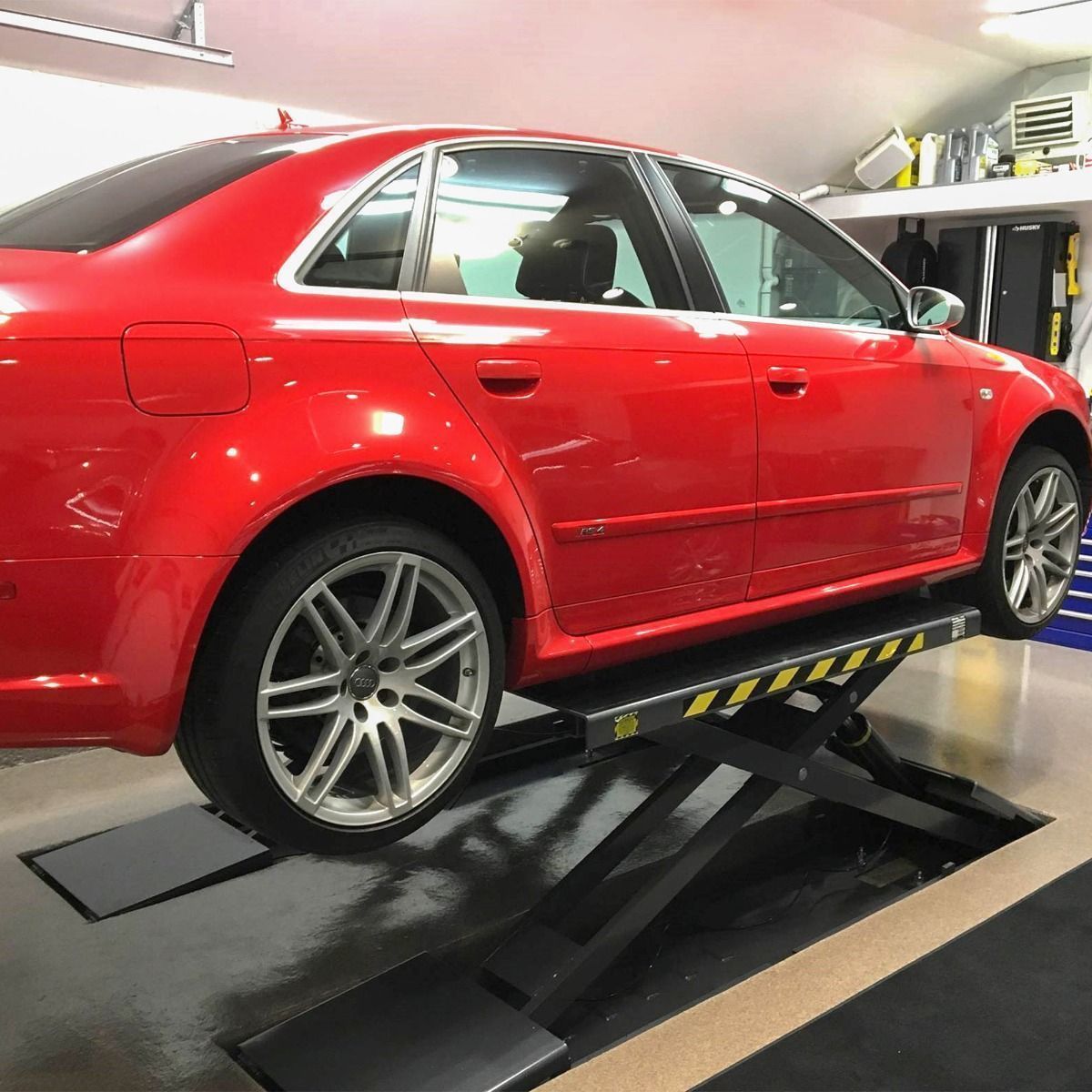

The BendPak SP-7XEF is a full-rise, frame-engaging scissor lift in a flush-mount configuration. It delivers near two-post lifting height without permanent columns, which keeps your overhead and surrounding floor clear. Because the platforms sit flush with the concrete when lowered, you can drive over and work around the lift without tripping on cables. For space-limited auto service bays and detail or quick-service shops, the SP-7XEF from BendPak packs strong lifting performance into a compact, low-profile footprint.
Key Features
- 7,000 lb lifting capacity with a frame-engaging design that contacts the vehicle frame rather than the wheels.
- 70.5 in maximum rise, reaching full height in about 45 seconds.

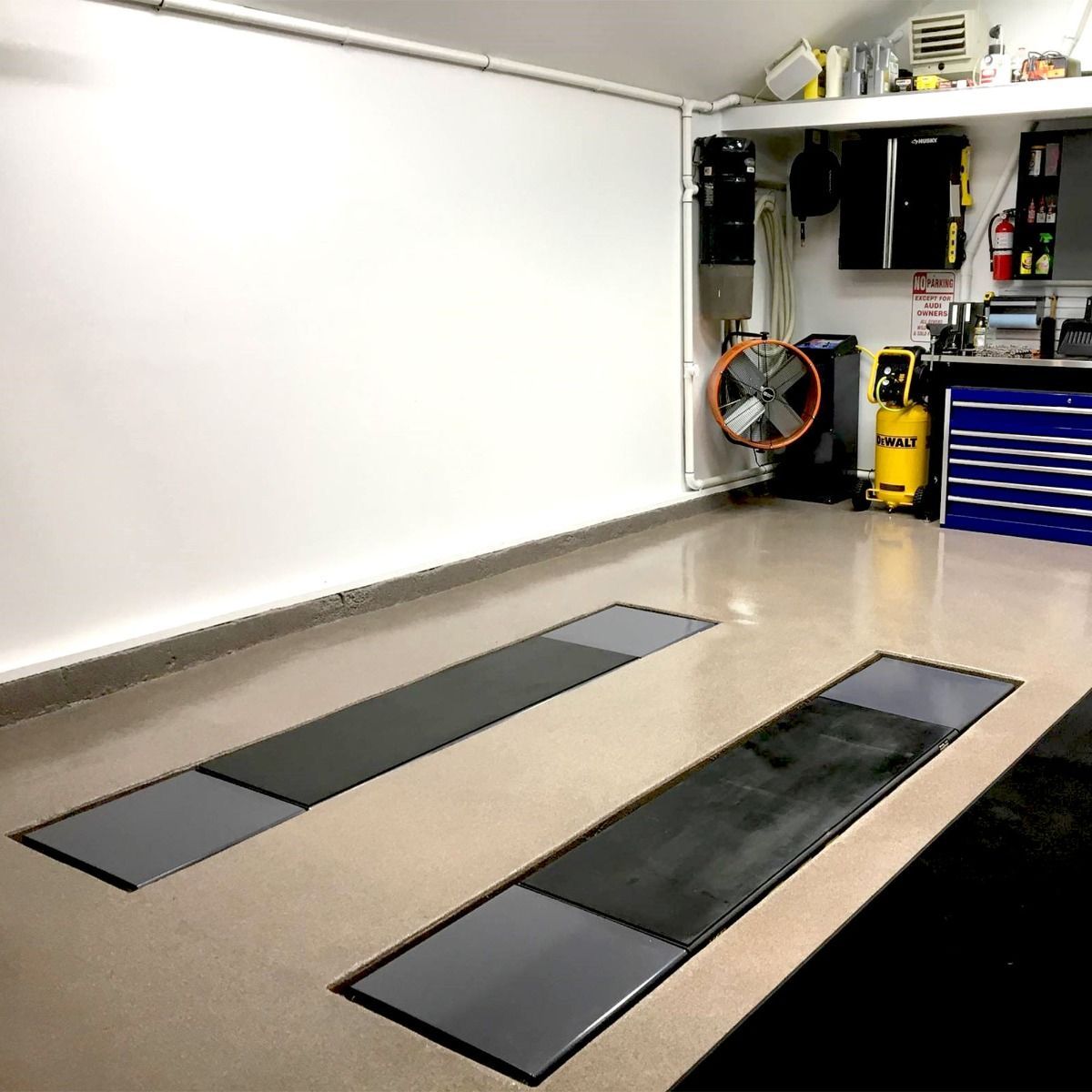

- Flush-mount installation that sits level with the concrete when lowered for a clean, drive-over floor.
- Dual hydraulic cylinders, one per platform, for balanced lifting power.
- Pneumatic safety locks with multiple locking positions and an open-center design for undercarriage access.
- Hardened pivot pins with Zerk fittings for serviceable, long-wearing pivot points.
Specifications
| Brand | BendPak |
|---|---|
| Type | Full-Rise Scissor Lift |
| Model | SP-7XEF |
| Lifting Capacity | 7,000 lb |
| Max Rise | 70.5 in |
| Time to Full Rise | 45 seconds |
| Single Platform Length | 62.5 in |
| Overall Length | 106 in |
| Distance Between Platforms | 38 in |
| Lowered Height | Flush with concrete |
| Motor | 208-240 VAC / 50-60 Hz / 1Ph |
| Shipping Weight | 2,510 lb |
| Shipping Dimensions | 35 x 106 x 27 in |
Who It's For
The SP-7XEF is built for indoor shops that want full-rise lifting height without two-post columns and have a recessed concrete pad ready for flush mounting. It is well suited to general repair, alignment-adjacent work, and shops where keeping the floor open and trip-free matters. This lift is designed for indoor use and is not rated for outdoor installation.
Shipping and Freight
This lift ships as Oversize freight at roughly 2,510 lb on a 35 x 106 x 27 in skid. A forklift or loading dock is required at delivery. Contact us for a freight quote and to schedule a delivery appointment.
About BendPak
BendPak builds vehicle lifts and shop equipment in Santa Paula, California. The company began with pipe and tube benders and has grown into one of the larger manufacturers of automotive lifting equipment.
Frequently Asked Questions
What is the difference between flush-mount and surface-mount?
The SP-7XEF is the flush-mount version, which sits in a recessed concrete pocket so the platforms are level with the floor when lowered. A surface-mount version bolts on top of existing concrete instead.
How high does the SP-7XEF lift?
Maximum raised height is 70.5 in, which gives close to two-post working height in a scissor design.
Is this lift frame-engaging?
Yes. It contacts the vehicle frame through rubber lifting blocks rather than lifting by the wheels, which keeps the wheels free for service.
What power supply does it require?
The power unit runs on 208-240 VAC, 50-60 Hz, single phase.
Have questions about flush-mount prep, power, or freight? Reach out to a specialist for help, and we will arrange a freight quote and delivery for your BendPak lift.
