Description
Overview

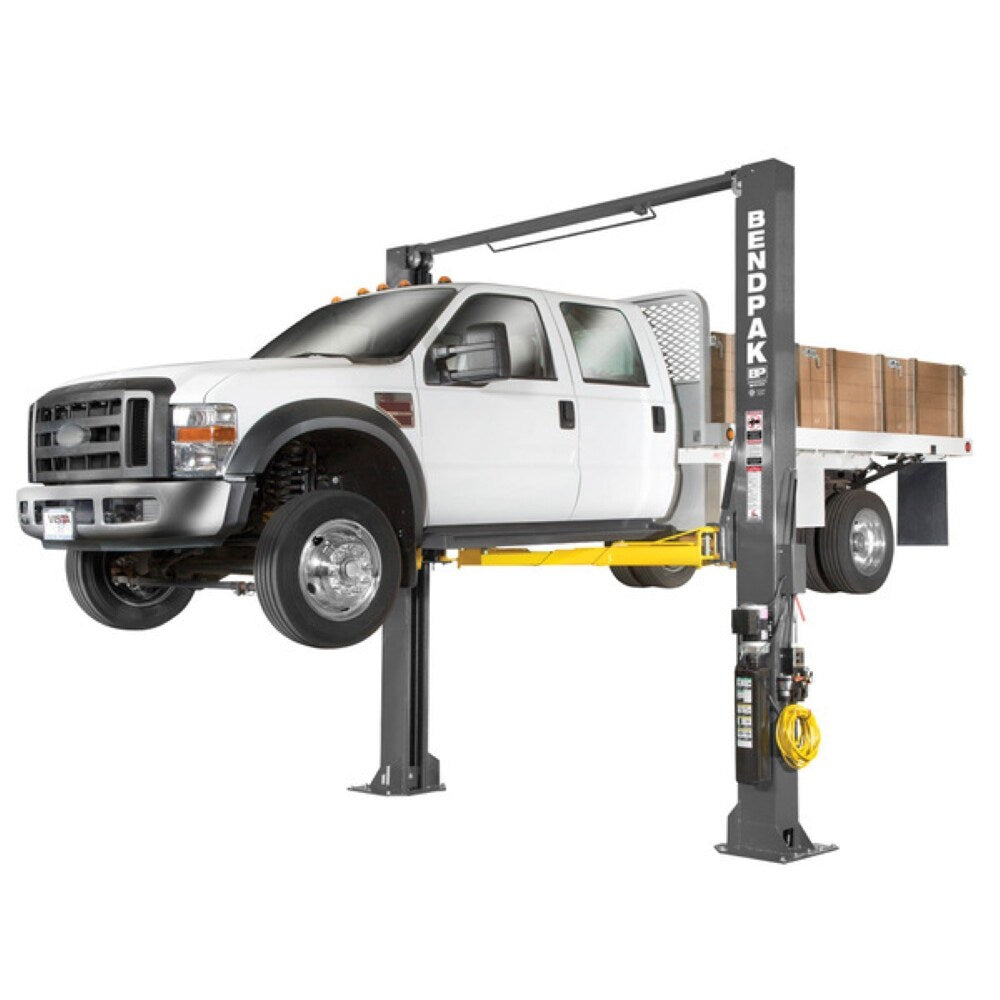

The BendPak XPR-12CL-LTA-192 is a 12,000-pound capacity two-post clearfloor lift built with long-reach triple-telescoping arms and a column extension that raises overall height to 192 inches. It is the tall variant of the XPR-12CL-LTA, sold through our auto service lineup and the wider BendPak range.
The added overhead height lets a shop service taller vehicles in this weight class while keeping the long-reach arm advantage. Each three-stage front and rear arm extends to 71.5 inches, well past the 58-inch reach of standard XPR-12CL arms, so a technician can find the center of balance on long-wheelbase trucks and vans. The clearfloor layout keeps the bay floor open for rolling equipment.
Key Features
- 192-inch overall height - Column extension increases overhead clearance to service taller vehicles in the 12,000-pound class.
- Long-reach triple-telescoping arms - Three-stage front and rear arms extend to 71.5 inches for hard-to-reach lift points on long wheelbases.
- 12,000-pound capacity - Rated for full-size trucks and heavy-duty commercial vehicles at up to 3,000 pounds per arm.
- Clearfloor design - The overhead equalization beam leaves the floor between columns clear for jacks, drains and toolboxes.
- Dual direct-drive hydraulics - Two low-pressure HVLP cylinders replace chains and screws for smoother operation and less maintenance.
- 16-piece adapter set included - Four 6-inch and four 3-inch stackable adapters, four contact pads and four frame cradle pads come standard.
Specifications
| Brand | BendPak |
|---|---|
| Model | XPR-12CL-LTA-192 |
| Type | Two-Post Clearfloor Lift |
| Lift Type | Two-Post Clearfloor |
| Capacity | 12,000 lb |
| Rise | 69 in |
| Overall Height | 192 in |
| Arm Reach (max) | 71.5 in front and rear |
| Max Load Per Arm | 3,000 lb |
| Power | 208-240V, 50/60 Hz, Single Phase |
| Power System | Electric / hydraulic |
| ALI Certified | Yes |
| Warranty | 5-2-1 (5-year structural) |
| Shipping Weight | 2,889 lb |
| Shipping Dimensions | 37 x 174 x 29 in |
Who It's For
This tall-frame lift suits commercial garages and fleet shops that service long-wheelbase and taller vehicles up to 12,000 pounds. The 192-inch overall height requires a ceiling tall enough to clear the extended columns, plus a 208-240V single-phase circuit and a concrete floor that meets BendPak minimum specifications.
Shipping and Freight
The XPR-12CL-LTA-192 ships as an oversize palletized freight item at roughly 2,889 pounds. A forklift or loading dock is required to receive it. Use the Request a Freight Quote path to confirm liftgate service and delivery details before ordering.
About BendPak
BendPak builds automotive lifts and shop equipment and was founded in 1965 in California. The XPR-12CL-LTA series is ALI Certified, meeting the safety standards administered by the Automotive Lift Institute.
Frequently Asked Questions
How is this different from the standard XPR-12CL-LTA?
This is the 192-inch overall height variant. A column extension raises overhead clearance so the lift can service taller vehicles in the same 12,000-pound class.
How far do the arms reach?
The three-stage front and rear arms extend to 71.5 inches each and collapse to standard length for compact vehicles.
What ceiling height do I need?
Plan for a ceiling that clears the 192-inch overall height of the extended columns. Confirm your bay height before ordering.
What power does it require?
It runs on a 208-240V, 50/60 Hz single-phase electric/hydraulic power system. Confirm your circuit with an electrician before installation.
How does it ship?
It ships as oversize freight at about 2,889 pounds, so plan for a forklift or dock and request a freight quote for liftgate or limited-access delivery.
Talk to a specialist about power, ceiling height and freight before ordering. See the full BendPak lineup.
