Description
Overview

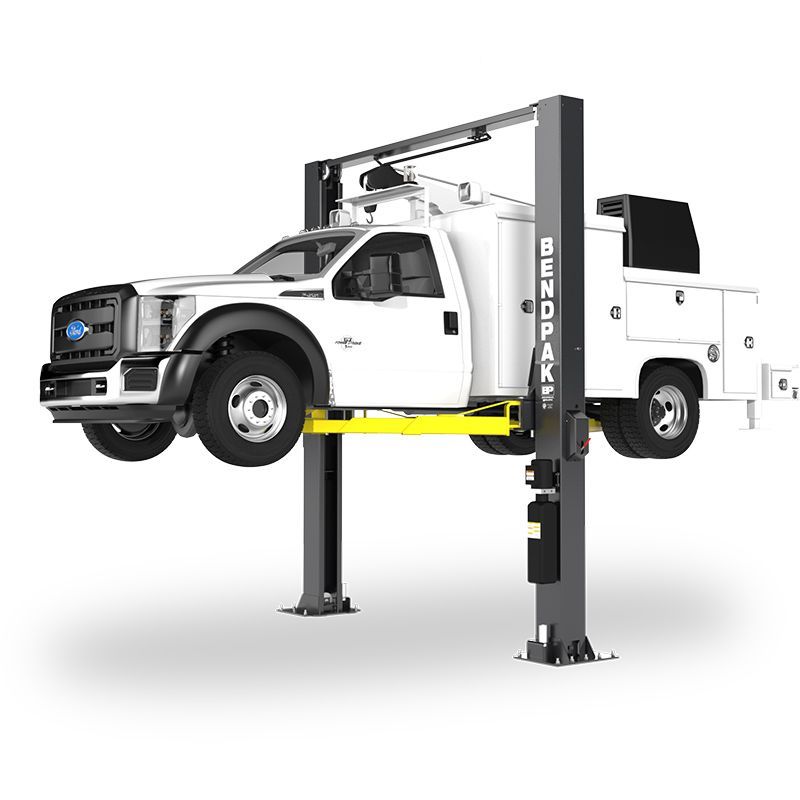

The BendPak XPR-12CL-LTA is a 12,000-pound capacity two-post clearfloor lift built with long-reach triple-telescoping arms for shops that service long-wheelbase trucks and commercial vehicles. It is an ALI Certified lift sold through our auto service lineup and the broader BendPak range.
The defining feature is arm reach. Each three-stage front and rear arm extends to 71.5 inches, well past the 58-inch reach of standard XPR-12CL arms, so a technician can find the center of balance on the longest vehicles without crowding the arms together. With a 69-inch rise and clearfloor design, the lift keeps the bay floor open while still raising vehicles to a comfortable working height.
Key Features
- Long-reach triple-telescoping arms - Three-stage front and rear arms extend to 71.5 inches for access to hard-to-reach lift points on long wheelbases.
- 12,000-pound capacity - Rated for full-size trucks and heavy-duty commercial vehicles at up to 3,000 pounds per arm.
- Clearfloor design - The equalization beam runs overhead, leaving the floor between columns clear for jacks, drains and toolboxes.
- Dual direct-drive hydraulics - Two low-pressure HVLP cylinders replace chains and screws for smoother operation and less maintenance.
- Oversized 53-inch carriages - Taller carriages and single-piece steel columns spread load stress for long service life.
- 16-piece adapter set included - Four 6-inch and four 3-inch stackable adapters, four contact pads and four frame cradle pads come standard.
Specifications
| Brand | BendPak |
|---|---|
| Model | XPR-12CL-LTA |
| Type | Two-Post Clearfloor Lift |
| Lift Type | Two-Post Clearfloor |
| Capacity | 12,000 lb |
| Rise | 69 in |
| Overall Height | 169 in |
| Arm Reach (max) | 71.5 in front and rear |
| Max Load Per Arm | 3,000 lb |
| Power | 208-240V, Single Phase |
| Power System | Electric / hydraulic |
| ALI Certified | Yes |
| Warranty | 5-2-1 (5-year structural) |
| Shipping Weight | 2,724 lb |
| Shipping Dimensions | 36 x 161 x 29 in |
Who It's For
This lift suits commercial garages, fleet shops and heavy-duty service bays that regularly handle long-wheelbase trucks and vans up to 12,000 pounds. Plan for a 208-240V single-phase circuit, adequate ceiling height for the 169-inch overhead clearfloor frame, and a concrete floor that meets BendPak minimum specifications.
Shipping and Freight
The XPR-12CL-LTA ships as an oversize palletized freight item at roughly 2,724 pounds. A forklift or loading dock is required to receive it. Use the Request a Freight Quote path to confirm liftgate service and delivery details before ordering.
About BendPak
BendPak builds automotive lifts and shop equipment and was founded in 1965 in California. The XPR-12CL-LTA is ALI Certified, meeting the safety standards administered by the Automotive Lift Institute.
Frequently Asked Questions
How far do the arms reach?
The three-stage front and rear arms extend to 71.5 inches each, compared with 58 inches on standard XPR-12CL arms. They also collapse to standard length for compact vehicles.
What power does it require?
It runs on a 208-240V single-phase electric/hydraulic power system. Confirm your circuit with an electrician before installation.
Is this lift certified?
Yes. The XPR-12CL-LTA is ALI Certified and is also CE approved to European Standard EN 1493.
What is clearfloor design?
The equalization beam runs across the top of the columns instead of across the floor, so the bay floor stays open for rolling equipment.
How does it ship?
It ships as oversize freight at about 2,724 pounds, so plan for a forklift or dock and request a freight quote for liftgate or limited-access delivery.
Talk to a specialist about power, shop fit and freight before ordering. See the full BendPak lineup.
