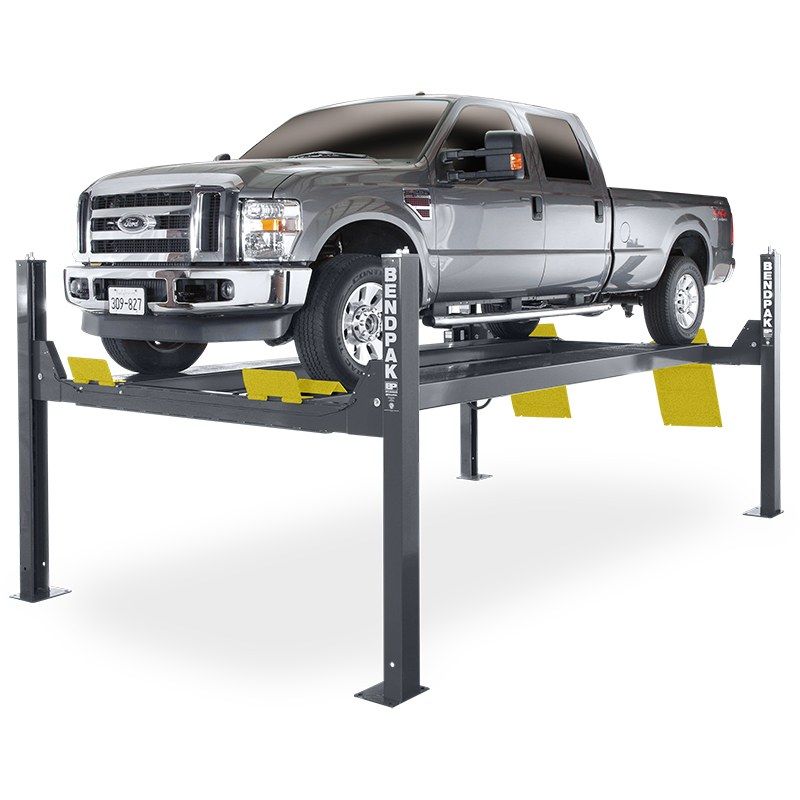

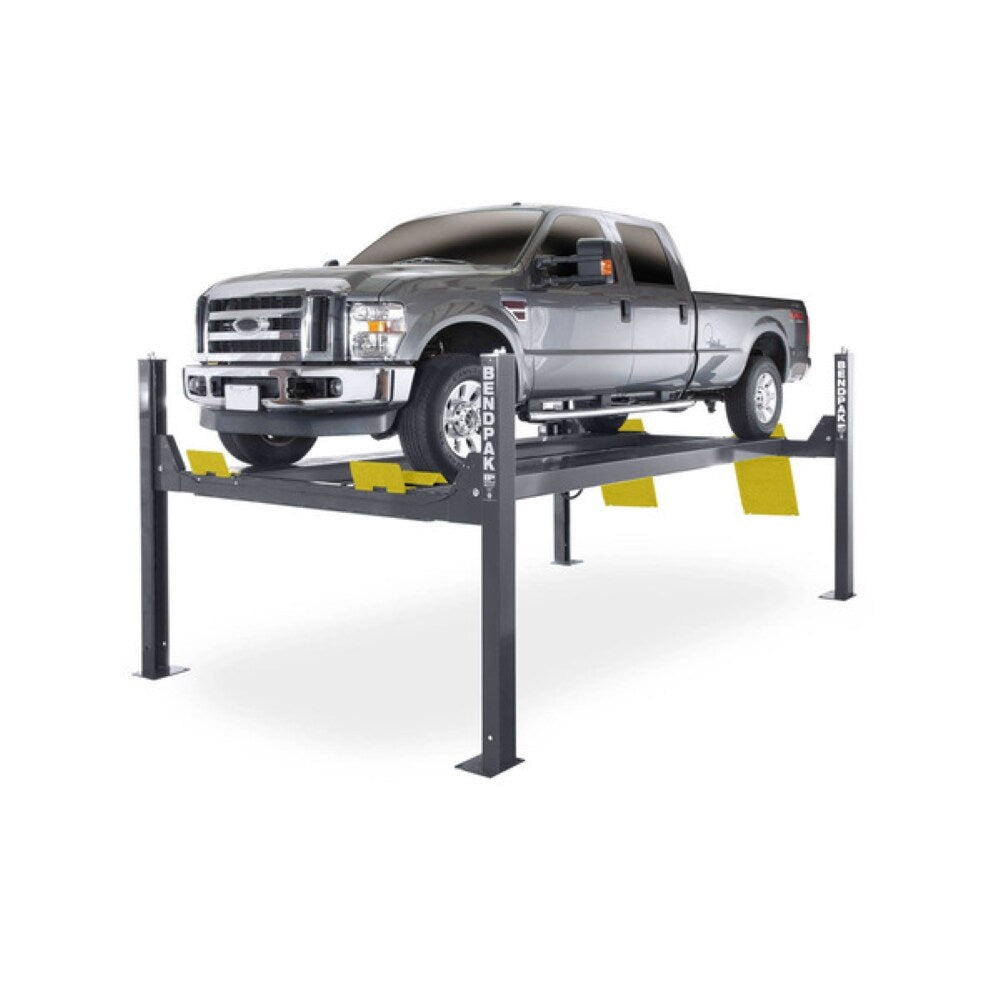

BendPak HDS-14X 14,000 lb Four-Post Lift, Extended, Limo Style

Overview

The BendPak HDS-14X is the extended, limo-style version of the 14,000 lb capacity HDS four-post lift. Its longer 229 inch runways give the front-to-back clearance needed for limos, full-size SUVs, and trucks, so a service bay can load long vehicles with room to spare and drive over or under the lift with ease.

For a working shop, the extra length means versatility without stepping down in strength. The HDS-14X carries the heavy-duty structure of the HDS line: oversized dual-hub cable sheaves, four 1/2 inch aircraft-quality lifting cables with a breaking strength over 14,000 lb each, and enclosed multi-position safety locks across a 69 inch rise. It is a long-vehicle platform that fits well into a shop's auto service equipment lineup.

Key Features

• 14,000 lb lifting capacity - Rated for heavy-duty and oversized vehicles across the extended runways.
• Extended 229 inch runways - Limo-style length handles long vehicles like limos, SUVs, and trucks, with mid to long-style approach ramps for low ground clearance.
• 69 inch maximum rise - Reaches a 77.5 inch maximum lifting height with 13 locking positions spaced every 4 inches.
• Dual-hub cable sheaves - Oversized 10.5 inch diameter sheaves on 2.25 inch axles cut cable wear and extend component life.
• Enclosed cables and safety locks - Cables, latches, and sheaves run inside the structure to minimize pinch points and protect against wear, with a pneumatic push-button release.
• Independent slack-cable latches - Backup latches guard against a cable failure event.

Specifications

Brand	BendPak
Type	Four-Post Lift
Lift Type	Four-Post, Extended (Limo Style)
Capacity	14,000 lb
Maximum Rise	69 in
Maximum Lifting Height	77.5 in
Runway Length	229 in
Locking Positions	13, spaced every 4 in
Power	220 VAC / 60 Hz / Single Phase
Certification	ETL Approved, CE Approved
Shipping Weight	3,099 lb
Shipping Dimensions	39 x 220 x 24 in
Warranty	Covered by BendPak warranty, see manufacturer warranty

How It Compares

Model	Capacity	Max Rise	Runway Length
HDS-14X (Extended)	14,000 lb	69 in	229 in
HDS-14 (Standard)	14,000 lb	70 in	197.5 in
HD-14T	14,000 lb	82 in	195 in

Key Facts

• 14,000 lb capacity in an extended, limo-style four-post configuration.
• 229 inch runways for long vehicles like limos, SUVs, and trucks.
• 69 inch maximum rise, 77.5 inch maximum lifting height.
• 13 locking positions spaced every 4 inches.
• ETL approved and CE approved to European Standard EN-1493.

Who It's For

This lift is sized for commercial bays and fleet shops that service long vehicles, including limos, extended trucks, and large SUVs. Plan for a 220 VAC single-phase circuit, a 30 psi minimum air supply for the lock release, a level concrete floor that meets BendPak's minimum requirements, and a bay deep enough for the 229 inch runways.

Shipping and Freight

This unit ships as Oversize freight at roughly 3,099 lb. Delivery is by LTL carrier on a pallet, and a forklift or equivalent equipment is recommended for offload. Because of the size and weight, we handle these through a freight quote so liftgate and delivery details, commercial or residential, can be confirmed before the unit leaves the dock.

About BendPak

BendPak builds and supports its lifts from Agoura Hills and Santa Paula, California, and is an ALI-member lift manufacturer. The brand is widely recognized in the trade for heavy-duty four-post and two-post lifts. See the full BendPak range for matching accessories.

Frequently Asked Questions

Talk to a specialist about power, shop fit, and freight before ordering. You can also browse the full BendPak lineup for compatible accessories.
