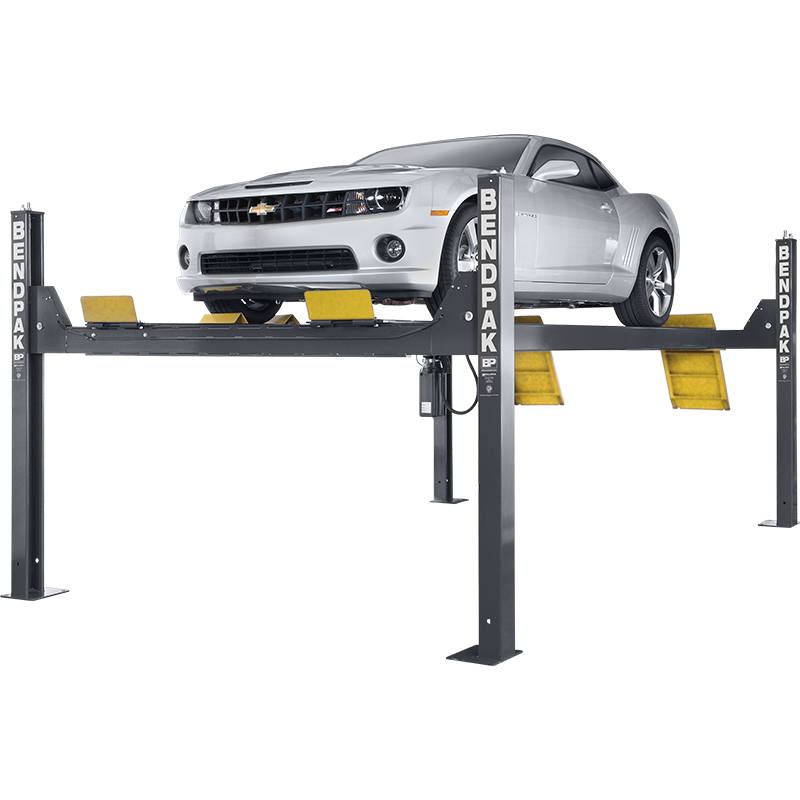

BendPak HDS-14 14,000 lb Four-Post Lift, Extended

Overview

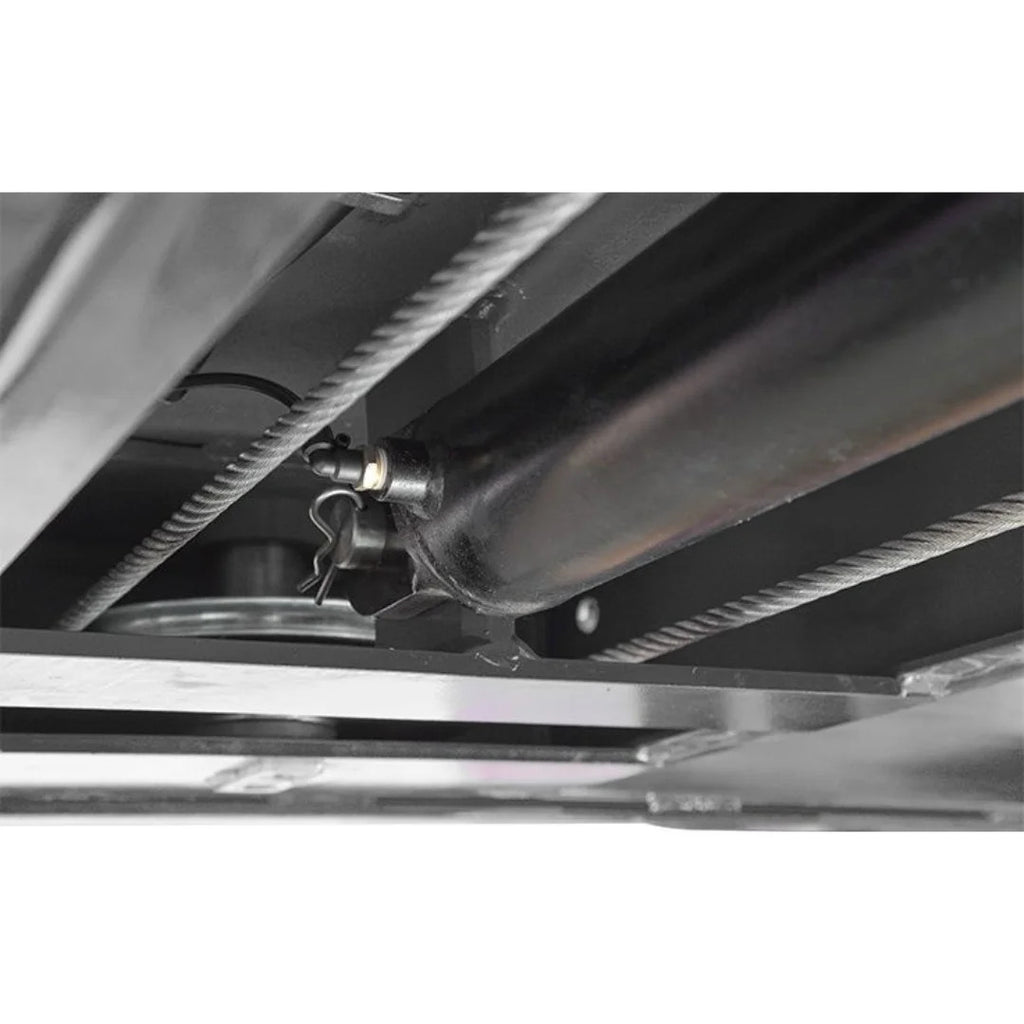

The BendPak HDS-14 is a 14,000 lb capacity four-post lift built for service bays that put heavy-duty, oversized vehicles on the runways every day. It pairs a single under-runway hydraulic cylinder with fully enclosed cables and safety locks, so the shop gets a clean, dependable platform for trucks, vans, and larger SUVs.

For a working shop, the payoff is uptime and confidence under the vehicle. Oversized 10.5 inch cable sheaves, four 1/2 inch aircraft-quality lifting cables, and multi-position spring-loaded safety locks reduce cable fatigue and give the operator a stable, repeatable lift across a 70 inch rise. It is a long-service lift you can put to work in a busy bay and a sensible addition to a shop's auto service equipment lineup.

Key Features

• 14,000 lb lifting capacity - Rated for heavy-duty and oversized vehicles, with a 7,000 lb maximum rating on each axle.
• 70 inch maximum rise - Lifts to a 77.5 inch maximum height with 15 locking positions spaced every 4 inches for variable-height work and leveling.

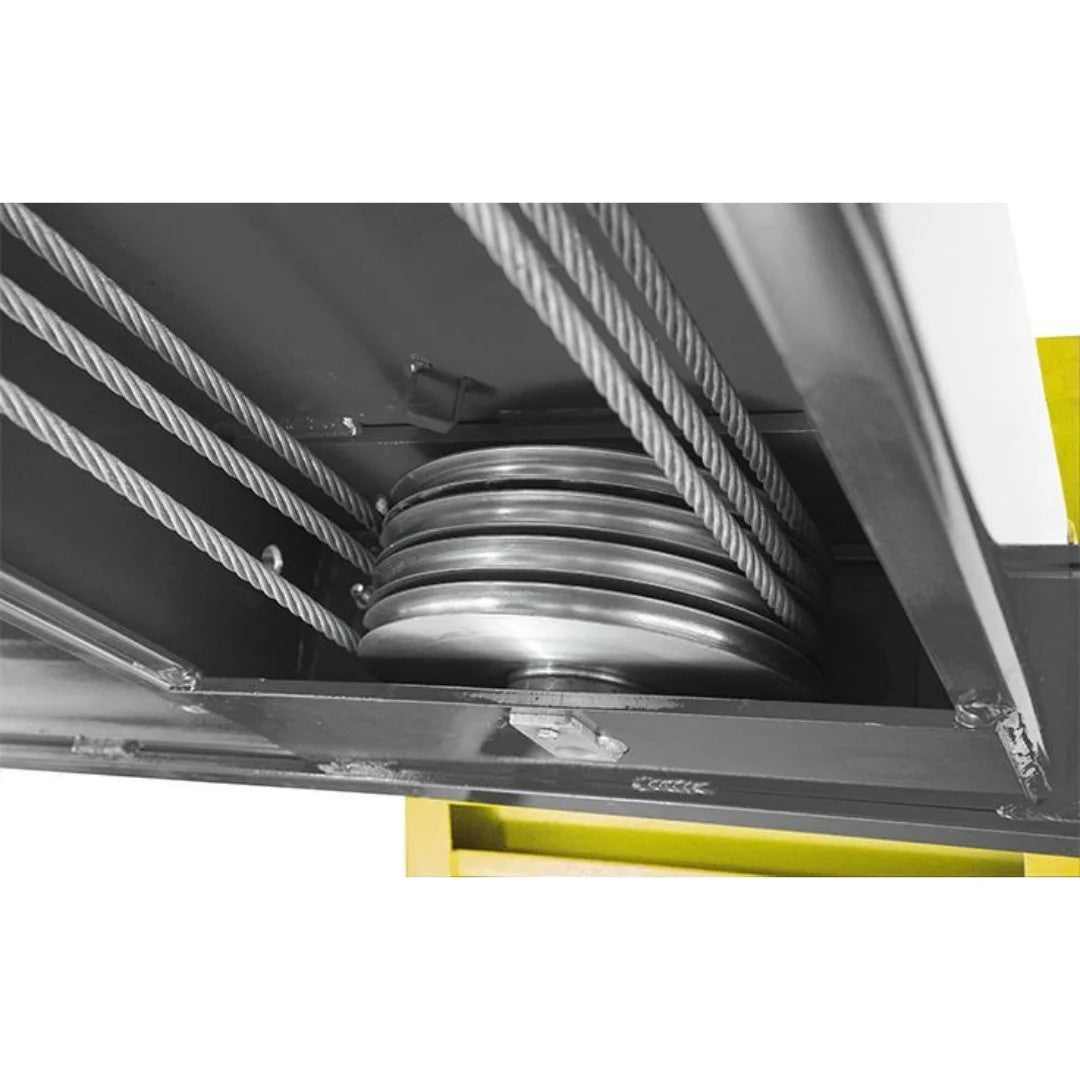

• Dual-hub cable sheaves - 10.5 inch diameter sheaves on 2.25 inch axles cut cable wear and stretch component life.

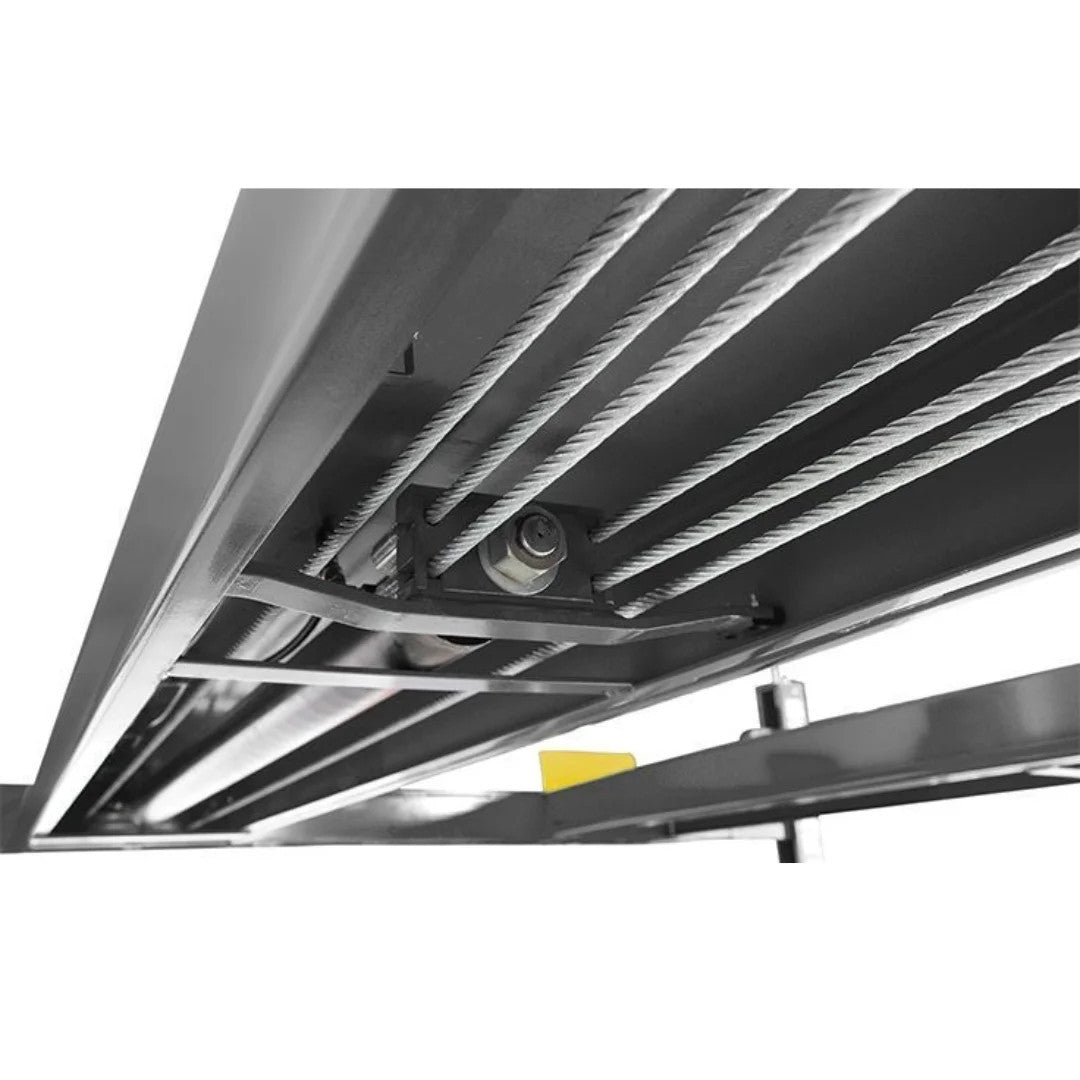

• Enclosed cables and safety locks - Cables, airlines, latches, and sheaves run inside the structure to minimize pinch points and protect against wear.
• Spring-loaded safety locks with pneumatic release - Locks engage continuously during rise and release with a single push-button.
• Secondary slack-cable system - An independent backup latch guards against a cable failure event.

Specifications

Brand	BendPak
Type	Four-Post Lift
Lift Type	Four-Post
Capacity	14,000 lb (7,000 lb per axle)
Maximum Rise	70 in
Maximum Lifting Height	77.5 in
Runway Length	197.5 in
Locking Positions	15, spaced every 4 in
Power	220 VAC / 60 Hz / Single Phase
Certification	ALI / ETL Certified, CE Approved
Shipping Weight	2,605 lb
Shipping Dimensions	32 x 211 x 24 in
Warranty	Covered by BendPak warranty, see manufacturer warranty

How It Compares

Model	Capacity	Max Rise	Runway Length
HDS-14	14,000 lb	70 in	197.5 in
HDS-14X (Extended)	14,000 lb	69 in	229 in
HDS-40	40,000 lb	60 in	255.5 in

Key Facts

• 14,000 lb capacity, rated 7,000 lb per axle.
• 70 inch maximum rise, 77.5 inch maximum lifting height.
• 15 locking positions spaced every 4 inches.
• Four 1/2 inch aircraft-quality lifting cables, each with a breaking strength over 14,000 lb.
• ALI and ETL certified, CE approved to European Standard EN-1493.

Who It's For

This lift is sized for commercial service bays and fleet shops that regularly work under heavy-duty and oversized vehicles. Plan for a 220 VAC single-phase circuit, a 30 psi minimum air supply for the lock release, and a level concrete floor that meets BendPak's minimum requirements.

Shipping and Freight

This unit ships as Oversize freight at roughly 2,605 lb. Delivery is by LTL carrier on a pallet, and a forklift or equivalent equipment is recommended for offload. Because of the size and weight, we handle these through a freight quote so the right liftgate or dock arrangement and commercial or residential delivery can be confirmed before the unit leaves the dock.

About BendPak

BendPak builds and supports its lifts from Agoura Hills and Santa Paula, California, and is an ALI-member lift manufacturer. The brand is widely recognized in the trade for heavy-duty four-post and two-post lifts. See the full BendPak range for matching accessories.
