Description
Overview

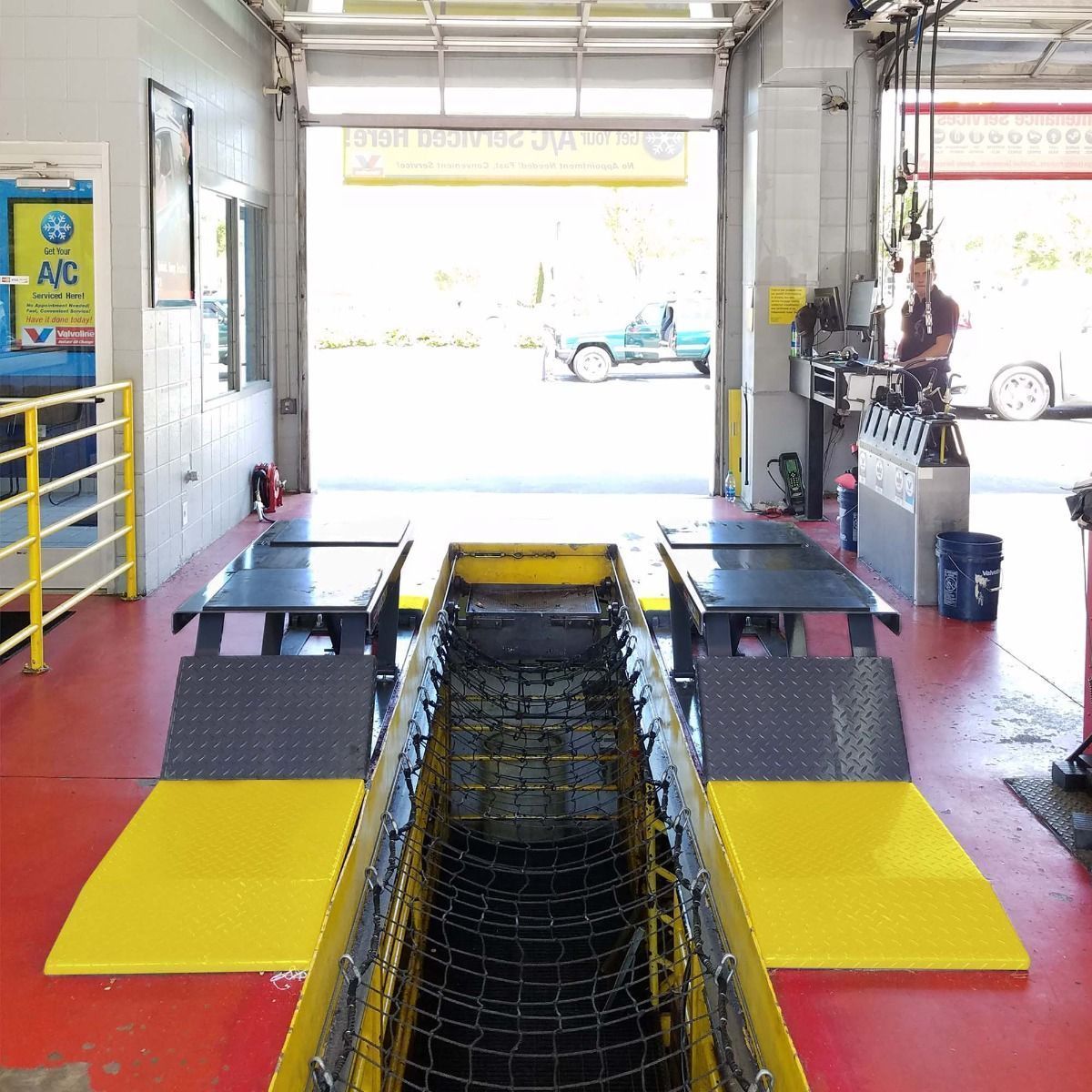

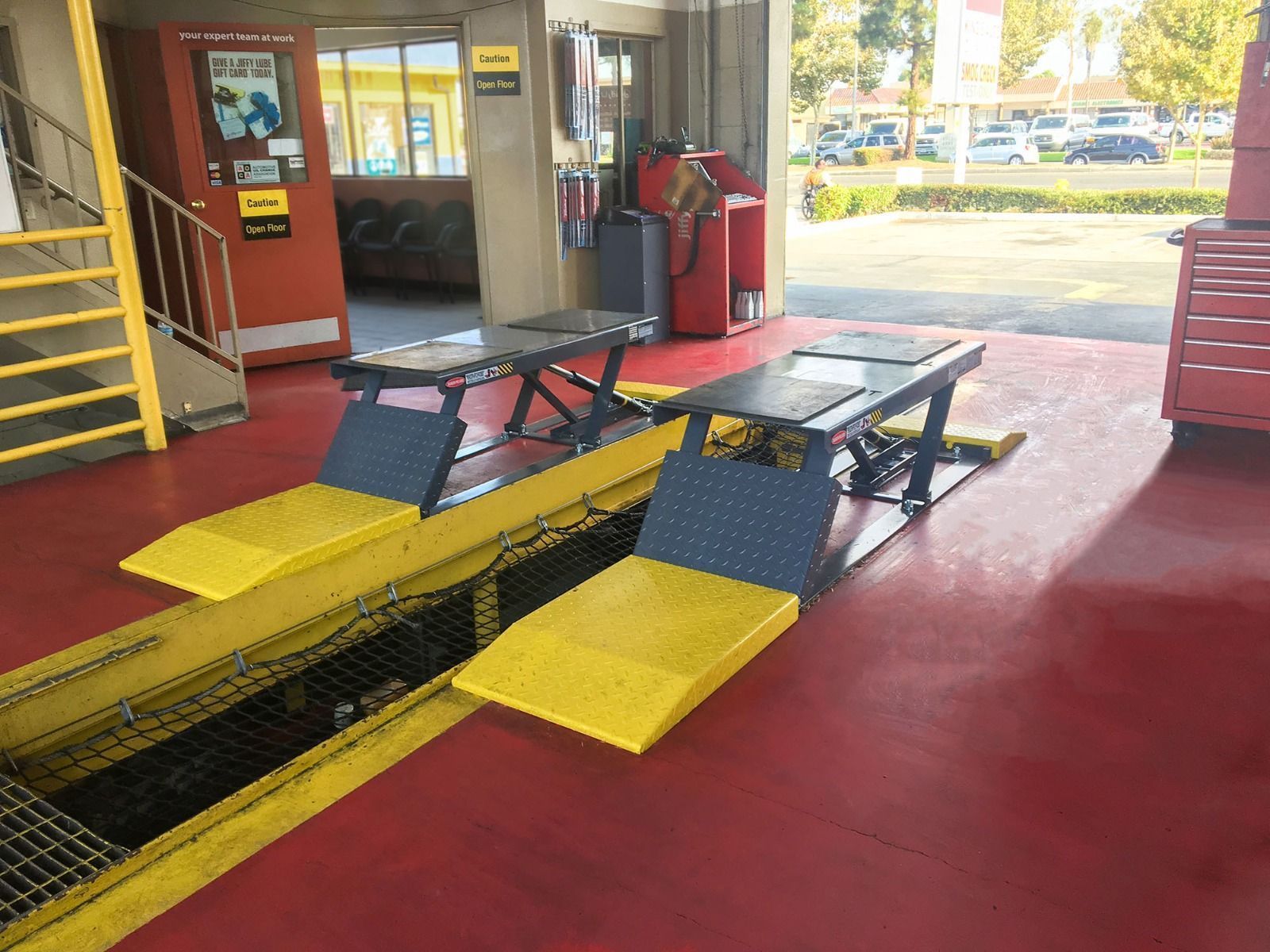

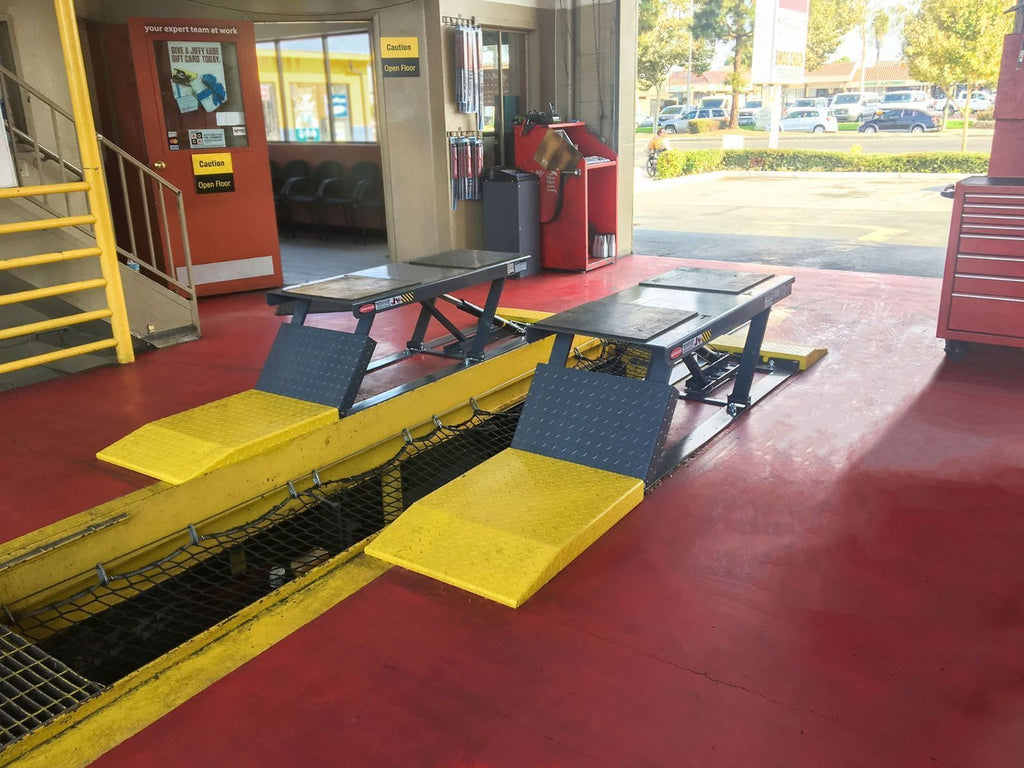

The BendPak P-9000LT is a 9,000-pound capacity open-center, pit-style low-rise lift. It is a heavier-duty version of the P-6B, built to convert fast-lube pits into full wheel-service bays with frame-engaging access.
The open-center, frame-engaging design clears the wheels for tire and brake service, while a 1.5 HP electric-hydraulic power unit, dual cylinders and pneumatic safety locks keep operation fast and simple. It mounts on the surface with ramps or sits over a pit. Browse more auto service equipment or the full BendPak range.
Key Features
- 9,000 lb capacity - 30 percent more capacity than the P-6B for more light trucks and SUVs.

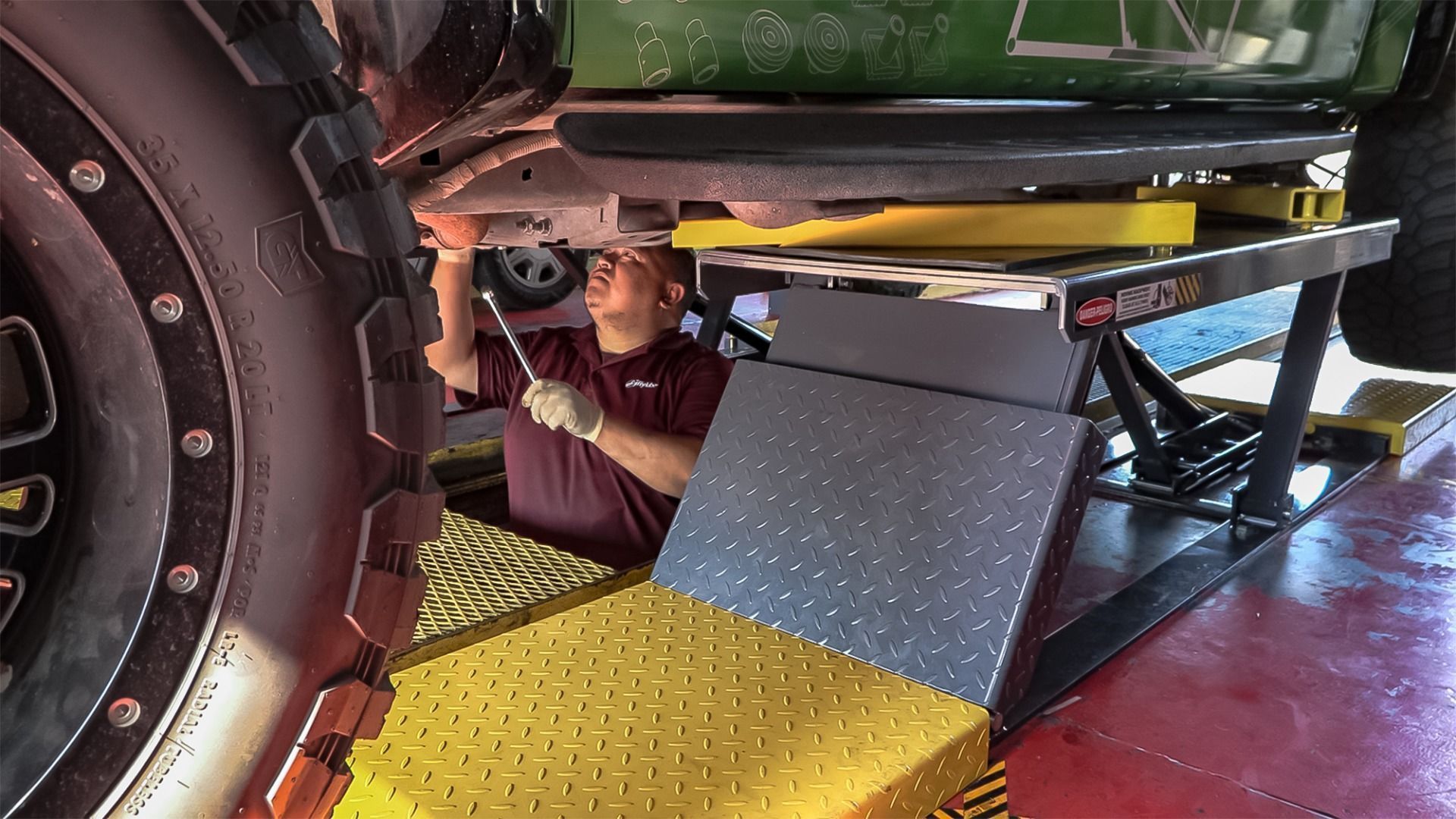

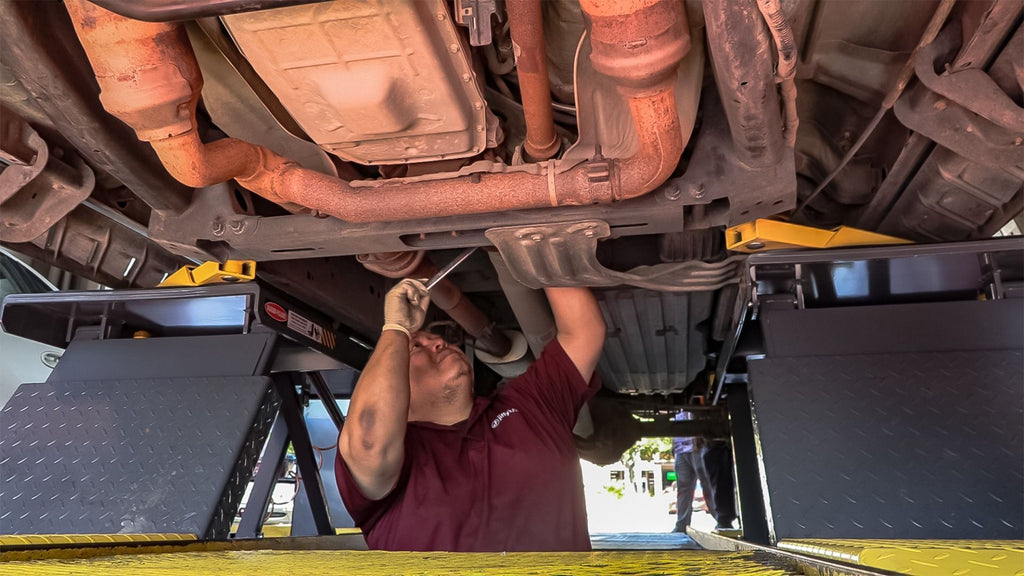

- Open-center frame design - Full access to the wheels for tire and brake work, not just oil changes.
- Low 4-inch profile - Sits just 4 inches high when fully lowered, and nearly disappears when flush-mounted.
- 1.5 HP electric-hydraulic unit - Dual cylinders with a flow divider and push-button controls for smooth single-hand operation.
- Pneumatic safety locks - Multi-position locks with air release allow safe, remote lowering.
Specifications
| Brand | BendPak |
|---|---|
| Type | Low-Rise Pit-Style Lift (Open-Center) |
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Lifting Height | 23.75 in (604 mm) |
| Lifting Height + Block | 27 in (685 mm) |
| Lowered Height | 4 in (102 mm) |
| Platform Length | 58.5 in |
| Platform Width | 24 in |
| Overall Length | 124.6 in |
| Speed of Rise | 55 seconds |
| Motor | 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 1,502 lb (681 kg) |
| Certification | ALI Certified |
| Freight | Oversize |
Key Facts
- 9,000 lb capacity, 30 percent more than the P-6B (BendPak P-9000LT product page).
- 1.5 HP electric-hydraulic power unit, 208-230 VAC single-phase (BendPak spec sheet).
- ALI certified and just 4 inches high when lowered (BendPak product page).
Who It's For
Fast-lube and oil-change shops that want to add tire, brake and wheel service over a pit or on the floor without giving up bay space. Confirm a 208-230V single-phase circuit and shop air before ordering.
Shipping and Freight
Ships Oversize at roughly 1,502 pounds and requires freight handling. The P-9000LT can mount on the surface with ramps or over a pit. Confirm your install plan with a specialist and request a freight quote.
About BendPak
BendPak has built vehicle lifts and shop equipment since 1965 and is one of the most recognized lift brands in North American service bays. Its lifts are engineered in California and many models carry third-party ALI or CE certification.
Frequently Asked Questions
What makes the P-9000LT a pit lift?
It mounts outside the pit rail and lifts the vehicle frame so techs can work from the pit and at the wheels.
Can I use it on the floor instead of a pit?
Yes. With the extended approach ramps it works as a surface-mounted low-rise lift.
Is it ALI certified?
Yes. The P-9000LT is third-party ALI certified.
What power does it need?
A 1.5 HP power unit on 208-230 VAC single-phase, 60 Hz, plus shop air for the lock release.
How is it different from the P-9000LTF?
The P-9000LTF is the flush-mount version designed to recess into the floor for a zero-footprint install.
Talk to a My Garage Direct specialist about power, shop fit, and freight before you order. Explore the full BendPak lineup to size the right machine for your bay.
