Description
Overview

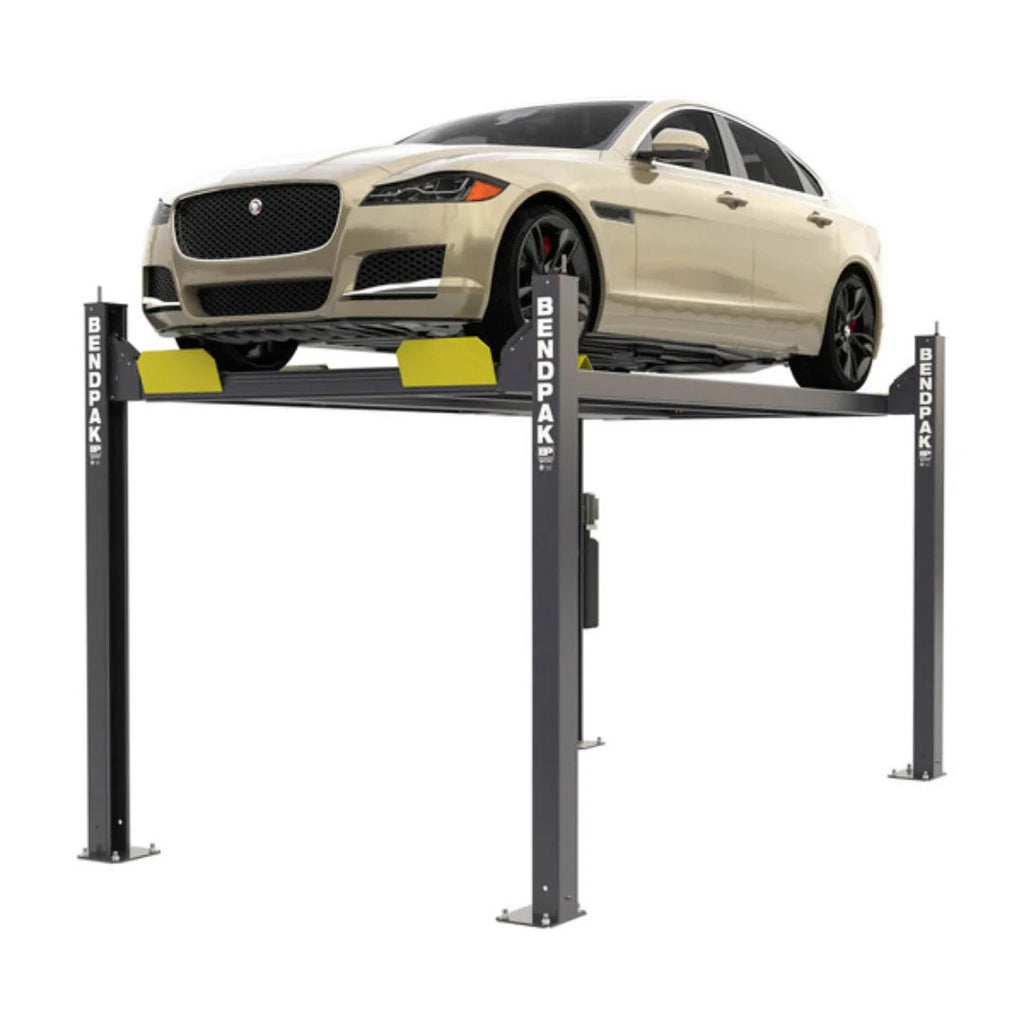

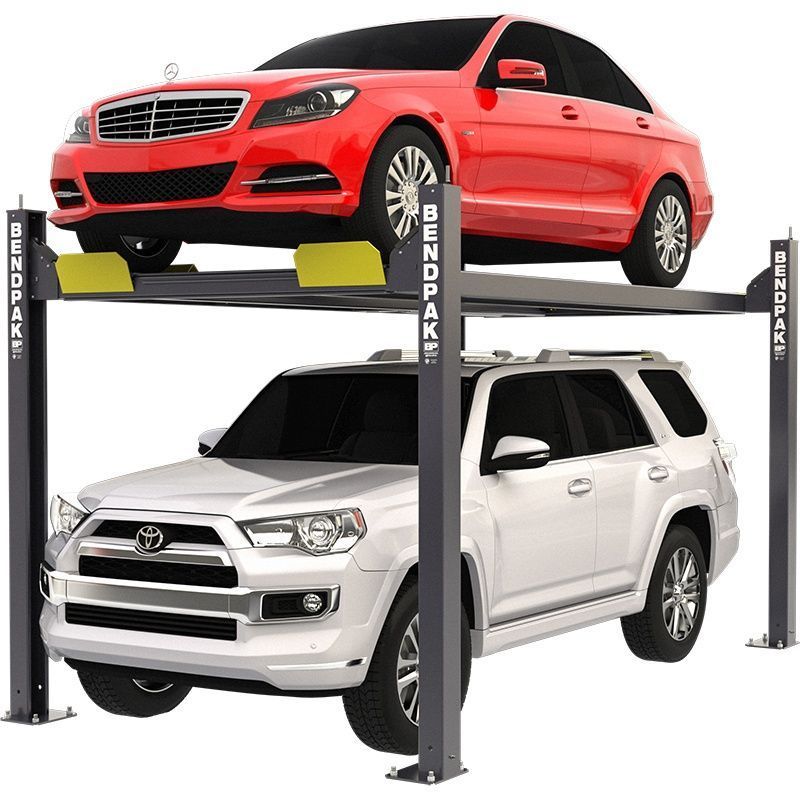

The BendPak HD-7W is the standard-width model in the HD-7 four-post series, with a 7,000-pound capacity and a tall 82-inch rise. A 110.25-inch overall width and 100.25-inch spread between columns leave room to park and service most cars and light trucks.

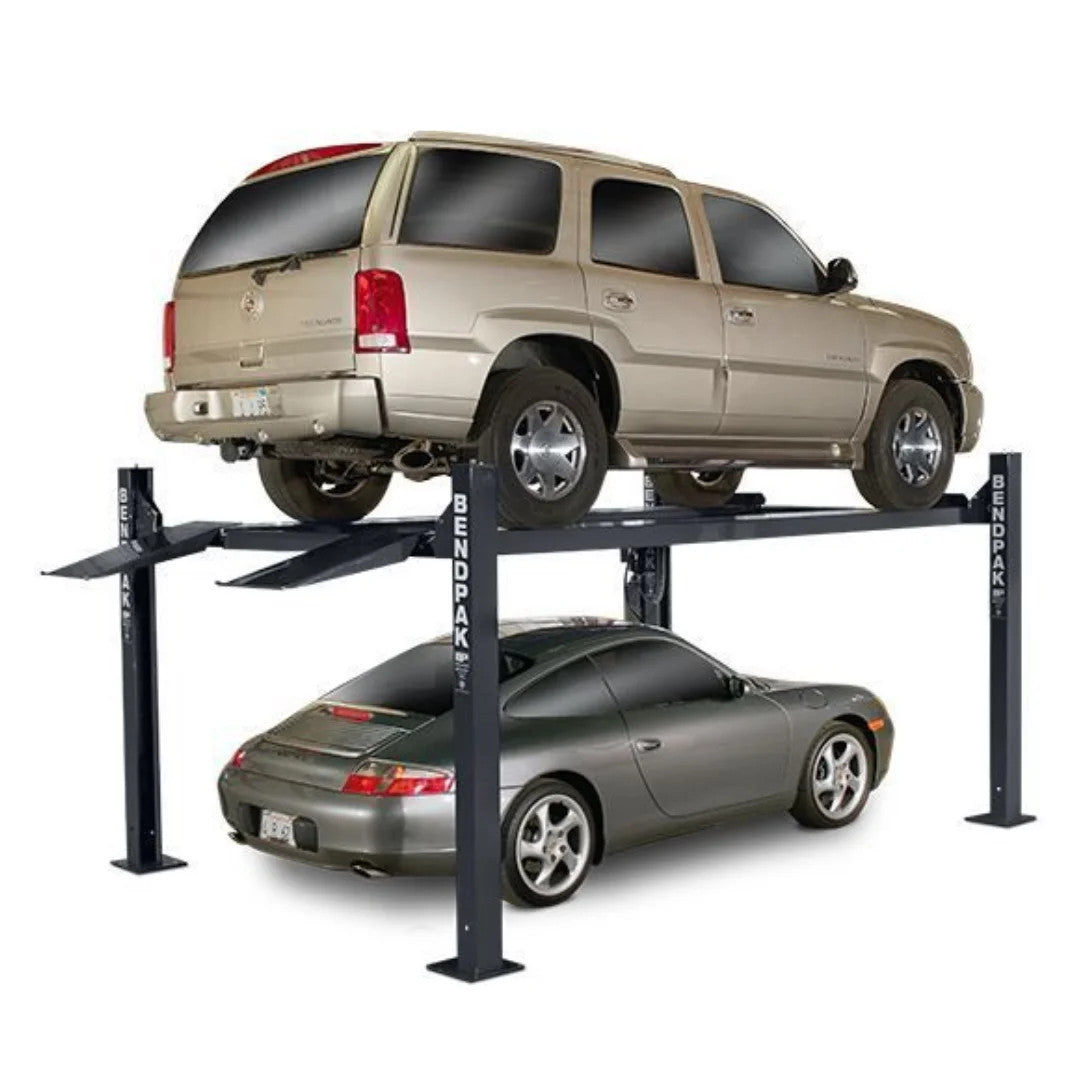

With a compact footprint only slightly larger than a parking space, the HD-7W suits low-ceiling garages and busy bays that handle sports cars, sedans, light trucks and SUVs. It is ALI certified and rises in just 35 seconds. Browse more auto service equipment or the full BendPak range.
Key Features
- 7,000 lb capacity - Rated for cars, sedans, light trucks and SUVs up to 7,000 pounds, 3,500 lb per axle.
- 82-inch high rise - Tall rise gives standing-height clearance for undercarriage work.
- Wide stance - 100.25 inches between columns clears larger mirrors and wider vehicles.
- ALI certified - Third-party certified to ANSI/ALI ALCTV lift safety standards.
- Fast 35-second rise - Quick cycle time keeps a busy bay moving.
Specifications
| Brand | BendPak |
|---|---|
| Type | Four-Post Vehicle Lift (Wide, High-Rise) |
| Lifting Capacity | 7,000 lb (3,175 kg) |
| Max Rise | 82 in (2,083 mm) |
| Max Lifting Height | 86.5 in (2,197 mm) |
| Overall Width | 110.25 in |
| Width Between Columns | 100.25 in |
| Overall Length | 200.5 in |
| Length of Runways | 158.25 in |
| Locking Positions | 17, every 4 in |
| Time to Full Rise | 35 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 1,756 lb (796 kg) |
| Certification | ALI Certified |
| Freight | Oversize |
Key Facts
- 7,000 lb capacity with an 82-inch maximum rise (BendPak HD-7W spec sheet).
- ALI certified to ANSI/ALI ALCTV standards (BendPak product page).
- Reaches full rise in about 35 seconds (BendPak spec sheet).
Who It's For
Home garages and independent shops that want a compact, ALI-certified four-post lift for parking and servicing cars and light trucks in a low-ceiling space. Confirm ceiling height and a 220V single-phase circuit before ordering.
Shipping and Freight
Ships Oversize at roughly 1,756 pounds and requires freight handling with a forklift or liftgate. Confirm ceiling height and floor specs with a specialist, then request a freight quote.
About BendPak
BendPak has built vehicle lifts and shop equipment since 1965 and is one of the most recognized lift brands in North American service bays. Its lifts are engineered in California and many models carry third-party ALI or CE certification.
Frequently Asked Questions
Is the HD-7W ALI certified?
Yes. It is third-party certified to ANSI/ALI ALCTV lift safety standards.
What vehicles is it sized for?
Cars, sedans, light trucks and SUVs up to 7,000 pounds, split 3,500 pounds per axle.
How tall does it rise?
It has a tall 82-inch rise for standing-height undercarriage access.
What power does it use?
A 220 VAC single-phase, 60 Hz supply, plus shop air to release the safety locks.
Can I make it mobile?
An optional 4-piece caster kit is available so you can roll the lift to reposition it.
Talk to a My Garage Direct specialist about power, shop fit, and freight before you order. Explore the full BendPak lineup to size the right machine for your bay.
