Description
Overview

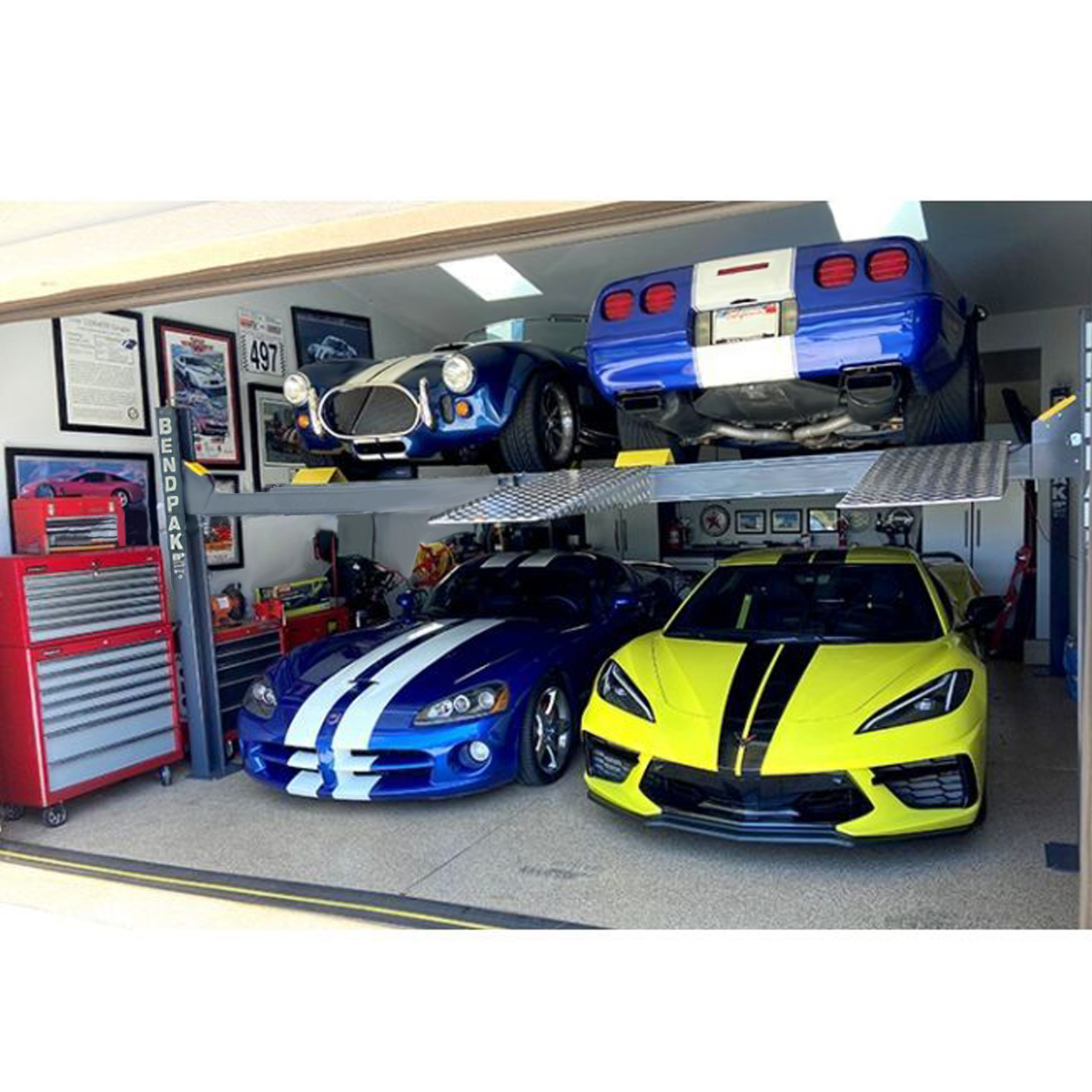

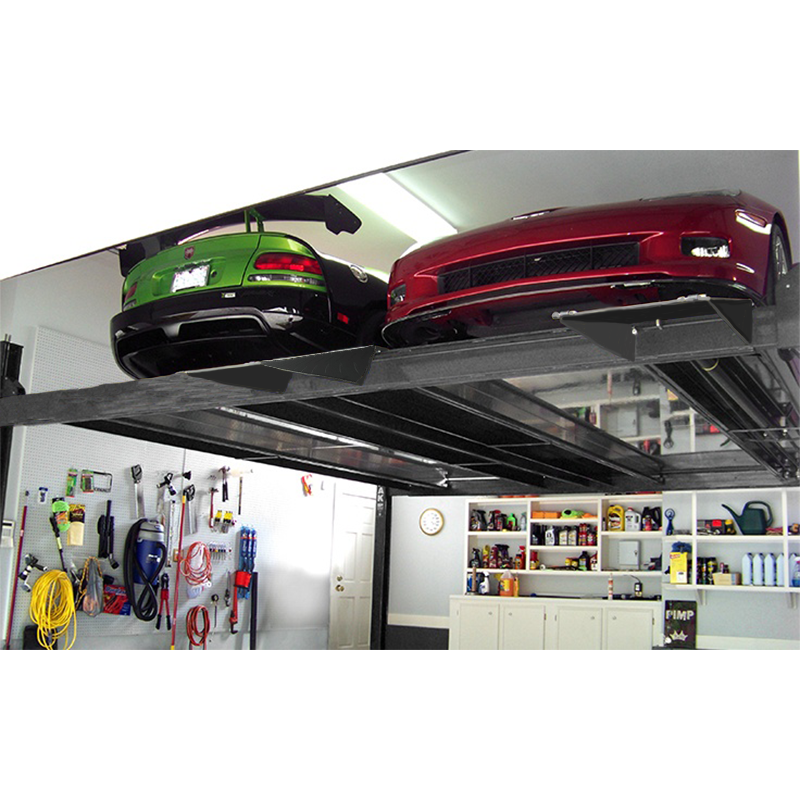

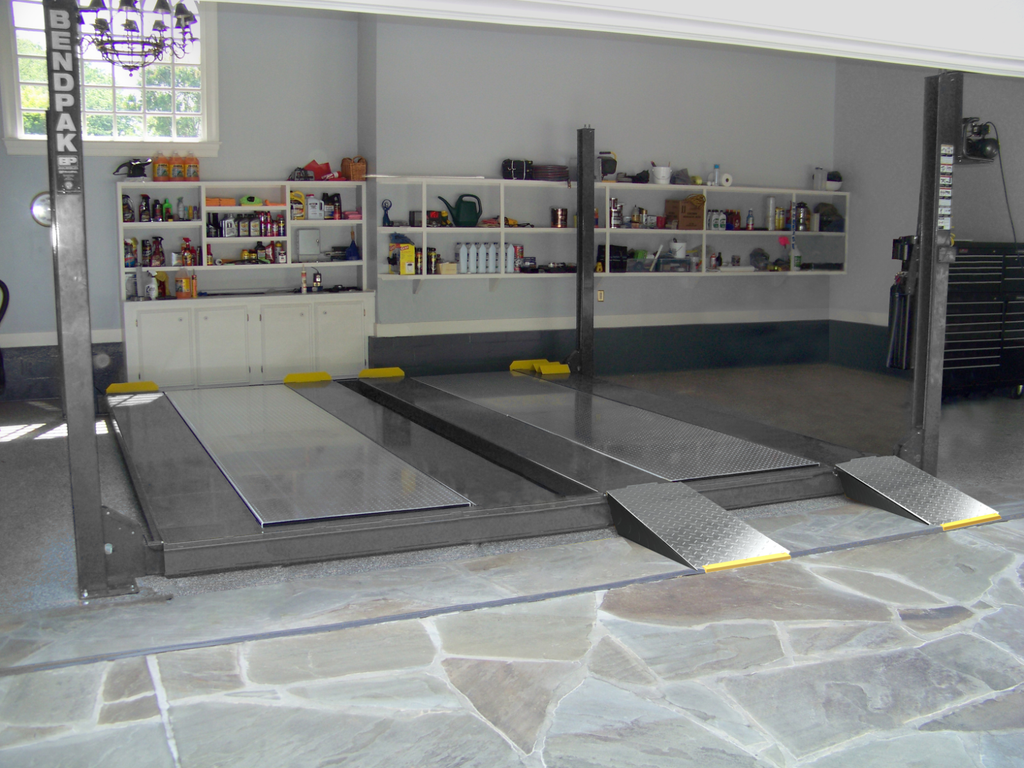

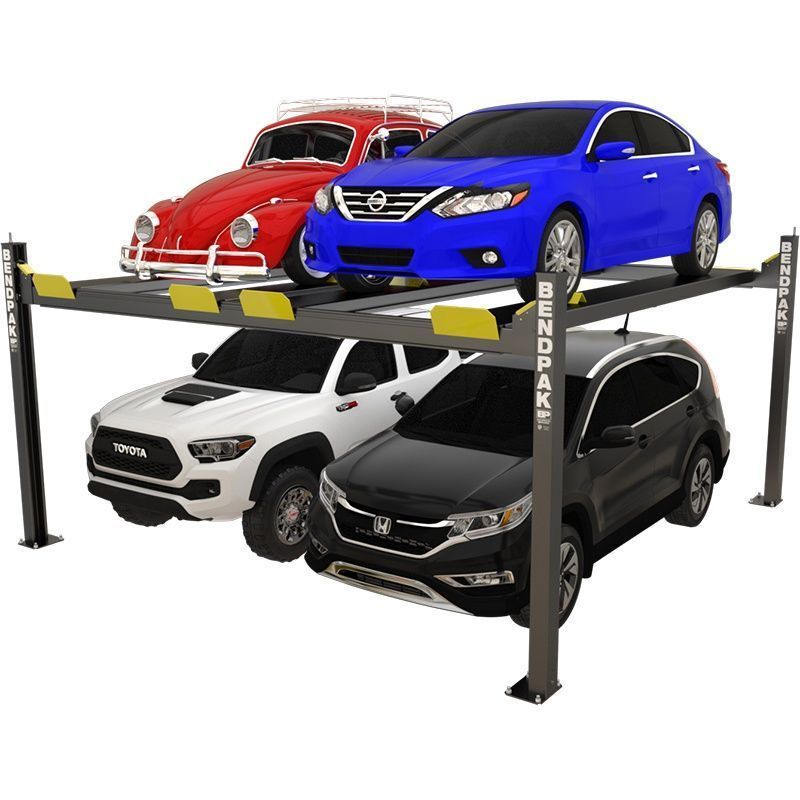

The BendPak HD-9SW is a super-wide, dual-platform four-post lift with a 9,000-pound capacity. The super-wide stance accommodates wider vehicles and lets you stack and park up to four cars in the footprint of two.
With 192 inches between the columns and open-center runways, the HD-9SW doubles as both a parking lift and a maintenance lift, so you can work on two raised vehicles at once. It ships with one pair of aluminum approach ramps. Browse more auto service equipment or the full BendPak range.
Key Features
- 9,000 lb capacity - Carries cars, trucks and SUVs up to 9,000 pounds, split 4,500 lb per axle.
- Super-wide stance - 192 inches between columns makes room for wide vehicles and side-by-side parking.
- Open-center runways - Doubles as a service lift so you can work under raised vehicles.
- Aircraft-quality cables - Each cable is rated at 14,400 lb, well beyond the certified lift capacity.
- Multi-position safety locks - Spring-activated locks engage every 4 inches across 14 positions for variable parking height.
Specifications
| Brand | BendPak |
|---|---|
| Type | Four-Post Vehicle Lift (Super-Wide) |
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Max Rise | 70 in (1,778 mm) |
| Max Lifting Height | 77 in (1,956 mm) |
| Overall Width | 202 in |
| Width Between Columns | 192 in |
| Overall Length | 218.5 in |
| Length of Runways | 164 in |
| Locking Positions | 14, every 4 in |
| Time to Full Rise | 55 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 2,796 lb (1,268 kg) |
| Freight | Oversize |
Key Facts
- 9,000 lb capacity with a 70-inch maximum rise (BendPak HD-9SW spec sheet).
- 192 inches between columns for super-wide vehicles (BendPak spec sheet).
- Each lifting cable rated at 14,400 lb, more than 6x the certified load (BendPak product page).
Who It's For
Home garages and shops that want to park or service up to four vehicles, including wider trucks and SUVs, in a compact double-wide footprint. Confirm ceiling height and a 220V single-phase circuit before ordering.
Shipping and Freight
Ships Oversize at roughly 2,796 pounds and requires freight handling with a forklift or liftgate at delivery. Confirm ceiling height and floor specs with a specialist, then request a freight quote.
About BendPak
BendPak has built vehicle lifts and shop equipment since 1965 and is one of the most recognized lift brands in North American service bays. Its lifts are engineered in California and many models carry third-party ALI or CE certification.
Frequently Asked Questions
How many vehicles can the HD-9SW hold?
Its super-wide, dual-platform design lets you park up to four vehicles in the space of two.
Can I service vehicles on it, not just park them?
Yes. The open-center runways let you work under raised vehicles, so it doubles as a maintenance lift.
What power does it need?
The power unit runs on 220 VAC single-phase, 60 Hz. An air supply is also needed to release the safety locks.
Does it include ramps?
Yes. It comes standard with one pair of aluminum approach ramps.
How is it different from the HD-9SWX?
The HD-9SWX is the extended-length, higher-rise version with an 82-inch rise and longer runways.
Talk to a My Garage Direct specialist about power, shop fit, and freight before you order. Explore the full BendPak lineup to size the right machine for your bay.
