Description
Overview

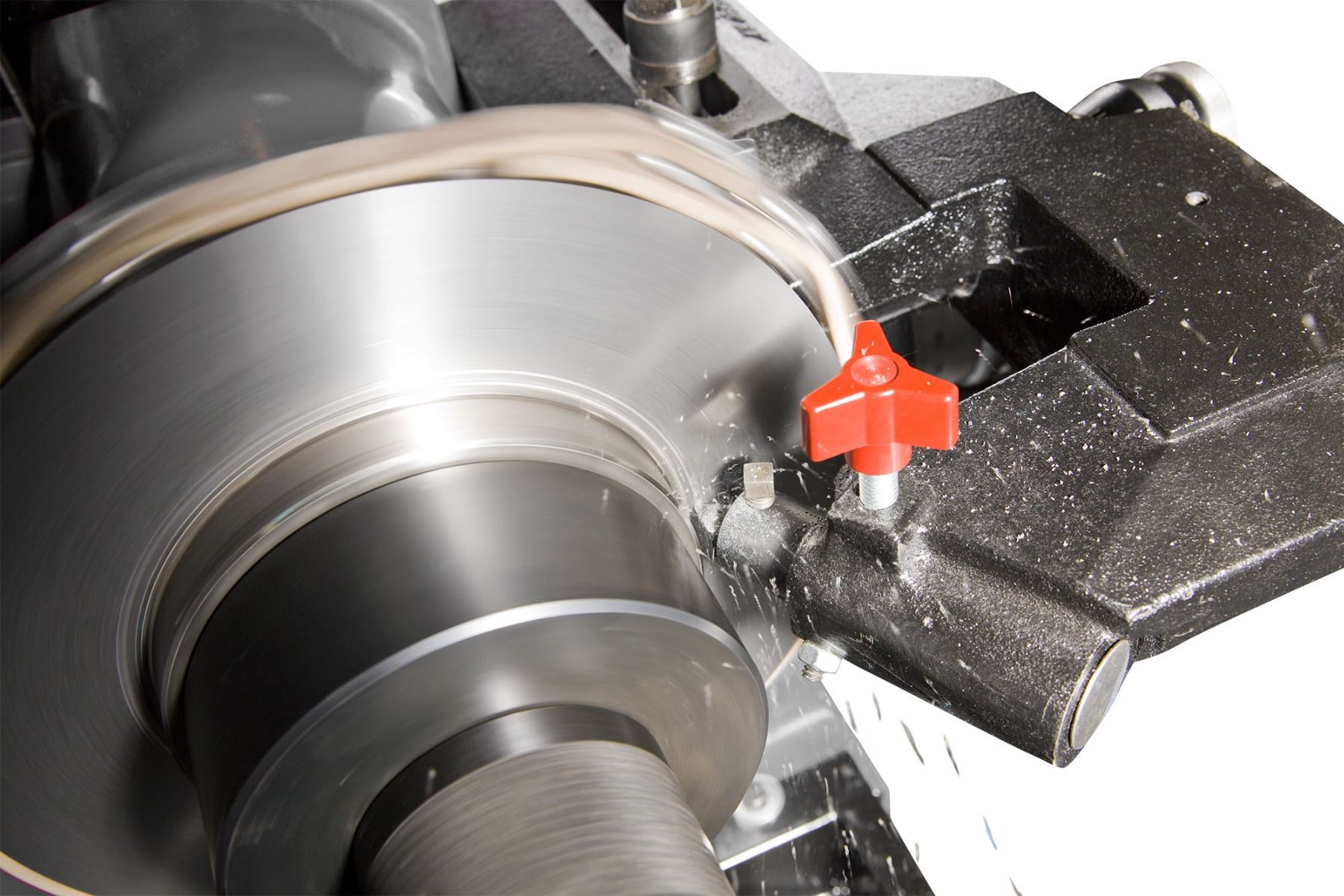

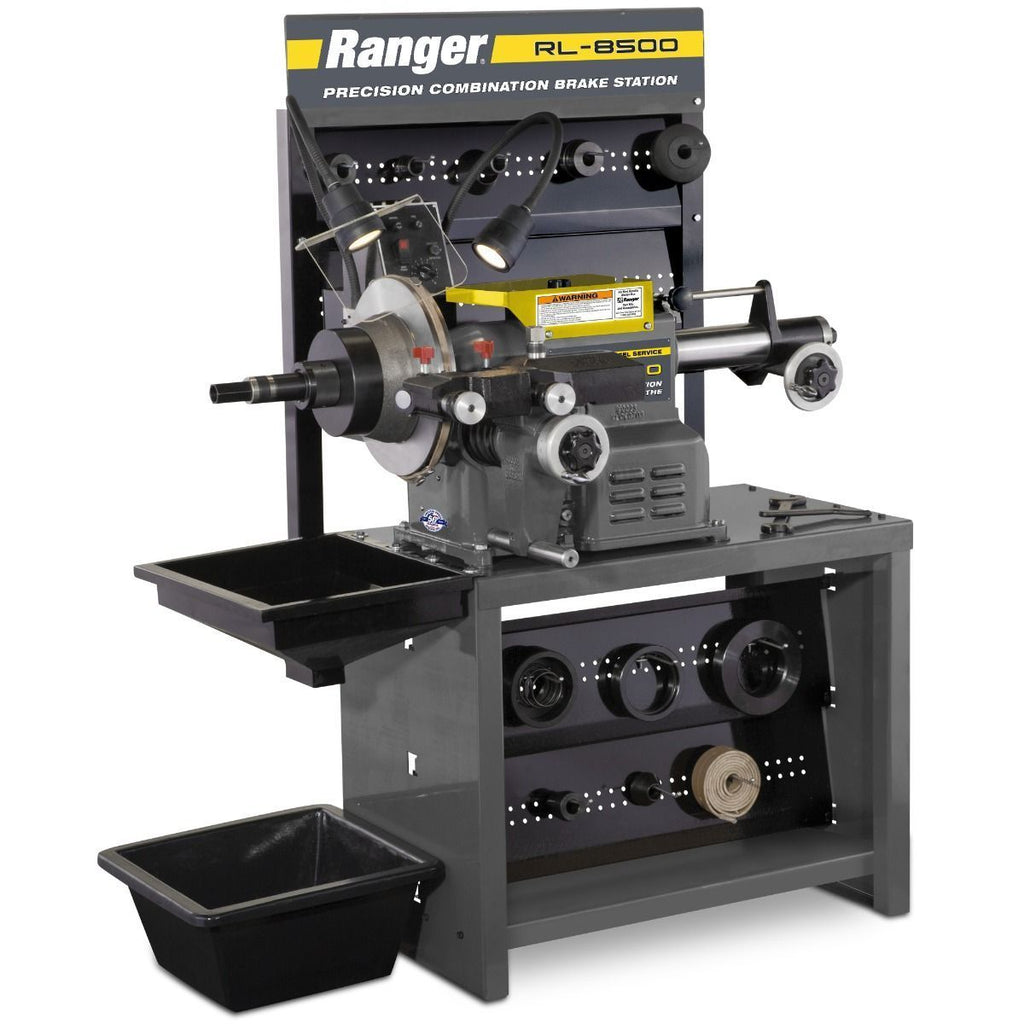

The BendPak Ranger RL-8500 is a combination disc and drum brake lathe that ships with a heavy steel bench and a full standard tooling package. It resurfaces rotors, drums, and flywheels for passenger cars and light trucks.
The RL-8500 uses independent DC servo motors for the cross-feed and spindle-feed drives, removing the gear boxes and transmissions that introduce chatter on mechanically driven lathes. A 450-lb cast iron body and solid bench damp vibration for a clean one-pass finish. It fits any auto service equipment shop doing regular brake work. Ranger is a BendPak brand.
Key Features
- Twin DC servo motors - Independent servo drives for cross and spindle feed remove gear-driven chatter.
- Combination disc and drum - Quick-change tool head switches between rotors and drums fast.

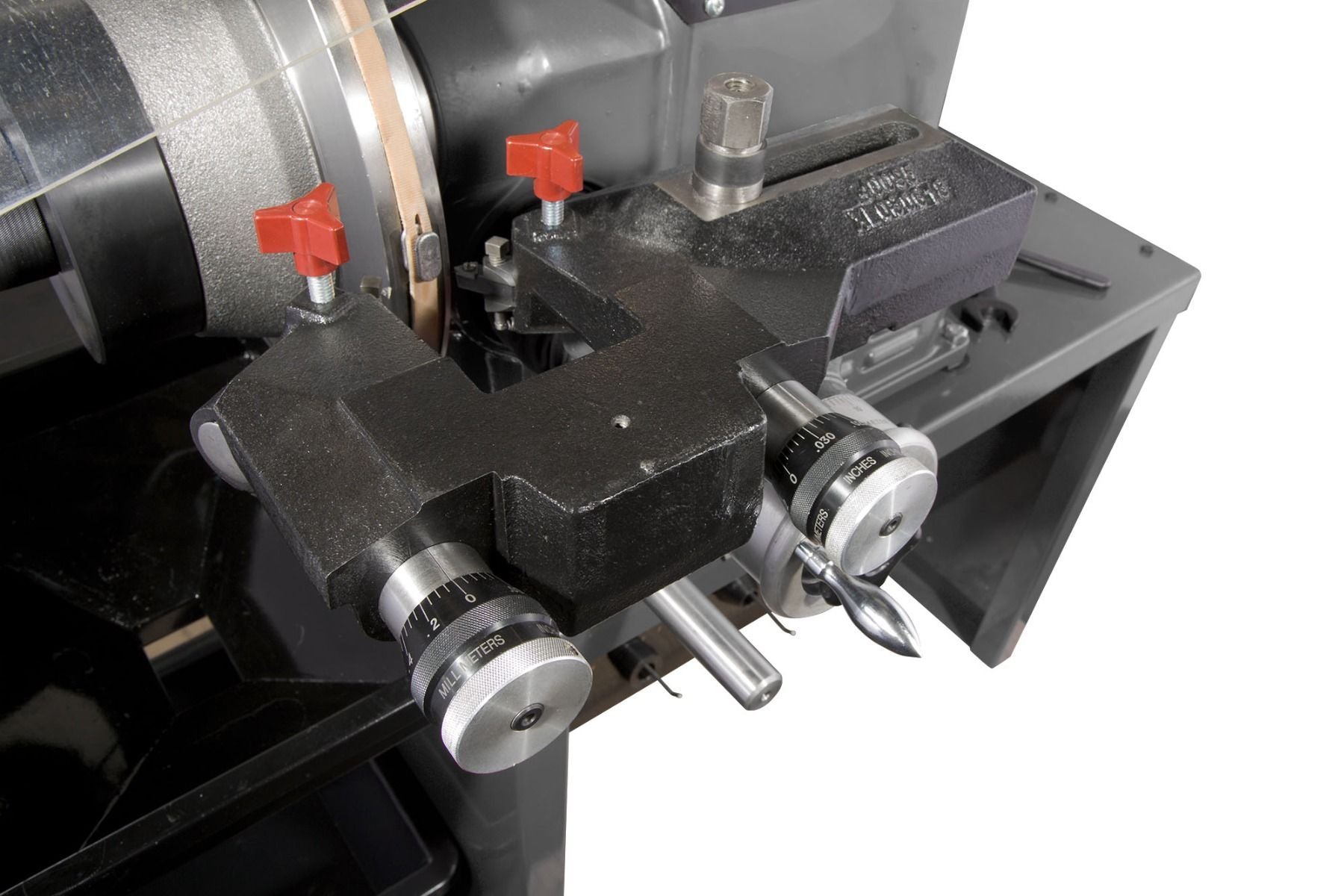

- Twin-cutter tool head - Micrometer dials and positive rake tooling give one-pass finishes.
- Infinitely variable feed - Dial in cut speed from fast rough cuts to fine micro-finish.

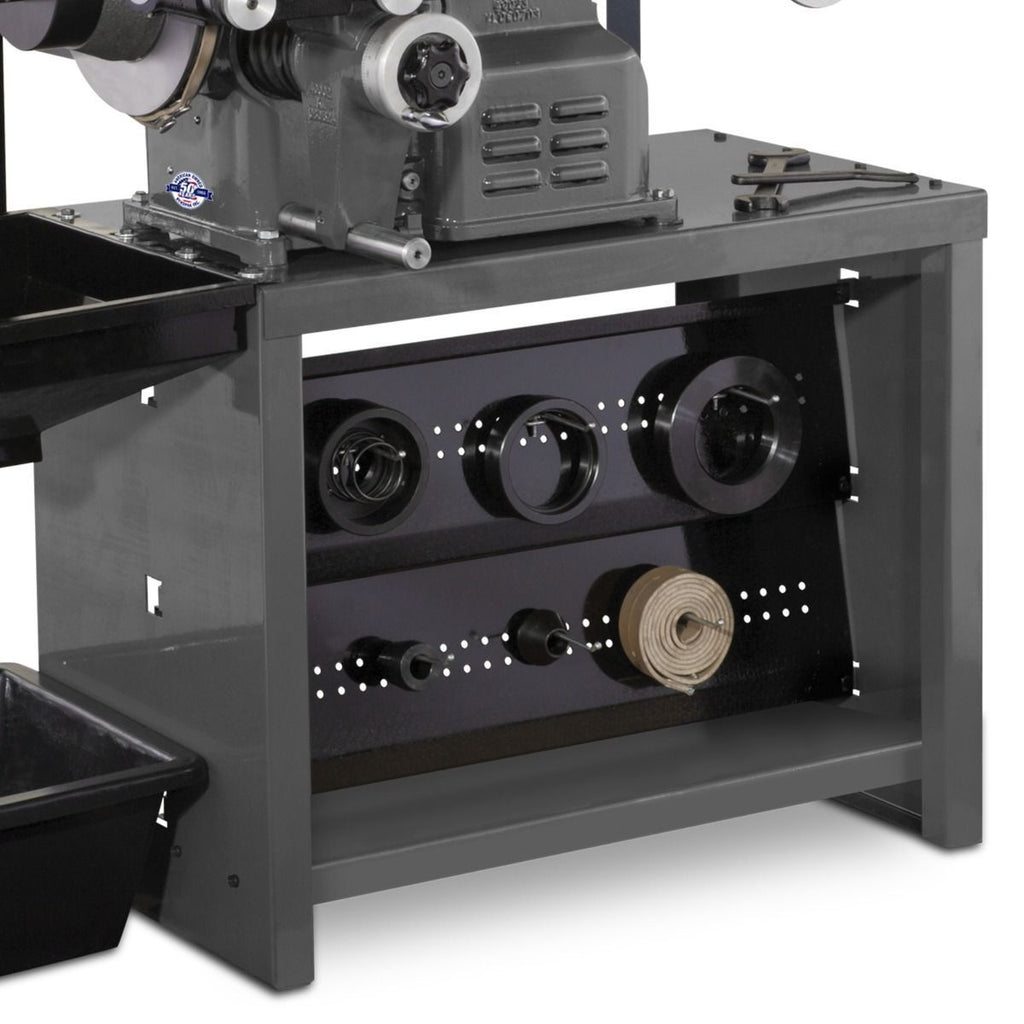

- Heavy bench included - 450-lb cast iron body on a steel bench with tool storage backboards.

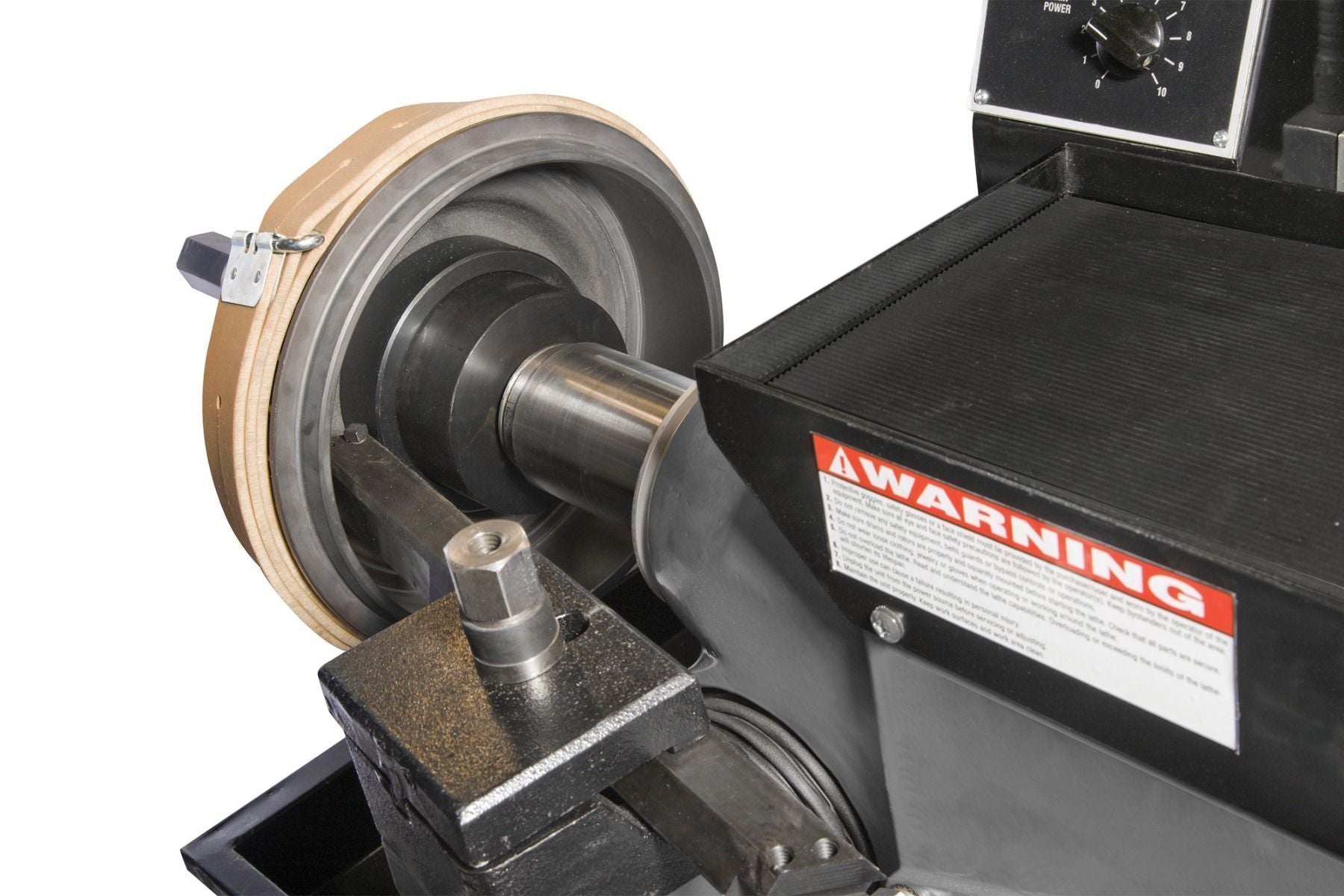

- Quick-Change adapters - Hubless adapter system mounts rotors and drums without bell clamps.
Specifications
| Brand | BendPak Ranger |
|---|---|
| Type | Combination Disc/Drum Brake Lathe with Bench |
| Power | 115-230V, 50/60 Hz, Single Phase, 20 amp |
| Max Rotor Diameter | 17 in |
| Max Rotor Thickness | 2.5 in |
| Brake Drum Diameter | 6 in - 28 in |
| Spindle Speed | 150 - 200 RPM |
| Spindle Travel | 6.875 in |
| Arbor | 1 in standard |
| Weight | 678 lb (with bench and tools) |
| Dimensions | 37 W x 46 D x 29 H in |
Who It's For
Sized for independent and general-repair shops that resurface rotors and drums in-house for passenger cars and light trucks. Runs on a 115-230V single-phase 20-amp circuit. Add the optional truck adapter kit to extend coverage to commercial trucks.
Shipping and Freight
Ships LTL-Freight on a pallet at roughly 678 lb with bench and tools. Plan for commercial delivery with dock or liftgate. Confirm liftgate need at checkout. Handling and transit times are confirmed when your order is processed.
About BendPak
BendPak builds automotive lifts and shop equipment, and its Ranger Products line covers wheel service gear including brake lathes, balancers, and tire changers.
Frequently Asked Questions
What can the RL-8500 resurface?
It resurfaces disc rotors, brake drums, and flywheels on passenger cars and light trucks, with rotors up to 17 inches and drums from 6 to 28 inches.
What power does it need?
It runs on 115-230V single-phase power at 50/60 Hz on a 20-amp circuit.
Does it include a bench and tooling?
Yes. A steel bench, tool storage backboards, and a full standard adapter and cutter package are included.
How does it avoid chatter?
It uses independent DC servo motors instead of gear boxes and transmissions, which removes a common source of vibration and chatter.
Can it handle trucks?
An optional truck adapter package with a 1-7/8 inch arbor extends coverage up to full-size commercial trucks.
