Description
Overview

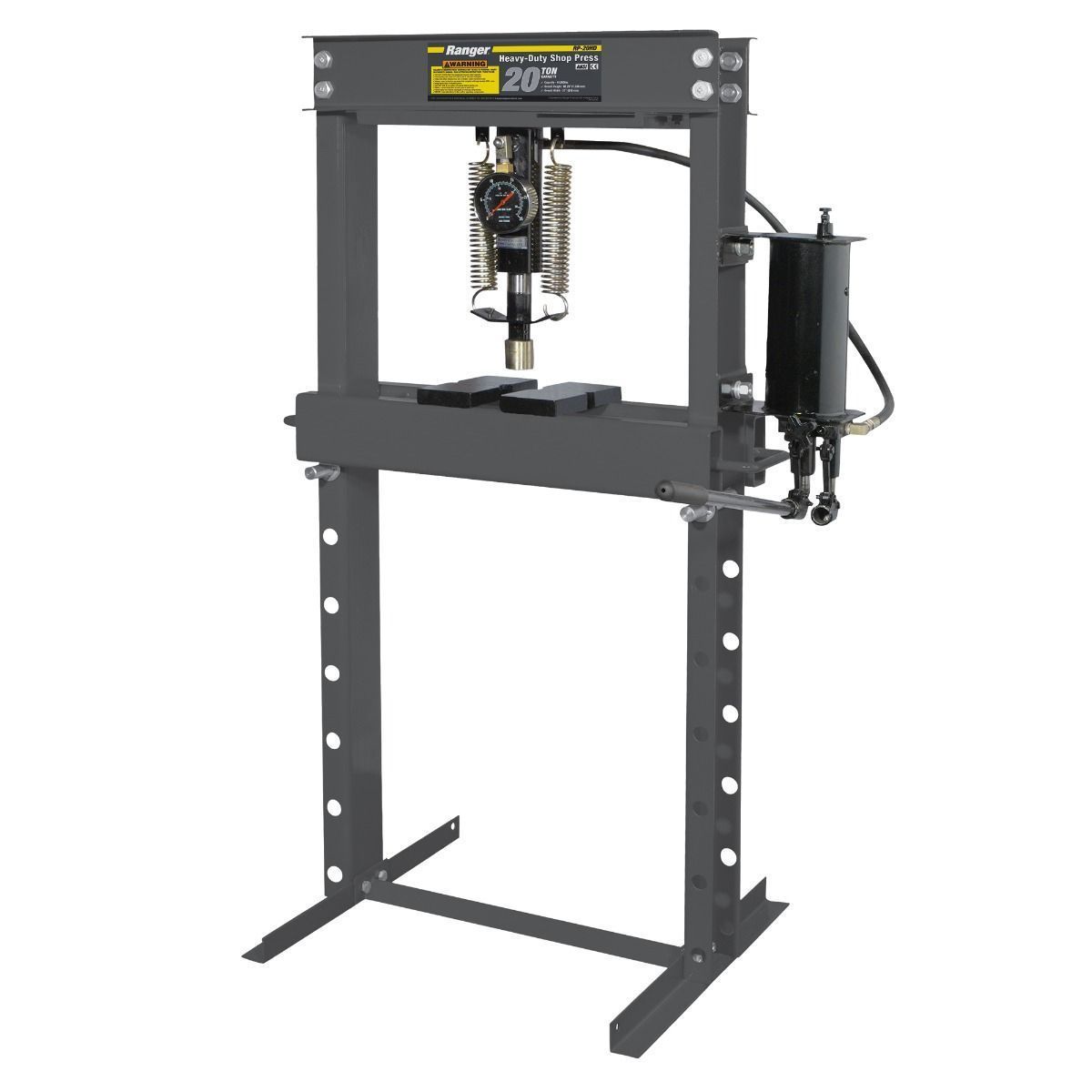

The BendPak Ranger RP-20HD is a 20-ton commercial-grade hydraulic shop press built on a heavy steel H-frame. It delivers up to 40,000 lb of pressing force through an independent two-stage hydraulic pump.
The two-stage pump gives control on approach and force at the work, which suits pressing bearings, bushings, gears, and U-joints as well as bending and straightening. A laterally moving cylinder and adjustable table add versatility, and two heavy-duty arbor plates are included. It is part of the lifting and shop tools category. Ranger is a BendPak brand.
Key Features
- 40,000 lb capacity - 20 tons of pressing force for bearings, bushings, gears, and straightening.

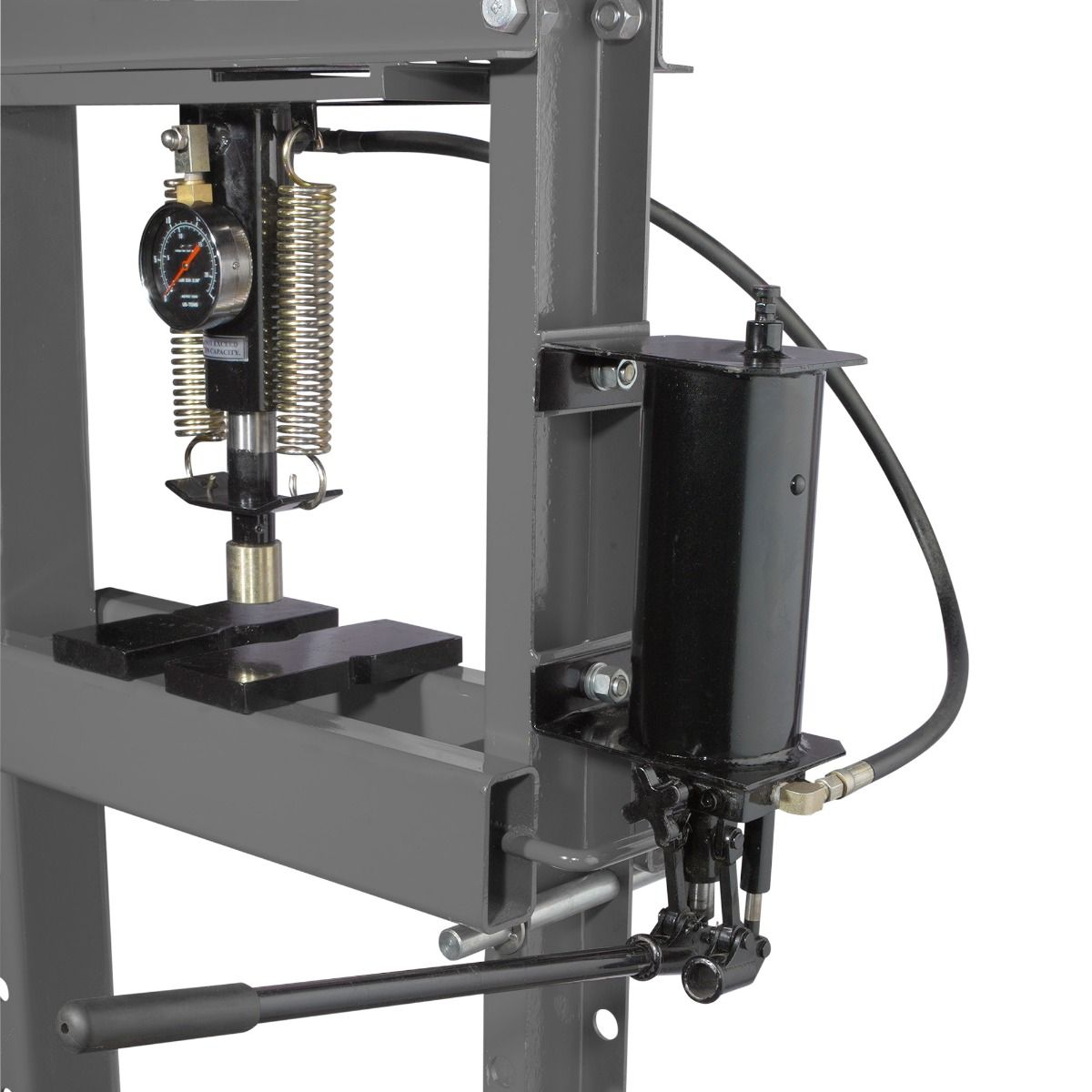

- Two-stage hydraulic pump - Independent two-speed pump balances fast approach with high force.
- Lateral moving cylinder - Cylinder shifts side to side to line up on the workpiece.

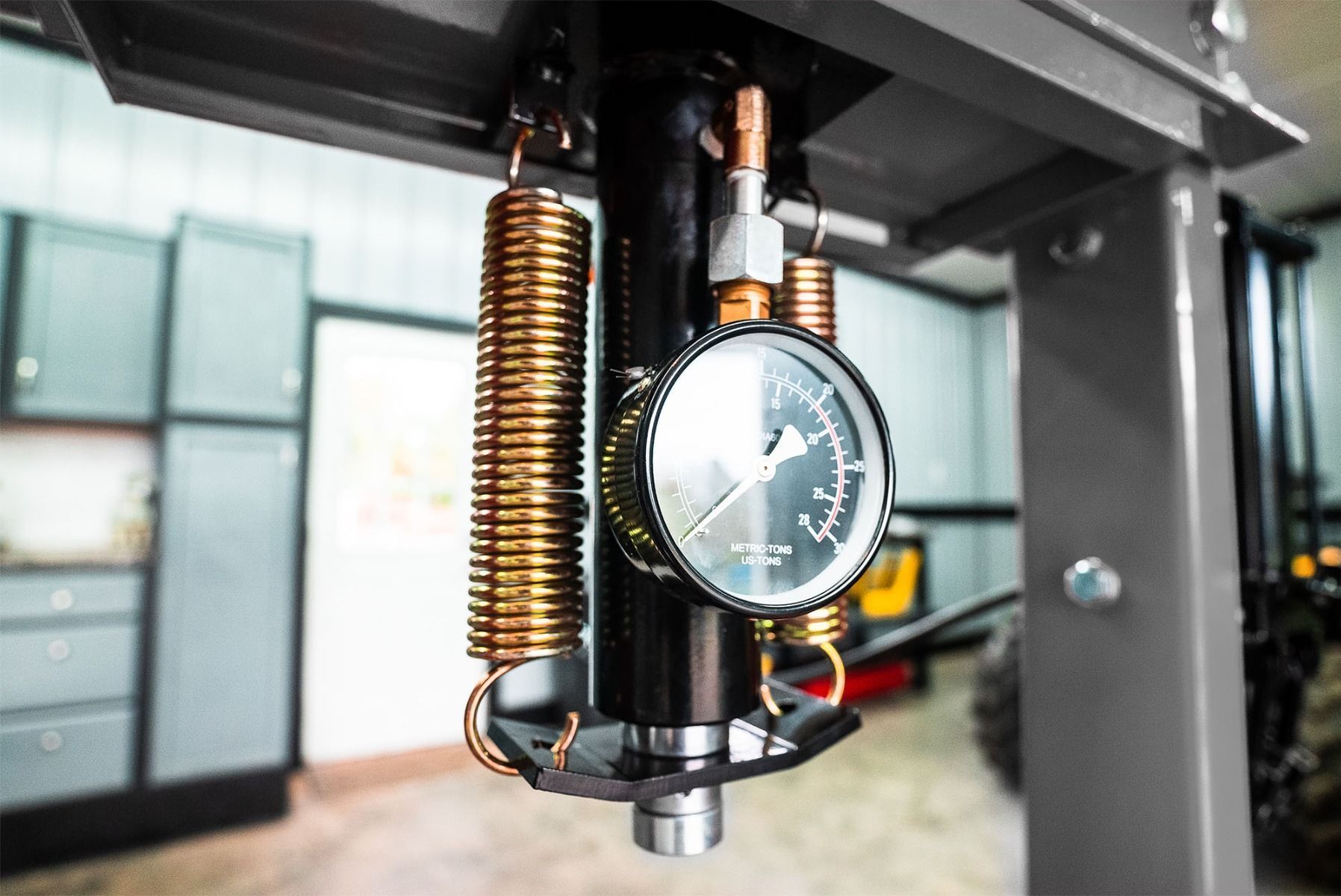

- Integrated pressure gauge - 4-inch 20-ton gauge reads applied force at a glance.
- Adjustable table - Table height adjusts from 7.5 to 36.25 inches for varied work.
- Two press plates included - Ships with two heavy-duty arbor plates.
Specifications
| Brand | BendPak Ranger |
|---|---|
| Type | Hydraulic Shop Press |
| Capacity | 20 Ton (40,000 lb) |
| Inside Width Between Rails | 24 in |
| Adjustable Table Height | 7.5 - 36.25 in |
| Cylinder Stroke | 5.5 in |
| Weight | 274 lb |
| Dimensions | 37 W x 26 D x 60.25 H in |
Who It's For
Sized for repair shops and serious home garages that press bearings, bushings, and gears and need a dependable manual hydraulic press. No electrical or air hookup is required.
Shipping and Freight
Ships LTL-Freight on a pallet. Plan for commercial delivery with dock or liftgate. Confirm liftgate need at checkout. Handling and transit times are confirmed when your order is processed.
About BendPak
BendPak builds automotive lifts and shop equipment, and its Ranger Products line covers shop equipment including presses, crushers, and wheel service gear.
Frequently Asked Questions
How much force does the RP-20HD apply?
It applies 20 tons, or up to 40,000 pounds, of hydraulic pressing force.
Does it need power or air?
No. It is a manual hydraulic press driven by a two-stage hand pump.
Is the table adjustable?
Yes. Table height adjusts from 7.5 to 36.25 inches, and the inside width between rails is 24 inches.
Does it include press plates?
Yes. Two heavy-duty arbor press plates are included.
What is the cylinder stroke?
The cylinder stroke is 5.5 inches and the cylinder can move laterally to line up on the work.
