Description
Overview

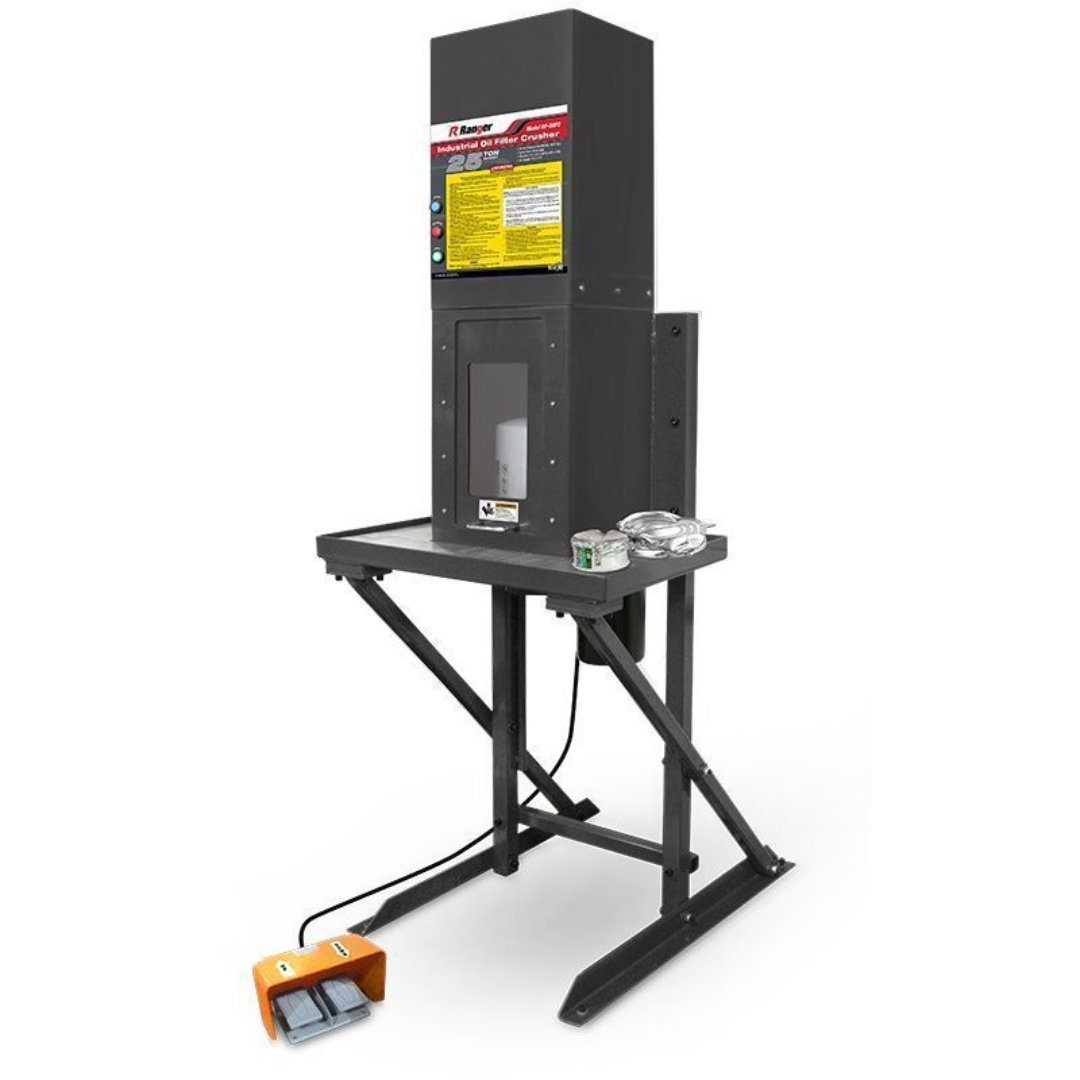

The BendPak Ranger RP-50FC-E is the heavy-duty, three-phase version of Ranger's 25-ton electric-hydraulic oil filter crusher. It applies 25 tons (50,000 lb) of force to flatten automotive and heavy-duty filters to about 20 percent of their size while removing roughly 95 percent of the residual oil.
This configuration runs on 380-415V three-phase power for facilities on that supply. A fully automatic cycle lets a tech load a filter, press a button, and walk away. It includes a floor stand for drums up to 55 gallons and a remote foot switch. It is part of the lifting and shop tools category. Ranger is a BendPak brand.
Key Features
- 25-ton crushing force - 50,000 lb of hydraulic force handles automotive and heavy-duty filters.
- Automatic cycle - Load, press a button, and walk away while the press runs the cycle.
- Filters up to 15.25 in long - Crushes filters up to 15.25 inches long and 6 inches in diameter.
- Oil recovery - Removes about 95 percent of residual oil through a gravity downspout into a drum.
- Safety door - Automatic safety door stops operation the moment it opens.
- Remote foot switch - Hands-free electric foot control supplements the panel buttons.
Specifications
| Brand | BendPak Ranger |
|---|---|
| Type | Electric-Hydraulic Oil Filter Crusher with Stand |
| Crushing Capacity | 25 Ton (50,000 lb) |
| Motor | 2 HP |
| Power | 380-415V, 50 Hz, Three Phase |
| Max Filter Size | 15.25 in long x 6 in dia |
| Average Cycle Time | 8 - 15 sec |
| Weight | 350 lb |
| Dimensions | 36 x 76 x 21 in (W x D x H) |
Who It's For
Sized for high-volume and fleet shops that need maximum crushing force and run 380-415V three-phase power. For single-phase 208-240V facilities, ask about the RP-50FC variant instead.
Demo / Overview Video
Shipping and Freight
Ships LTL-Freight on a pallet. Plan for commercial delivery with dock or liftgate. Confirm liftgate need at checkout. Handling and transit times are confirmed when your order is processed.
About BendPak
BendPak builds automotive lifts and shop equipment, and its Ranger Products line covers shop equipment including oil filter crushers and presses.
Frequently Asked Questions
How much force does the RP-50FC-E apply?
It applies 25 tons, or 50,000 pounds, of electric-hydraulic crushing force.
What power does this configuration use?
This RP-50FC-E variant runs on 380-415V three-phase power at 50 Hz. Confirm your supply before ordering.
What filter sizes will it crush?
It handles filters up to 15.25 inches long and 6 inches in diameter.
Is it automatic?
Yes. An automatic cycle lets you load a filter, press a button, and walk away. A remote foot switch is also included.
Does it include a stand?
Yes. The stand accommodates drums up to 55 gallons for oil collection.
Talk to a specialist about power, shop fit, and freight before ordering. See more BendPak shop equipment.
