Description
Overview

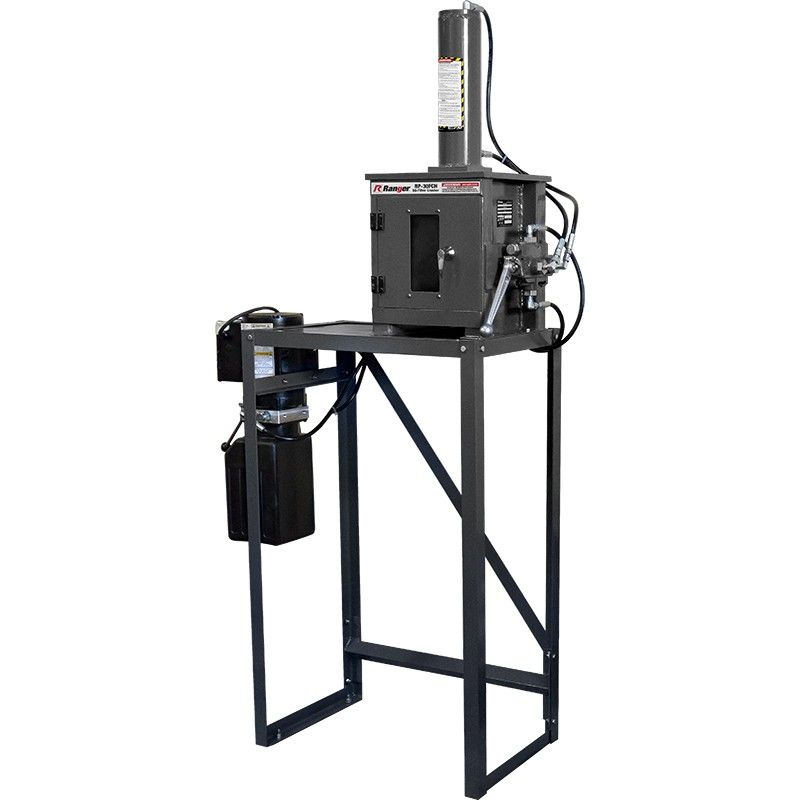

The BendPak Ranger RP-30FCH is an electric-hydraulic oil filter crusher with a floor stand, applying 15 tons (30,000 lb) of force to flatten used filters and cans. It crushes filters to about 20 percent of their original size and removes roughly 95 percent of the residual oil.
Crushing filters separates recyclable metal from waste oil, cuts disposal volume, and helps shops stay inside EPA and state handling rules. The rugged stand accommodates oil drums up to 55 gallons. It fits any quick-lube or full-service shop and is part of the lifting and shop tools category. Ranger is a BendPak brand.
Key Features
- 15-ton crushing force - 30,000 lb of hydraulic force flattens most automotive filters to about 20 percent of original size.
- Oil recovery - Removes about 95 percent of residual oil for recycling and reduced disposal cost.
- Two-handed safe operation - Manual stainless handle controls two-way stop-and-start crushing.
- Door safety switch - Spring-loaded shutoff cuts power if the chamber door opens during a cycle.
- Electric-hydraulic power unit - 2 HP motor with a 2-gallon reservoir drives the press.
- 55-gallon drum stand - Rugged stand accommodates oil storage drums up to 55 gallons.
Specifications
| Brand | BendPak Ranger |
|---|---|
| Type | Electric-Hydraulic Oil Filter Crusher with Stand |
| Crushing Capacity | 15 Ton (30,000 lb) |
| Motor | 2 HP |
| Power | 208-240V, 50/60 Hz, Single Phase |
| Chamber Opening | 10.75 H x 8.5 W x 10.5 D in |
| Average Cycle Time | 8 - 15 sec |
| Weight | 296 lb |
| Dimensions | 42.5 W x 17 D x 75 H in |
Who It's For
Sized for quick-lube and full-service shops that generate steady volumes of used oil filters and want to recover oil, reduce waste, and stay compliant. Requires a 208-240V single-phase circuit.
Shipping and Freight
Ships LTL-Freight on a pallet. Plan for commercial delivery with dock or liftgate. Confirm liftgate need at checkout. Handling and transit times are confirmed when your order is processed.
About BendPak
BendPak builds automotive lifts and shop equipment, and its Ranger Products line covers shop equipment including oil filter crushers, presses, and wheel service gear.
Frequently Asked Questions
How much crushing force does the RP-30FCH apply?
It applies 15 tons, or 30,000 pounds, of electric-hydraulic force.
What power does it require?
It runs on 208-240V single-phase power at 50/60 Hz.
How much oil does it recover?
It crushes filters to about 20 percent of original size and removes roughly 95 percent of the residual oil.
Does it include a stand?
Yes. The rugged stand accommodates oil storage drums up to 55 gallons.
How long is a crush cycle?
Cycle time averages 8 to 15 seconds depending on filter size.
Talk to a specialist about power, shop fit, and freight before ordering. See more BendPak shop equipment.
