Description
Overview

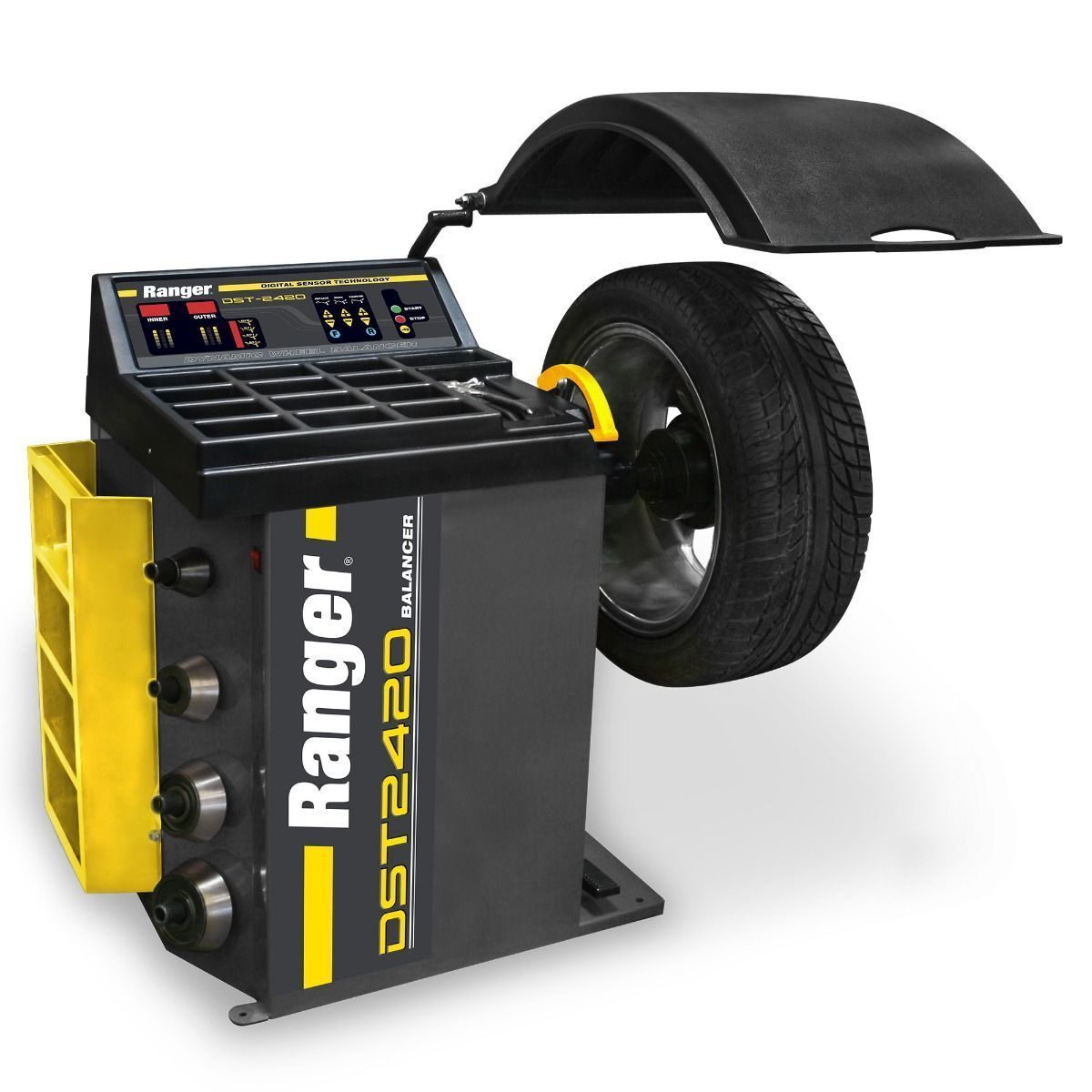

The BendPak Ranger DST-2420 is a dynamic wheel balancer for shops that want fast, accurate, no-frills balancing. It handles wheels up to 30 inches in diameter and reports weight placement in about six seconds.
The DST-2420 runs the Ranger Direct-Axis drive and Digital Sensor Technology, targeting balance accuracy within hundredths of an ounce for vibration-free results. It suits one-bay shops through high-volume auto service equipment garages. Ranger is a BendPak brand.
Key Features
- Digital Sensor Technology - Multi-directional quartz piezoelectric load sensors detect imbalance with a 16-bit signal processor.
- Fast six-second cycle - Low-RPM 180 RPM balancing reports weight placement in roughly six seconds.
- Balancing modes - Dynamic, static, and three-alloy ALU modes cover OEM and performance wheels.
- 40 mm hardened shaft - Precision-machined shaft with quick-release hub nut for fast setup.
- LED weight placement - Tiered LED indicators guide split-weight and hidden behind-the-spoke placement.
- Mounting collet package - Includes three car and light-truck collets plus one truck collet.
Specifications
| Brand | BendPak Ranger |
|---|---|
| Type | Dynamic Wheel Balancer |
| Motor | 1.5 HP |
| Power | 110V / 220V, 50/60 Hz, Single Phase |
| Max Wheel Diameter | 10 in - 30 in |
| Max Tire Diameter | 47 in |
| Max Tire Weight | 145 lb |
| Balancing Speed | 180 RPM |
| Accuracy | +/- 1 gram (0.035 oz) |
| Shaft | 40 mm |
| Weight | 374 lb |
| Dimensions | 38 x 46 x 30 in (W x D x H) |
Who It's For
Sized for independent tire shops, single-bay service centers, and high-volume garages balancing passenger and light-truck wheels. Runs on standard single-phase power. For truck and SUV wheels, add the matching 40 mm truck cone kit.
Demo / Overview Video
Shipping and Freight
Ships LTL-Freight on a pallet. Plan for commercial delivery with dock or liftgate. Confirm liftgate need at checkout. Handling and transit times are confirmed when your order is processed.
About BendPak
BendPak builds automotive lifts and shop equipment, and its Ranger Products line covers wheel service gear including balancers, tire changers, and brake lathes.
Frequently Asked Questions
What size wheels does the DST-2420 balance?
It handles wheel diameters from 10 to 30 inches, tire diameters up to 47 inches, and tire weights up to 145 pounds.
What power does it need?
It runs on 110V or 220V single-phase power at 50/60 Hz. Confirm the circuit at your chosen voltage before install.
How fast is a balance cycle?
Cycle time averages about six seconds at a low 180 RPM balancing speed.
Does it include tooling?
It ships with three car and light-truck collets plus one truck collet, and a wheel-weight starter kit. Confirm the current package with a specialist before ordering.
Can it balance motorcycle wheels?
Yes, with the optional motorcycle shaft kit that fits the DST-2420.
Talk to a specialist about power, shop fit, and freight before ordering. See more BendPak wheel service equipment.
