Description
Overview

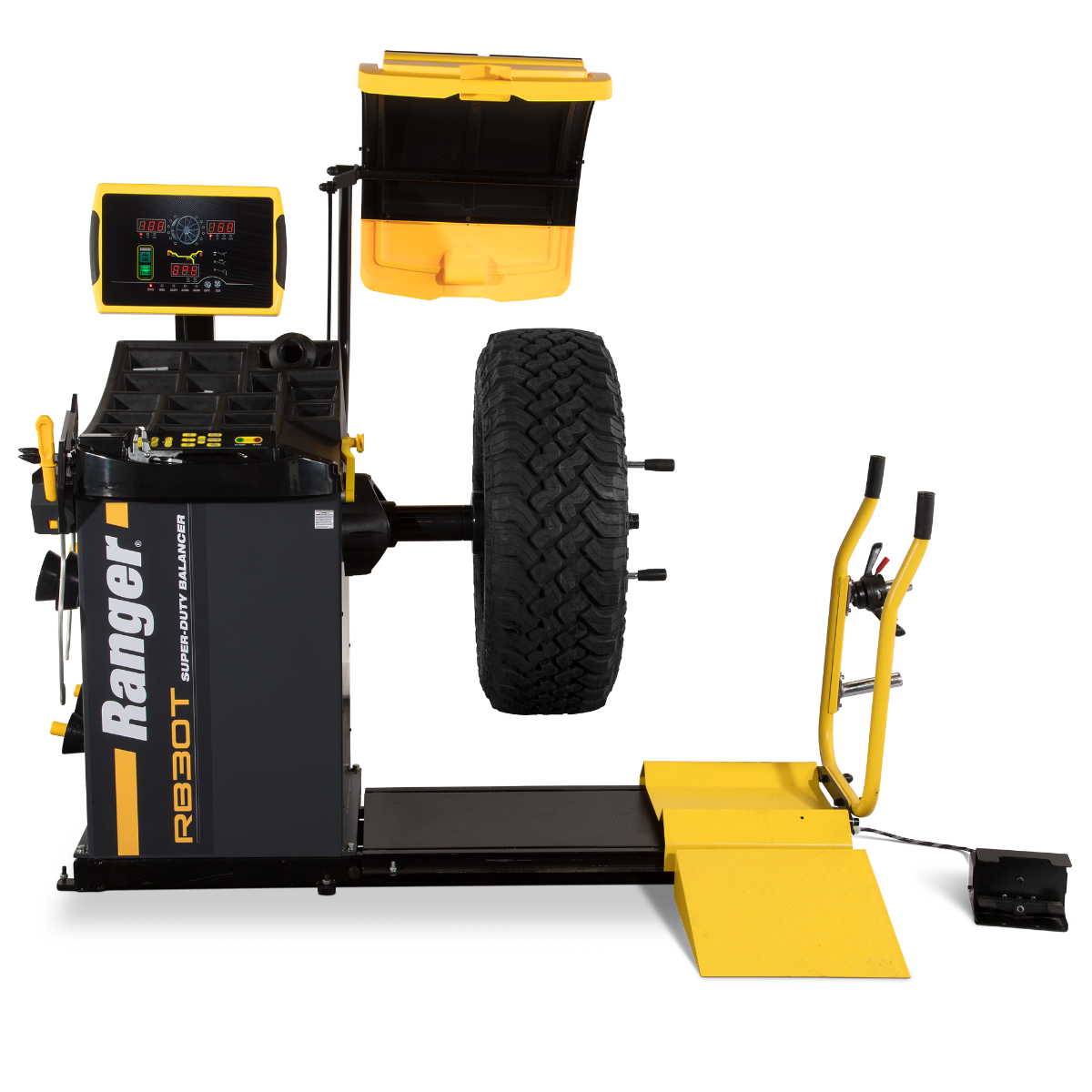

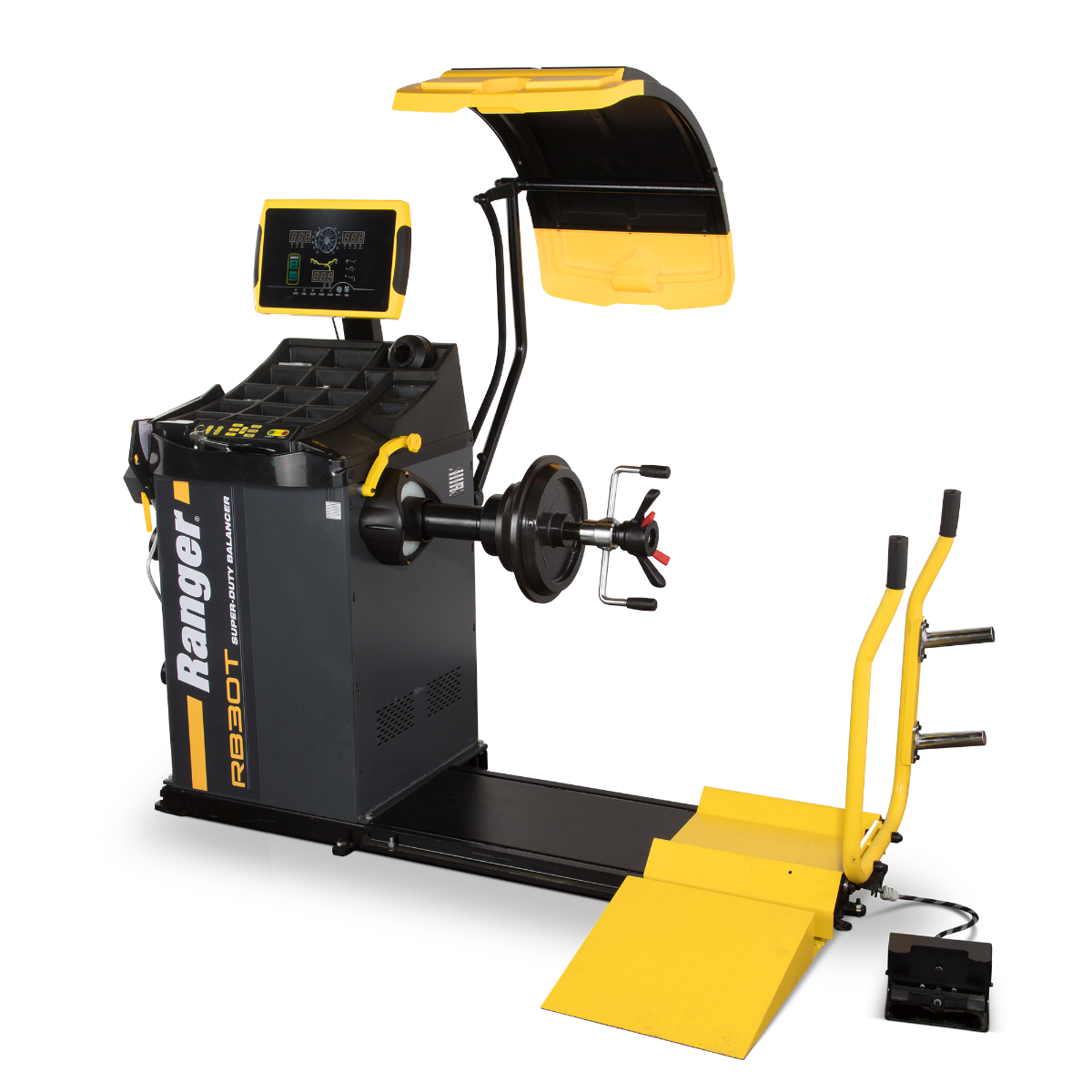

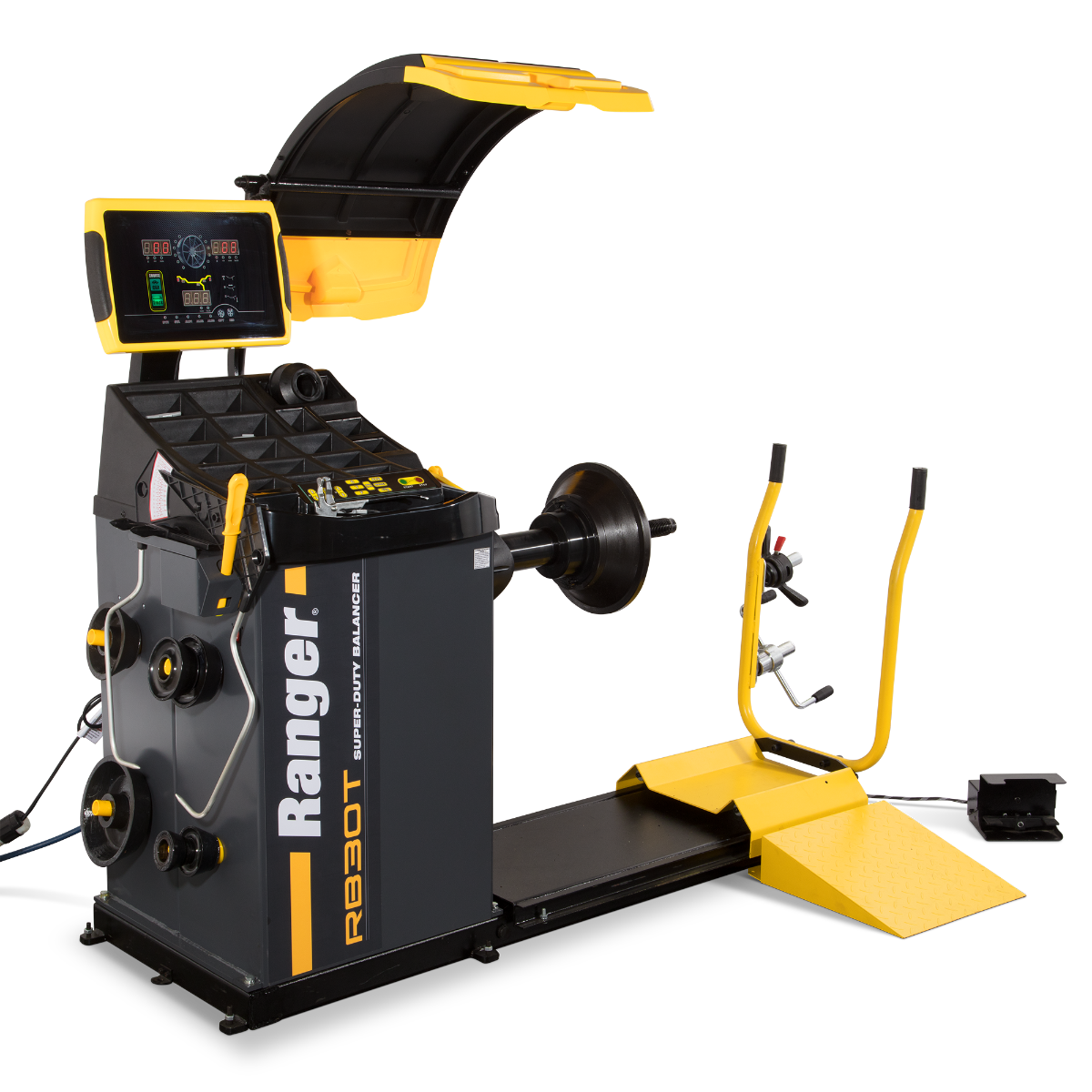

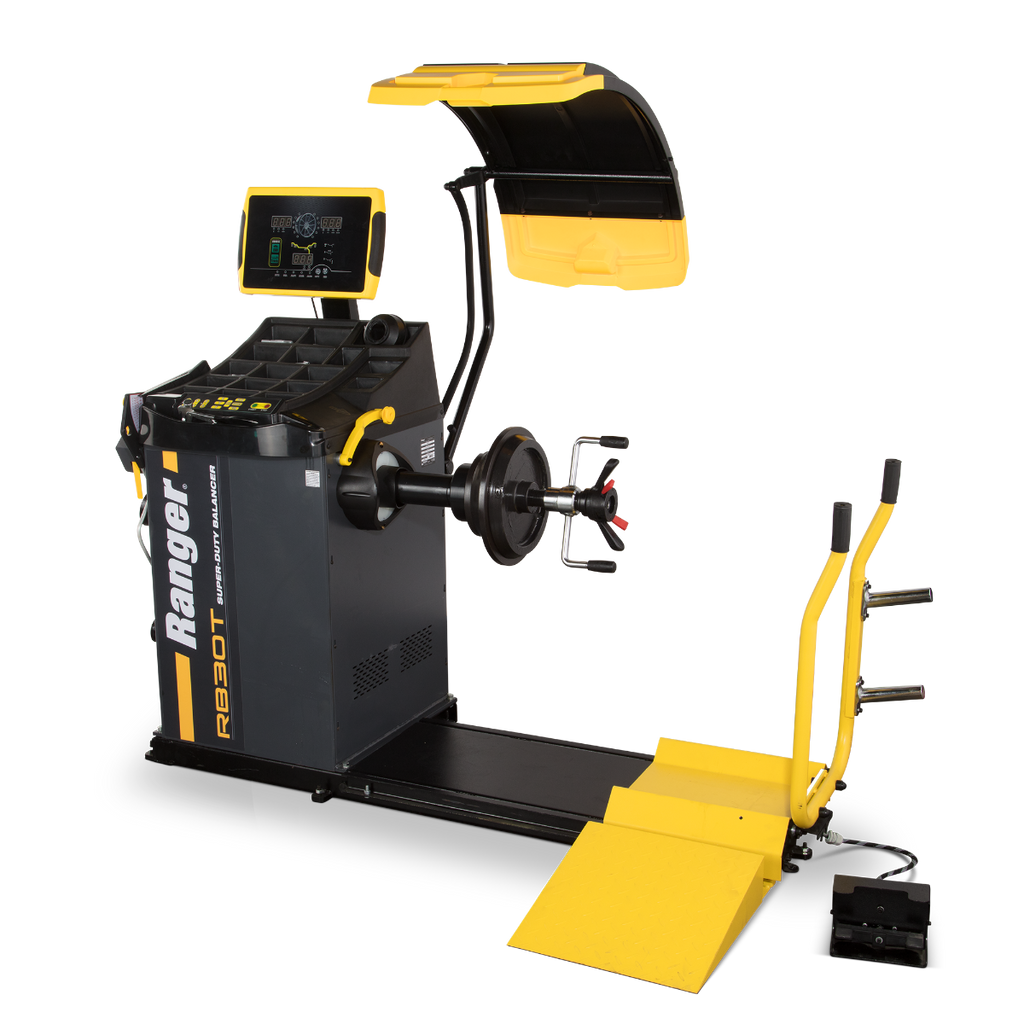

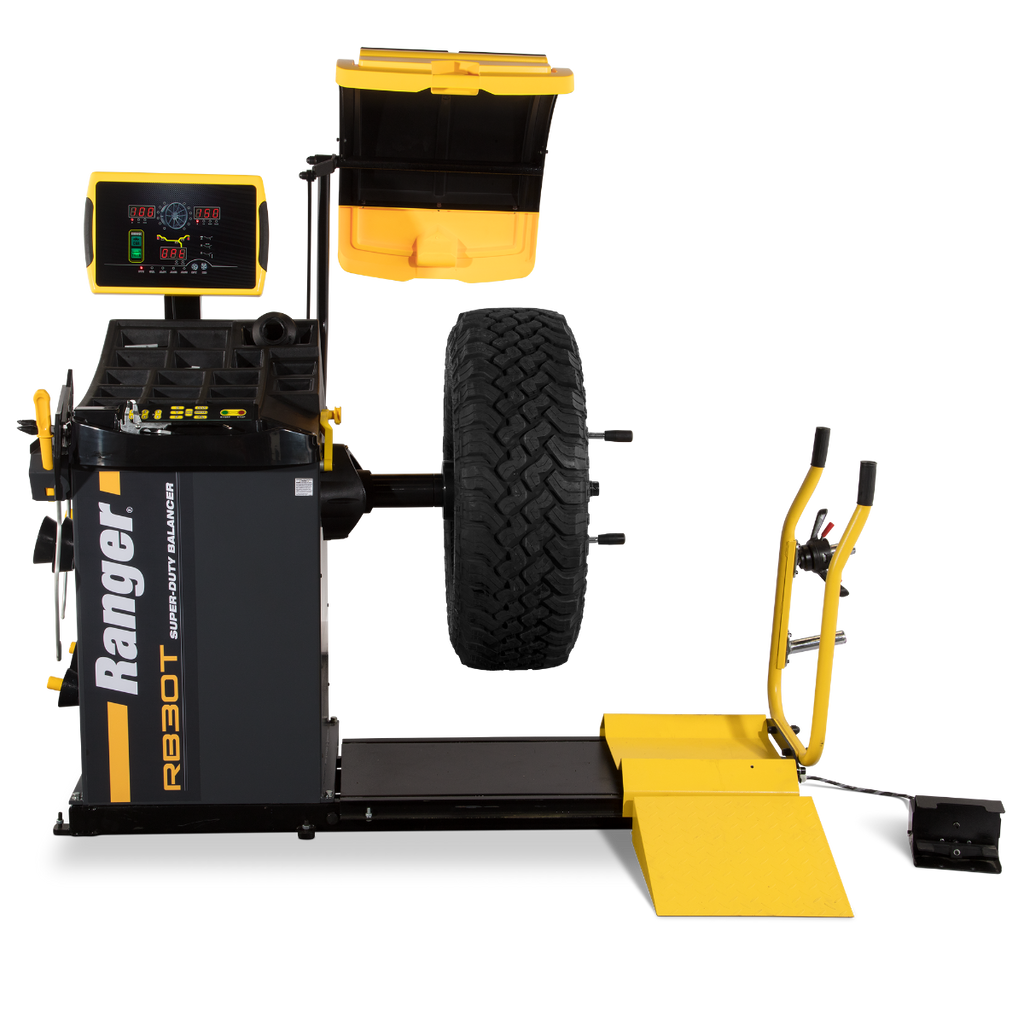

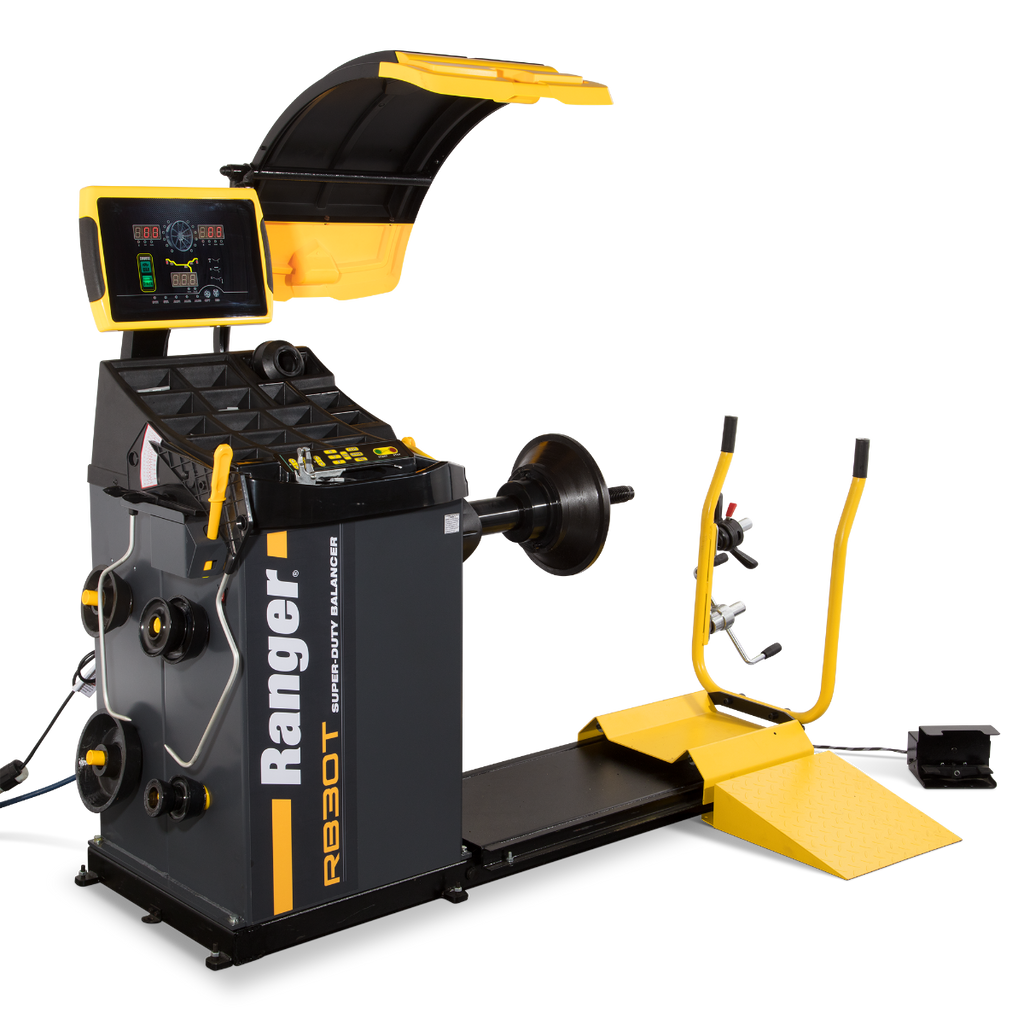

The BendPak Ranger RB30T is a heavy-duty truck wheel balancer with a deluxe adapter kit, built for commercial truck shops and fleet operations. It balances everything from light-truck wheels to large OTR tires with a dedicated, purpose-built platform rather than a passenger machine with bigger cones.

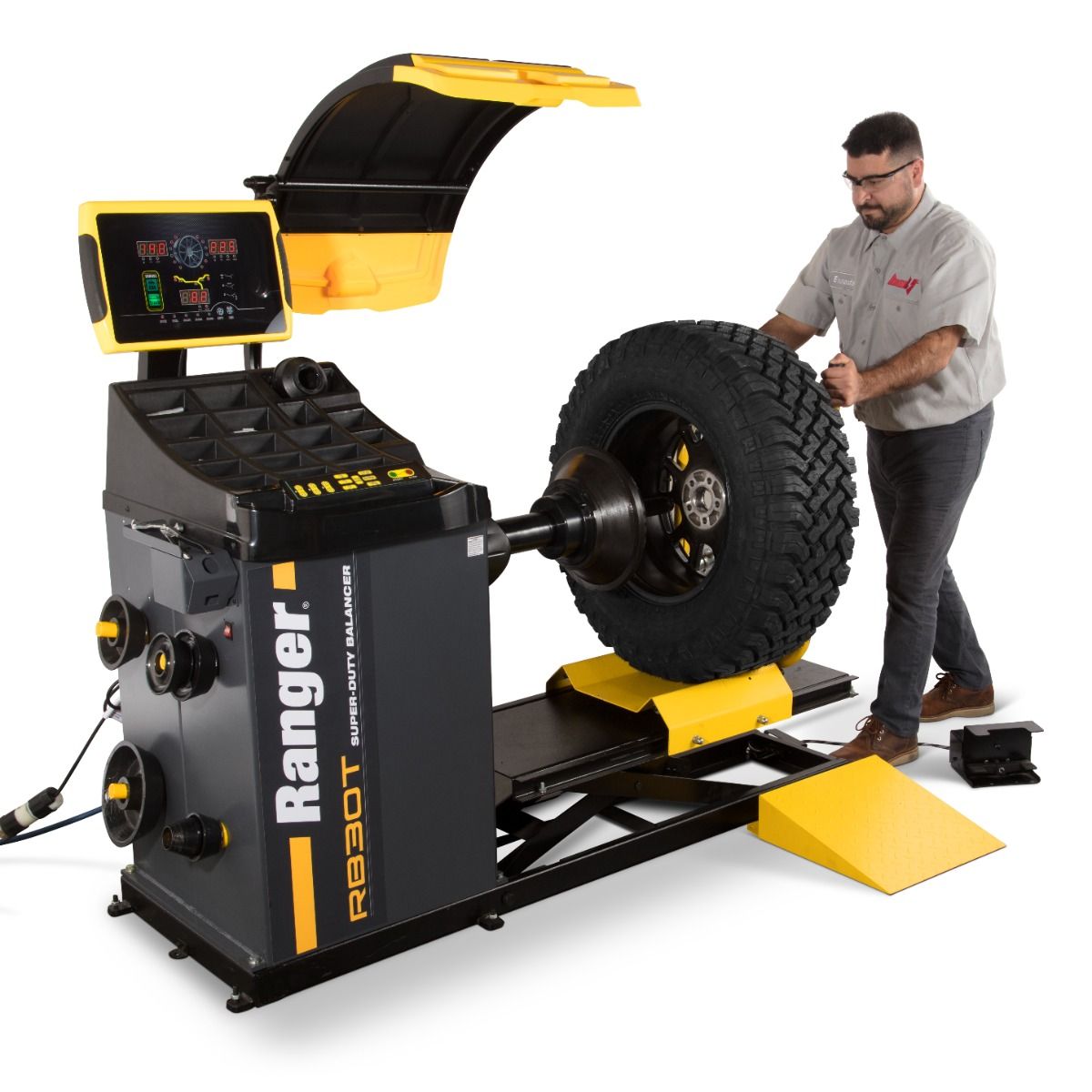

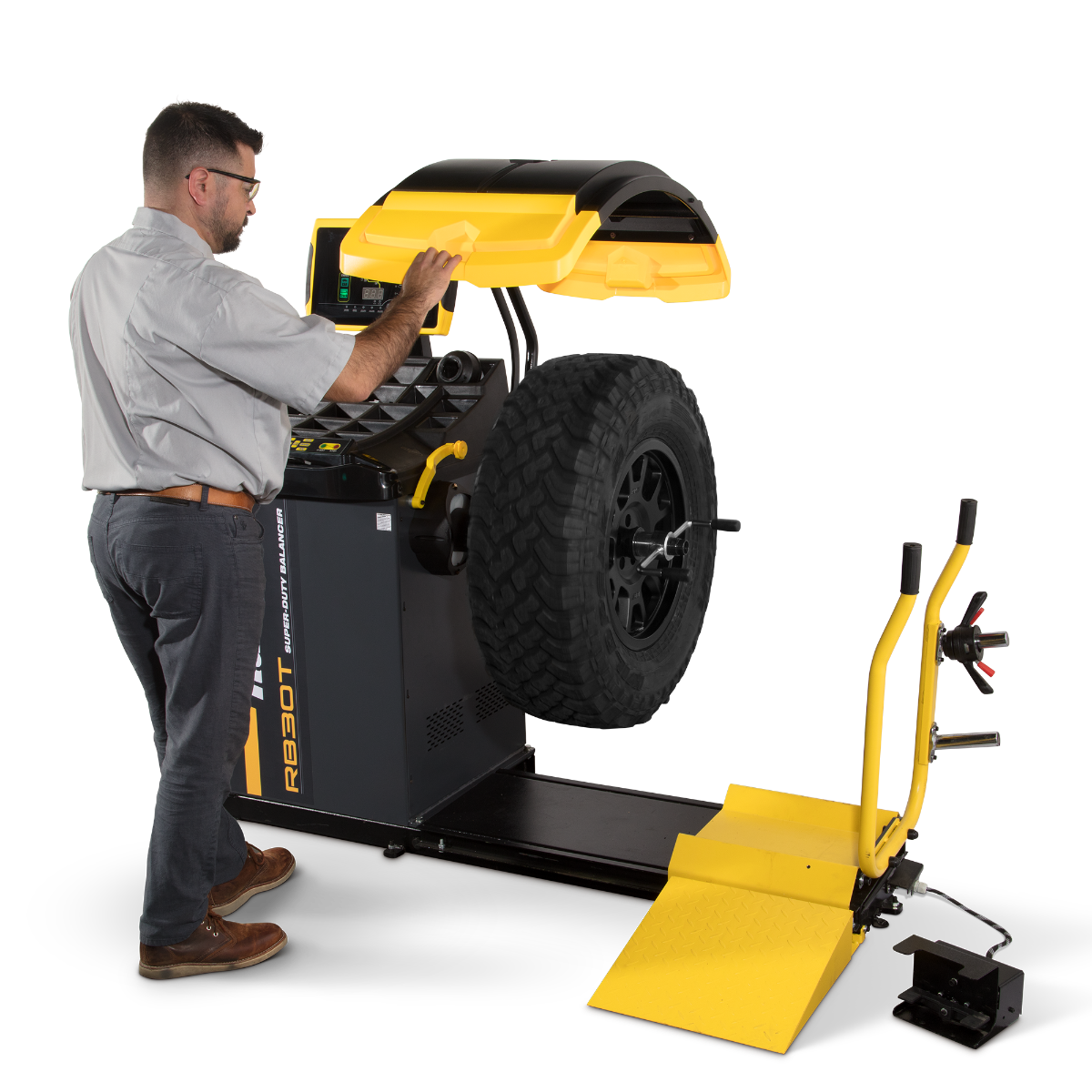

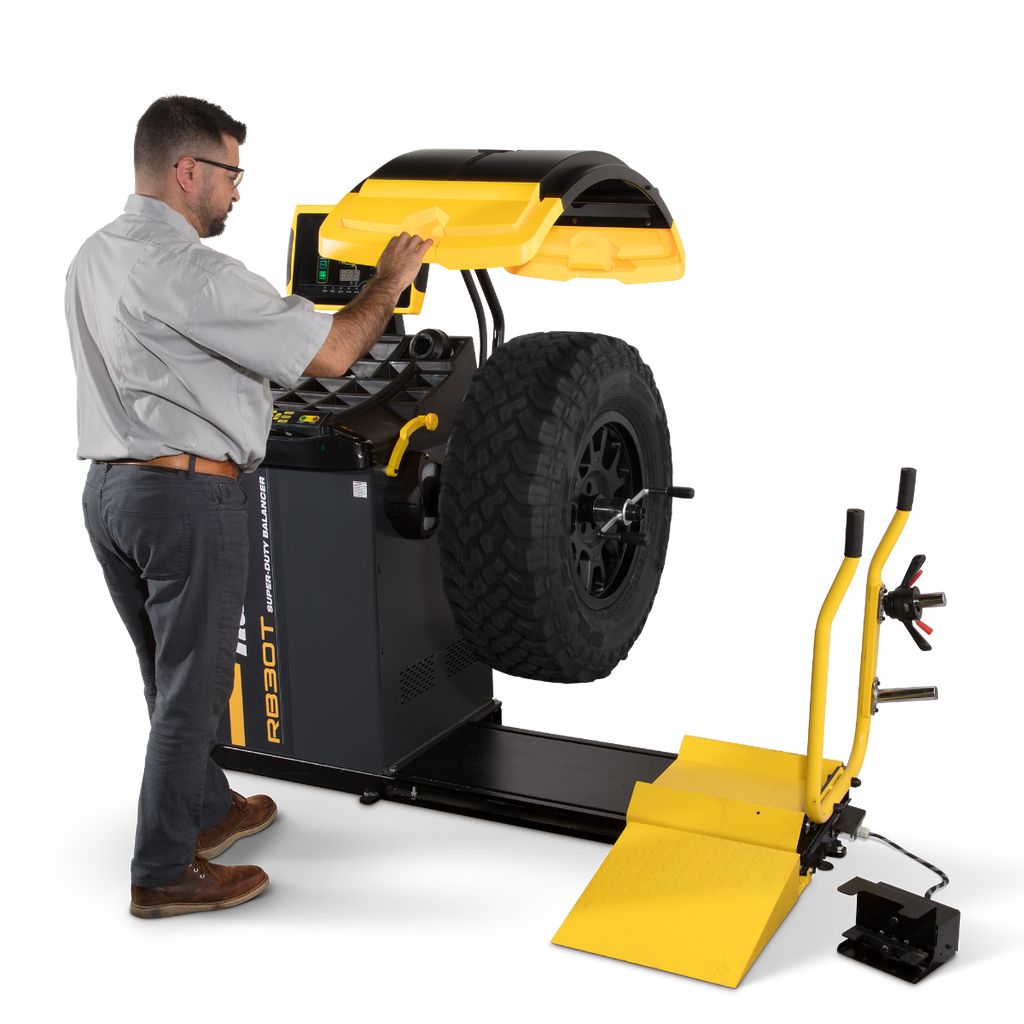

An integrated pneumatic wheel lift handles heavy assemblies, and a 64-bit processor with multi-directional quartz sensors reads imbalance across longitudinal, transverse, and shear axes. Car mode and truck mode switch with a button, so the machine moves between wheel types without recalibration.
Key Features
- Integrated pneumatic wheel lift - raises wheels up to 330 lb to reduce strain when mounting heavy assemblies.
- Five balancing modes - Dynamic, Static, ALU1, ALU2, and ALUS for steel and aluminum wheels.
- 40 mm hardened-steel shaft - precision-machined for repeatable clamping under daily load.
- Multi-directional quartz sensors - 64-bit architecture detects imbalance across three axes for fast, accurate placement.
- Electro-pneumatic braking - locks the wheel at top or bottom dead center for precise weight placement.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Heavy-Duty Truck Wheel Balancer |
| Power | 208 - 240V, Single Phase, 50/60 Hz |
| Drive Motor | 3 Phase with Solid-State Phase Converter |
| Balancing Modes | Dynamic / Static / 3 Alloy |
| Max Tire Weight | 330 lb |
| Wheel Diameter Range | 13" - 24" |
| Wheel Width Capacity | 4" - 20" |
| Shaft Size | 40 mm |
| Cycle Time | 7 sec car / 20 sec truck |
| Accuracy | +/- 1 gram (standard) |
| Weight | 988 lb (shipping) |
| Dimensions | 52 x 67 x 36 in (shipping, W x D x H) |
Who It's For
Built for commercial truck fleets and high-volume tire shops that balance buses, semis, OTR, and light-duty truck wheels. Plan for a 208 to 240V single-phase circuit and a shop air supply for the pneumatic lift and brake.
Shipping and Freight
This balancer ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
How heavy a wheel can the RB30T lift and balance?
The integrated pneumatic lift and spindle support assemblies up to 330 lb, with wheel diameters from 13 to 24 inches and widths from 4 to 20 inches.
Does it balance both car and truck wheels?
Yes. A button switches between car and truck modes, with cycle times around 7 seconds for car wheels and about 20 seconds for truck wheels, and no recalibration between types.
What power does it need?
It runs on 208 to 240V single phase, 50/60 Hz, driving a three-phase motor through a solid-state phase converter.
What is included for mounting?
The machine ships with a full heavy-duty cone and commercial adapter kit, so it is ready to balance a wide range of wheels out of the box.
How accurate is it?
BendPak rates standard accuracy at plus or minus 1 gram, with a truck-mode tolerance suited to large assemblies.
Talk to an auto service specialist about shop power, footprint, and freight before you order. Browse the full BendPak range to pair a tire changer and balancer for your bay.
