Description
Overview

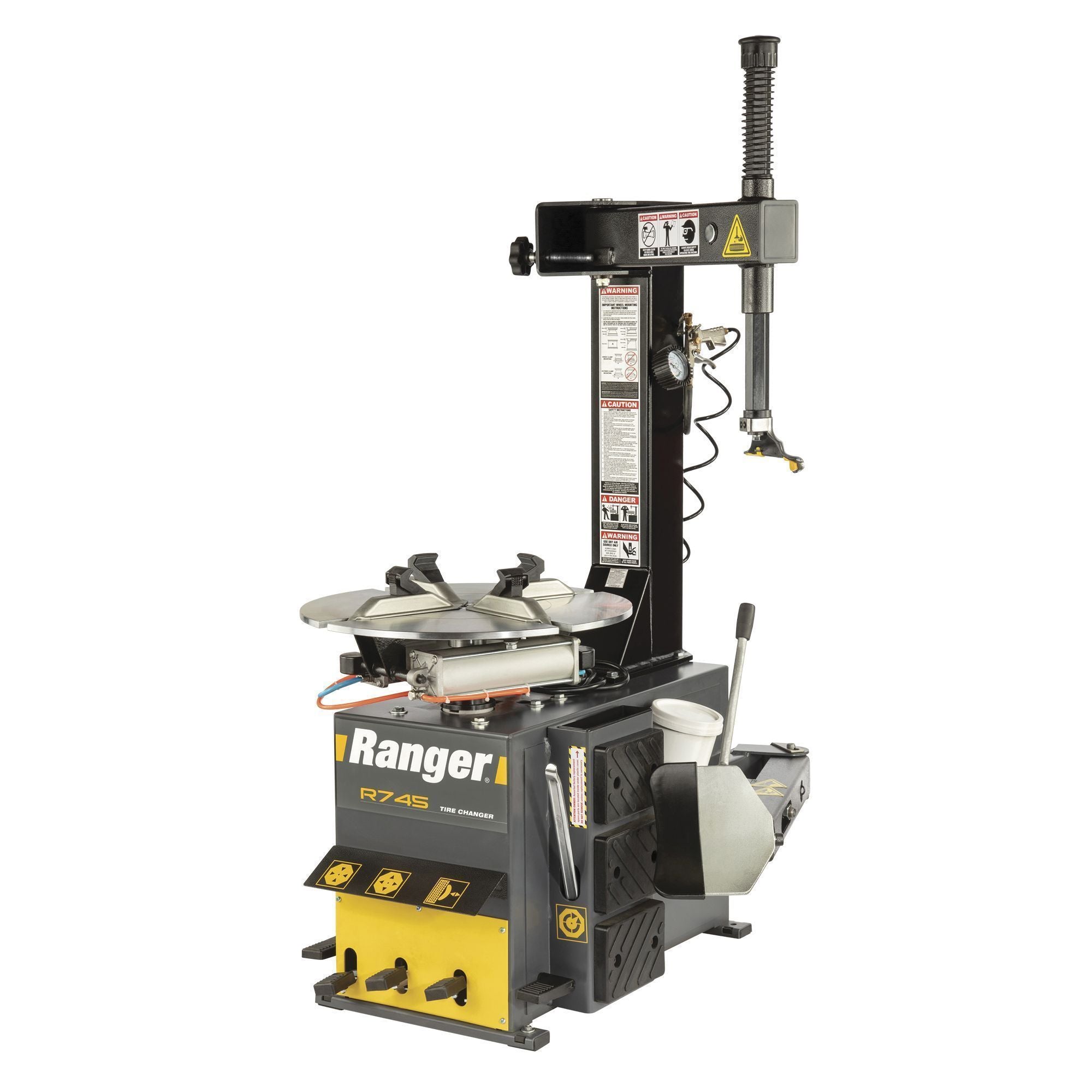

The BendPak Ranger R745 is an entry-level swing-arm tire changer with a 21 inch clamping capacity, available in 110V or 220V single-phase power. It is a straightforward machine for shops and serious DIY users that service passenger and light truck wheels.
A rigid fixed swing-arm tower, dual pneumatic table clamping, and a pneumatic bead-breaker blade cover the basics for everyday mounting and demounting. The 110V option lets a shop without 220V service get a real tire changer onto the floor.
Key Features
- 110V or 220V power - single-phase, 50/60 Hz, so it fits shops without 220V service.
- 21 inch clamping capacity - 4-clamp turntable runs 12 to 20 inches inside and 10 to 16 inches outside.
- Pneumatic bead-breaker - a pneumatic blade with dual cylinder table clamping for reliable bead breaking.
- Swing-arm tower - rigid, fixed tower with manual tool-head lock for repeatable positioning.
- Forged steel foot pedals - durable controls for daily shop use.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Swing-Arm Tire Changer |
| Inside Clamping Range | 12" - 20" |
| Outside Clamping Range | 10" - 16" |
| Max Rim Width | 11" |
| Max Tire Diameter | 39" |
| Power | 110 or 220 VAC, Single Phase, 50/60 Hz |
| Drive System | Electric / Air |
| Air Requirement | 140 - 165 PSI |
| Tower Design | Rigid Fixed / Swing Arm |
| Weight | 486 lb (shipping) |
| Dimensions | 39 x 41 x 35 in (shipping, W x D x H) |
Who It's For
Built for small shops, entry-level tire and wheel service, and serious DIY users that mostly handle passenger and light truck wheels up to a 39 inch tire diameter. The 110V option suits a garage without 220V service.
Shipping and Freight
This machine ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
Can the R745 run on a standard 110V outlet?
It is offered in both 110V and 220V single-phase configurations. Confirm the voltage option that matches your shop before ordering.
What size wheels does it handle?
The 4-clamp turntable covers 12 to 20 inches internally and 10 to 16 inches externally, with an 11 inch maximum rim width and a 39 inch maximum tire diameter.
Is it suited to run-flats?
The R745 is an entry-level machine without a power-assist tower. For frequent run-flat and low-profile work, an assist-tower model like the R980AT or R76ATR is a better fit.
What air supply does it need?
BendPak lists an air requirement of 140 to 165 PSI.
Who is this machine for?
It suits small shops, entry-level tire service, and serious DIY users servicing passenger and light truck wheels.
Talk to an auto service specialist about shop power, footprint, and freight before you order. Browse the full BendPak range to pair a tire changer and balancer for your bay.
