Description
Overview

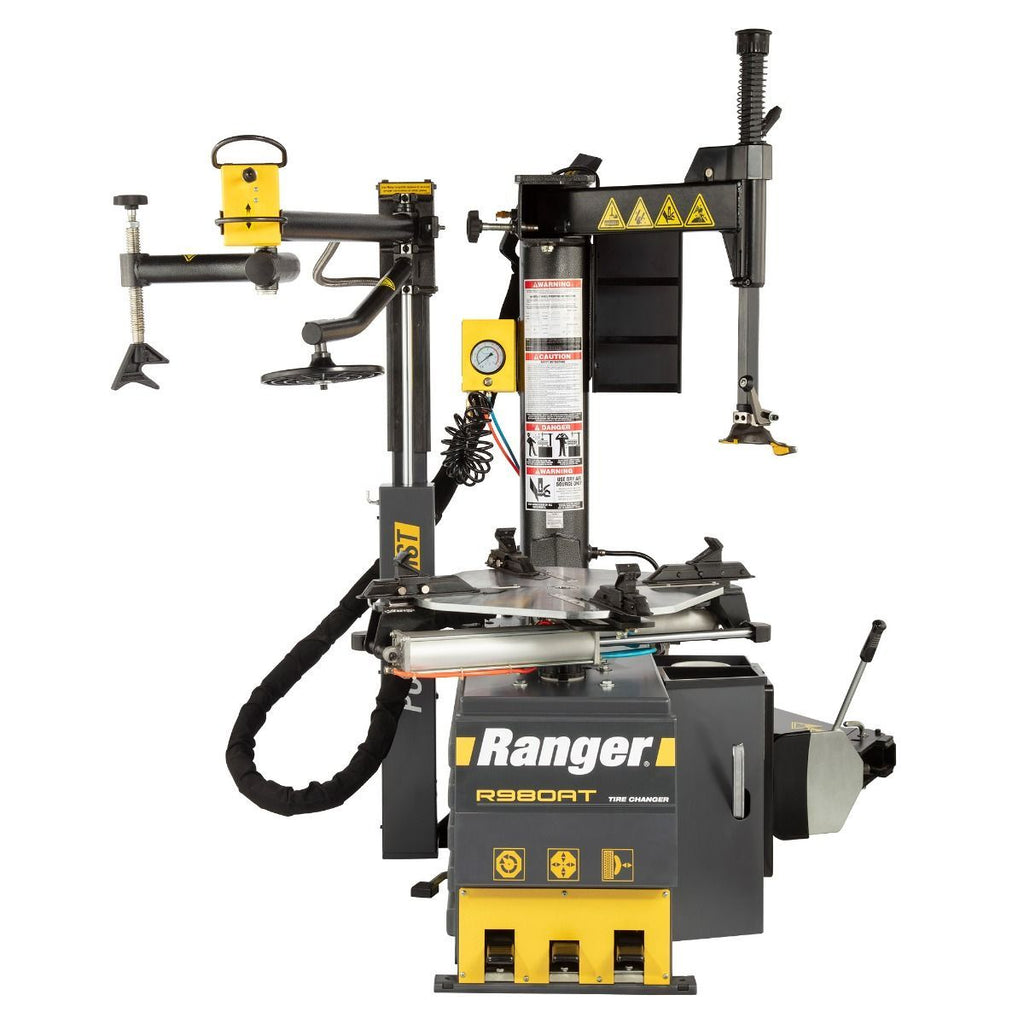

The BendPak Ranger R980AT is a swing-arm tire changer fitted with a power-assist tower. It combines the compact, wall-friendly footprint of the R980 swing-arm platform with an assist arm that holds stiff sidewalls in the drop center for run-flat and low-profile tires.
The R980AT belongs to the same R980 swing-arm series as the R980XR and is the assist-tower configuration. A high-torque electric turntable and stainless pneumatic bead-breaker handle a broad mix of wheels, while the assist tower reduces operator effort on the toughest tires.
Key Features
- Power-assist tower - holds the bead in the drop center for run-flat, low-profile, and stiff-sidewall tires.
- Swing-arm design - installs near the wall to conserve floor space.
- 3 HP electric turntable - reversible, controlled drive at 220 VAC.
- Stainless pneumatic bead-breaker - corrosion-free cylinder with bilateral accelerators.
- TurboBlast bead seating - directed air seats stubborn beads quickly.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Swing-Arm Tire Changer with Assist Tower |
| Motor | 3 HP |
| Power | 220 VAC, 50/60 Hz |
| Drive System | Electric / Air |
| Power Assist Tower | Standard |
| Weight | 904 lb (shipping) |
| Dimensions | 51 x 73 x 45 in (shipping, W x D x H) |
Who It's For
A space-saving choice for shops that want assist-tower help on run-flat and low-profile tires without the larger footprint of a tilt-back dual-tower machine. Plan for a 220V single-phase circuit and a shop air supply. A 110V L model with a 2 HP motor is offered separately.
Shipping and Freight
This machine ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
How is the R980AT different from the R980XR?
Both are R980 swing-arm tire changers. The R980AT adds a power-assist tower as standard for run-flat and low-profile tires, while the R980XR is the no-assist configuration.
What power does it use?
The standard R980AT runs a 3 HP motor at 220 VAC, 50/60 Hz. An L model is offered in a 110V, 2 HP configuration.
What does the assist tower do?
It holds the bead in the drop center and supports the upper bead, which makes mounting stiff-sidewall, run-flat, and low-profile tires easier and safer.
Does it save floor space?
Yes. The swing-arm design installs closer to the wall than a tilt-back machine, which helps in tighter bays.
Is bead seating included?
Yes. The TurboBlast bead seating system is standard across the R980 swing-arm series.
