Description
Overview

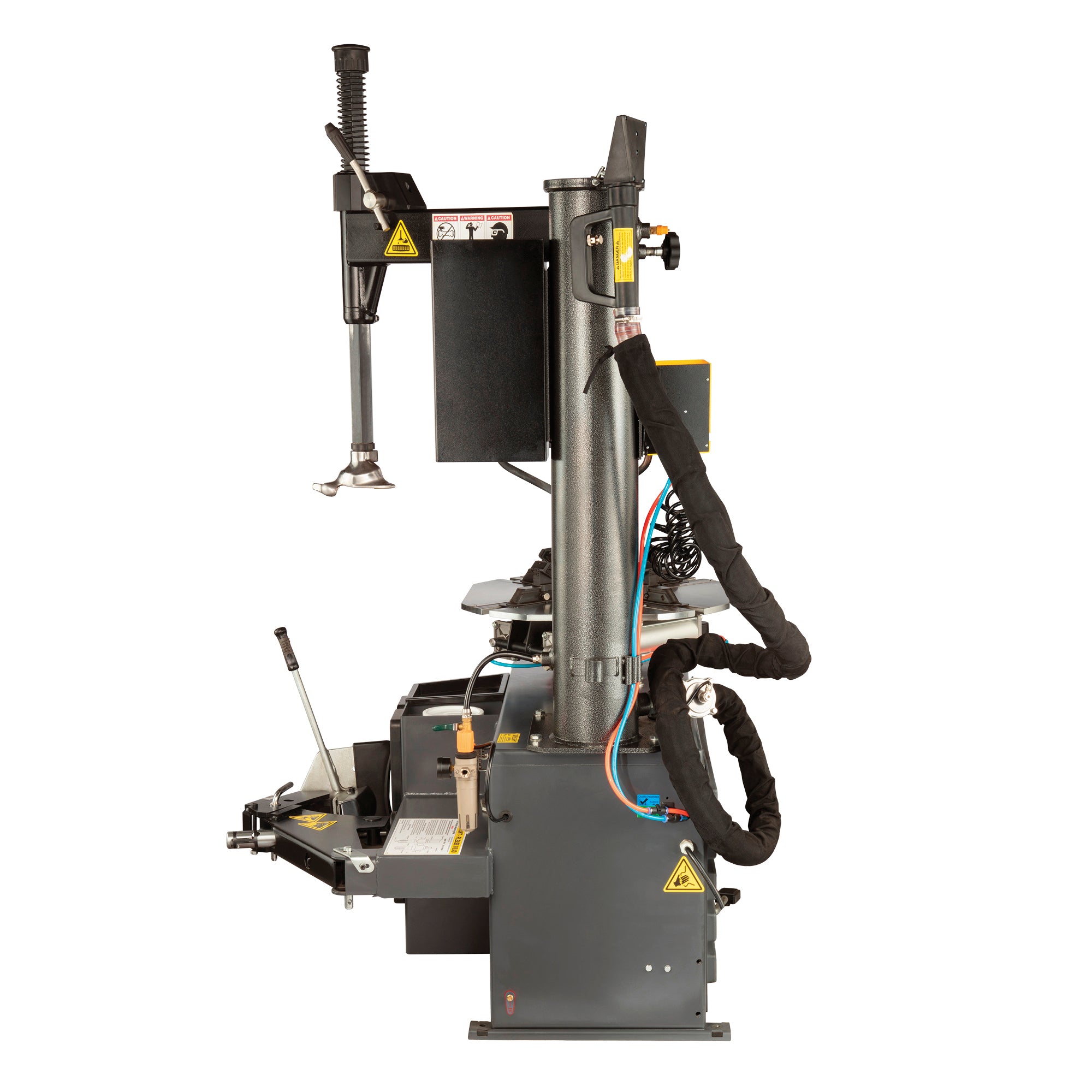

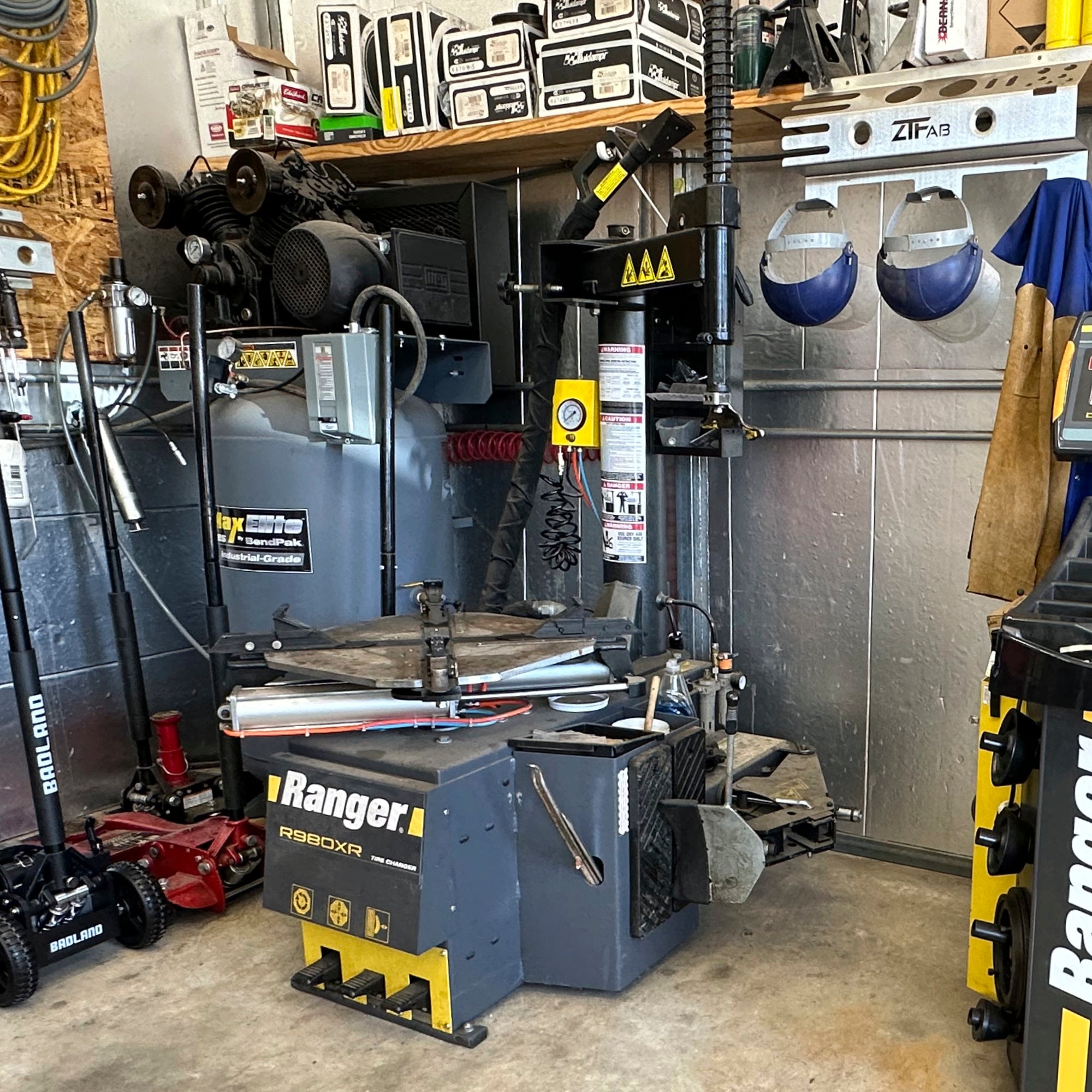

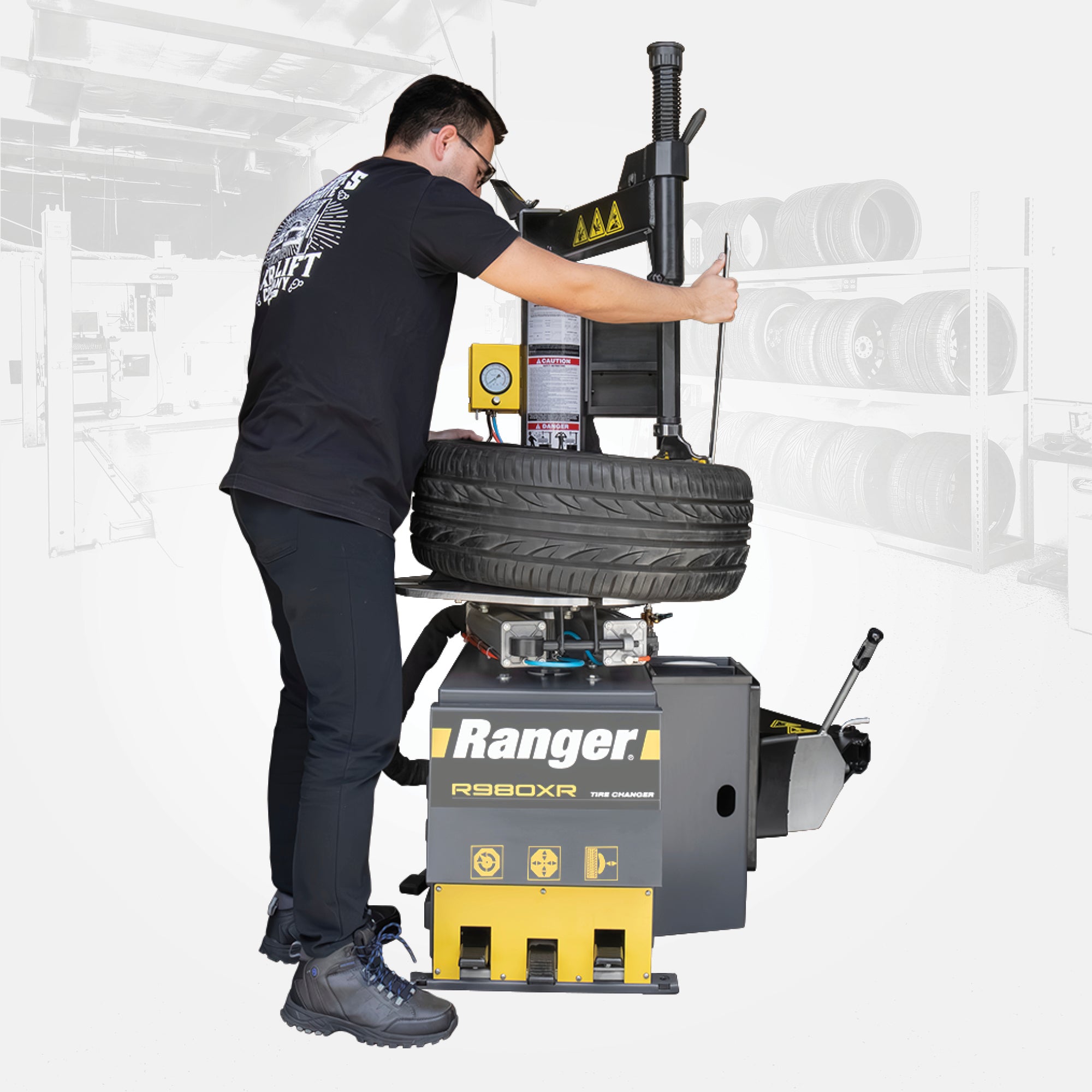

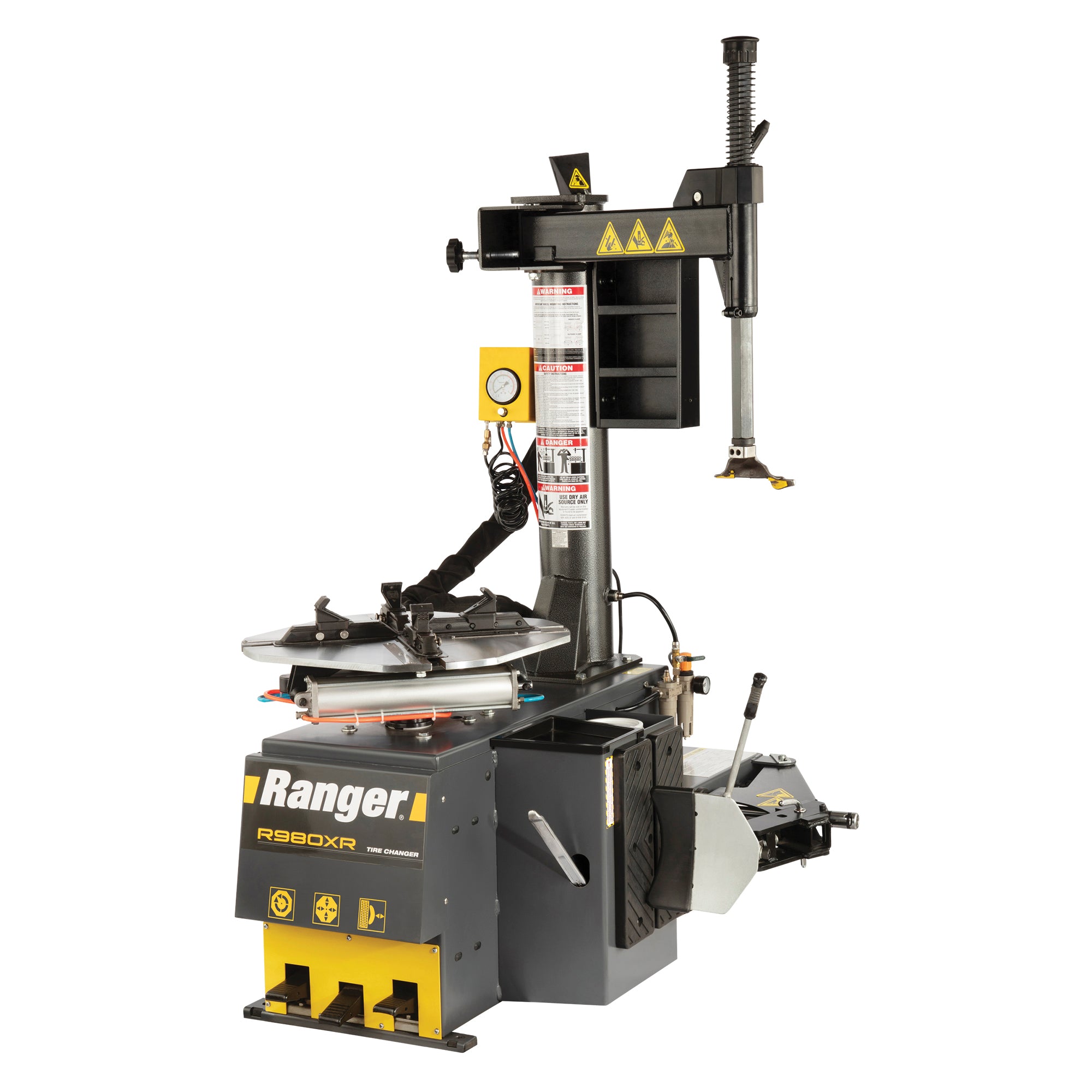

The BendPak Ranger R980XR is a swing-arm tire changer with a 30 inch turntable and a rigid, fixed tower. It installs close to the wall and handles everyday passenger, pickup, and SUV wheels quickly without the footprint of a tilt-back machine.
This is the space-saving alternative to the assist-tower R980AT. A high-torque electric turntable and dual pneumatic bead-breaker move tires through the bay at a controlled speed, and the included non-marring duck heads cover a wide range of wheels. It works well as a primary changer or a backup to a more specialized machine.
Key Features
- Swing-arm design - mounts near the wall to save floor space in tight bays.
- 30 inch clamping capacity - RimGuard clamps run 10 to 30 inches inside and 9 to 28 inches outside.
- 3 HP electric turntable - reversible, controlled drive at 220 VAC for clean tire removal and installation.
- Dual pneumatic bead-breaker - bilateral accelerators with a stainless cylinder for fast, corrosion-free operation.
- TurboBlast bead seating - an eight-gallon surge tank drives quick, repeatable bead seating.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Swing-Arm Tire Changer |
| Inside Clamping Range | 10" - 30" |
| Outside Clamping Range | 9" - 28" |
| Max Rim Width | 15" |
| Max Tire Diameter | 50" |
| Motor | 3 HP |
| Power | 220 VAC, 50/60 Hz |
| Drive System | Electric / Air |
| Air Requirement | 140 - 165 PSI |
| Tower Design | Rigid / Fixed |
| Weight | 716 lb (shipping) |
| Dimensions | 44 x 51 x 43 in (shipping, W x D x H) |
Who It's For
A space-conscious primary or backup machine for general repair shops servicing mostly passenger, pickup, and SUV tires. Plan for a 220V single-phase circuit and a shop air supply of 140 to 165 PSI. A 110V option is offered separately.
Shipping and Freight
This machine ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
Why choose a swing arm over a tilt-back?
A swing-arm machine like the R980XR installs closer to the wall and saves floor space. The duck head is adjusted between wheel sets, which is a fair trade for shops mostly running similar passenger and light truck tires.
What is the clamping range?
RimGuard clamps cover 10 to 30 inches internally and 9 to 28 inches externally, with a 15 inch maximum rim width and a 50 inch maximum tire diameter.
Can I add an assist tower later?
The R980 swing-arm series supports an assist tower; the R980AT ships with it as standard. The R980XR is the no-assist configuration.
What power and air does it need?
It runs on a 3 HP motor at 220 VAC, 50/60 Hz, and needs a shop air supply of 140 to 165 PSI.
Does it protect alloy wheels?
Yes. A polymer mount and demount head is included alongside the alloy-steel head to protect fragile rims from metal-to-metal contact.
Talk to an auto service specialist about shop power, footprint, and freight before you order. Browse the full BendPak range to pair a tire changer and balancer for your bay.
