Description
Overview

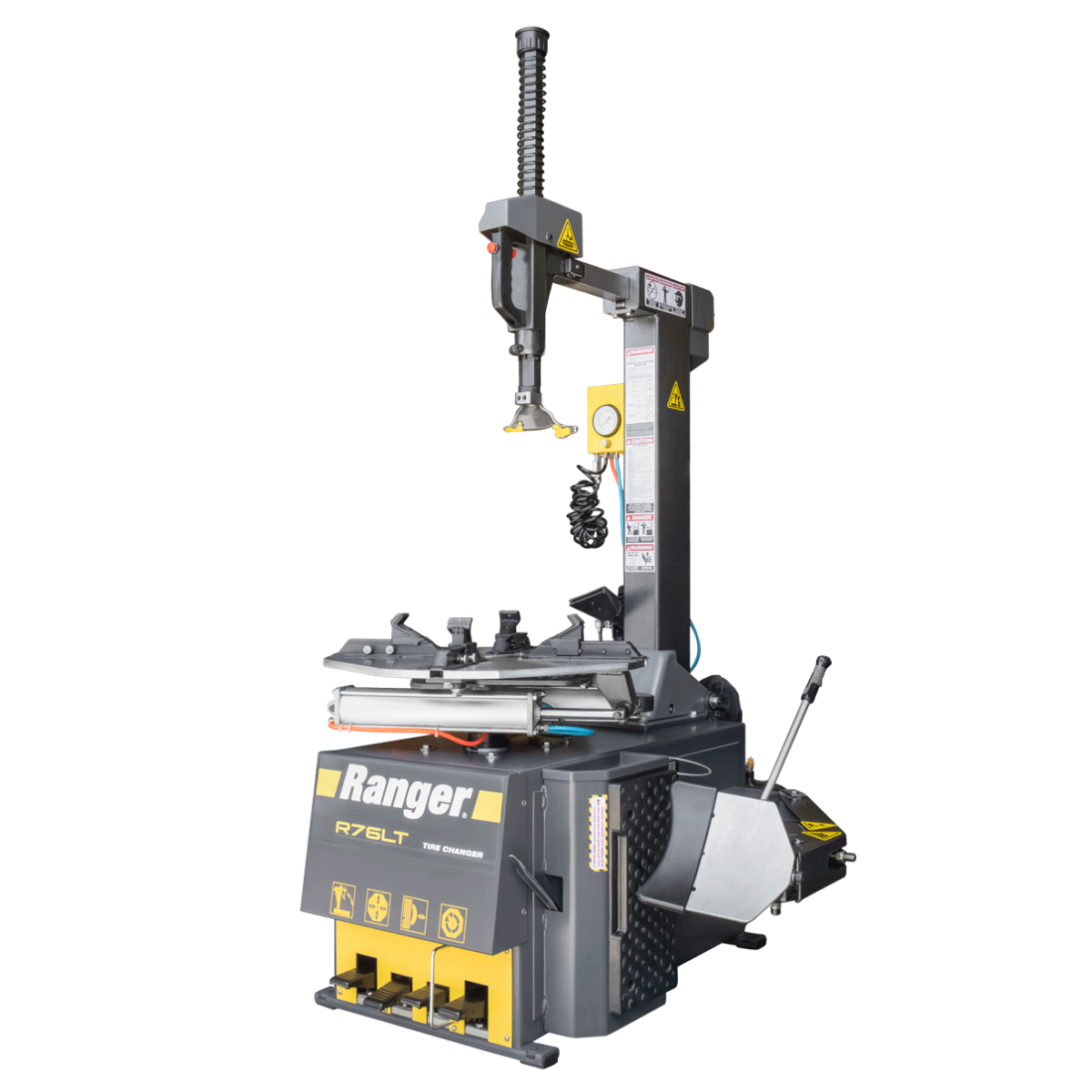

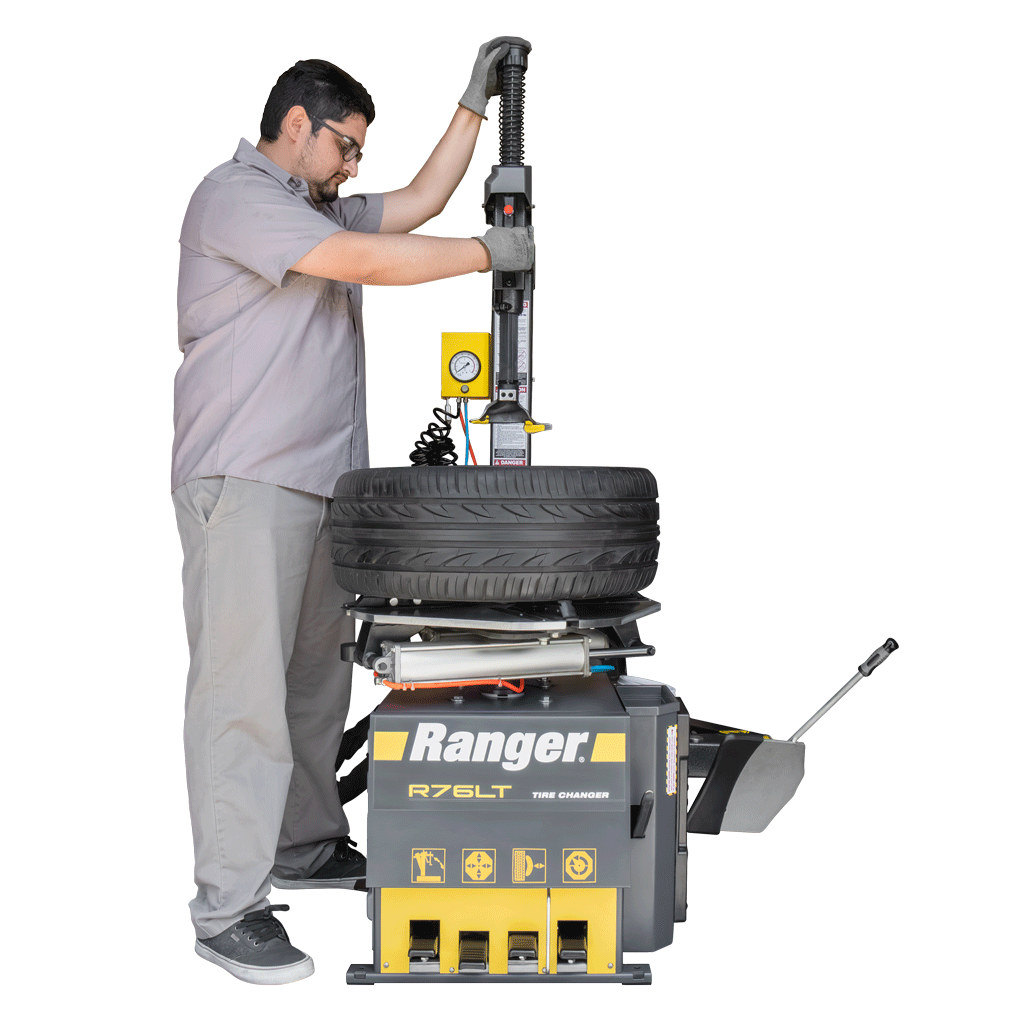

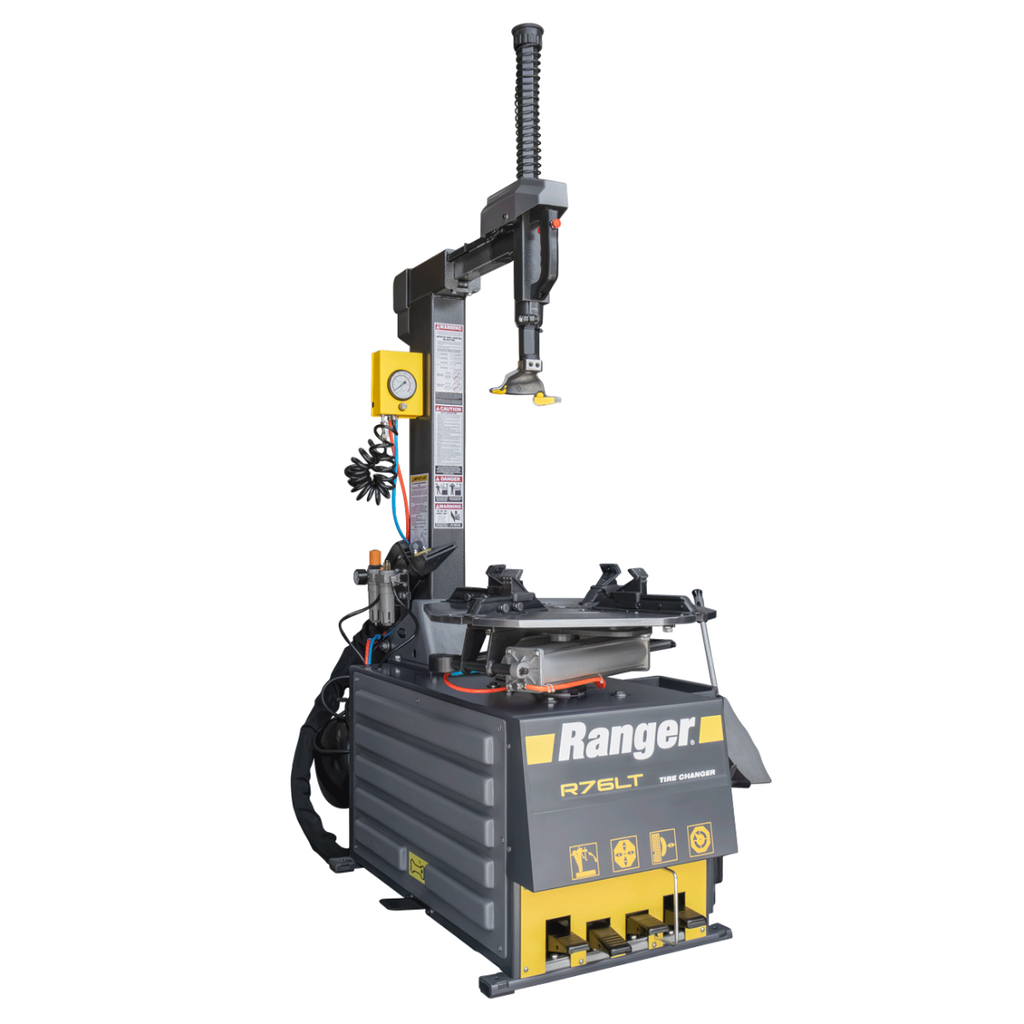

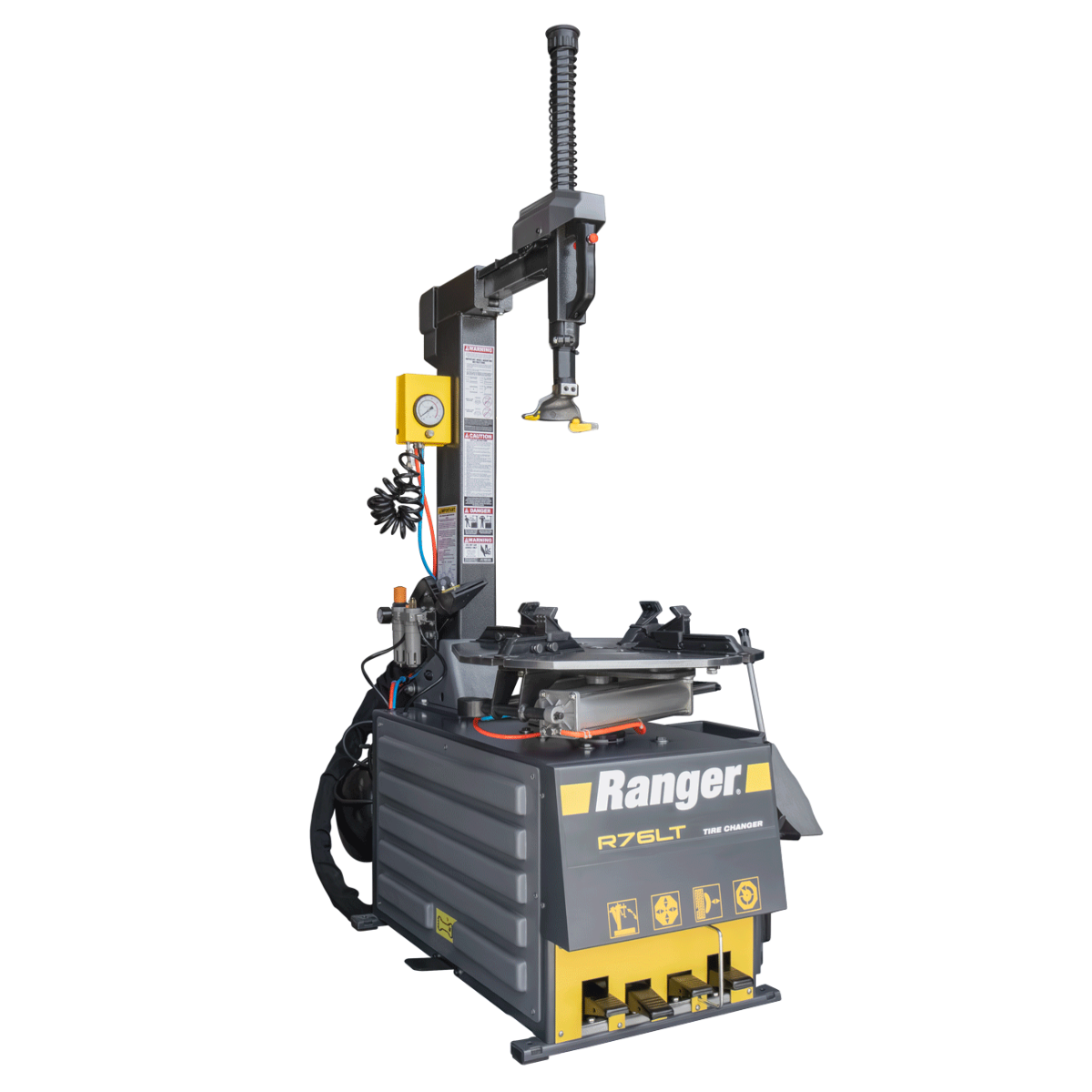

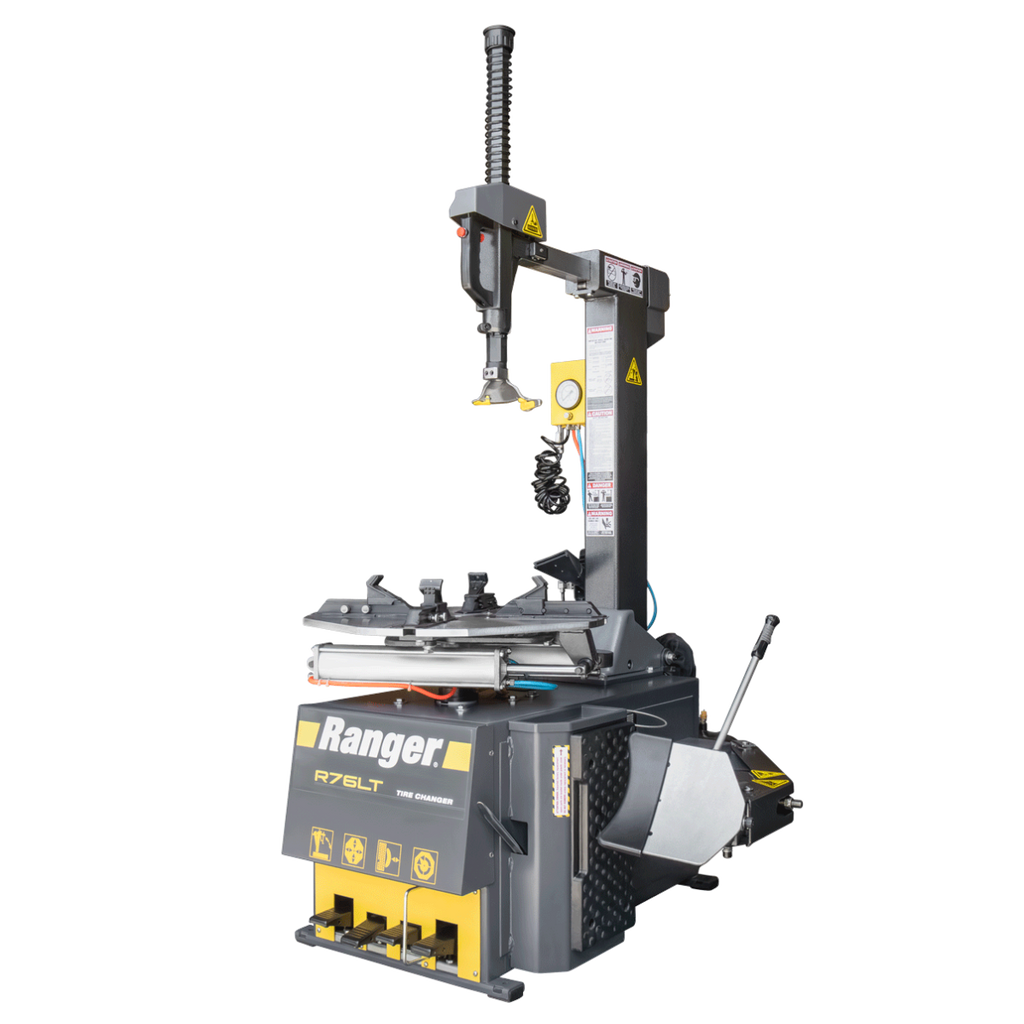

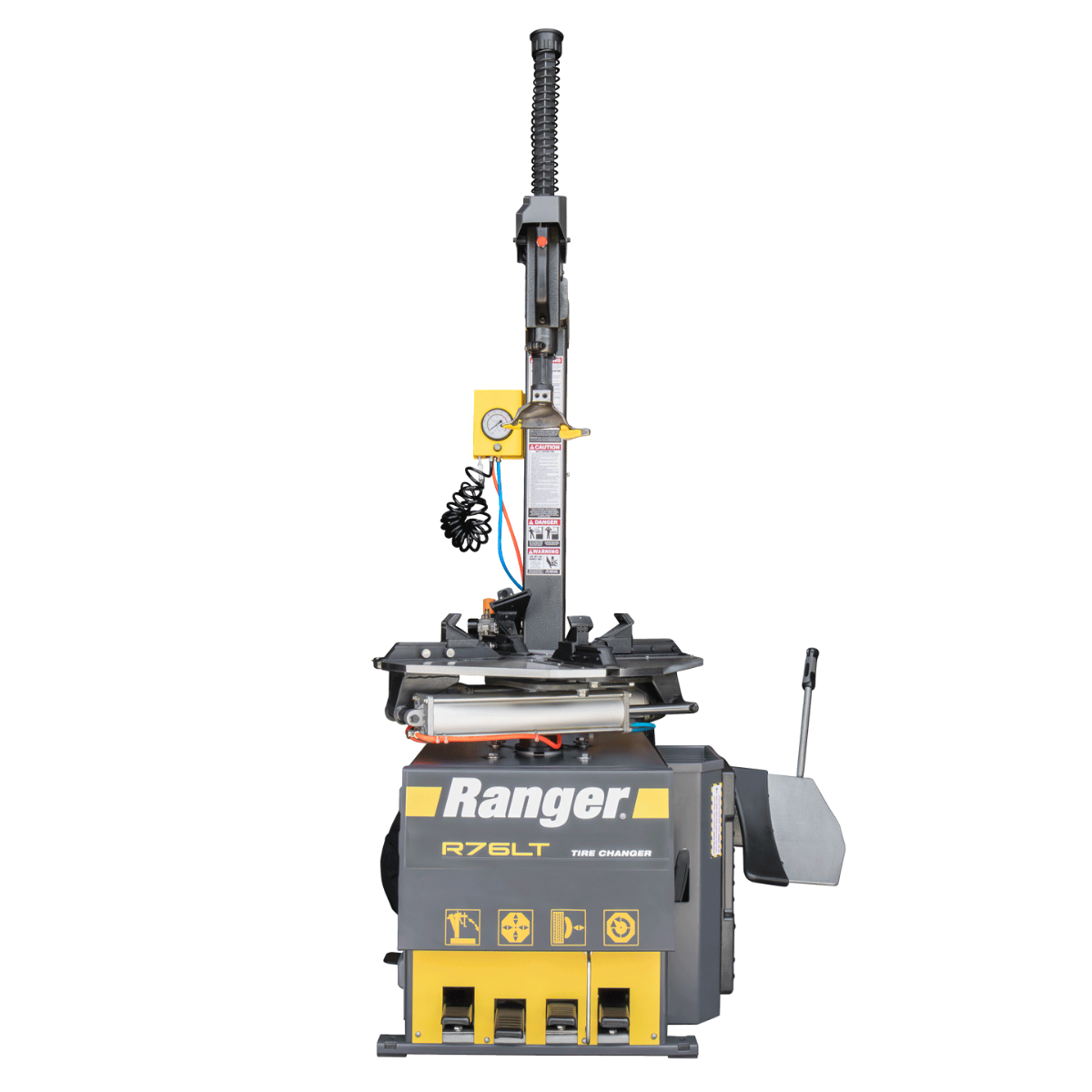

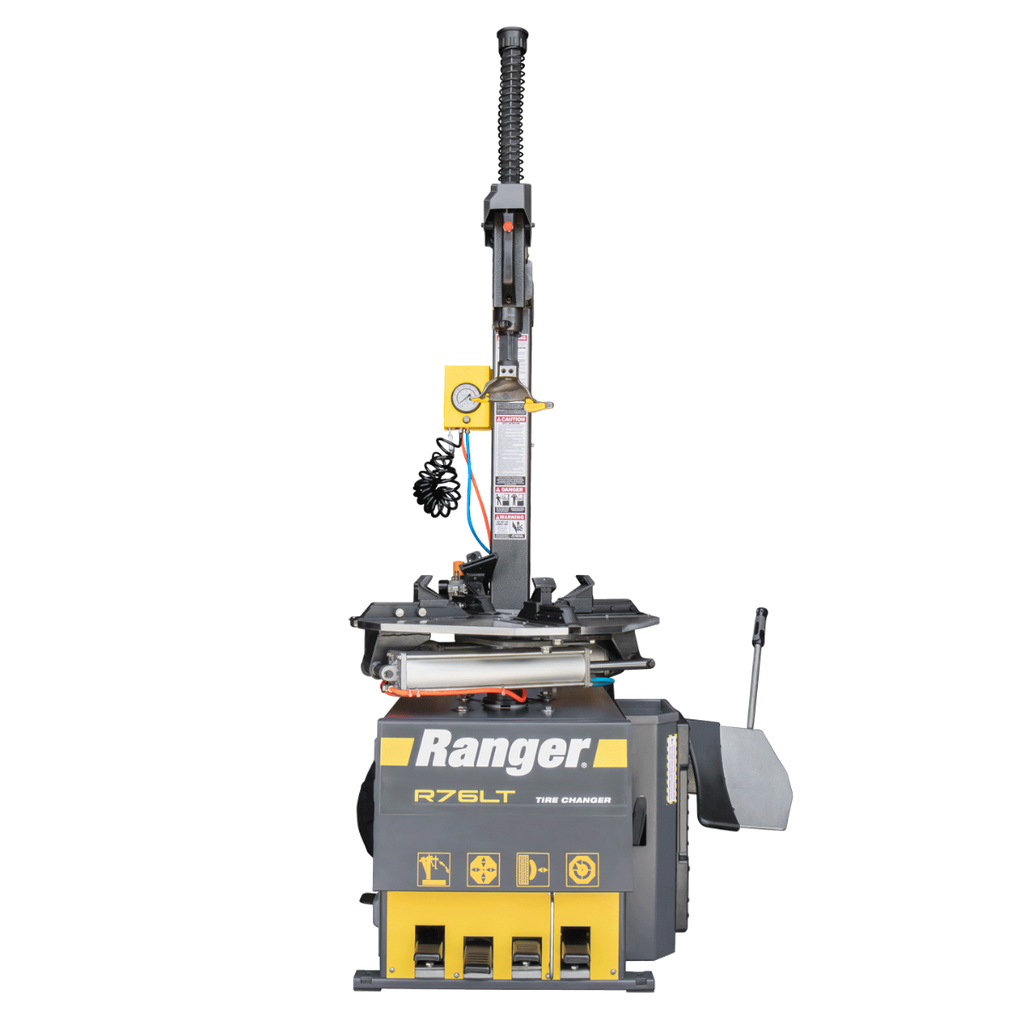

The BendPak Ranger R76LT is a tilt-back tire changer with a 30 inch turntable and no assist tower. It is the streamlined version of the R76ATR for shops that want fast, simple tire changes on everyday passenger and light truck wheels.
The tilt-back tower adjusts to wheel size and locks the tool head position for like sets, which keeps turnaround times short. A rigid 45 mm hexagonal vertical shaft and hardened steel outrigger arm eliminate flex so expensive wheels stay protected during service.
Key Features
- Tilt-back tower - sizes to the wheel and returns the locked tool head to position for repeat sets.
- 30 inch turntable - RimGuard clamps run 10 to 30 inches inside and 8 to 26 inches outside.
- 3 HP electric turntable - controlled, reversible drive at 220 VAC gives low-profile beads time to relax.

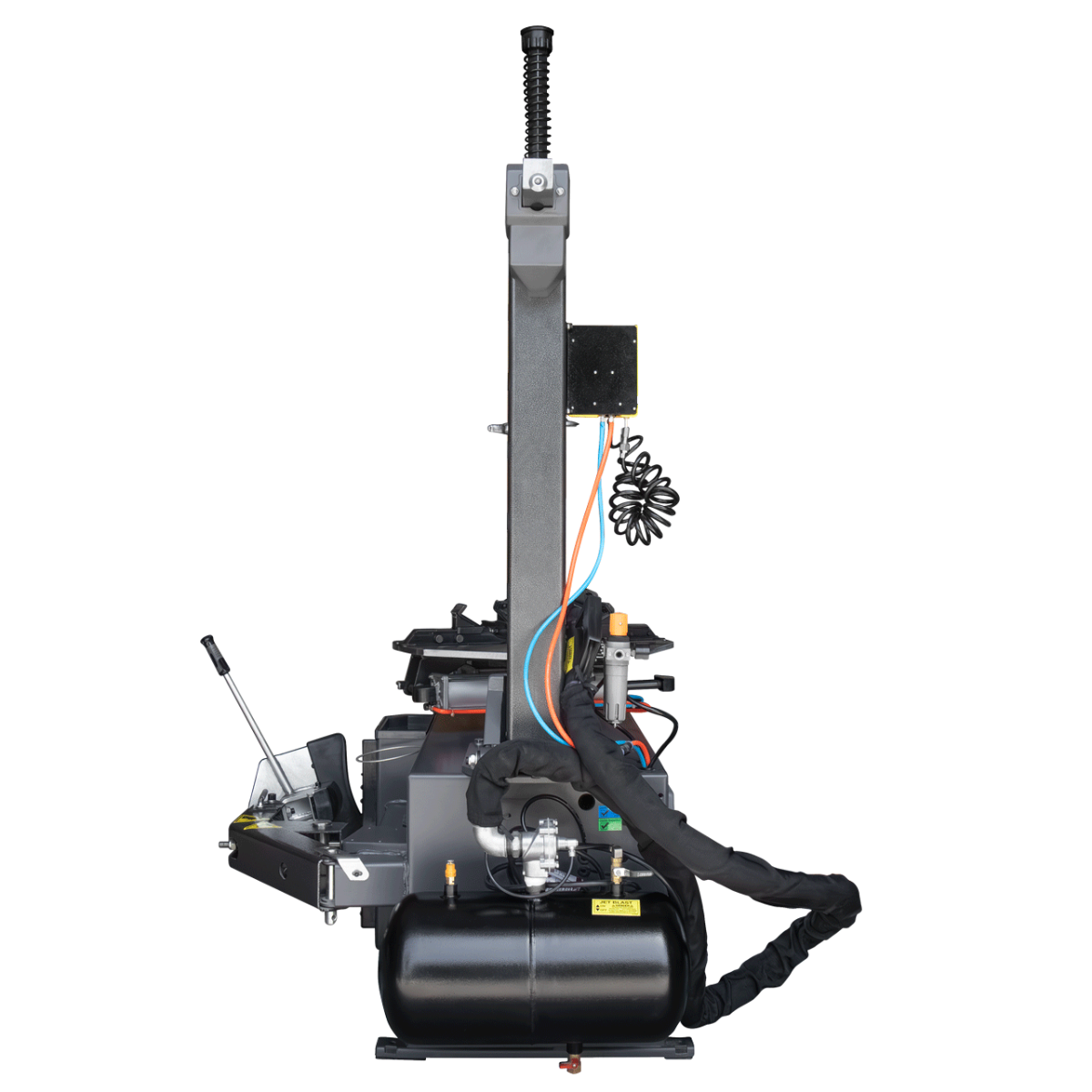

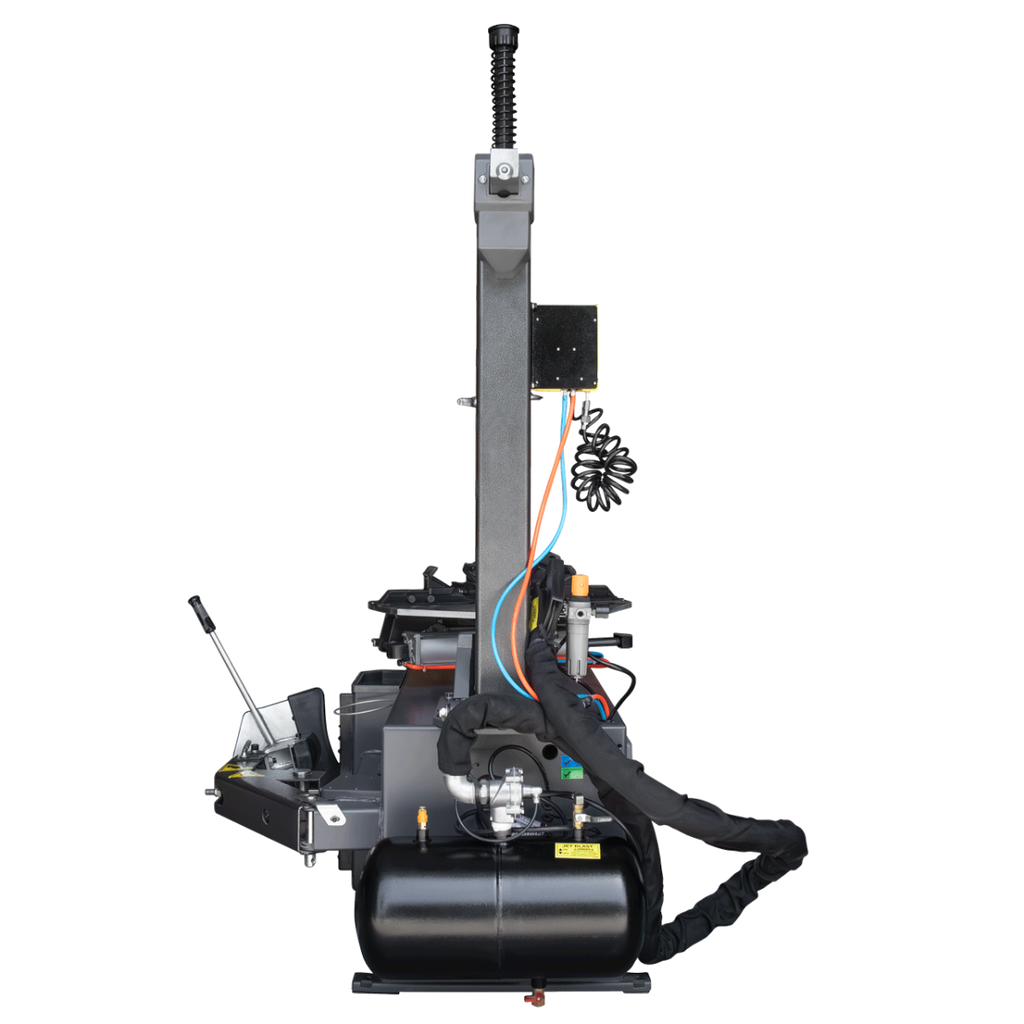

- TurboBlast bead seating - a portable burst of air seats beads quickly and safely.
- Rigid 45 mm tool shaft - spring-assisted hex shaft and outrigger arm reduce flex and wheel damage.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Tilt-Back Tire Changer |
| Inside Clamping Range | 10" - 30" |
| Outside Clamping Range | 8" - 26" |
| Max Rim Width | 15" |
| Max Tire Diameter | 43" |
| Motor | 3 HP |
| Power | 220 VAC, 50/60 Hz |
| Drive System | Electric / Air |
| Air Requirement | 110 - 175 PSI |
| Weight | 720 lb (shipping) |
| Dimensions | 40 x 52 x 40 in (shipping, W x D x H) |
Who It's For
A solid primary or backup machine for general repair shops that mostly service passenger and pickup tires and do not need a tower assist for run-flats. Plan for a 220V single-phase circuit and shop air.
Demo / Overview Video
Shipping and Freight
This machine ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
How is the R76LT different from the R76ATR?
The R76LT shares the tilt-back tower and turntable but leaves off the power-assist tower. It is built for general repair work where run-flat and low-profile assist is not needed.
What is the clamping range?
RimGuard clamps cover 10 to 30 inches internally and 8 to 26 inches externally, with a 15 inch maximum rim width and a 43 inch maximum tire diameter.
What power does it use?
It runs on a 3 HP motor at 220 VAC, 50/60 Hz, and needs a shop air supply of 110 to 175 PSI.
Can it still handle alloy wheels?
Yes. A nylon mount and demount head is included as standard to protect alloy rims and custom wheels.
Does the tool head stay set between wheels?
The tilt-back tower returns the pneumatically locked tool head to the same position, so like wheel sets do not require readjustment.
