Description
Overview

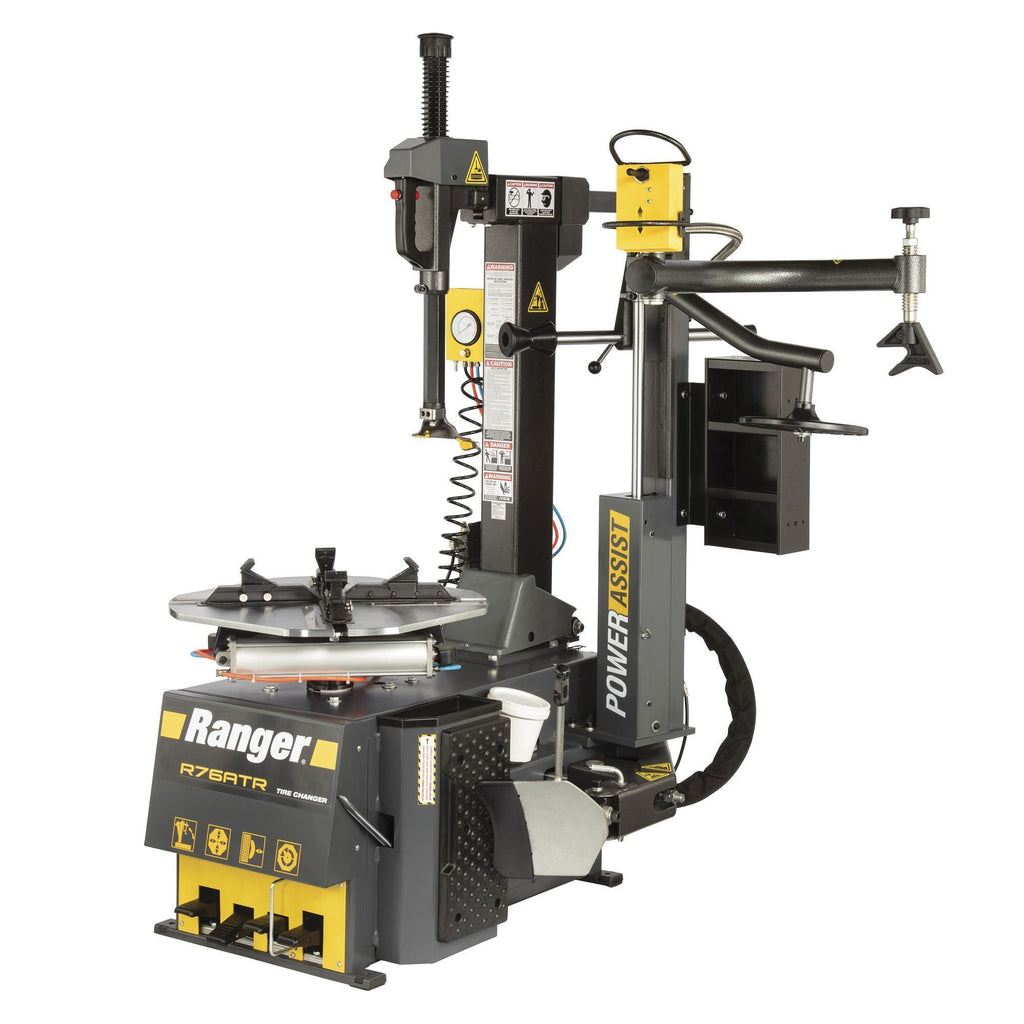

The BendPak Ranger R76ATR is a tilt-back tire changer with a single right-side power-assist tower and a 30 inch turntable. It pairs the convenience of a tilt-back tower with an assist arm for stiff sidewalls, so a wide mix of wheels moves through the bay quickly.
The tilt-back tower removes the duck-head adjustment between wheel sets, and the right-side assist tower holds low-profile and run-flat beads in the drop center. Adjustable RimGuard clamps extend out to 30 inches for versatility across passenger, light truck, and performance wheels.
Key Features

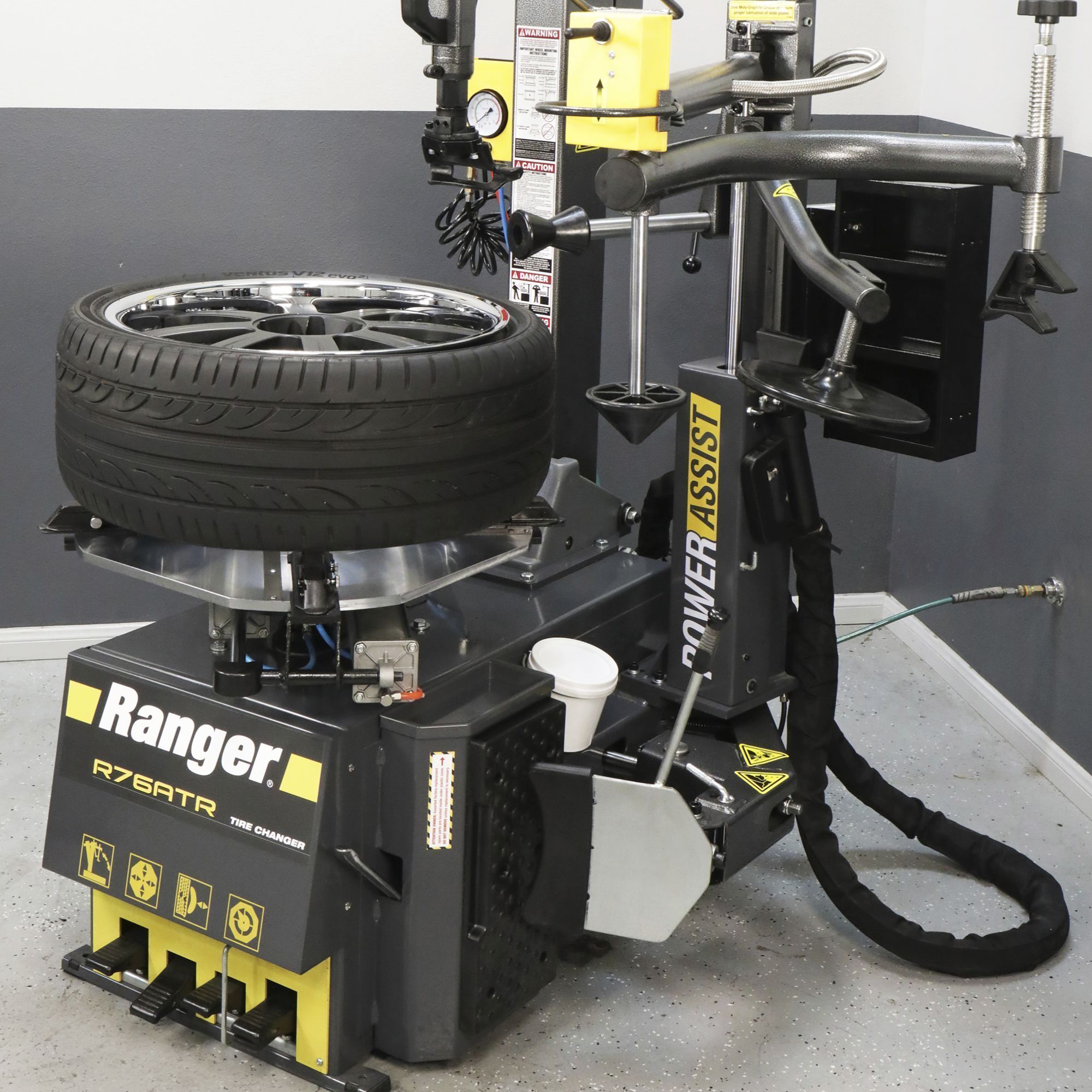

- Single right-side assist tower - holds stiff sidewalls in the drop center for run-flat and low-profile tires.
- 30 inch turntable - RimGuard clamps run 10 to 30 inches inside and 9 to 28 inches outside.
- Tilt-back tower - locks the tool head position for like wheel sets and adds ground clearance.
- 3 HP electric turntable - high-torque, reversible drive at 220 VAC with controlled speed.
- TurboBlast bead seating - a directed air burst seats stubborn beads without tire damage.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Tilt-Back Single-Tower Tire Changer |
| Inside Clamping Range | 10" - 30" |
| Outside Clamping Range | 9" - 28" |
| Max Rim Width | 15" |
| Max Tire Diameter | 43" |
| Motor | 3 HP |
| Power | 220 VAC, 50/60 Hz |
| Drive System | Electric / Hydraulic |
| Air Requirement | 110 - 175 PSI |
| Power Assist Tower | Single, Right-Side |
| Weight | 920 lb (shipping) |
| Dimensions | 51 x 73 x 45 in (shipping, W x D x H) |
Who It's For
A strong primary machine for independent shops and tire centers that see a broad mix of wheels, including the occasional run-flat or low-profile tire. Plan for a 220V single-phase circuit and shop air. A 110V model is offered separately for shops without 220V service.
Shipping and Freight
This machine ships on a pallet and requires freight handling. A forklift or dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential options. Handling and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
What does the single assist tower add over a basic changer?
The right-side assist tower presses the bead into the drop center and supports the upper bead, which makes run-flat, low-profile, and stiff-sidewall tires much easier to mount.
What is the clamping range?
RimGuard clamps cover 10 to 30 inches internally and 9 to 28 inches externally, with a 15 inch maximum rim width and a 43 inch maximum tire diameter.
Is there a 110V version?
Yes. BendPak offers an L model in a 110V, 50/60 Hz configuration with a 2 HP motor; this listing is the 220V, 3 HP machine.
Why a tilt-back tower instead of a swing arm?
A tilt-back tower keeps a locked tool head position for like wheel sets and adds ground clearance, which speeds repeat jobs.
What air pressure does it need?
BendPak lists an air requirement of 110 to 175 PSI.
