Description
Overview

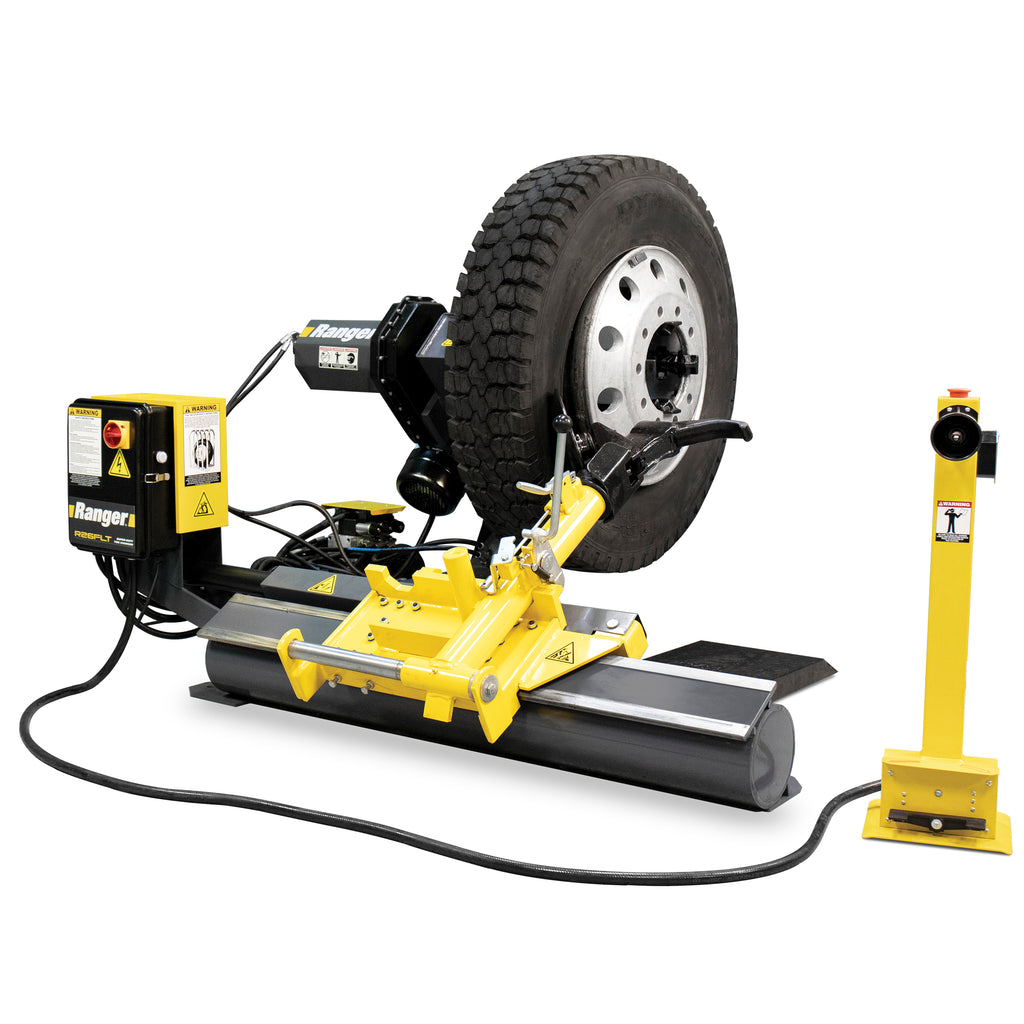

The BendPak Ranger R26FLT is a heavy-duty truck tire changer that demounts and mounts tubeless truck, bus, agricultural, and off-road tires with rims from 14 inches to 26 inches. A portable joystick control unit lets one operator run the machine from the best vantage point.
This is a dedicated commercial machine, not a passenger changer with bigger cones. A super-duty electric motor drives a bi-directional hydraulic system through a self-centering clamping chuck, so high-volume tire shops and fleet bays get short floor-to-floor times on large wheels without fighting the equipment.
Key Features
- 14 to 26 inch rim range - handles truck, bus, agricultural, and off-road wheels up to a 63 inch tire diameter and 31 inch tire width.
- Self-centering hydraulic clamping chuck - clamps from the center bore or the inside of the wheel.
- Super-duty electric and hydraulic drive - a 3 HP, 220 VAC bi-directional motor delivers smooth torque under load.
- Portable joystick control unit - the operator monitors and runs the machine from the safest angle.
- Single-piece frame - welded steel body with armor-plated bead-breaker disc for rigidity over years of service.
Specifications
| Brand | BendPak (Ranger) |
|---|---|
| Type | Heavy-Duty Truck Tire Changer |
| Max Rim Diameter | 14" - 26" |
| Max Tire Diameter | 63" |
| Max Tire Width | 31" |
| Motor | 3 HP |
| Power | 220 VAC, Single Phase, 50/60 Hz |
| Drive System | Electric / Hydraulic |
| Bead Breaking | Armor-Plated Disc |
| Weight | 1486 lb (shipping) |
| Dimensions | 63 x 80 x 38 in (shipping, W x D x H) |
Who It's For
Built for commercial truck shops, fleet maintenance, and farm and off-road tire service that turn large tubeless tires daily. Plan for a 220V single-phase circuit and an air supply, and allow clearance for the portable control unit and large wheel handling.
Shipping and Freight
This machine ships oversize on a pallet and requires freight handling. A forklift or loading dock makes receiving easier. Use the Request a Freight Quote path for liftgate and residential delivery options. Handling time and transit are confirmed at order.
About BendPak
BendPak builds automotive lifts and wheel service equipment under its Ranger Products line and is based in Agoura Hills, California. Ranger tire changers and balancers are a common sight in independent shops, tire centers, and fleet bays across North America.
Frequently Asked Questions
What size wheels does the R26FLT handle?
It services rims from 14 to 26 inches, tire diameters up to 63 inches, and tire widths up to 31 inches, covering most truck, bus, agricultural, and off-road tubeless tires.
Does it clamp from the center or the rim?
The self-centering hydraulic chuck can clamp from the center bore of the wheel or from the inside of the rim, so it adapts to different wheel styles.
What power does it need?
The machine runs on a 3 HP motor at 220 VAC, single phase, 50/60 Hz. Confirm your circuit before installation.
Is it gentle on aluminum wheels?
Yes. BendPak rates it as gentle on over-the-road tires and tubeless tires mounted on aluminum wheels.
How is it controlled?
A portable control unit with joystick lets a single operator position and run the machine from the most advantageous angle.
Talk to an auto service specialist about shop power, footprint, and freight before you order. Browse the full BendPak range to pair a tire changer and balancer for your bay.
